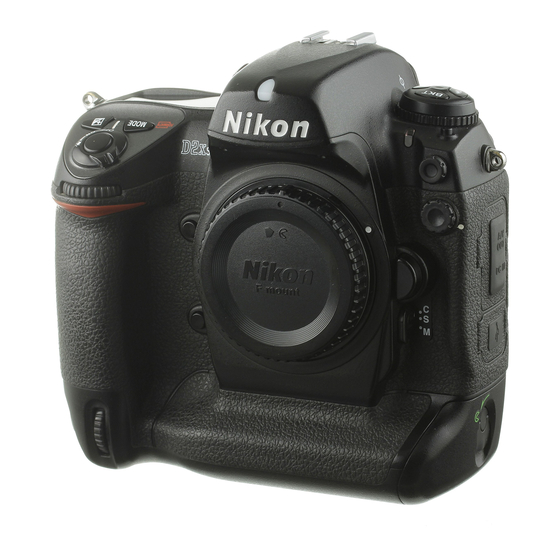

Nikon Digital SLR Camera D2
Specifications
Xs
Type
Single-lens reflex digital camera
Effective Pixels
12.4 million
Image Sensor
CMOS sensor, 23.7 x 15.7mm; total pixels: 12.84 million
Image Size (pixels)
Full image: 4,288 x 2,848(L), 3,216 x 2,136(M), 2,144 x 1,424(S)
High-speed Crop Image: 3,216 x 2,136(L), 2,400 x 1,600(M), 1,600 x 1,064(S)
Sensitivity
100 to 800 (ISO equivalent); HI-0.3, HI-0.5, HI-0.7, HI-1 and HI-2 available
Storage Media
CompactFlash™ (CF) Card (Type I/II) and Microdrive™
Storage System
NEF (12-bit uncompressed or compressed RAW),
EXIF 2.21, DCF 2.0 and DPOF compliant
(uncompressed TIFF-RGB or compressed JPEG)
Storage (number of frames)
For details, refer to page 9
Shooting Modes
1) Single frame shooting [S] mode: advances one frame for each shutter release
2) Continuous high shooting [C
] mode: Full Image; 5 frames per
H
second (fps)/High-speed Crop Image; 8 frames per second (fps)
3) Continuous low shooting [C
] mode: Full Image; 1 to 4 frames per
L
second (fps) (selectable in menu)/High-speed Crop Image;
1 to 7 frames per second (fps) (selectable in menu)
4) Self-timer mode: time duration can be set
5) Mirror up mode: first press: mirror up, second press: release
White Balance
1) Auto (hybrid with 1,005-pixel RGB Sensor, CMOS image sensor and
external Ambient Light Sensor)
2) Manual (6 steps with fine tuning)
3) Preset (5 settings)
4) Color temperature setting in Kelvin (select from 31 steps)
5) White balance bracketing (2 to 9 frames adjustable in 10, 20, 30
MIRED steps)
LCD Monitor
2.5-in., approx. 230,000-dot, low temp. polysilicon TFT LCD with white LED
backlighting; Backlight/brightness adjustment available
Playback Function
1) Full frame, 2) Thumbnail (4/9 segments), 3) Zoom, 4) Slideshow,
5) RGB Histogram indication, Shooting data and Highlight point display
Delete Function
1) Card format, 2) All frames delete, 3) Selected frames delete
Video Output
NTSC or PAL (selectable in menu)
Interface
USB 2.0 (Hi-Speed) (Mini-B connector)
FTP file transfer and PTP/IP camera control/file transfer is available with
optional WT-2/2A (IEEE 802.11b/g) Wireless transmitter; FTP file transfer
compatibility with WT-1/1A (IEEE 802.11b)
CF Card Slot Type II: supports firmware updates via CF cards
Voice Memo
Record mode: Automatic or manual recording at shooting or playback,
Max. recording time: 60 seconds
Playback mode: Built-in speaker or Audio Video Cable
File format: Mono WAV file
Text Input
Up to 36 characters of alphanumeric text input is available with LCD monitor
and multi-selector; stored in EXIF header
Usable Lenses
1) AF Nikkor (including AF-S, DX, VR and D-/G-type): All functions possible
2) D-type Manual-Focus Nikkor: All functions except autofocus and some
exposure modes available
3) AF Nikkor other than D-/G-type: All functions except 3D-Color Matrix
Metering II and 3D Multi-Sensor Balanced Fill-Flash possible
4) AI-P Nikkor: All functions except 3D-Color Matrix Metering II,
3D Multi-Sensor Balanced Fill-Flash and AF possible
5) Non-CPU AI Nikkor: Usable in [A] or [M] mode with Matrix Metering,
Center-Weighted and Spot Metering available
Indication of aperture No., after user inputs the aperture f/No. and focal
length F=mm by multi-selector operation
Electronic rangefinder usable with maximum aperture of f/5.6 or faster
Picture Angle
Full Image: Approx. 1.5x focal length in 35mm [135] format equivalent
High-speed Crop Image: Approx. 2x focal length in 35mm [135] format equivalent
Viewfinder
Optical-type fixed eye-level pentaprism; Built-in diopter adjustment (-3 to
+1m
-1
), Eyepiece shutter provided
Eyepoint
19.9mm (at -1.0m
-1
)
Focusing Screen
BriteView Clear Matte Screen III; supplied Type-B or
optional Type-E with grid
Viewfinder Frame Coverage
Approx. 100% (High-speed Crop mode: Approx. 97%)
Viewfinder Magnification
Approx. 0.86x with 50mm f/1.4 lens set to infinity and -1.0m
-1
Reflex Mirror
Automatic, instant-return type
Lens Aperture
Instant-return type, with Depth-of-field Preview Button
Autofocus
TTL phase detection, Nikon Multi-CAM 2000 autofocus module;
Detection range: EV -1 to +19 (Right edge/Left edge AF range: EV 0 to +19)
(at normal temperature [68°F/20°C], ISO 100 equivalent)
Lens Servo
1) Single servo AF [S], 2) Continuous servo AF [C], 3) Manual focus [M]
Focus Tracking automatically activated by subject's status in [S] or [C] AF
Focus Area
Selectable from 11 focus areas (High-speed Crop: 9 focus areas)
AF Area Modes
1) Single Area AF 2) Dynamic-area AF 3) Group Dynamic AF
4) Dynamic-area AF with closest subject priority
The following memory cards have been tested and approved for use with the D2
. • SanDisk Corporation: 128MB-8GB (SDCFB, SDCFB(Type II), SDCF2B(Type II), SDCFH (Ultra II), and SDCFX (Extreme III) • Lexar Media
Xs
Corporation: 128MB-8GB (Entry-level, 40x, Professional 40x with WA, Professional 80x with WA) • Microdrive™: 340MB, 512MB, 1GB, 2GB, 4GB, 6GB
For more details, please contact the respective media card manufacturer. CF cards not listed above are not guaranteed to operate properly.
Microsoft
®
and Windows
®
are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
States and/or other countries.
CompactFlash
™
is a trademark of SanDisk Corporation.
Products and brand names are trademarks or registered trademarks of their respective companies.
shown in this brochure are simulated.
Specifications and equipment are subject to change without any notice or obligation on the part of the
manufacturer. June 2006
c 2006 NIKON INC.
TO ENSURE CORRECT USAGE, READ MANUALS CAREFULLY BEFORE USING
WARNING
YOUR EQUIPMENT. SOME DOCUMENTATION IS SUPPLIED ON CD-ROM ONLY.
1300 Walt Whitman Road, Melville, N.Y. 11747-3064, USA.
www.nikondigital.com
Printed in Japan Code No. 6CE60165 (0605A) Ad
Focus Lock
Focus is locked by pressing AE-L/AF-L button or lightly pressing shutter
release button in [S] AF
Exposure Metering System
TTL full-aperture exposure metering system;
1) D-/G-type Nikkor lenses support 3D-Color Matrix Metering II using the
1,005-pixel RGB Sensor while other AF Nikkor lenses with built-in CPUs
support Matrix Metering (Non-CPU lenses require manual input of lens data)
2) Center-Weighted Metering (75% of the meter's sensitivity concentrated
on the 8mm dia. circle) given to 6, 10 or 13mm dia. circle in center of
frame, or weighting based on average of entire frame
3) Spot Metering (3mm dia. circle, approx. 2% of entire frame); metering position
can be linked to the focus area when using Nikkor lenses with built-in CPU
Exposure Metering Range
1) 3D-Color Matrix Metering II: EV 0 to 20
2) Center-Weighted Metering: EV 0 to 20
3) Spot Metering: EV 2 to 20
(at normal temperature [20°C/68°F], ISO 100 equivalent, f/1.4 lens)
Exposure Meter Coupling
CPU and AI (Automatic maximum aperture Indexing)
Exposure Modes
1) [P] Programmed Auto with flexible program
2) [S] Shutter-priority Auto
3) [A] Aperture-priority Auto
4) [M] Manual
Exposure Compensation
±5 EV increments of 1/3, 1/2 or 1 EV
Auto Exposure Lock
Detected exposure value locked by pressing AE-L/AF-L button
Auto Exposure Bracketing
Number of shots: 2 to 9 frames
Compensation steps: 1/3, 1/2, 2/3, or 1 EV steps
Shutter
Electronically-controlled vertical-travel focal plane shutter, 30 to 1/8,000 sec.
in steps of 1/3, 1/2 or 1 EV, bulb
Sync Contact
X-contact only: flash synchronization at up to 1/250 sec.
Flash Control
1) Creative Lighting System: i-TTL Balanced Fill-Flash controlled by TTL
Sensor with Nikon Speedlight SB-800/600: Advanced Wireless Lighting,
FV (Flash Value) Lock, Flash Color Information Communication for Auto
White Balance, Auto FP High-Speed Flash Sync, Modeling Flash
2) D-TTL Balanced Fill-Flash: When used with the Speedlight SB-80DX/50DX
and in accordance with the mounted lens, five-segment TTL Multi Sensor
control makes available 3D Multi-Sensor Balanced Fill-Flash, Multi-Sensor
Balanced Fill-Flash, and Standard D-TTL Balanced Fill-Flash
3) AA (Auto Aperture-type) Flash available when used with SB-800/80DX
and lens with built-in CPU
4) Non-TTL Auto Flash (A-type Flash) with a Speedlight such as
SB-800/30/27/22s etc.
5) Range-priority manual available with SB-800
Flash Sync Modes
1) Front-curtain sync (normal sync), 2) Red-eye reduction,
3) Red-eye reduction with slow sync, 4) Slow sync, 5) Rear-curtain sync
Ready-light
Lights up when flash fully charged with Speedlight SB-800/600/80DX/
28DX/50DX; blinks for full output warning
Accessory Shoe
Standard ISO hot-shoe contact with safely lock provided
Sync Terminal
ISO 519 standard terminal, lock screw provided
Self-timer
Electronically controlled timer with 2 to 20 seconds duration
Depth-of-field Preview Button
Stop-down lens aperture by pressing Depth-of-field Preview Button
Remote Control
Via 10-pin remote terminal
GPS
NMEA 0183 (ver. 2.01) Interface standard supported with
9-pin D-sub cable (optional) and GPS Cable MC-35 (optional)
Supported Languages
English, French, German, Spanish, Italian, Dutch, Swedish,
Simplified Chinese, Korean, Japanese (selectable in menu)
Power Requirements
Rechargeable Li-ion Battery EN-EL4a (11.1V DC),
Quick Charger MH-21, AC Adapter EH-6 (optional)
Battery Monitoring System
The LCD monitor on the camera back displays the following information
about the EN-EL4a battery: 1) Remaining charge (%); 2) No. of shots taken
since last charge; 3) Calibration status (Recommended/Not required);
4) Battery life (5 stages)
Tripod Socket
1/4 in. (ISO 1222)
Dimensions (W x H x D)
Approx. 6.2 x 5.9 x 3.4 in. (157.5 x 149.5 x 85.5mm)
Weight (without battery)
Approx. 2.4 lbs (1,070g)
Supplied Accessories*
Rechargeable Li-ion Battery EN-EL4a, Quick Charger MH-21, Body Cap,
Camera Strap AN-D2Xs, Audio Video Cable EG-D2, USB Cable UC-E4,
LCD Monitor Cover BM-3, Battery Chamber Cover BL-1, Type-B Focusing
Screen, PictureProject software CD-ROM
Optional Accessories
Wireless Transmitter WT-2/2A, Extended Range Antenna WA-E1, AC Adapter
EH-6, Type-E Focusing Screen, Magnifier DG-2, Antifog Finder Eyepiece DK-
17A, Rubber Eyepiece Cup DK-19, Eyepiece Correction Lens DK-17C series,
Magnifying Eyepiece DK-17M, Right-Angle Magnifying Viewing Attachment DR-5,
Speedlight SB-800/SB-600/SB-R200, Capture NX Software, Camera Control
Pro Software, Image Authentication Software.
*Supplied accessories may differ in each country or area.
Macintosh
®
is a registered trademark or a trademark of Apple Computer Inc. in the United
Images in viewfinders, on LCDs and monitors
DSLR-D2XS-30-05/06
