Miele W 5740 Operating Instructions Manual

Honeycomb care
Hide thumbs

Advertisement

Operating instructions

for Washing machine
W 5740
en - GB
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.
M.-Nr. 07 483 960

Advertisement

loading

  Also See for Miele W 5740

  Summary of Contents for Miele W 5740

  • Page 1: Operating Instructions

    Operating instructions for Washing machine W 5740 en - GB To avoid the risk of accidents or damage to the machine it is essential to read these instructions before it is installed and used for the first time. M.-Nr. 07 483 960...
  • Page 2: Caring For Our Environment

    Caring for our environment Disposal of the packing Disposal of your old machine material Electrical and electronic machines often contain materials which, if The transport and protective packing handled or disposed of incorrectly, has been selected from materials which could be potentially hazardous to are environmentally friendly for disposal human health and to the environment.
  • Page 3: Table Of Contents

    Contents Caring for our environment ......... 2 Warning and Safety instructions .
  • Page 4 Contents Detergent ............28 The correct detergent .
  • Page 5 The Miele water protection system ........
  • Page 6: Warning And Safety Instructions

    Any other applications may be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.
  • Page 7 If the connection cable is faulty it data on the data plate (voltage and must only be replaced by a Miele connected load) match the mains approved service technician to protect electricity supply. If in any doubt, the user from danger.
  • Page 8: Correct Use

    A special descaling agent is available to order from the Miele Spare Parts Department or via the internet on www.miele-shop.com.
  • Page 9 Accessory parts may only be fitted damage to component parts and create when expressly approved by Miele. If toxic fumes. Such agents also pose a other parts are used, guarantee, fire and explosion hazard.
  • Page 10: Operating The Washing Machine

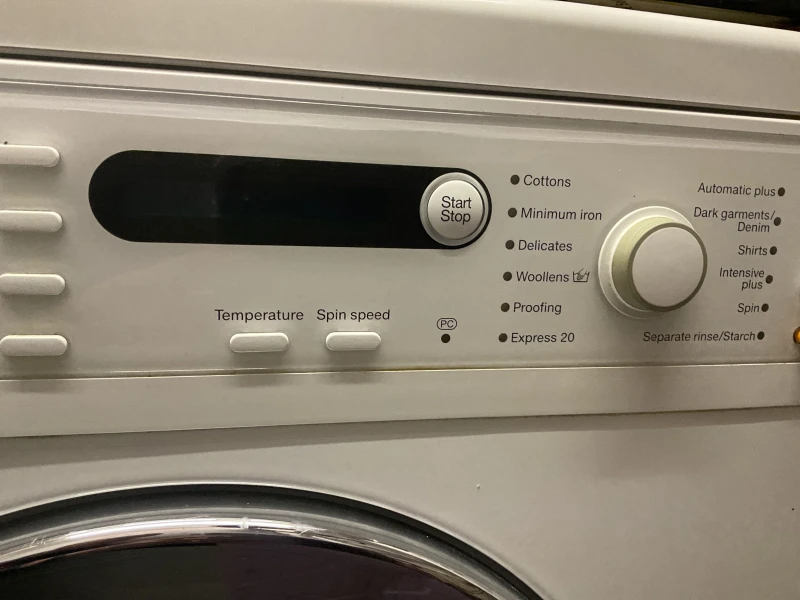

    Operating the washing machine Control panel Extra option buttons Start/Stop button Various extra options can be added For starting the programme selected to the washing programmes. and cancelling a programme once it has started. Display See the following page for more Programme selector information.
  • Page 11 Operating the washing machine Programme duration After the start of a programme, the estimated programme duration will appear in the display in hours and minutes. During the first 8 minutes the washing machine measures how much water is being absorbed by the laundry and uses this to calculate the load.
  • Page 12: Before Using For The First Time

    Before using for the first time Setting the language Before using the machine for the first You will be asked to select the time ensure that it is correctly language you require for the display. It installed and connected. See is possible to change the language at "Installation and connection".
  • Page 13: Washing Environmentally And Economically

    Washing environmentally and economically Energy and water consumption Detergent – Water consumption and energy – Do not exceed the amounts of usage are determined by the size of detergent recommended by the the load. manufacturer on the packaging. To make the most out of your –...
  • Page 14: How To Wash Correctly

    How to wash correctly Brief instructions If you use a solvent-based clean- The headings numbered , . . . ing agent (e.g. one containing ben- show the operating sequence and can zene) to pre-treat a stain, make sure be used as brief instructions. that any plastic parts (e.g.
  • Page 15 How to wash correctly Switch on the washing machine Select a programme Load the drum ^ Press the Door button to open the drum door. ^ Unfold the laundry and load loosely into the drum. Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning.
  • Page 16: Extra Quiet

    How to wash correctly Select an extra option(s) Pre-wash The Pre-wash button is used for activating the Pre-wash option on its own as well as a Pre-wash with an additonal soak time of one or two hours. Press the button: x 1 = Pre-wash x 2 = Pre-wash + 1 h soak x 3 = Pre-wash +2 h soak...
  • Page 17 How to wash correctly Add detergent It is important to dispense the correct amount, because ..too little detergent results in: – Laundry not getting properly clean and with time it may become grey and hard to the touch. –...
  • Page 18: Start The Programme

    How to wash correctly Start the programme Check that all items have been ^ Press the flashing Start/Stop button. removed from the drum. Items left in The estimated programme duration will the drum could discolour other items appear in the display once the in the next wash or become discoloured themselves.
  • Page 19: Spinning

    Spinning Final spin speed To omit the final spin (Rinse hold) ^ Select the Rinse hold ( ) setting Programme using the Spin speed button. The Cottons 1400 laundry will not be spun and will Minimum iron 1200 remain suspended in the final rinse Delicates water.
  • Page 20: Programme Chart

    Programme chart Cottons cold to 95°C Max. load 7.0 kg Fabric Cotton, linen or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc. Note for test institutes: Short programme: 3.5 kg load and Short extra option Minimum iron cold to 60°C Max.
  • Page 21 Programme chart Automatic plus cold to 40°C Max. load 5.0 kg Fabric Mixed loads of garments suitable for the Cottons and Minimum iron programmes. Sort according to colour. Note The wash parameters (e.g. water level, wash rhythm and spin speed) are adjusted automatically in this programme to ensure the best possible care and wash result for each item.
  • Page 22: Extras

    Extras The following extra options can be selected in addition to the programme: Cottons Minimum iron Delicates Woollens Proofing Express 20 Automatic plus Dark garments / Denim Shirts Intensive plus Spin Separate rinse/Starch = The extra option is activated automatically as part of the programme = The extra option is activated automatically as part of the programme and cannot be deselected...
  • Page 23: Garment Care Label Symbols

    Garment care label symbols Washing Ironing The figure quoted in the bucket is the The number of dots indicates the maximum temperature the garment ironing temperature can be washed at. The number of Hot iron (max sole plate temp. bars under the symbol indicates the approx.
  • Page 24: Programme Sequence

    Programme sequence Main wash Rinses Spinning Water Wash Water Rinses Interim Final level rhythm level spin spin 1)2) Cottons Minimum iron Delicates – Woollens Proofing – – – Express 20 Automatic plus Dark garments / – Denim Shirts – 1)2) Intensive plus Spin –...
  • Page 25 Programme sequence = Low water level Special features in the programme sequences: = Medium water level Anti-crease: = High water level At the end of the programme, the drum = Intensive rhythm continues to turn at intervals for up to = Normal rhythm 30 minutes to help prevent creasing.
  • Page 26: Changing The Programme Sequence

    Changing the programme sequence Cancelling a programme Changing a programme You can cancel a programme at any After the start of a programme it is no time after it has started. longer possible to select a different programme. ^ Press the Start/Stop button. Temperature Cancel programme ^ Press the flashing Start/Stop button...
  • Page 27: Adding Or Removing Laundry After A Programme Has Started

    Changing the programme sequence Adding or removing laundry Safety lock after a programme has started The safety lock prevents the machine ^ Press the Door button to open the from being opened and programmes drum door. from being cancelled during a wash programme.
  • Page 28: Detergent

    For programmes with a pre-wash you will need to purchase a special container from the Miele Spare Parts department which sits in the main wash compartment of the detergent dispenser drawer . Add liquid detergent to this container for the main wash and to compartment for the pre-wash.
  • Page 29 Detergent Universal Detergent Detergent Specialist Proofing Fabric detergent detergent agent conditioner coloureds delicates Cottons – – – Minimum iron – – – Delicates – – Woollens – – – – Proofing – – – – – Express 20 – – –...
  • Page 30: Water Softener

    No visible dirt or stains. Possibly softener. slight body odour. Miele branded water softening tablets Normally soiled are available from the Miele Spare Parts Visibly dirty and/or just a few slight Department or via the internet on stains. www.miele-shop.com. Heavily soiled...
  • Page 31: Fabric Conditioners And Liquid Starch

    Detergent Fabric conditioners and liquid If starching frequently, thoroughly starch clean the dispenser compartment, Fabric conditioners especially the siphon tube and the make garments soft to handle and help fabric conditioner channel, regularly. prevent static cling when tumble See "Cleaning the detergent drying.
  • Page 32: Cleaning And Care

    If you have no be hosed down. reason to wash occasionally at this high temperature, then run a Cottons 95°C A range of Miele branded cleaning and programme with detergent but no conditioning agents is available to laundry at regular intervals.
  • Page 33 Cleaning and care ^ Clean the siphon. Cleaning the detergent dispenser drawer housing 1. Remove the siphon from compartment and rinse under ^ Use a bottle brush to remove warm running water. Clean the detergent residues and limescale siphon tube in the same way. from the jets inside the detergent dispenser drawer housing.
  • Page 34: Cleaning The Water Inlet Filters

    Cleaning and care Cleaning the water inlet filters To clean the filter in the water inlet valve: The washing machine has two filters to ^ Using pliers, carefully loosen the protect the inlet valves. ribbed plastic nut on the inlet valve These filters should be checked every and unscrew.
  • Page 35: Problem Solving Guide

    Problem solving guide With the help of the following notes, minor faults in the performance of the machine, some of which may result from incorrect operation, can be put right without contacting the Service Department. Repair work to electrical appliances should only be carried out by a suitably qualified person in strict accordance with current local and national safety regulations.
  • Page 36: Fault Messages In The Display

    Problem solving guide Fault messages in the display Problem Possible cause Remedy lights up in the – The water outlet is – Clean the drain filter and display and blocked or the drain pump. restricted. Drain fault – The maximum delivery flashes.
  • Page 37: General Problems

    Problem solving guide General problems Problem Possible cause Remedy The machine feet are not Level the machine (see The machine shakes during the spin cycle. level. "Installation and connection"). The laundry has not been The machine detected an Include both large and spun properly and is still imbalance during the final small items in the load as...
  • Page 38: An Unsatisfactory Wash Result

    Problem solving guide An unsatisfactory wash result Problem Possible cause Remedy Liquid detergents usually – Use a general purpose Liquid detergent does not give the contain no bleaching detergent containing a required result. agents. They do not bleaching agent. remove fruit, coffee and –...
  • Page 39: The Drum Door Does Not Open When You Press The Door Button

    Problem solving guide The drum door does not open when you press the Door button Possible cause Remedy Insert the plug in the socket and switch on and/or The machine is not switch the machine on with the jk button. connected to the electricity supply and/or is not switched on.
  • Page 40: Opening The Drum Door In The Event Of A Blocked Drain Outlet And/Or Power Failure

    Problem solving guide Opening the drum door in the Blocked drain outlet event of a blocked drain outlet If the drain outlet is blocked, up to and/or power failure 25 litres of water will be retained in the machine. ^ Switch the washing machine off. There is a lever behind the detergent Caution: if laundry has been drawer fascia panel.
  • Page 41 Problem solving guide Once the flow of water ceases: Make sure the drain filter is securely tightened. Otherwise there is a risk of water leakage during use. Opening the drum door Always make sure that the drum is stationary before reaching into the machine to remove laundry.
  • Page 42: After Sales Service

    Miele service – your Miele Dealer or technicians during servicing work for testing purposes and for updating the – Miele (see back cover for contact machine's programme data. details). When contacting your Dealer or Miele, Appliance guarantee...
  • Page 43: Installation And Connection

    Installation and connection Front view Inlet hose (tested to withstand Detergent dispenser drawer pressure of at least 7,000 kPa) Drum door Electricity supply cable Access to drain filter, drain pump Flexible drain hose (with and emergency release detachable swivel elbow) Handle recesses for moving the Control panel machine...
  • Page 44: Rear View

    Installation and connection Rear view Protruding lid for holding when Transport clip for inlet and drain moving the machine hoses Electricity supply cable Safety cap for transit bars Inlet hose (tested to withstand Transport clip for inlet and drain pressure of at least 7,000 kPa) hoses and for storing transit bars when not in use.
  • Page 45: Installation Surface

    1. Pull on the attached stopper, retaining clips (available from the Miele Spare Parts Dept). Otherwise 2. then use a screwdriver to release the there is the danger of the machine catch at the top.
  • Page 46 Installation and connection ^ Using the spanner supplied, turn the ^ Turn the right-hand transit bar 90°, left-hand transit bar 90°, then then ^ withdraw the transit bar. ^ withdraw the transit bar.
  • Page 47: Re-Fitting The Transit Bars

    Installation and connection To avoid the risk of injury the holes for the transit bars must be covered after the transit bars have been removed. ^ Secure the transit bars to the back of the washing machine. Make sure that the top catch is located above the holder.
  • Page 48: Levelling The Machine

    Installation and connection Levelling the machine The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect installation may increase electricity and water consumption and may cause the machine to move about. Screwing out and adjusting the feet The four adjustable screw feet are used to level the machine.
  • Page 49: Building Under A Continuous Worktop/In A Kitchen Run

    Installation and connection Washer and Dryer stack The fitting of building-under kits and A Miele tumble dryer can be stacked stacking kits must only be with the washing machine. A "WTV" undertaken by qualified and stacking kit* is necessary. competent persons, in accordance...
  • Page 50: The Miele Water Protection System

    – Overflow protection system This prevents the washing machine taking in too much water. If the water The Miele water protection system level exceeds a certain level, the protects the washing machine from drain pump switches in and pumps water damage.
  • Page 51: Connection To The Water Supply

    Maintenance and care Only use a genuine Miele hose should you ever need a replacement or extension. These are tested to withstand pressure of at least...
  • Page 52: Connection To The Drainage System

    If required, the drain hose can be extended to a length of 5 m. The necessary parts can purchased from the Miele Spare Parts Department or your Miele dealer. Adapter * For a delivery head of more than 1 m (up to a max.
  • Page 53: Electrical Connection U.k

    Installation and connection Electrical connection U.K. Non-rewireable plugs BS 1363 All electrical work should be carried out The fuse cover must be refitted when by a suitably qualified and competent changing the fuse, and if the fuse cover person, in strict accordance with is lost, the plug must not be used until a current national and local safety suitable replacement is obtained.
  • Page 54: Consumption Data

    Consumption data Load Consumption data Energy Water Duration in kWh in litres Short Normal Cottons 95°C 7.0 kg 2.20 2 h 20 min 60°C 7.0 kg 1.05 2 h 10 min 60°C 3.5 kg 0.64 1 h 12 min 40°C 7.0 kg 0.77 2 h 10 min...
  • Page 55: Technical Data

    Technical data Height 850 mm Width 595 mm Depth 615 mm Depth with door open 975 mm Height for building under 820 mm Width for building under 600 mm Depth for building under 650 mm Weight 96 kg Maximum floor load 1600 Newton (approx.
  • Page 56: Programmable Functions

    Programmable functions The option which is currently set will have a tick L beside it. The programmable functions are used to alter the machine's Turn the programme selector until electronics to suit changing the option you want appears in the requirements.
  • Page 57: Water Plus

    Programmable functions Water plus Gentle action This programmable function is used Activating gentle action reduces the to select the water intake setting for drum action and is suitable for the Water plus extra option. washing slightly soiled items more gently. It should be activated for There are three different options: garments with a single bar under the care label and for articles which feel...
  • Page 58: Code

    Programmable functions Code A code can be used to lock the electronics on the washing machine ^ Press the Start/Stop button. to prevent it being used without your The following will appear in the display: knowledge. Code activated When the code has been activated, you have to enter a code after switching the Once the machine is switched off, it washing machine on.
  • Page 59: Temperature Unit

    Programmable functions Temperature unit Keypad tone You can chose for the temperature to An audible tone sounds each time a be displayed in button is pressed. °C/Celsius or °F/Fahrenheit. The machine is delivered with the The machine is delivered with keypad tone deactivated.
  • Page 60: Standby Display

    Programmable functions Standby display Memory To save energy, the display goes out The washing machine will store the and the indicator light for the Start/ most recently selected settings Stop button will start flashing slowly. (programme, temperature, spin speed and any extra options) in The display will always go out, memory once the programme has started.
  • Page 61: Optional Accessories

    Miele specialist detergents designed to suit the fabric being washed. Miele have also developed a "Outdoor wear" range of specialist CareCollection This specialist detergent will clean your detergents and conditioning products water-repellent outerwear with care.
  • Page 62 Fabric conditioner This liquid detergent is particularly suitable for cleaning coloured and dark The Miele fabric conditioner will give your laundry a fresh, natural fragrance. garments. The special formulation offers effective stain removal, even at It makes garments soft to handle and...
  • Page 64 Alteration rights reserved/1209/W 5740 M.-Nr. 07 483 960 / 00...

This manual is also suitable for:

W 5748
