z a p b o x

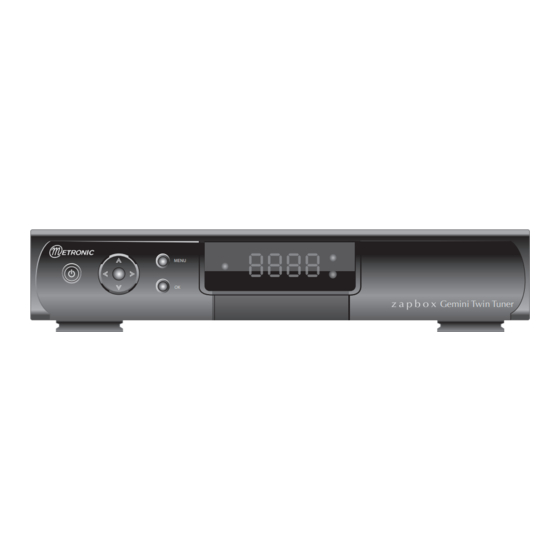

Gemini Twin Tuner
Item code : 441820
Digital Terrestrial Receiver
MENU
OK
Gemini Twin Tuner
LOOP IN
ANT
VIDEO
DIGITAL
AUDIO
TV
110 - 250V~
B
A
50/60Hz - 40W
AUDIO
TV/VCR
LOOP OUT
OPTICAL
S - VIDEO
VCR /
R
MET742
