Summary of Contents for Metronic Zapbox 441803

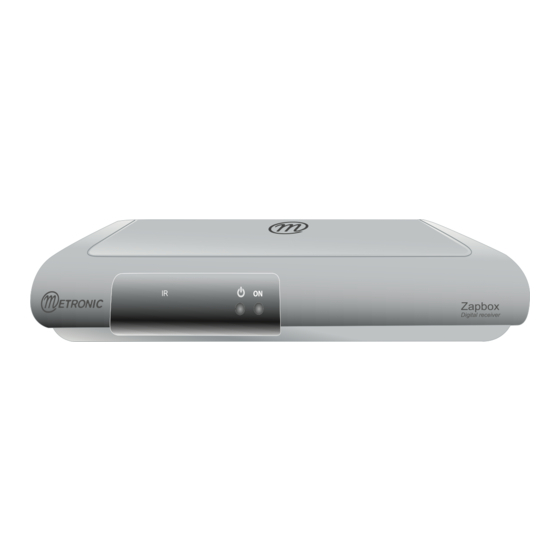

- Page 1 Zapbox Digital Receiver Ref. 441803 Digital Terrestrial Receiver ANT TV / VCR VCR / 50mA 5V MET718...
- Page 3 / or the human health. At the end of its life, bring any electronic equipment back to your retailer or at the collection point that your city or town puts at your disposal. info@metronic.com...
- Page 4 • Press OK to confirm. • Press the 6 arrow to select SERVICE SETUP. • Press OK to confirm. • Enter the 4 digit PIN code (0000 on purchase). • Press the 6 arrow to select MANUAL SCAN and confirm by pressing OK. info@metronic.com...
-
Page 5: Table Of Contents
8 Adjusting the TV 9 Radios 10 Looking up channels 11 Using the receiver with a VCR A - Programming B - Connecting 12 TV guide 13 What to do if you experience a reception problem 14 Glossary Warranty Assistance and advice info@metronic.com... -
Page 6: Installation
If the search has not found all channels (or none), this probably means that you need to better the installation (see next paragraph). If no channels are found after you have done so, this probably means that you area is not covered by Freeview. info@metronic.com... - Page 7 info@metronic.com...
- Page 8 • Once you have reached the maximum Level / Quality, screw the antenna tightly. • Press EXIT. • Go to Menu / Setup / Service Setup / xxxx / Fullscan Replace Existing Services. info@metronic.com...
- Page 9 • Turn the antenna to optimise the quality and level (quality must be at least 6). • Screw the antenna tightly. • Press Menu to go back to the previous menu. • Make an automatic search (Go to Menu / Setup / Service Setup / xxxx / Fullscan Replace Existing Services). info@metronic.com...
-
Page 10: Remote Description
2 - Remote Description VOL+ VOL- GREEN YELLOW BLUE INFO BACK AUDIO TV/RADIO SUBTITLE TEXT GUIDE LIST info@metronic.com... - Page 11 FAV list if you have defined more than one. To exit the FAV mode, go to Menu / Favourites and select OFF. BACK key : to exit to the previously viewed menu. AUDIO key : allows you to select an alternative audio track. info@metronic.com...
-
Page 12: Receiver Description
Status indicators : red when the product is on standby / green when it is switched on. BACK TC scart outlet, to connect the receiver to the TV. Main power source. Terrestrial antenna input. TV outlet. VCR scar plug. info@metronic.com... -
Page 13: Daily Use
N.B. A FAV list may contain TV and Radio services together. Renaming a list • Go to Menu / Favourites. • Use the 56 , keys to select the list you wish to rename (Favourites 1, if you created only one list). info@metronic.com... - Page 14 From now on, the CH+ and CH- keys will allow to go from one channel to another amongst your FAV list. To come back to the full channel list, go to Menu / Favourites, select OFF and press OK to confirm. info@metronic.com...
-
Page 15: Parental Lock
Your ZAPBOX receiver is delivered with a secret code (PIN) which is 0000. This code allows to lock channels that you do not wish others to access, or to protect the settings of the receiver. We advise you to change this code. info@metronic.com... -
Page 16: Resetting The Receiver
• The menu will disappear and the receiver will go on standby after a few seconds. • Unplug the main source, wait for a few seconds and plug it back. • Press the ON/OFF key on the remote. • The receiver is now back in its original configuration. info@metronic.com... -
Page 17: Adjusting The Tv
You should follow this process when you have lost a channel or if new channels are emitted by operators. • Go to Menu / Setup / Service Setup / xxxx / Fullscan Replace Existing Services. The receiver will search for new channels and add them. info@metronic.com... -
Page 18: Using The Receiver With A Vcr
VCR manual if necessary. If you switch on the receiver whilst a program is supposed receiver whilst a program is supposed receiver to be recorded, you will be requested to confi rm any changes by pressing EXIT. info@metronic.com... -
Page 19: B - Connecting
If this is not the case, press the TV/VCR key on ZAPBOX ZAPBOX ANT T V / V C R your VCR remote. V C R/ 100mA5V REMINDER ! You cannot record a channel other than the one you are watching. info@metronic.com... -
Page 20: Tv Guide
EXIT. If the selected program has not started yet, you can press the green button to put a reminder on this program. In this case, a reminder will appear regardless of what channel you are watching. info@metronic.com... -
Page 21: What To Do If You Experience A Reception Problem
The channels that you are 2 - Try a mast receiving do not have a high amplifier. reception level. The image 3 - Find a more you get in analogue is not performant antenna. great either. info@metronic.com... - Page 22 You cannot find the solution to your problem. Please send us your query at : info@metronic.com. What is a disrupted reception in digital ? In digital reception, a disrupted reception results in frozen pictures (partially or totally), or the appearance of mosaic effect. The sound may disappear for a while, or strange effect can be heard.
-
Page 23: Glossary
(i.e. BBC1) can be emitted both in analogue and digital. Polarization Orientation of the emitter wave. Most UHF emissions are horizontal. The elements of your aerial must therefore be horizontal. Terrestrial Refers to transmissions in the air, as opposed to cable or satellite. info@metronic.com... -
Page 24: Warranty
IT IS CRUCIAL TO AUTHORISED RETURN NUMBER BEFORE SENDING ANYTHING OUT Product Ref. N° : ZAPBOX Digital Receiver (441803) Date of Purchase : Series N° : Return to Metronic Ltd, Regus, Cardinal Point, Park Road, Rickmansworth WD3 1RE, UK. Made in Asia. info@metronic.com... -
Page 25: Assistance And Advice
If this is the case please do not hesitate to email us at info@metronic.com and we will be happy to deal with your query within 72 hours. - Page 26 Metronic Ltd, Regus, Cardinal Point, Park Road, Rickmansworth WD3 1RE, www.metronic.com Product made in Asia.
