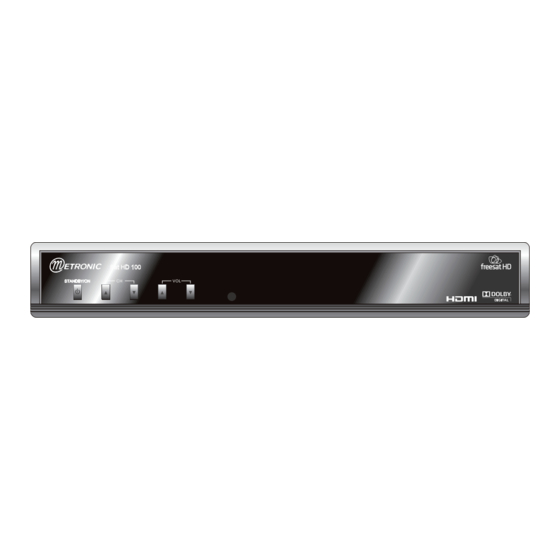

- Page 1 Sat HD 100 Digital HD Satellite Receiver Ref : 441827 No contract, no subscription, just a one-off payment A wide range of digital channels + HD programmes - all for free This unit comes with a 2 year manufacturer warranty MET844...
- Page 3 CAUTION We thank you for purchasing a Metronic receiver, and we are sure that it will give you full satisfaction. Prior to installing or using the receiver, please read carefully the following safety advice. The receiver may become warm when in use. It is therefore important to install it in a well ventilated area.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1 Quick start guide page 06 2 Receiver description page 07 3 Remote control description page 08 4 Main Menu page 09 5 Channels page 09 6 Electronic Program Guide page 11 7 Settings page 11 8 Installation page 13 9 System page 14... -
Page 6: Quick Start Guide
1 - Quick start Guide If you already have a satellite dish pointing towards the Astra satellite 28.2 E, this Quick Start Guide will help you to install your Freesat receiver in a couple of minutes. In case of difficulty, you can always return to the factory settings by following the instructions in this manual (p14). -
Page 7: Receiver Description
2 - Receiver description Infrared receiver (detects the remote control infrared signal). LNB input to connect the input lead of the satellite. LNB output to connect another satellite receiver if necessary. Input/Output VCR scart-Connect to the VCR or DVD using a scart cable(not supplied). TV scart socket – Connects to the TV using a TV scart cable-note you will only view programmes in standard definition (SD). -
Page 8: Remote Control Description
3 - Remote control description Digital keys. In viewing mode, press these keys to change channel by pressing the number of the channel you want to watch. In the programming mode, these keys are used to enter the digital values. These keys are also used to enter your postcode. -
Page 9: Main Menu
4 - Main Menu Press MENU key to display the Main Menu screen. Use the cursor keys 563 and 4 to move through the menu, the OK button to choose your option. You may carry out the following operation on the Main Menu: •... - Page 10 File Menu: This menu supports multi-media function for your USB memory storage. After connecting the USB memory device to the receiver. Wait and select a USB slot. Note: Only USB 2.0 hard disks or USB 2.0 memory sticks are supported. USB multi-cardreaders are not supported.
-
Page 11: Electronic Program Guide
View Photo: • CH+/ CH-: Previous and next picture. • Vol+/ Vol-: Zoom in and Zoom out. • 5634: Scroll on the viewing area. The blue square shows the current viewing frame • Menu button: Return to previous menu. 6 - Electronic Program guide Select EPG on the Main Menu or press the Guide button on the remote control to start the Electronic Program guide. - Page 12 Parental rate (GUIDANCE): It allows you to prevent your children from viewing sensitive channels. Once you set the parental rating for the particular channel, the parental rating transmitted with the channel will verify if the received rating is higher than the parental lock rating.
-
Page 13: Installation
OSD: The OSD Setting Menu allows you to adjust the features of menus and I-Plate on the screen in the following options: • Info Bar Timeout: The I-Plate (program information) is shown every time the channel changes or after pressing the information button. -
Page 14: System
9 - System The System menu allows you to carry out the following options: • Password • Information • Set Defaults Password: Password Setting Menu allows you to change the password for the receiver using the numeric keys. • Enter the Current Password. -
Page 15: Trouble Shooting
• Wait until the reading of the file is completed and when the message “Do you want to update?” appears, select YES to perform software upgrade. • Please wait until Programming Flash process completed (do not switch off the power or remove the USB device during this process). -
Page 16: Error Message
Poor picture quality: • Make sure your reception systems are correctly installed and connected correctly to the receiver. • Install the antenna in an obstacle-free place. • Keep the power and the antenna cable for the satellite apart from each other. •... -
Page 17: Technical Specifications
12 - Technical specifications Mechanical Size (W * H * D) mm 265mm*40mm*162.5mm Power Power supply 12V 2A DC input Power consumption Max 24W (real power stand-by function) System Standard/ Demodulator 1 DVB-S/ QPSK, DVB-S2/QPSK/8PSK Input Frequency/ connector type 950~2150MHz/ F- Female Loop through frequency / connector type 950~2150MHz/ F- Female Main chip Broadcom 7402C1... - Page 18 1 LED indicator- Red For service and support please contact your retailer from where the product was purchased or alternatively e-mail : info@metronic.com As per the EN 60065 norm requirements, please pay particular attention to the following safety guidelines. Do not obstruct the air vents with objects such as newspapers, table cloths, curtains etc. Allow at least 5 cm around the product to allow enough ventilation. Do not place the product on or near flamable objects such as lit candles. The device...
- Page 20 Metronic Ltd Park House, 15-23 Greenhill Crescent, Watford, Herts, WD18 8PH. www.metronic.com Product made in Asia.
