Triumph Adler DC 2023 Instruction Handbook Manual

Triumph Adler DC 2023 Instruction Handbook Manual

Digital multifunctional system
Hide thumbs Also See for DC 2023:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Handbook Manual

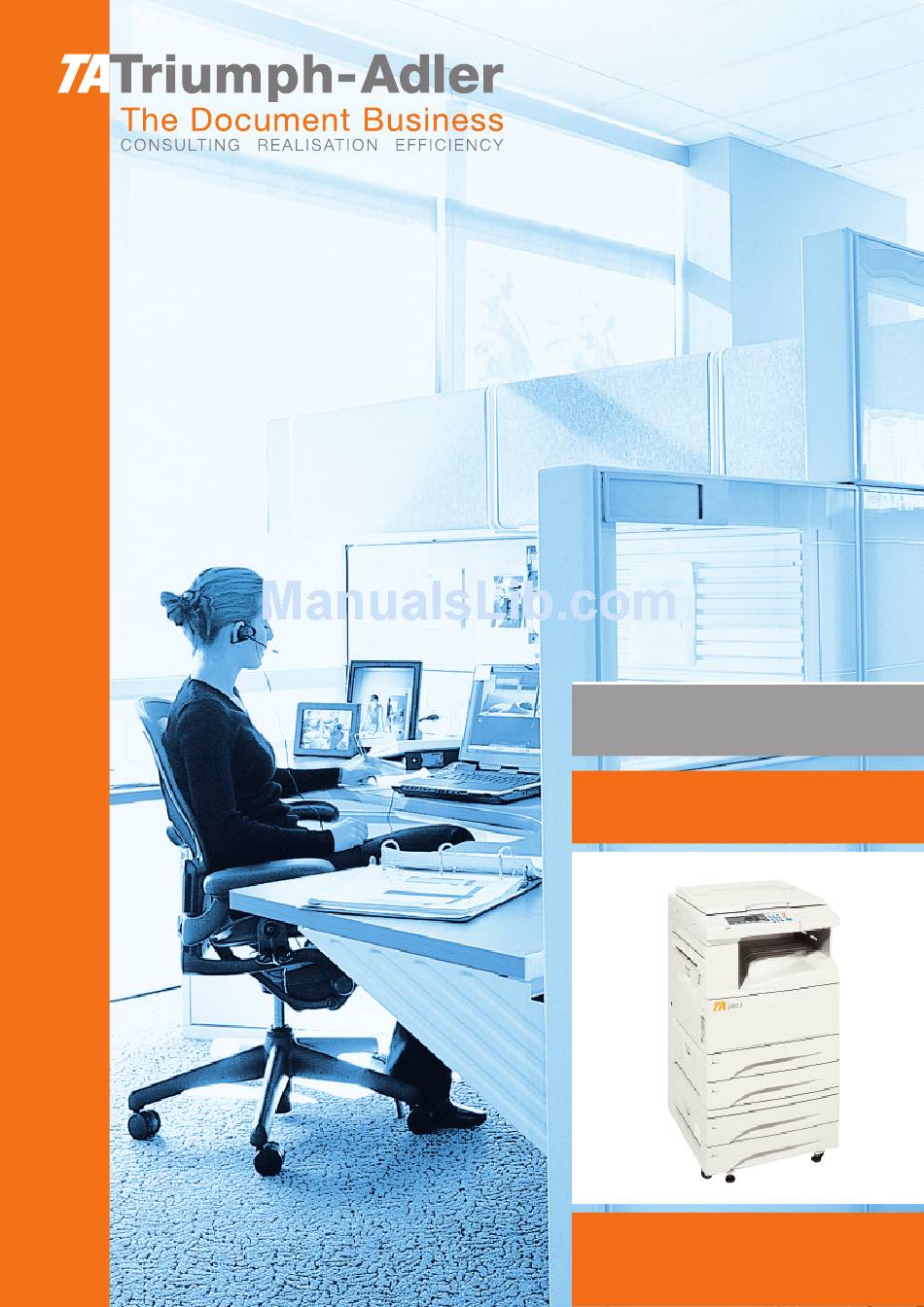

Instruction Handbook
DC 2023 | 2031
Digital Multifunctional
System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC 2023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triumph Adler DC 2023

Summary of Contents for Triumph Adler DC 2023

  • Page 1 Instruction Handbook DC 2023 | 2031 Digital Multifunctional System...
  • Page 2 Swiss Energy 2000 program. <Attention> This instruction handbook is for the DC 2031 (31 ppm) and DC 2023 (23 ppm). The instruction is described based on the 31 ppm copier. Specific matters for 23 ppm copier are covered on pages 83 and 84.
  • Page 3 Please read the instruction handbook before using the copier. Keep it close to the copier for easy reference. The sections of this handbook and parts of the copier marked with symbols are safety warnings meant to protect the user, other individuals and surrounding objects, and ensure correct and safe usage of the copier.

  • Page 4: Table Of Contents

    CONTENTS CAUTION LABELS ..............2 COPIER MANAGEMENT..............49 (1) Copy management ................49 INSTALLATION PRECAUTIONS ..........3 1 Copy management mode ............49 2 How to display the selection screen of the copy PRECAUTIONS FOR USE............4 MAKING FULL USE OF THE MACHINE'S ADVANCED management mode..............49 3 How to make various settings...........50 FUNCTIONS ..................5 NAMES OF PARTS................7...

  • Page 5: Caution Labels

    CAUTION LABELS Caution labels have been attached to the copier at the following locations for safety purposes. BE SUFFICIENTLY CAREFUL to avoid fire or electric shock when removing a paper jam or when replacing toner. Label 1 High voltage inside. NEVER touch parts in this area, because there is a danger of electric shock.

  • Page 6: Installation Precautions

    INSTALLATION PRECAUTIONS Environment Power supply/Grounding the copier CAUTION WARNING • Avoid placing the copier on or in locations which are • DO NOT use a power supply with a voltage other than unstable or not level. Such locations may cause the that specified.

  • Page 7: Precautions For Use

    PRECAUTIONS FOR USE Cautions when using the copier Other precautions • DO NOT place heavy objects on the copier or cause other damage to the copier. WARNING • DO NOT place metallic objects or containers with • DO NOT open the front cover, turn off the main switch, water (flower vases, flower pots, cups, etc.) on or near or pull out the power plug during copying.

  • Page 8: Making Full Use Of The Machine's Advanced Functions

    MAKING FULL USE OF THE MACHINE'S ADVANCED FUNCTIONS Having the machine automatically Various functions for making Enlarging/reducing copies to any desired enlarged and reduced copies select paper of the same size as the size in the 25-400% range. Enlarging/reducing copies to a original <Zoom copy mode>...
  • Page 9 MAKING FULL USE OF THE MACHINE'S ADVANCED FUNCTIONS Making mirror image copies Printing page numbers on copies Sorting automatically <Mirror image mode> (page 41) <Print page numbers> (page 42) <Sort copy> (page 44) Changing copy orientation for easy Memorizing frequently used settings Managing the number of copies made sorting <Program mode>...

  • Page 11: Names Of Parts

    NAMES OF PARTS & Length adjustment plate (Adjust with the length of the paper to be set in the drawer.) * Width adjustment lever (Hold the lever and adjust the width guide with the width of the paper to be set in the drawer.) ( Main switch (Turn ON ( | ) before trying to copy.) ) Copy store section...

  • Page 12: Operation Panel

    NAMES OF PARTS # Preset R/E/Enter key (2) Operation panel 1 Start key (Press to change the magnification ratio or to confirm (Press to start copying.) selected functions and selected items on the message 2 Stop/Clear key display.) (Press to stop copying or to change the number of copies $ Copy exposure adjustment keys/Copy exposure indicators to be made.
  • Page 13 NAMES OF PARTS ‹ Auto Selection/Filing key (Indicator) Initial mode (at the end of warm-up or when the Clear All (Press to operate auto selection/filing copying. The key is pressed) indicator will light. The optional DF must be installed to use In the initial mode, paper of the same size as the original is these functions.

  • Page 14: Preparations

    PREPARATIONS (1) How to load paper Paper can be set in three positions in total; two drawers in which paper can be loaded from the front of the copier, and the multi-bypass. It is also possible to install the optional paper feed unit (drawer-type or large- capacity deck-type).

  • Page 15: Loading Paper Into The Multi-Bypass

    PREPARATIONS 5. Set the paper flush against the left-hand wall of the drawer, and position the paper so that it is aligned with the correct size scale (marked on the bottom of the drawer). * A sticker indicates how high paper can be loaded. Do not exceed this limits. * When loading paper into the drawer, make sure the copy side is facing upward.

  • Page 16: When Copying Onto The Transparency

    PREPARATIONS 1. Open the multi-bypass. 2. Adjust the insert guides to the size of the paper to be loaded. 3. Insert the paper all the way in, along the guides, as far as it will go. * When loading paper into the multi-bypass, make sure the copy side is facing upward.

  • Page 17: Setting Envelops In The Multi-Bypass

    PREPARATIONS Setting envelops in the multi-bypass When using the optional printer function, envelops can be set in the multi-bypass. Up to 20 envelops can be loaded in the multi-bypass at a time. See the following table for the types of envelops that can be used. Envelop that can be used sizes 220 x 110 (mm)

  • Page 18: Basic Operation

    BASIC OPERATION Basic copying procedure 1. Turn the main switch ON ( ). 2. Warm-up At the end of warm-up, "READY TO COPY." will appear on the message display. * If originals are set and the Start key is pressed while the copier is still warming up, copying will begin as soon as warm-up ends.
  • Page 19 BASIC OPERATION 3. Setting originals 4. Function selection (page 17 to 48) Set originals on the platen or in the DF (document feeder). Select from the copier's various functions. When setting the original on the platen, adjust it with the original size scales based on the left rear position.

  • Page 20: Functions

    FUNCTIONS (1) Enlargement/reduction 1 Auto magnification selection mode The original image is enlarged/reduced automatically according to the selected paper size. * When using this mode, make sure that "AMS" has been selected in "0 AMS MODE" on page 59. 1. Set the original(s). The size of the original will be automatically detected and the same size paper as the original will be selected.

  • Page 21: Xy Zoom Mode

    FUNCTIONS 2. Press the Preset R/E key. The zoom mode setting screen will appear in the message display. 3. Press the cursor up or down key to select the desired magnification ratio. The selected ratio will be highlighted. * The zoom ratio can be changed in increments of 1% from the selected ratio by pressing the numeric keys or the Zoom(+) and Zoom(-) keys.

  • Page 22: Interrupt Copying

    FUNCTIONS 7. Press the Zoom(+) or Zoom(-) key to specify the ratio of the length. The numeric keys can also be used to enter the zoom ratio. 8. Press the enter key. 9. Make sure that "ENTER" has been selected and press the enter key. The message display will return to the "READY TO COPY."...

  • Page 23: Duplex Copying From Various Originals [Duplex Copy]

    FUNCTIONS (3) Duplex copying from various originals [Duplex copy] Duplex copies can be made from two-page originals or one-sided originals with the optional duplex unit. Duplex copying from two-sided originals A two-sided original is copied onto both the front and back side of the paper. The copy looks just like the original.

  • Page 24: Copying Two-Page Originals As Separate Pages [Page Separation Copy Mode]

    FUNCTIONS 5. Select whether to rotate the back side of the copy 180 degree or not. 6. Press the enter key. The message display will be changed to the "DUPLEX MODE." screen. 7. Select the binding direction of the original. 8.

  • Page 25: Page Separation Copies From Two-Sided Originals

    FUNCTIONS Page separation copies from two-sided originals Each face of a two-sided originals is copied onto a separate sheet of paper. 1. Set the original(s). * When copying from a book, set the book as illustrated. 2. Press the Page Separation key to light the indicator. The page separation copy mode setting screen will appear.

  • Page 26: Upper Margin

    FUNCTIONS Upper margin The image of the original is shifted downward to make a margin for binding on the top side of the paper between 6 mm and 18 mm in 1 mm increments. * The initial value of margin width can be selected from above. (See "@ MARGIN WIDTH"...
  • Page 27 FUNCTIONS 6. Press the cursor right or left key to select the margin width if the margin width setting is changed from the default value. The margin width can be set between 6 mm and 18 mm in 1 mm increments. * When not changing margin width, go to the next step.

  • Page 28: Making Copies With Clean Edges [Border Erase Mode]

    FUNCTIONS 16. Press the cursor right or left key to select the margin width. The margin width can be set between 1 mm and 18 mm in 1 mm increments. 17. Press the enter key. The message display will return to the "READY TO COPY."...

  • Page 29: Feeding Paper As A Transparency + Backing Sheet Mount [Transparency + Backing Sheet Mode]

    FUNCTIONS 5. Press the cursor down key to select the border erase mode. 6. Press the enter key. * If "SHEET ERASE" or "BOOK ERASE" was selected, go to the next step. If "CUSTOM ERASE" was selected, the message display will return to the "READY TO COPY."...

  • Page 30: Copying Onto Transparencies [Hand-Out Mode]

    FUNCTIONS 2. Set the original(s). 3. Press the Hand-out/Sheet/Insert key to light the indicator. The function selection screen will appear. 4. Make sure that "TRANSPARENCY+BACKING" is selected, and press the enter key. The transparency + backing sheet copy setting screen will appear. 5.

  • Page 31: Hand-Out Mode (Leaving The Backing Sheet Blank)

    FUNCTIONS Hand-out mode (Leaving the backing sheet blank) After copying onto transparencies (for blank backing sheets on page 26), the same original is copied onto a specified number of sheets of standard paper. (* in the illustration indicates transparency.) * If the optional duplex unit is used, duplex copying is possible onto standard paper. 1.

  • Page 32: Covering And Chaptering [Sheet Copy]

    FUNCTIONS 10. Press the cursor down or up key to select how copies are to be finished. Select "1-SIDED" for a 1-sided copy, and select "2-SIDED" for a duplex copy. 11. Press the enter key. The message display will return to the "READY TO COPY."...

  • Page 33: Insert Mode

    FUNCTIONS * See the following table for the combination of settings and finishing. Back Front copy Blank Front Duplex*1 Front copy*2 Blank*2 * 1: An example of duplex copying is shown. * 2: An example of one-sided copying is shown. Insert mode Sheets can be inserted at a specified point(s) among copies of multiple originals.

  • Page 34: Chapter Mode

    FUNCTIONS • When copying only on the front side of the insert sheets * An example of duplex copying is illustrated. • When not copying on the front or back side of the insert sheets * An example of duplex copying is illustrated. Chapter mode When duplex copies are made from 1-sided or 2-sided originals, sheets of paper can be specified as chapter pages that will be copied on the front only.

  • Page 35: How To Make Copies In The Sheet Mode

    FUNCTIONS 3 How to make copies in the sheet mode * When selecting duplex copies for finishing, the optional duplex unit must be installed. 1. Press the Hand-out/Sheet/Insert key to light the indicator. The function selection screen will appear. 2. Press the cursor down key to select "BACKING SHEET". 3.
  • Page 36 FUNCTIONS 11. Press the enter key. Select other modes as follows. * When selecting two modes, the cover mode setting screen will appear first. Cover mode settings 12. Set the paper that will be the cover in the multi-bypass. 13. The current cover mode setting is displayed. To change the setting, press the cursor down or up key and select "FRONT"...
  • Page 37 FUNCTIONS 19. When finished setting the cover mode, press the cursor up key to select "END". 20. Press the enter key. When selecting only the cover mode, go to step 29. When selecting other modes, go to step 21 or 26. Insert mode settings 21.

  • Page 38: One Copy From Two Or Four Originals [Layout Copy]

    FUNCTIONS 29. Set the original(s). 30. Press the Start key. Scanning of the originals will start. When setting the original in the DF, copying will be performed. When setting the original on the platen, go to the next step. 31. Replace the original and press the "#" key in the numeric keys. Scanning of the originals will start.

  • Page 39: Copying Like Booklet (Sheet Original) [Booklet Copy]

    FUNCTIONS 2. Press the cursor down or up key to select the layout copy mode. 3. Press the enter key. 4. Press the cursor down or up key to select the type of the borderline. Select from "DOTTED", "SOLID" or "CROPMARK". 5.
  • Page 40 FUNCTIONS 1 If "Right" is selected as the page sequence Copying will be performed so that the stacked and folded pages of the finished copies read from right to left. 2 If "Left" is selected as the page sequence Copying will be performed so that the stacked and folded pages of the finished copies read from left to right.

  • Page 41: Copying Like A Booklet (Book Originals) [Booklet + Cover Copy Mode]

    FUNCTIONS 9. After one original has been scanned, replace it with the next original and press the "#" key in the numeric keys. * Repeat this operation for all the originals. 10. When finished scanning all the originals, press the Start key. Copying will start. (12) Copying like a booklet (Book originals) [Booklet + cover copy mode] This mode can be used to make booklet-like copies with covers, either blank or with an image.

  • Page 42: Making Image Overlays [Form Overlay]

    FUNCTIONS 4. Press the cursor up or down key to specify the binding direction. 5. Press the enter key. 6. Press the cursor down or up key to select whether to copy onto the front cover or not. 7. Press the enter key. When setting the original on the platen, go to the next step.
  • Page 43 FUNCTIONS 1. Press the Image key to light the indicator. The function selection screen will appear. 2. Press the cursor down key to select "OVERLAY", and press the enter key. The form overlay setting screen will appear. 3. Press the cursor down or up key to select the copy exposure of the overlay original.

  • Page 44: Inverting Black And White [Invert Copy]

    FUNCTIONS 8. Replace the original after one original has been scanned, and press the Start key. Copying will start. * If more originals are to be copied, set other originals in the same manner. (14) Inverting black and white [Invert copy] Black and white areas of the image are inverted (reversed) when copied.

  • Page 45: Printing Page Numbers On Copies [Print

    FUNCTIONS 3. Press the cursor down or up key to select "MIRROR". 4. Press the enter key. 5. Make sure that "ENTER" has been selected and press the enter key. The message display will return to the "READY TO COPY." screen. (16) Printing page numbers on copies [Print page numbers] When copies are made from multiple originals, it is possible to assign page numbers in numerical order from the first of original.

  • Page 46: Unifying The Different Size Originals Into One Size [Filing Mode]

    FUNCTIONS 6. Press the enter key. 7. Press the Start key. Scanning of the originals will start. When setting the original in the DF, copying will be performed. When setting the original on the platen, go to the next step. 8.

  • Page 47: Sorting Automatically [Sort Copy]

    FUNCTIONS 4. Press the cursor down or up key to specify the type of originals. Select "1- SIDED" for a 1-sided original and "2-SIDED" for a 2-sided original. 5. Press the enter key. If the copier is equipped with the duplex unit, go to the next step. If not, go to step 8.

  • Page 48: Memorizing Frequently Used Settings [Program Mode]

    FUNCTIONS * If "ON" is set in "^ ROTATE SORT" on page 60, and the paper size is A4, the orientation of each set of copies is changed, thus making copies easy to handle. To use this setting, A4 paper must be set lengthwise in one drawer and widthwise in the other.

  • Page 49: Calling Up A Program

    FUNCTIONS 2. Press the */Language key. The management mode setting screen will appear. 3. Make sure that "PROGRAM REGISTRATION" is selected and press the enter key. 4. Press the cursor down or up key to select the program number in which to register settings.

  • Page 50: Recall Mode

    FUNCTIONS (20) Recall mode When setting the copy mode, content of the setting can be confirmed. 1. Press the Program key. 2. Make sure that "RECALL" is selected and press the enter key. 3. Press the cursor right or left key to display the content of the setting on the message display.

  • Page 51: Auto Shut-Off Function

    FUNCTIONS * To resume copying after the energy saver (preheat) function has been activated, press the Energy Saver key again. It takes about 30 seconds for the copier to recover from the energy saver (preheat) function. * The auto energy saver function can be set to trigger after no copying has been done for a certain period of time.

  • Page 52: Copier Management

    COPIER MANAGEMENT (1) Copy management The total number of copies made by each department can be managed using 4-digit codes for up to 500 departments. Limits for the number of copies can be changed on a department -by-department basis. 1 Copy management mode Copy management mode Copy management mode content Page...

  • Page 53: How To Make Various Settings

    COPIER MANAGEMENT 2. Press the cursor down key to select "DEFAULT". 3. Press the enter key. 4. Enter the 4-digit management code "3100" with the numeric keys. * The 4-digit management code can be changed. (See "8 MANAGEMENT CODE ENTRY" on page 64.) 5.

  • Page 54: Deleting Id-Codes

    COPIER MANAGEMENT 8. Enter the maximum number of copies with the numeric keys. Limits are set in units of 1000's, up to a maximum of 999,000. * Entering "0" enables unlimited copying. * If the Stop/Clear key is pressed, the registered ID-code is cleared and a new ID-code can be entered.

  • Page 55: Altering Limits

    COPIER MANAGEMENT 9. Make sure that "END" has been selected and press the enter key. The message display will return to the screen in step 4. 10. Press the cursor up key to select "END", and press the enter key. The message display will return to the screen in step 2.

  • Page 56: Clearing Copy Counts

    COPIER MANAGEMENT Clearing copy counts 1. Display the copy management selection screen. (See page 49.) 2. Press the cursor down key to select "COPY MGMT SETTING". 3. Press the enter key. 4. Press the cursor down key to select "COUNTS CLEAR". 5.

  • Page 57: Printing Copy Management List

    COPIER MANAGEMENT 6. The total number of copies will appear on the message display. The number of copies by size will appear at the bottom. Press the cursor down key to view the number of copies of the size other than those appearing on the message display. 7.

  • Page 58: Making Copies When The Copier Is In The Copy Management Mode

    COPIER MANAGEMENT 2. Press the cursor down key to select "COPY MANAGEMENT ON/OFF". 3. Press the enter key. 4. Press the cursor down or up key to select "ON" or "OFF". 5. Press the enter key. The display will return to the screen in step 2. 6.

  • Page 59: Copy Default Settings

    COPIER MANAGEMENT Copy default settings The following 16 types of settings can be changed in the copy default setting mode. Set them as desired, in order to gain full use of your copier. Copy default setting Content of copy default setting Page Selects the auto exposure mode (page 16) or the manual exposure mode (page 15) for the 1 EXPOSURE MODE...

  • Page 60: How To Set The Copy Default Setting Mode

    COPIER MANAGEMENT How to set the copy default setting mode 1. Press the */Language key. The management mode selection screen will appear. 2. Press the cursor down key to select "DEFAULT". 3. Press the enter key. 4 Enter the management code "3100" with the numeric keys. * The 4-digit management code can be changed.

  • Page 61: Exposure Mode

    COPIER MANAGEMENT 10. Press the cursor up key to select "END" and press the enter key to finish settings. The message display will return to the "READY TO COPY." screen. 1 EXPOSURE MODE 1. Press the cursor down or up key to select "AUTO" or "MANUAL". 2.

  • Page 62: Pho Ori.density

    COPIER MANAGEMENT 6 PHO ORI.DENSITY 1. Press the cursor right or left key to move the cursor on the exposure scale. Move the cursor to the right to make copies darker, and to the left to make copies lighter. 2. Press the enter key. 7 ORIG.

  • Page 63: Margin Width

    COPIER MANAGEMENT @ MARGIN WIDTH 1. Press the cursor down or up key to select the margin width. The width can be set between 1 mm and 18 mm in 1 mm increments. 2. Press the enter key. # BORDER WIDTH 1.

  • Page 64: Machine Default Settings

    COPIER MANAGEMENT Machine default settings The following 8 types of settings can be changed in the machine default setting mode. Set them as desired, in order to gain full use of your copier. Machine default setting Content of machine default setting Page 1 AUTO DRAWER Selects whether the automatic drawer switching function (page 10) is used or not.

  • Page 65: How To Set The Machine Default Setting Mode

    COPIER MANAGEMENT How to set the machine default setting mode 1. Press the */Language key. The management mode selection screen will appear. 2. Press the cursor down key to select "DEFAULT". 3. Press the enter key. 4. Enter the management code "3100" with the numeric keys. * The 4-digit management code can be changed.

  • Page 66: Auto Drawer Switch

    COPIER MANAGEMENT 1 AUTO DRAWER SWITCH 1. Press the cursor down or up key to select "ON" or "OFF". 2. Press the enter key. 2 AUTO SHUT-OFF 1. Press the cursor down or up key to select "ON" or "OFF". 2.

  • Page 67: Shut Off Time

    COPIER MANAGEMENT 6 SHUT OFF TIME 1. Press the cursor down or up key to select the time interval from when copying ends to when the auto shut-off function is actuated. Time can be set from 15 to 240 minutes in increments of 15 minutes. 2.

  • Page 68: Optional Equipment

    OPTIONAL EQUIPMENT (1) DF (Document feeder) Automatically feeds multiple sheet originals one by one. Two-sided originals are automatically turned over and scanned. For details, see the instruction handbook of the DF. Auto selection mode Automatically detects the size and brightness of every original without selecting a paper size with the Paper Select key.

  • Page 69: Finisher

    OPTIONAL EQUIPMENT 1 The names of parts 1. Left 3 cover 2. Deck 2 How to load the paper 1. Pull the deck out toward you as far as it will go. 2. Load the paper in two rows. * A sticker indicates how high paper can be loaded. Do not exceed the limit on the sticker.

  • Page 70: Duplex Unit

    OPTIONAL EQUIPMENT (5) Duplex unit If the optional duplex unit is installed, duplex copies can be made. duplex copies can be made with A3 to A5 (vertical) (80g/m ) paper. (6) Printer board If the printer board is installed, this copier can be used as printer. For details, see the printer's instruction handbook.

  • Page 71: Key Counter

    OPTIONAL EQUIPMENT (11) Key counter The key counter determines the number of copies that have been made. It is useful for copier centralized management on a department or even company level. Setting the key counter Insert the key counter securely into the key counter opening. * When the key counter function is used, copies cannot be made unless the key counter is inserted into the copier.

  • Page 72: Messages

    MESSAGES When the messages below are displayed When any of the messages below appear on the message display, take the indicated action. Message Action Page ----- "CLOSE xxx COVER." The displayed cover is open. Close it/them securely. "ADD PAPER IN DRAWER." There is no paper in the displayed drawer.
  • Page 73 MESSAGES Message Action Page "READY TO COPY. There is not enough toner in the copier. Replace the toner cartridge immediately ADD TONER TO RESUME COPYING" as only one copy at a time can be made. There is not enough toner in the copier to make copies. Replace the toner "ADD TONER TO RESUME COPYING."...

  • Page 74: Replacing The Toner Cartridge

    REPLACING THE TONER CARTRIDGE Replace the toner cartridge only when "ADD TONER TO RESUME COPYING" is displayed. CAUTION Do not incinerate toner and toner containers. Dangerous sparks may cause burn. 1. Open the front cover. 2. Turn the toner cartridge release lever rightward as far as it will go. The old cartridge will come free.

  • Page 75: When Paper Misfeeds

    WHEN PAPER MISFEEDS If a paper misfeed occurs, copying will stop. A misfeed message will appear on the operation panel and misfeed locations will be indicated there also. Remove the misfed paper referring "(3) Removal procedures", with the main switch in the ON ( | ) position. (1) Misfeed location indicators 1 Misfeed in paper feed section 2 Misfeed in the left 1 cover (page 76)
  • Page 76 WHEN PAPER MISFEEDS 2. Remove the misfed paper without tearing it. * If the paper does tear, remove any scraps of torn paper from inside the copier. 3. Push the drawer back in firmly. Misfeed in paper feed section of drawer If "PAPER MISFEED.
  • Page 77 WHEN PAPER MISFEEDS 2. Remove the misfed paper without tearing it. * If the paper does tear, remove any scraps of torn paper from inside the copier. 3. Push the deck back in firmly. Misfeed in paper feed section of deck If "PAPER MISFEED.
  • Page 78 WHEN PAPER MISFEEDS Misfeed in paper feed section of multi-bypass If "PAPER MISFEED. OPEN FRONT COVER." and the misfeed location indicator shown in the illustration appear, a misfeed has occurred in the paper feed section of the multi-bypass. 1. Open the front cover. 2.
  • Page 79 WHEN PAPER MISFEEDS 6. Pulling out the paper transfer section release lever (green) toward you, close the paper transfer section cover. The cover will lock if the lever is pressed inward. 7. Close the left 1 cover. 8. Close the front cover. 9.
  • Page 80 WHEN PAPER MISFEEDS 5. Remove the misfed paper without tearing it. * If the paper does tear, remove any scraps of torn paper from inside the copier. * When a misfed paper can be removed in step 5 or before, go to step 10. 6.
  • Page 81 WHEN PAPER MISFEEDS Misfeed in DF <optional> If "MISFEED IN FEEDER. REMOVE ORIGINAL(S)." and the misfeed location indicator shown in the illustration appear, a misfeed has occurred in the DF. See the instruction handbook provided with the DF and remove the misfed paper. Misfeed in finisher <optional>...

  • Page 82: Troubleshooting

    TROUBLESHOOTING If trouble occurs, carry out the applicable checks and action given below. If the trouble persists, contact your service representative. Trouble Checks Action Page Nothing lights on the Is the power plug connected to an AC ----- operation panel when main Connect the plug to an AC outlet.
  • Page 83 TROUBLESHOOTING Trouble Checks Action Page Pull open the drawer that is closed, and Was more than one drawer pulled open at ----- Drawer cannot be closed. close it together with the drawer that could one time? not be closed. Copies are dirty. Is the platen or the original cover dirty? Clean the platen and/or the original cover.

  • Page 84: Cleaning The Copier

    CLEANING THE COPIER CAUTION For safety purposes, ALWAYS remove the power plug from the outlet when performing cleaning operations. Cleaning the original cover Lift open the original cover. Wipe the back side of the original cover with a soft cloth dampen with alcohol or mild detergent.

  • Page 85: Specifications

    SPECIFICATIONS Type..........Desk-top Original table .........Fixed type Copying system ......Indirect electrostatic Originals.........Sheets of paper, books and A3) Copy sizes ........A3, B4 (257 mm x 364 mm), A4 (horizontal), A4 (vertical), A5 (vertical) and Folio Print margin loss: 0.5-5.5 mm Copying speed ......Same-size copying/memory copying; A3: 17 copies/min., B4 (257 mm x 364 mm): 19 copies/min., A4 (horizontal): 31 copies/min., A4 (vertical): 23 copies/min.

  • Page 86: About 23 Ppm Copier

    ABOUT 23 PPM COPIER This chapter covers matters specifically for 23 ppm copier. Please refer this chapter, as well as other chapters in the instruction handbook, if you purchased a 23 ppm copier. Multi-Bypass The multi-bypass described on page 8 and page 12 (⁄ on page 8) is an optional equipment. When copying onto transparencies or paper which cannot be set in the drawer, install the multi-bypass.
  • Page 87 ABOUT 23 PPM COPIER Specifications The specifications described on page 82 are as follows. Type..........Desk-top Original table ......Fixed type Copying system ......Indirect electrostatic Originals........Sheets of paper, books and A3) Copy sizes .......A3, B4 (257 mm x 364 mm), A4 (horizontal), A4 (vertical), A5 (vertical) and Folio Print margin loss: 0.5-5.5 mm Copying speed ......Same-size copying/memory copying;...

  • Page 88: Laser Safety

    Laser Safety Laser radiation could be hazardous to the human body. For this reason, laser radiation emitted inside this machine is hermetically sealed within the protective housing and external cover. In the normal operation of the product by user, no radiation can leak from the machine.
  • Page 89 CAUTION! The power plug is the main isolation device! Other switches on the equipment are only functional switches and are not suitable for isolating the equipment from the power source. VORSICHT! Der Netzstecker ist die Hauptisoliervorrichtung! Die anderen Schalter auf dem Gerät sind nur Funktionsschalter und können nicht verwendet werden, um den Stromfluß...
  • Page 90 UTAX GmbH, Ohechaussee 235, 22848 Norderstedt, Germany...
