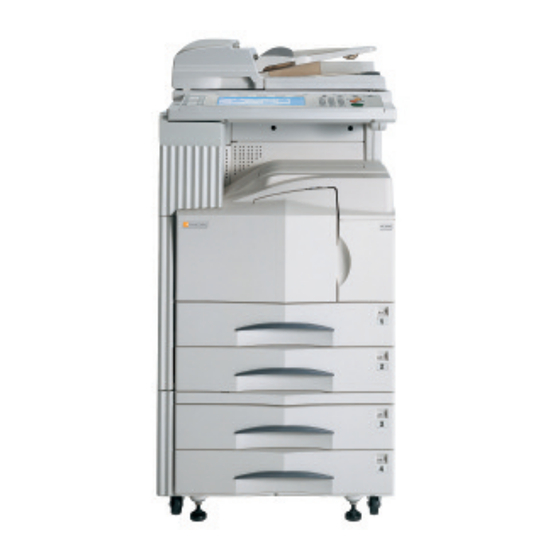

Page 1 Instruction Handbook DC 2025 | 2035 Scan (N) Digital Multifunctional System...
Page 2: Operation Guide
Operation Guide <Functions Edition> Click on the button to jump to the desired section. Using the Scanner Function Sending Scanned Image Data to Your Computer Sending Scanned Image Data by Email Using TWAIN Capabilities...
Page 3: Sending Scanned Image Data To Your Computer (Scan To Pc
Sending Scanned Image Data to Your Computer (Scan to PC) Create a destination folder in your computer and you can have scanned image data sent directly to that folder. The flowchart below shows a simple illustration of the steps required up to transmission of the data to the computer.
Page 4: Sending Scanned Image Data By Email (Send E-Mail)
Sending Scanned Image Data by Email (Send E-mail) Have scanned image data sent directly by email to a registered email address. The flowchart below shows a simple illustration of the steps required up to transmission of the email message. For a more detailed explanation of each step, refer to the indicated reference page. Click on the reference page will take you directly to that page.
Page 5: Using Twain Capabilities (Twain)
Using TWAIN Capabilities (TWAIN) Use scanner image data in TWAIN-compatible applications. The flowchart below shows a simple illustration of the steps required up to scanning of the data using the TWAIN source. For a more detailed explanation of each step, refer to the indicated reference page. Click on the reference page will take you directly to that page.
Page 6: Trademark Information
Trademark Information • Microsoft, Windows, Windows NT and Internet Explorer are registered trademarks of Microsoft Corpora- tion of America and other countries. • Windows Me is a trademark of Microsoft Corporation. • Ethernet is a registered trademark of Xerox Corporation. •...
Page 7: Table Of Contents
Contents Sending Scanned Image Data to Your Computer (Scan to PC) ........i Sending Scanned Image Data by Email (Send E-mail)..........ii Using TWAIN Capabilities (TWAIN) ................iii Trademark Information ....................iv Contents ........................v What is the Network Scanning System? ..............1-1 1-1 Outline ........................
Page 8 1-3 Using the Scanner Function ................. 1-8 1-3-1 Basic Settings ..................1-12 Original size selection (“Select original size”) ......... 1-12 Image transmission size selection (“Select sending size”) ..... 1-13 Scanning resolution selection (“Scanning resolution”) ....1-13 Original orientation selection (“Orig. set direction”) ......1-14 Image file format selection (“File type”) ..........
Page 9 Making Settings from a Web Browser ................ 2-1 2-1 WebPage Functions ..................... 2-2 2-2 Index of Objectives ....................2-3 2-3 Cautions ....................... 2-4 2-3-1 If you are having trouble connecting to the scanner from a Web browser… ................2-4 2-3-2 If a message appears which informs you that you can not connect, such as “Could not open Internet Site XXXXX”...
Page 10 2-7 Scan to PC Setting ....................2-21 2-7-1 Destination List ..................2-21 2-8 Send E-mail Setting....................2-28 2-8-1 E-mail Basic Setting ................2-28 2-8-2 Destination List ..................2-31 viii...
Page 11 Additional Utilities ......................3-1 3-1 What Utilities are Included with this Product? ............3-2 3-2 Scanner File Utility ....................3-4 3-2-1 What is the Scanner File Utility? ............. 3-4 Preparations ................... 3-4 Operation Flow ................3-5 3-2-2 Computer Environment ................3-6 3-2-3 Installation and Uninstallation ..............
Page 12 3-2-6 Saving Scanned Data as a File ............... 3-19 Outline of the Procedure ..............3-19 The File Name ................3-20 The Image Data ................3-21 If an Error Occurs when Writing Data to the Hard Disk… ....3-21...
Page 13 3-3 Address Editor ...................... 3-22 3-3-1 The Address Editor ................. 3-22 3-3-2 Computer Environment ................3-22 3-3-3 Installation and Uninstallation ..............3-23 Installing the Address Editor ............3-23 Uninstalling the Address Editor ............3-24 3-3-4 Running Address Editor ................3-25 3-3-5 Editing Data Selection screen ..............
Page 14 3-3-9 Send E-mail Setting ................3-44 E-mail Basic Setting ............... 3-44 Destination List (E-mail) ..............3-46 Registering and Editing Destination Information (Send E-mail function) ..............3-48 Registering and Editing Destination Group Information ....3-49 3-3-10 Scan to PC Setting .................. 3-51 Destination List (PC) ...............
Page 15 3-4 Address Book ....................... 3-63 3-4-1 About the Address Book ................. 3-63 3-4-2 Computer Environment ................3-64 3-4-3 Installation and Uninstallation ..............3-65 Installing the Address Book ............3-65 Uninstalling the Address Book ............3-66 3-4-4 Initial Dialogue Box for the Address Book ..........3-67 Accessing the Initial Dialogue Box for the Address Book ....
Page 16 Registering or changing password of a destination group for the Scan to PC function ............. 3-85 (10) Adding destinations to or deleting destinations from a destination group for the Scan to PC function ........ 3-86 3-4-6 Importing an Address Data File ............... 3-88 Importing from Address Book ............
Page 17 3-5 TWAIN Source ..................... 3-95 3-5-1 TWAIN source ..................3-95 3-5-2 Computer Environment ................3-96 3-5-3 Installing the TWAIN source ..............3-97 3-5-4 Uninstalling the TWAIN source ............... 3-98 3-5-5 Image Data ..................... 3-99 3-5-6 Scanning an Image ................. 3-100 Starting the scanning operation at your computer…...
Page 18: What Is The Network Scanning System
Section What is the Network Scanning System? Page 1-1...
Page 19: Outline
1-1 Outline This Network Scanning System enables multiple computers to share the use of a scanner that is connected to their network. A Scanner Interface Card, Scanner Library CD-ROM and a TWAIN-compatible application CD-ROM are included as accessories with this product. The Scanner Interface Card should be installed in the scanner itself and the Scanner Library CD-ROM is for use in the computer(s).
Page 20: Using The Scanner Utilities Cd-Rom
1-2 Using the Scanner Utilities CD-ROM Included on the Scanner Utilities CD-ROM is the 4 other scanner utilities (Scanner File Utility, Address Editor, Address Book and TWAIN source) as well as an On-Line Manual. In order to use this Network Scanning System, it will be necessary for you to install the TWAIN source and other scanner utilities from the CD-ROM onto an appropriate computer.
Page 21: Contents Of The Cd-Rom
1-2 Using the Scanner Utilities CD-ROM 1-2-1 Contents of the CD-ROM The contents of the Scanner Utilities CD-ROM that you can access are displayed as selectable items in the Main Menu screen. Page 1-4...
Page 22: Scanner Utilities
1-2 Using the Scanner Utilities CD-ROM The following offers a basic outline of each of these available items. Click on the desired item to access it. (1) Scanner Utilities • Address Editor This item installs the “Address Editor” in the computer. Using this utility enables you to register or edit the contents of the scanner’s Address Book (shared Address Book).
Page 23: Twain Source
1-2 Using the Scanner Utilities CD-ROM (2) TWAIN Source This item installs the “TWAIN Source” in the computer. Once this driver is installed, you will be able to operate the scanner and use the scanned image data right away using a TWAIN-compatible application on the computer in which the TWAIN source is installed.
Page 24: On-Line Manual
1-2 Using the Scanner Utilities CD-ROM 1-2-2 On-Line Manual The On-Line Manual that is on this Scanner Utilities CD-ROM is prepared in a PDF (Printer Description File) format and can only be viewed using the Adobe Acrobat Reader application. Thus, prior to reading the On-Line Manual, you will first need to install Adobe Acrobat Reader on your computer.
Page 25: Using The Scanner Function
1-3 Using the Scanner Function The following gives an explanation of the scanning functions of your copier. Make the appropriate settings according to your scanning needs. For more detailed information regarding the setting procedures for the functions in each different scanner, refer to the <Setup Edition>...
Page 26 1-3 Using the Scanner Function Image quality settings Adjusts the density of the scanned image to a desired See page Scanning density value. 1-15 Sets the appropriate image quality mode in order to have Original image See page the image processed according to the specific type of quality 1-15 original being scanned.
Page 27 1-3 Using the Scanner Function Other settings With this mode, the two facing pages of an open-faced orig- See page inal such as a magazine, book or the like, as well as the two Page separation 1-17 sides of a 2-sided original, can each be scanned separately. With this mode, you can erase the dark shadows and lines See page that appear when scanning originals such as books,...
Page 28 1-3 Using the Scanner Function Note Available function symbols Some functions can or can not be used depending on the transmission mode that is selected or the type of copier in use. The following symbols indicate the transmission modes and types of copiers under which that particular function can be used.
Page 29: Basic Settings
1-3 Using the Scanner Function 1-3-1 Basic Settings (1) Original size selection (“Select original size”) The original sizes (scanning area) available for selection are as follows. • Inch specifications: Auto, 11" x 17", Computer Form (11" x 15"), 8-1/2" x 14", 8-1/2" x 11" and 5-1/2" x 8-1/2" * A4 is also available in monochrome copiers.
Page 30: Image Transmission Size Selection ("Select Sending Size")
1-3 Using the Scanner Function (2) Image transmission size selection (“Select sending size”) The image transmission sizes (size of the transmitted image) available for selection are as follows. • Inch specifications: Auto, 11" x 17", 8-1/2" x 14", 8-1/2" x 11" and 5-1/2" x 8-1/2" * A4 is also available in monochrome copiers.
Page 31: Original Orientation Selection ("Orig. Set Direction")
1-3 Using the Scanner Function (4) Original orientation selection (“Orig. set direction”) Specifies the position of the top edge of the original once the original is set. • “Back Edge” or “Left top corner” * If the original set direction is not selected, the scanning may not be performed correctly. (5) Image file format selection (“File type”) Sets the desired format of the image file.
Page 32: Image Quality Settings
1-3 Using the Scanner Function 1-3-2 Image Quality Settings (1) Scanning density adjustment (“Scanning density”) Adjusts the density of the scanned image to a desired value. (This setting will also affect the density of the machine’s copier functions.) • “Original Image Type” (manual switching) •...
Page 33: Color Mode Selection ("Color Mode")
1-3 Using the Scanner Function (4) Color mode selection (“Color mode”) Sets the desired color mode. • “A.C.S” (Auto Color System) ... Automatically determines whether the original is a black and white or a color original and selects the appropriate mode for scanning. •...
Page 34: Other Settings
1-3 Using the Scanner Function 1-3-3 Other settings (1) Page separation mode (“Page separation”) With this mode, the two facing pages of an open-faced original such as a magazine, book or the like, as well as the two sides of a 2-sided original, can each be scanned separately. “1 side”...
Page 35: Border Erase Mode ("Erase")
1-3 Using the Scanner Function (2) Border erase mode (“Erase”) With this mode, you can erase the dark shadows and lines that appear when scanning originals such as books, magazines, etc. • “Sheet Erase” ..Select this setting when you want to erase the surrounding border of the original. Border •...
Page 36: Continuous Scanning Function ("Continuous Scanning")
1-3 Using the Scanner Function (4) Continuous scanning function (“Continuous scanning”) After scanning one original, other originals can be scanned under the same job. When this function is turned ON, each time an original is scanned a screen will appear to ask you whether to continue scanning other originals or not.
Page 37: Making Settings From A Web Browser
Section Making Settings from a Web Browser Page 2-1...
Page 38: Webpage Functions
2-1 WebPage Functions The WebPage Functions interface enables the management of certain scanner functions using standard Internet Web browser software. Performing such tasks as changing network settings and basic scanner settings, in addition to performing settings related to email and data transmission to a computer and the like, can be easily accomplished over the network.
Page 39: Index Of Objectives
2-2 Index of Objectives The following table lists, by objective, the different settings that are possible using the WebPage Functions interface. Use this table as a reference index when making the corresponding settings. Make network- Contains explanations on the network-related settings See page related settings for the Scanner Interface Card.
Page 40: Cautions
2-3 Cautions 2-3-1 If you are having trouble connecting to the scanner from a Web browser… If you are trying to make settings related to the Scanner interface Card or to utilities in the scanner itself from a Web browser and those settings are not being applied properly regardless of the fact that the network settings in the scanner itself are correct, turn the power to the scanner off and then back on again.
Page 41: Using The Webpage Functions Interface
2-4 Using the WebPage Functions Interface 1. Start up your Internet Web browser software. 2. Type the IP address or host name of the Scanner Interface Card into the address field. 3. Press the Enter key on your computer keyboard. 4.
Page 42 2-4 Using the WebPage Functions Interface 5. If the administration password has been registered, the following dialogue box will appear when you click on one of the setting links in the menu frame, such as System Basic Setting or Scanner Default Setting.
Page 43: The Home Page
2-5 The Home Page The home page is constructed of 3 different frames. • The top frame ..... Displays the IP address of the Scanner Interface Card and the status of the scanner. (Refer to page 2-8.) The top frame The menu frame The main frame •...
Page 44: The Top Frame
2-5 The Home Page 2-5-1 The Top Frame The top frame shows the IP address of the Scanner Interface Card and the status of the scanner. <IP Address> • Displays the IP address that is registered for the Scanner Interface Card. <Scanner Status>...
Page 45: The Menu Frame
2-5 The Home Page 2-5-2 The Menu Frame The menu frame allows selection of various settings related to the Scanner Interface Card and the scanner itself. * You can select each item in the menu frame one after another. However, if you happen to select an item in the middle of setting that same item, the information that you have already entered will be deleted.
Page 46: The Main Frame
2-5 The Home Page 2-5-3 The Main Frame The main frame displays system information in regard to the scanner. Selecting the language that you want to use is also accomplished here. * The registered default values will be displayed during start up of WebPage Functions. •...
Page 47: System Setting
2-6 System Setting Settings for the Scanner Interface Card are performed under the System Setting items. The settings for each item can only be changed when the scanner is in the “Ready” state. 2-6-1 Setting Conditions It is necessary for you to enter the administrator’s password in order to access the settings related to either the Scanner Interface Card or to the scanner itself.
Page 48: System Basic Setting
2-6 System Setting 2-6-2 System Basic Setting You can make network and administrator-related settings for the Scanner Interface Card here. IMPORTANT! BE SURE to click on the Registration button after you have completed the desired settings. Page 2-12...
Page 49 2-6 System Setting Network • Host Name Register the host name of the scanner (up to 32 single-byte characters) in this field. • IP Address Register the IP address of the Scanner Interface Card in this field in the following form: XXX.XXX.XXX.XXX •...
Page 50 2-6 System Setting • DNS Server (Sec.) Register the IP address of the secondary DNS server in this field in the following form: XXX.XXX.XXX.XXX • DNS Domain Name Register the domain name (up to 32 characters) in this field. • WINS Server (Pri.) When WINS (Windows Internet Name Service) is used to resolve the IP address using the name of the computer, register the IP address of the primary WINS server in this field in the following form: XXX.XXX.XXX.XXX...
Page 51 2-6 System Setting Administrator • E-mail address Type the email address of the administrator here. • Change password If you want to change the administration password, select “Yes”. If you do NOT want to change it, select “No”. • New Password If you want to change the administration password, type a new password into this field (up to 8 characters).
Page 52: Scanner Setting
2-6 System Setting 2-6-3 Scanner Setting Default settings related to scanning in images at the scanner are performed under this item. You can also make settings related to certain scanning conditions and the default file name (for saving scanned data). Page 2-16...
Page 53 2-6 System Setting • Original Type You can select from among the following 4 original types in order to suit the originals that are actually being scanned: Photo, Text, Text+Photo and OCR • Resolution You can select from among the following 4 scanning resolutions: 600 dpi, 400 dpi, 300 dpi and 200 dpi •...
Page 54: Sender List
2-6 System Setting 2-6-4 Sender List You can register the list of those users who will be allowed to use the network scanning functions (Send E-mail and Send to PC). • Sender (User) List Click on this item when you want to access the Sender (User) List screen where you can register, confirm and edit information for up to 40 (Nos.
Page 55 2-6 System Setting • Sender (User) Setting • Registration Number The number that was selected in the Sender (User) List will be displayed here. This is merely information in order to remind you which number from the list it is that you are registering or editing information for and this number cannot be edited itself.
Page 56 2-6 System Setting • E-mail address The email address of the user can be up to 64 single-byte characters in length. • Registration button Click on this button to have all the selected settings registered in the scanner. If you move to the next page without clicking on the Registration button, any settings that have not been properly registered will be deleted.
Page 57: Scan To Pc Setting
2-7 Scan to PC Setting You can send scanned image files to a folder on a computer that was designated in advance, when you use the Scanner Interface Card. This items explains how to register the destination computer. * Refer to pages 3-3 through 3-20 for an explanation on the functions of the Scanner Delivery Utility. 2-7-1 Destination List •...
Page 58 2-7 Scan to PC Setting • Class The registration type (single or group) is displayed here. : Displayed for group registration Displayed for single registration • Registration Name The registered name is displayed here. IMPORTANT! BE SURE to click on the Registration button after you have completed the desired settings for the destination PC.
Page 59 2-7 Scan to PC Setting • Destination Registration (PC) You can select the registration type (single registration or group registration). If you click on the Single Regist. or the Group Regist. button, the corresponding Registration and Editing screen will appear. Page 2-23...
Page 60 2-7 Scan to PC Setting • Destination Registration (PC) [Single Registration] You will be able to register and edit registration names, destination computers and destination “save numbers” for each folder. • Registration Number The number that you selected from the Destination List will be displayed here. This is merely information in order to remind you which number from the list it is that you are registering or editing information for and this number cannot be edited itself.
Page 61 2-7 Scan to PC Setting • Destination PC Enter the destination computer’s IP address or host name into this field. If you enter both, the IP address will normally be accessed prior to the host name. * The host name can be up to 32 single-byte characters in length. •...
Page 62 2-7 Scan to PC Setting • Destination Group Registration (PC) You will be able to register and edit information for groups of destination computers. Choose the destinations that you want to register as a group and click on the checkbox next to the desired number.
Page 63 2-7 Scan to PC Setting • Registration Number The number that you selected from the Destination List will be displayed here. This is merely information in order to remind you which number from the list it is that you are registering or editing information for and this number cannot be edited itself.
Page 64: Send E-Mail Setting
2-8 Send E-mail Setting The following explains the various settings for sending scanned images by email to a computer. 2-8-1 E-mail Basic Setting Make basic settings related to sending email (scanned data) here. IMPORTANT! BE SURE to click on the Registration button after you have completed the desired settings.
Page 65 2-8 Send E-mail Setting • Item 1. Transmission Domain Setting ..Select from among Non-restricted sending, Permitted destination domain names, and Restricted destination domain names. * If you select Non-restricted sending, there will be no restriction under the Send E-mail function in regard to the destination domain, and the information registered in the domain data field will be ignored.
Page 66 2-8 Send E-mail Setting • Character Code Designate the character code that will be used in the email message. You can select from among the following character codes: US-ASCII (English), Shift-JIS (Japanese) and ISO-8859-1 (West Europe) • Registration button Click on this button to have all the selected settings registered in the scanner. If you move to the next page without clicking on the Registration button, any settings that have not been properly registered will be deleted.
Page 67: Destination List
2-8 Send E-mail Setting 2-8-2 Destination List • Destination List (E-mail) Click on this item when you want to access the destination address registration screen where you can register, confirm and edit information for up to 100 (No. 001 to No. 100) destination addresses. * If a registration name has already been registered for any number, it will be displayed in the corresponding text box.
Page 68 2-8 Send E-mail Setting • No. The registration number is displayed here. Click on the number for which you want to register or edit information in order to access the corresponding Destination Registration (E-mail) screen. • Class The registration type (single or group) is displayed here. : Displayed for group registration Displayed for single registration •...
Page 69 2-8 Send E-mail Setting • Destination Registration (E-mail) You can select the registration type (single registration or group registration). If you click on the Single Regist. or the Group Regist. button, the corresponding Registration and Editing screen will appear. Page 2-33...
Page 70 2-8 Send E-mail Setting • Destination Registration (Single) You will be able to register and edit registration names and destination email addresses for each number. Page 2-34...
Page 71 2-8 Send E-mail Setting • Registration Number The number that you selected from the Destination Address List will be displayed here. This is merely information in order to remind you which number from the list it is that you are registering or editing information for and this number cannot be edited itself.
Page 72 2-8 Send E-mail Setting • Destination Group Registration (E-mail) You will be able to register and edit information for destination groups (E-mail). Choose the destinations that you want to register as a group and click on the check box next to the number.
Page 73 2-8 Send E-mail Setting • Registration Number The number that you selected from the Destination List will be displayed here. This is merely information in order to remind you which number from the list it is that you are registering or editing information for and this number cannot be edited itself.
Page 74: Additional Utilities
Section Additional Utilities Page 3-1...
Page 75: What Utilities Are Included With This Product
3-1 What Utilities are Included with this Product? Scanner File Utility Address Editor The Scanner File Utility is used for sending graphic image The Address Editor is a utility tool that enables you to data that is prepared by the scanner to a designated folder register or edit the contents of the scanner’s Address Book on a computer.
Page 76: What Utilities Are Included With This Product
3-1 What Utilities are Included with this Product? Address Book TWAIN source The Address Book is the address directory utility that is The TWAIN source is used for controlling the scanning installed in your computer. Using this utility enables you to operation with a TWAIN-compatible application and having create and use your own personal destination list.
Page 77: Scanner File Utility
3-2 Scanner File Utility 3-2-1 What is the Scanner File Utility? The Scanner File Utility is used to receive graphic image data from a scanner into a computer. This utility also compresses and saves the received data in the corresponding computer. Once the Scanner File Utility is installed and the computer booted up again, the utility will also be started up automatically.
Page 78: Operation Flow
3-2 Scanner File Utility (2) Operation Flow The following illustrates the steps to save scanned image data in a computer using the Scanner File Utility. Scanner Destination Computer Network Manager Use the Scanner File Utility Use the Address to designate the Editor, Address destination folder.
Page 79: Computer Environment
3-2 Scanner File Utility 3-2-2 Computer Environment • Hardware ......IBM PC/AT or compatible • Interface ......10BASE-T or 100BASE-TX • OS ........Windows NT 4.0 (Service Pack 5), Windows 2000, Windows 98 (Second Edition), Windows 95 (OSR2) and Windows Me Page 3-6...
Page 80: Installation And Uninstallation
3-2 Scanner File Utility 3-2-3 Installation and Uninstallation (1) Installing the Scanner File Utility 1. Click on Scanner Utilities in the Main Menu of the Scanner CD-ROM. The following window will appear. * In order to access the Main Menu, refer to “1-2 Using the Scanner CD-ROM” on page 1-3. 2.
Page 81: Uninstalling The Scanner File Utility
3-2 Scanner File Utility 3. Follow the instructions indicated in the wizard to continue the installation procedure. * Once installation is complete, you will be able to use the Scanner File Utility once you reboot the computer. After that, the Scanner File Utility will start up automatically with the computer and will run in the background.
Page 82: Initial Dialogue Box For The Scanner File Utility
3-2 Scanner File Utility 3-2-4 Initial Dialogue Box for the Scanner File Utility The Scanner File Utility will automatically start up after installation. However, any time you want to quit the utility program, whenever you want to designate the folder into which data – received from the scanner – will be saved, as well as when you want to set a security password for that folder, you will need to access the initial dialogue box for the Scanner File Utility.
Page 83: Contents Of The Initial Dialogue Box For The Scanner File Utility
3-2 Scanner File Utility (2) Contents of the Initial Dialogue Box for the Scanner File Utility 1. Status field ..... Displays the current status of the scanner. 2. OK button ....... Click on this button when you want to close the initial dialogue box. 3.
Page 84: Destination Folders For Scanned Data
3-2 Scanner File Utility 3-2-5 Destination Folders for Scanned Data (1) The Setup Dialogue Box When you want to select a new destination folder for receiving scanned data, or when you want to change settings or set a security password for any of the currently registered folders, click on the Setup button in the Start Dialogue Box.
Page 85 3-2 Scanner File Utility 1. New button ..... Click on this button when you want to designate a new destination folder for receiving scanned data. 2. Edit button ...... Click on this button when you want to change the settings for any currently registered destination folder.
Page 86: Designating A New Destination Folder For Receiving Scanned Data
3-2 Scanner File Utility (2) Designating a New Destination Folder for Receiving Scanned Data When you want to designate a new destination folder for receiving scanned data, click on the New button in the Setup Dialogue Box. The Folder Setting Dialogue Box for making the corresponding settings will appear.
Page 87 3-2 Scanner File Utility 2. Click on the Browse button to the right of the Folder field in order to select the new folder that you want to use as a destination folder for receiving scanned data. The Select Folder Dialogue Box will appear. * You may also select the desired folder by typing the path for that folder directly into the Folder field.
Page 88 3-2 Scanner File Utility 3. If you want to enter a comment about that folder, type the desired information directly into the Comment field (up to 32 characters). 4. You can also designate a password for that folder for security purposes. If you want to set a security password for that folder, type the desired password directly into the Folder Password field (up to 8 characters).
Page 89: Changing Settings For A Registered Destination Folder
3-2 Scanner File Utility (3) Changing Settings for a Registered Destination Folder When you want to change the settings of a destination folder currently registered to receive scanned data, select the folder you want from among the displayed list and then click on the Edit button in the Setup Dialogue Box.
Page 90 3-2 Scanner File Utility 2. If you want to change the security password for that folder, type the currently registered password into the Old Password field. 3. Type the new password that you want to register directly into the New Password field (up to 8 charac- ters).
Page 91: Removing A Destination Folder Designation
3-2 Scanner File Utility (4) Removing a Destination Folder Designation Perform the following procedure when you want to remove the designation of any folder as a destination folder for receiving scanned data. 1. In the Folder field of the Setup Dialogue Box, click on the folder that you want to remove the destination folder designation for, in order to select it.
Page 92: Saving Scanned Data As A File
3-2 Scanner File Utility 3-2-6 Saving Scanned Data as a File (1) Outline of the Procedure The following procedure explains in general how to use the Scanner File Utility to receive graphic image data from the scanner. 1. Make sure that the Scanner File Utility is running in the computer in which you want to receive the data. * If the Scanner File Utility is NOT running, refer to “(1) Accessing the Start Dialogue Box for the Scanner File Utility”...
Page 93: The File Name
3-2 Scanner File Utility (2) The File Name Whenever a graphic image data is saved as a file on any computer, the file name (up to 16 characters + suffix) will be created based on information registered in advance using the WebPage Functions interface. If no settings have been made in advance, the file name will be automatically determined based on the following rules.
Page 94: The Image Data
3-2 Scanner File Utility (3) The Image Data • File format Supports TIFF and PDF* formats. * Using PDF Convert Library by HyperGEAR, Inc. • Image data size Standard sizes: A3, A4, A5, B4, B5, B6, 11" x 17", 8-1/2" x 11", 8-1/2" x 14", 5-1/2" x 8-1/2"; 11" x 15" and Folio Custom sizes: Width - between 50 mm and 432 mm (17");...
Page 95: Address Editor
3-3 Address Editor 3-3-1 The Address Editor The Address Editor enables you to register or edit the contents of the scanner’s Address Book (the Shared Address Book) as well as selecting the network settings, initial settings for the scanning functions, etc. This utility should used by the administrator when managing information in the Address Book, etc.
Page 96: Installation And Uninstallation
3-3 Address Editor 3-3-3 Installation and Uninstallation (1) Installing the Address Editor 1. Click on Scanner Utilities in the Main Menu of the Scanner CD-ROM. * In order to access the Main Menu, refer to “1-2 Using the Scanner CD-ROM” on page 1-3. 2.
Page 97: Uninstalling The Address Editor
3-3 Address Editor (2) Uninstalling the Address Editor Use the “Add/Remove Programs” function in Windows to uninstall the Address Book. Page 3-24...
Page 98: Running Address Editor
3-3 Address Editor 3-3-4 Running Address Editor 1. Start up Address Editor. * Click on Start in the Windows Task Bar and then select Program -> Scanner User Software -> Address Editor in that order and the Address Book will start up. 2.
Page 99 3-3 Address Editor 1. Menu Bar ......Items displayed in the Tool Bar as well as by the buttons in the Menu Area can be selected here as well. 2. Tool Bar ......Contains buttons for easy execution of tasks such as writing new or edited data to the scanner, etc.
Page 100: Editing Data Selection Screen
3-3 Address Editor 3-3-5 Editing Data Selection screen Select the Address Editor data that you want to edit. You can then connect to the scanner and edit or register the setting data directly in the scanner, or create and edit setting data without being connected to the scanner.
Page 101: Scanner Address Settings
3-3 Address Editor (1) Scanner address settings 1. Scanner Address ..Type in the address (host name or IP address) of the scanner that you want to connect to into this field. The addresses corresponding to the last 10 times a scanner was connected to can be accessed in the drop-down list.
Page 102 3-3 Address Editor 2. new data ......Select this radio button when you want to create new data for Address Editor without connecting to a scanner. 3. saved data ..... Select this radio button when you want to open and edit data previously saved for Address Editor.
Page 103: Scanner Search
3-3 Address Editor 3-3-6 Scanner Search The Search Dialogue Box enables you to search for a specific scanner over the network. 1. Type in the address (host name or IP address) of the scanner that you want to connect to into this field. The addresses corresponding to the last 10 times a scanner was connected to can be accessed in the drop-down list.
Page 104 3-3 Address Editor 2. Click on this [Start Editing] button to start the editing operation for the selected Address Editor data. * If you are connected to a scanner that is currently in use, the corresponding host name will not be displayed.
Page 105: Password Entry (When Connected To The Scanner)
3-3 Address Editor 3-3-7 Password Entry (when connected to the scanner) When your computer is connected to a scanner, it is necessary to enter the administrator’s password in order to access scanners settings and other information. * Refer to “(3) Change Password” on page 3-37 for information on setting the administrator’s password. 1.
Page 106: System Setting
3-3 Address Editor 3-3-8 System Setting Make basic scanner settings. (1) System Basic Setting Lets you make settings related to your network connection, such as the scanner’s IP address. Page 3-33...
Page 107 3-3 Address Editor 1. Network/ Administrator Tabs ..Click on the desired tab to switch between network and administrator settings. 2. Host Name ..... Type the host name of the scanner (up to 32 single-byte characters) in this field. 3. IP Address ..... Type the IP address of the Scanner Interface Card in this field in the following form: XXX.XXX.XXX.XXX Whenever you attempt to change the IP address, a confirmation dialogue box will appear in which you will need to verify that you really want to change the address.
Page 108 3-3 Address Editor 12. WINS Server (Sec.) ..Type the IP address of the secondary WINS server in this field in the following form: XXX.XXX.XXX.XXX 13. SMTP Server ....Type the IP address of the SMTP server in this field in the following form: XXX.XXX.XXX.XXX Page 3-35...
Page 109: Administrator Tab
3-3 Address Editor (2) Administrator Tab Lets you make administrator settings. 1. E-mail Address ....Type the administrator’s email address of the in this field. * The email address can be up to 64 single-byte characters in length. 2. Change Password button ......
Page 110: Change Password
3-3 Address Editor (3) Change Password Sets the administrator password. 1. New Password ....Type a new password into this field. * The administrator password can be up to 8 single-byte characters in length. 2. Confirm new password ....... Type the same password as you did in the New Password field in here in order to confirm the password.
Page 111: Default Setting
3-3 Address Editor (4) Default Setting Lets you change default settings for using the scanner functions of your copier. * Perform the Black and White mode settings if you have a monochrome copier, and the Color/Mono- chrome (Gray) mode settings if you have a color copier. Page 3-38...
Page 112 3-3 Address Editor <Black and White mode> 1. Resolution ..... You can select from among the following 4 scanning resolutions: 200 dpi, 300 dpi, 400 dpi and 600 dpi 2. File Type ......Sets the file format at which scanned data will be saved: TIFF or PDF 3.
Page 113: Sender (User) List
3-3 Address Editor (5) Sender (User) List Registers the information for users who will be allowed to use the network-scanner functions of the copier (Send E-mail and Scan to PC). Page 3-40...
Page 114 3-3 Address Editor 1. Name ......The name indicated here will be displayed as the sender name in the scanner’s operation panel. 2. Registration Number ..This is a registration number for the user information. * This number will be displayed in the scanner’s operation panel. * Up to 40 numbers (users) can be registered.
Page 115: Registering And Editing User Information
3-3 Address Editor (6) Registering and editing user information The Sender editing Dialogue Box allows you to register new users or edit information for previously registered users. 1. Name ......The name registered here will be displayed as the sender name in the scanner’s operation panel.
Page 116 3-3 Address Editor 4. Address of PC with “Address Book” installed ..... Type the host name or IP address of the computer that contains this user’s personal Address Book into this field. 5. Signature ....... Type the data (personal information) that will be transmitted with the email message into this field.
Page 117: Send E-Mail Setting
3-3 Address Editor 3-3-9 Send E-mail Setting Make basic settings and register or edit the destination information for sending scanned images by email under the Send E-mail function. (1) E-mail Basic Setting Select this item when you want to make basic settings related to sending email (scanned data) under the Send E-mail function here.
Page 118 3-3 Address Editor 1. E-mail Transmission Restriction .... Select from among Non-restricted sending, Permitted destination domain names, and Restricted destination domain names. * If you select Non-restricted sending, there will be no restriction under the Send E-mail function in regard to the destination domain, and the information registered in the Domain Data field will be ignored.
Page 119: Destination List (E-Mail)
3-3 Address Editor (2) Destination List (E-mail) Select this item when you want to confirm or edit the list of destinations under the Send E-mail function. 1. Name ......The name indicated here will be displayed as the destination name in the scanner’s operation panel.
Page 120 3-3 Address Editor 3. E-mail Address ....Displays the destination email address. 4. New Address button ..Click on this button to access the Destination editing Dialogue Box and register information for a new destination. (Refer to page 3-48.) 5. New Group button ..Click on this button to access the Destination Group Registration Dialogue Box and register information for a new group of destinations.
Page 121: Registering And Editing Destination Information (Send E-Mail Function)
3-3 Address Editor (3) Registering and Editing Destination Information (Send E-mail function) The Destination editing Dialogue Box allows you to register new destinations under the Send E-mail function, or edit information for previously registered destinations. 1. Name ......The name registered here will be displayed as the destination name in the scanner’s operation panel.
Page 122: Registering And Editing Destination Group Information
3-3 Address Editor (4) Registering and Editing Destination Group Information The Destination Group Registration Dialogue Box allows you to register new destination groups under the Send E-mail function, or edit information for previously registered destination groups. Page 3-49...
Page 123 3-3 Address Editor 1. Name ......The name registered here will be displayed as the destination group name in the scanner’s operation panel. 2. Registration Number ..Type the registration number for that destination group into this field. <Group members> 3.
Page 124: Scan To Pc Setting
3-3 Address Editor 3-3-10 Scan to PC Setting Register or edit destination information for sending scanned images directly to computers under the Scan to PC function. (1) Destination List (PC) Select this item when you want to confirm or edit the list of destinations under the Scan to PC function. Page 3-51...
Page 125 3-3 Address Editor 1. Name ......The name indicated here will be displayed as the destination computer name in the scanner’s operation panel. 2. Registration Number ..This is a registration number for the destination computer information. * It is possible to designate a registration number between 001 and 100. 3.
Page 126: Registering And Editing Destination Information (Scan To Pc Function)
3-3 Address Editor (2) Registering and Editing Destination Information (Scan to PC function) The Destination editing Dialogue Box allows you to register new destinations under the Scan to PC function, or edit information for previously registered destinations. 1. Name ......The name registered here will be displayed as the destination computer name in the scanner’s operation panel.
Page 127: Registering And Editing Destination Computer Group Information
3-3 Address Editor (3) Registering and editing destination computer group information The Destination Group Registration Dialogue Box allows you to register new destination computer groups under the Scan to PC function, or edit information for previously registered destination computer groups. Page 3-54...
Page 128 3-3 Address Editor 1. Name ......The name registered here will be displayed as the destination computer group name in the scanner’s operation panel. 2. Registration Number ..Type the registration number for that destination computer group into this field. 3.
Page 129: Tool Bar
3-3 Address Editor 3-3-11 Tool Bar The Tool Bar contains buttons for easy execution of tasks such as writing edited data to the scanner, etc. 1. Open button ....Opens the selected Address Editor file. 2. Save button ..... Saves edited data. 3.
Page 130: Importing Data From Address Editor
3-3 Address Editor 3-3-12 Importing Data from Address Editor With the Address Editor you can import into the Sender (User) List and Destination List (for the Send E-mail and Scan to PC functions) any address data that has been created in and exported from Address Editor, Address Book, or Microsoft Outlook as a csv file.
Page 131 3-3 Address Editor 1. Look in ......Selects the folder in which the address data file that you want to import is saved. 2. File list ......Lists the files within the selected folder. 3. Files of type ....Indicates the file type of the file that you want to import. 4.
Page 132: Making The Corresponding Field Settings
3-3 Address Editor (2) Making the corresponding field settings Once you have selected a csv file to import, you can determine which item will correspond to which field in the Sender (User) List. 1. Name ......The name indicated here will be displayed as the email destination name in the scanner’s operation panel.
Page 133: Checking Information To Be Imported
3-3 Address Editor (3) Checking Information to be Imported The Select Import data Dialogue Box allows you to confirm imported address data and add it to the Sender (User) List or the Destination List. Page 3-60...
Page 134 3-3 Address Editor 1. Number of selected addresses ...... Indicates the number of addresses selected for import. 2. Edit button ...... Click on this button to edit the contents of the selected addresses. 3. Add to address list button ......Click on this button to add the selected addresses to the Destination List (E-mail).
Page 135: Address Editor Version Information
3-3 Address Editor 3-3-13 Address Editor Version Information The About Scanner Address Editor screen will appear with version information any time Version Informa- tion is selected under Help in the Menu Bar. Page 3-62...
Page 136: Address Book
3-4 Address Book 3-4-1 About the Address Book The Address Book utility is used to register and edit information in the Destination List which is referred to when performing Send E-mail and Scan to PC operations at the scanner and sending scanned image data from the scanner to a designated email address.
Page 137: Computer Environment
3-4 Address Book 3-4-2 Computer Environment • Hardware ......IBM PC/AT or compatible • Interface ......10BASE-T or 100BASE-TX • OS ........Windows NT 4.0 (Service Pack 5), Windows 2000, Windows 98 (Second Edition), Windows 95 (OSR2) and Windows Me Page 3-64...
Page 138: Installation And Uninstallation
3-4 Address Book 3-4-3 Installation and Uninstallation (1) Installing the Address Book 1. Click on Scanner Utilities in the Main Menu of the Scanner CD-ROM. The following window will appear. * In order to access the Main Menu, refer to “1-2 Using the Scanner CD-ROM” on page 1-3. 2.
Page 139: Uninstalling The Address Book
3-4 Address Book 3. Follow the instructions indicated in the wizard to continue the installation procedure. * The Address Book will start up automatically with the computer and will run in the background. In addition, an icon that indicates that the utility is running will appear in the Windows Task Bar. (2) Uninstalling the Address Book Use the “Add/Remove Programs”...
Page 140: Initial Dialogue Box For The Address Book
3-4 Address Book 3-4-4 Initial Dialogue Box for the Address Book The Address Book will automatically start up after installation. However, any time you want to quit the utility program, or register and edit information in the Destination List, you will need to access the initial dialogue box for the Address Book.
Page 141: Contents Of The Initial Dialogue Box For The Address Book
3-4 Address Book (2) Contents of the initial dialogue box for the Address Book 1. Connected scanner area ......... Displays the names of the currently connected scanners. The Scanner Name column displays the host name or IP address that is registered in the corre- sponding scanner.
Page 142: Destination List Settings
3-4 Address Book 3-4-5 Destination List Settings (1) Contents of the Address Book Dialogue Box When you want to register or edit destination information for sending scanned image data under the Send E-mail or Scan to PC functions, click on the Setup button in the initial dialogue box for the Address Book. The Address Book Dialogue Box will appear and you can confirm destination information that has already been registered.
Page 143 3-4 Address Book 1. Apply button ....Click on this button to save any changes made to the information in the Destination List. 2. New Address button ..Click on this button to register information for a new destination in either the Send E-mail or Scan to PC Destination List.
Page 144: Destination List For The Send E-Mail Function
3-4 Address Book (2) Destination List for the Send E-mail function Click on the Send E-mail button in the Address Book Dialogue Box in order to access the Destination List that is used under the Send E-mail function. 1. List of Destinations ..Displays all destinations that are registered in the Destination List for use under the Send E-mail function.
Page 145 3-4 Address Book 3. ID ........Indicates the registration number for the registered destination or destination group. The registration number is designated to each destination or destina- tion group in the order that it is registered under the Destination List. 4.
Page 146: Registering And Editing Destination Information For The Send E-Mail Function
3-4 Address Book (3) Registering and editing destination information for the Send E-mail function The Destination Registration (E-mail) Dialogue Box allows you to register new destinations or edit informa- tion for previously registered destinations in the Destination List that is used under the Send E-mail function. REGISTRATION PROCEDURE 1.
Page 147 3-4 Address Book 4. Type in the email address of that destination (up to 64 single-byte characters). 5. Type in any comments that you want. 6. Click on the OK button. The entered destination information will be registered and the Address Book Dialogue Box will be displayed once again.
Page 148: Registering And Editing Destination Group Information For The Send E-Mail Function
3-4 Address Book (4) Registering and editing destination group information for the Send E-mail function The Destination Group Registration (E-mail) Dialogue Box allows you to register new destination groups or edit information for previously registered destination groups in the Destination List that is used under the Send E-mail function.
Page 149 3-4 Address Book 2. Type in a name for the destination group that you want to register (up to 16 single-byte characters). 3. The registration number for this destination group will be automatically designated (001 – 100) in the order that the destination group has been registered under the Destination List. It is possible to change the designated registration number.
Page 150: Adding Destinations To Or Deleting Destinations From A Destination Group For The Send E-Mail Function
3-4 Address Book (5) Adding destinations to or deleting destinations from a destination group for the Send E-mail function The Editing member (E-mail) Dialogue Box allows you to add destinations to or delete destinations from a previously registered destination group for the Send E-mail function. EDITING PROCEDURE 1.
Page 151 3-4 Address Book 2. Select the destinations that you want to add to the group in the Auxiliary group members list and then click on the Add button. 3. If you want to delete destinations from the group, select the destinations that you want to delete from the group in the Group members list and then click on the Delete button.
Page 152: Destination List For The Scan To Pc Function
3-4 Address Book (6) Destination List for the Scan to PC function Click on the Scan to PC button in the Address Book Dialogue Box in order to access the Destination List that is used under the Scan to PC function. 1.
Page 153 3-4 Address Book 3. ID ........Indicates the registration number for the registered destination or destination group. The registration number is designated to each destination or destina- tion group in the order that it is registered under the Destination List. 4.
Page 154: Registering And Editing Destination Information For The Scan To Pc Function
3-4 Address Book (7) Registering and editing destination information for the Scan to PC function The Destination Registration (PC) Dialogue Box allows you to register new destinations or edit information for previously registered destinations in the Destination List that is used under the Scan to PC function. REGISTRATION PROCEDURE 1.
Page 155 3-4 Address Book 2. Type in a name for the destination that you want to register (up to 16 single-byte characters). 3. The registration number for this destination will be automatically designated (001 – 100) in the order that the destination has been registered under the Destination List. It is possible to change the designated registration number.
Page 156: Registering And Editing Destination Group Information For The Scan To Pc Function
3-4 Address Book (8) Registering and editing destination group information for the Scan to PC function The Destination Group Registration (PC) Dialogue Box allows you to register new destination groups or edit information for previously registered destination groups in the Destination List that is used under the Scan to PC function.
Page 157 3-4 Address Book 2. Type in a name for the destination group that you want to register (up to 16 single-byte characters). 3. The registration number for this destination group will be automatically designated (001 – 100) in the order that the destination group has been registered under the Destination List. It is possible to change the designated registration number.
Page 158: Registering Or Changing Password Of A Destination Group For The Scan To Pc Function
3-4 Address Book (9) Registering or changing password of a destination group for the Scan to PC function The Change Password Dialogue Box allows you to set or change the password for destination groups used under the Send E-mail function. IMPORTANT! Be sure to set the same password for the save folder of each individual destination in the group as the password that you register here for that group.
Page 159: Adding Destinations To Or Deleting Destinations From A Destination Group For The Scan To Pc Function
3-4 Address Book (10) Adding destinations to or deleting destinations from a destination group for the Scan to PC function The Editing member (PC) Dialogue Box allows you to add destinations to or delete destinations from a previously registered destination group for the Scan to PC function. EDITING PROCEDURE 1.
Page 160 3-4 Address Book 2. Select the destinations that you want to add to the group in the Auxiliary group members list and then click on the Add button. 3. If you want to delete destinations from the group, select the destinations that you want to delete from the group in the Group members list and then click on the Delete button.
Page 161: Importing An Address Data File
3-4 Address Book 3-4-6 Importing an Address Data File (1) Importing from Address Book Data files that have been created and saved in Address Book can be selected and opened for use. IMPORTING PROCEDURE 1. With the Address Book Dialogue Box open, select Import -> Address Book under the File menu in the menu Bar.
Page 162 3-4 Address Book 2. Select the folder in which the address data file that you want to import is saved. (The Address Book folder will be selected by default.) 3. Select the file type of the file that you want to import. (Only .dat can be selected.) 4.
Page 163: Importing A Csv File
3-4 Address Book (2) Importing a csv file Data files that have been created and saved in csv format by other email software can be selected and opened for use in Address Book. IMPORTING PROCEDURE 1. With the Address Book Dialogue Box open, click on the Send E-mail button and then select Import -> CSV file under the File menu in the menu Bar.
Page 164 3-4 Address Book 2. Select the folder in which the csv formatted address data file that you want to import is saved. 3. Select the file type of the file that you want to import. (Only .csv can be selected.) 4.
Page 165 3-4 Address Book • Making the corresponding field settings Once you have selected a csv file to import, you can determine which item will correspond to which field in the Destination List (for the Send E-Mail function). 6. Select the item that you want to be displayed in the Name field of the Destination List (for the Send E-mail function).
Page 166 3-4 Address Book • Checking the information to be imported and registering it in the Address Book Check the contents of the csv file that you have selected to import before you register that data in the Destination List of the Address Book for the Send E-mail function. Warning column Page 3-93...
Page 167 3-4 Address Book 10. Select the email address information that you want to import from the list, and click on the Add to address list button. The number of addresses that you have currently selected will be shown in the Number of selected addresses field.
Page 168: Twain Source
3-5 TWAIN Source 3-5-1 TWAIN source The TWAIN source utility is used for controlling the scanning operation with a TWAIN-compatible application and having that scanned image displayed in that application. This section of this Operation Guide contains explanations on using a TWAIN-compatible application for scanning purposes. IMPORTANT! In order to use this method of scanning, the TWAIN source must be installed in the corresponding computer.
Page 169: Twain Source
3-5 TWAIN Source 3-5-2 Computer Environment • Hardware ......IBM PC/AT or compatible • Interface ......10BASE-T or 100BASE-TX • OS ........Windows NT 4.0 (Service Pack 5), Windows 2000, Windows 98 (Second Edition), Windows 95 (OSR2) and Windows Me Page 3-96...
Page 170: Installing The Twain Source
3-5 TWAIN Source 3-5-3 Installing the TWAIN source 1. Click on Install TWAIN Source in the Main Menu of the Scanner CD-ROM. * In order to access the Main Menu, refer to “1-2 Using the Scanner CD-ROM” on page 1-3. 2.
Page 171: Uninstalling The Twain Source
3-5 TWAIN Source 3-5-4 Uninstalling the TWAIN source Use the “Add/Remove Programs” function in Windows to uninstall the TWAIN source. Page 3-98...
Page 172: Image Data
3-5 TWAIN Source 3-5-5 Image Data The following indicates the image data specifications supported by this product. Max. image size ....Width: 432 mm (17"), Length: 297 mm (A4 length-wise) Resolution (dpi) ..... 200 x 200, 300 x 300, 400 x 400, 600 x 600 Grayscale ......
Page 173: Scanning An Image
3-5 TWAIN Source 3-5-6 Scanning an Image There are essentially 2 main methods of using a TWAIN-compatible application to scan an image at this scanner. The basic procedure for each of these is explained below. Follow the procedure that is appropriate to the operation that you will use.
Page 174: Main Dialogue Box
3-5 TWAIN Source 3-5-7 Main Dialogue Box The following explains each item within the TWAIN source Main Dialogue Box. Page 3-101...
Page 175 3-5 TWAIN Source 1 Original Image Size ..Lets you select, from among the following size settings, the size of the original that you want to scan. • Specifications for the Americas Auto, Ledger (11" x 17"), Computer Form (11" x 15"), Legal (8-1/2" x 14"), Letter (8-1/2" x 11"), Statement (5-1/2"...
Page 176 3-5 TWAIN Source 4 Original Type ....Lets you select, from among the following, the type of original that is actually being scanned: Photo, Text, Photo & Text and OCR 5 Resolution ..... Lets you select, from among the following, the desired scanning resolution: 600 dpi, 400 dpi, 300 dpi and 200 dpi 6 Scanning ......
Page 177 3-5 TWAIN Source 8 Status field ..... Indicates the current status of the scanner. 9 Scan/Connect button ..If your computer is successfully connected to the scanner, the Scan button will appear. Once you click this button, the scanning operation will start. If your computer is not connected properly to the scanner, this button will appear as a Connect button to enable you to reconnect to the scanner.
Page 178: Changing The Scanner's Ip Address
3-5 TWAIN Source 3-5-8 Changing the Scanner’s IP Address If the IP address of the scanner needs to be changed after installing the TWAIN source, perform the follow- ing procedure to change the settings and register the new IP address. 1.
Page 179 3-5 TWAIN Source 3. Type in the correct IP address. *The addresses corresponding to the last a few times a scanner was connected to can be accessed in the drop-down list. 4. Click on the OK button to return to the Scanner Setup Dialogue Box. 5.
Page 180: Copy Management Setting
3-5 TWAIN Source 3-5-9 Copy Management Setting If the copy management function which controls machine use is turned ON in the scanner, it will be neces- sary to enter a viable department code before you can use the machine. When the copy management function is turned ON, verification of this department code is carried out between the scanner and the computer that sends the scanning command.
Page 181: If You Can't Connect To The Scanner
3-5 TWAIN Source 3-5-10 If You Can’t Connect to the Scanner... If you cannot successfully connect to the scanner, one of the following causes is possible. Check the situation at the scanner’s operation panel and the try to reconnect. • The machine is currently in the middle of a copy operation or it is in a mode other than that for scanning. •...
Page 182 UTAX GmbH, Ohechaussee 235, 22848 Norderstedt, Germany...

Triumph Adler DC 2025 Instruction Handbook Manual

What Is the Network Scanning System

Making Settings from a Web Browser

Additional Utilities

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triumph Adler DC 2025

Summary of Contents for Triumph Adler DC 2025

Table of Contents
