Intel Z68-ITX series Motherboard

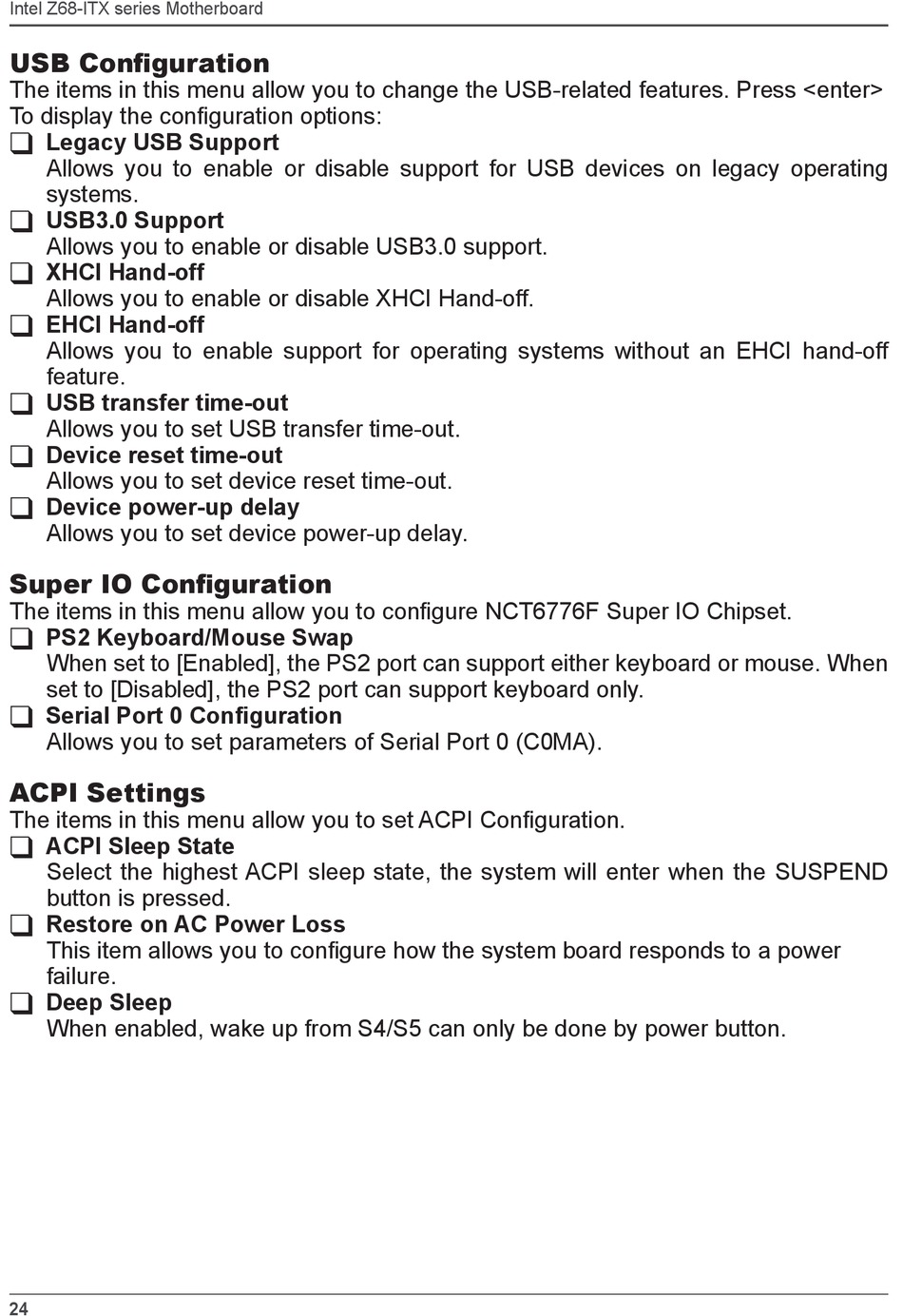

USB Configuration

The items in this menu allow you to change the USB-related features. Press <enter>
To display the configuration options:
q Legacy USB Support
Allows you to enable or disable support for USB devices on legacy operating
systems.
q USB3.0 Support
Allows you to enable or disable USB3.0 support.
q XHCI Hand-off
Allows you to enable or disable XHCI Hand-off.
q EHCI Hand-off
Allows you to enable support for operating systems without an EHCI hand-off
feature.
q USB transfer time-out
Allows you to set USB transfer time-out.
q Device reset time-out
Allows you to set device reset time-out.
q Device power-up delay
Allows you to set device power-up delay.

Super IO Configuration

The items in this menu allow you to configure NCT6776F Super IO Chipset.
q PS2 Keyboard/Mouse Swap
When set to [Enabled], the PS2 port can support either keyboard or mouse. When
set to [Disabled], the PS2 port can support keyboard only.
q Serial Port 0 Configuration
Allows you to set parameters of Serial Port 0 (C0MA).

ACPI Settings

The items in this menu allow you to set ACPI Configuration.
q ACPI Sleep State
Select the highest ACPI sleep state, the system will enter when the SUSPEND
button is pressed.
q Restore on AC Power Loss
This item allows you to configure how the system board responds to a power
failure.
q Deep Sleep
When enabled, wake up from S4/S5 can only be done by power button.
24
