Assembly Instructions - Flymo VISION COMPACT 380 User Manual

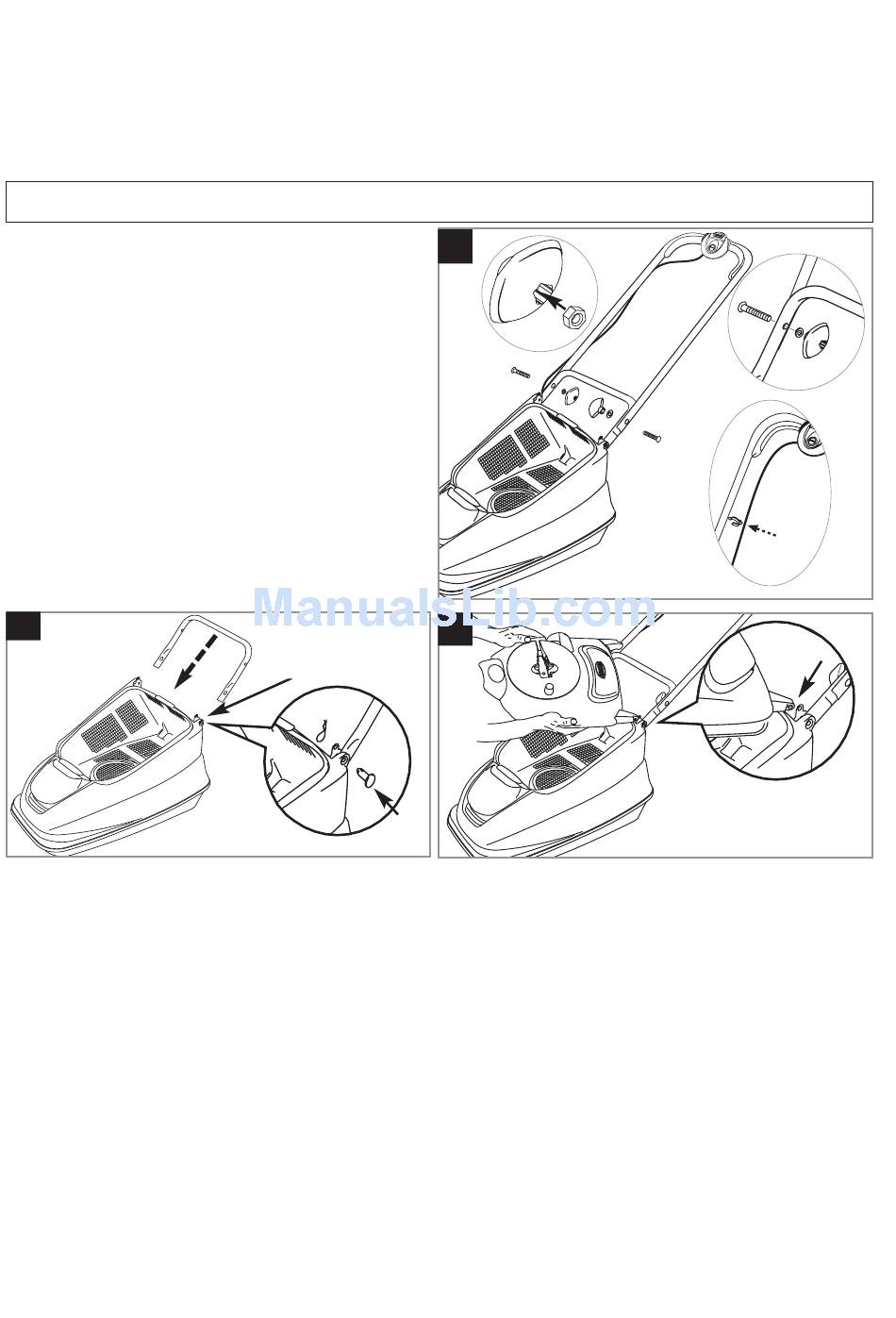

Lower handle assembly (A)
1. Insert the lower handle into the handle slots,
ensuring that the holes are aligned.
2. Insert the pins and secure with the retaining clips.
Upper handle assembly (B)
1. Insert the nut into the handle knob. (B1)
2. Align the holes in the upper and lower handles and
secure with the bolt, washer and wing knob.(B2)
3. Fit the cable to the handle with the clip provided.
(B3) Make sure the cable is not trapped between
the upper and lower handles.
Grassbox lid assembly (C)
1. Fit one side of the grassbox lid as illustrated in
Fig. C. Repeat for the other side.
A

Assembly Instructions

Handle slot
B
1
C
2
3
