Summary of Contents for Flymo Chevron 34C

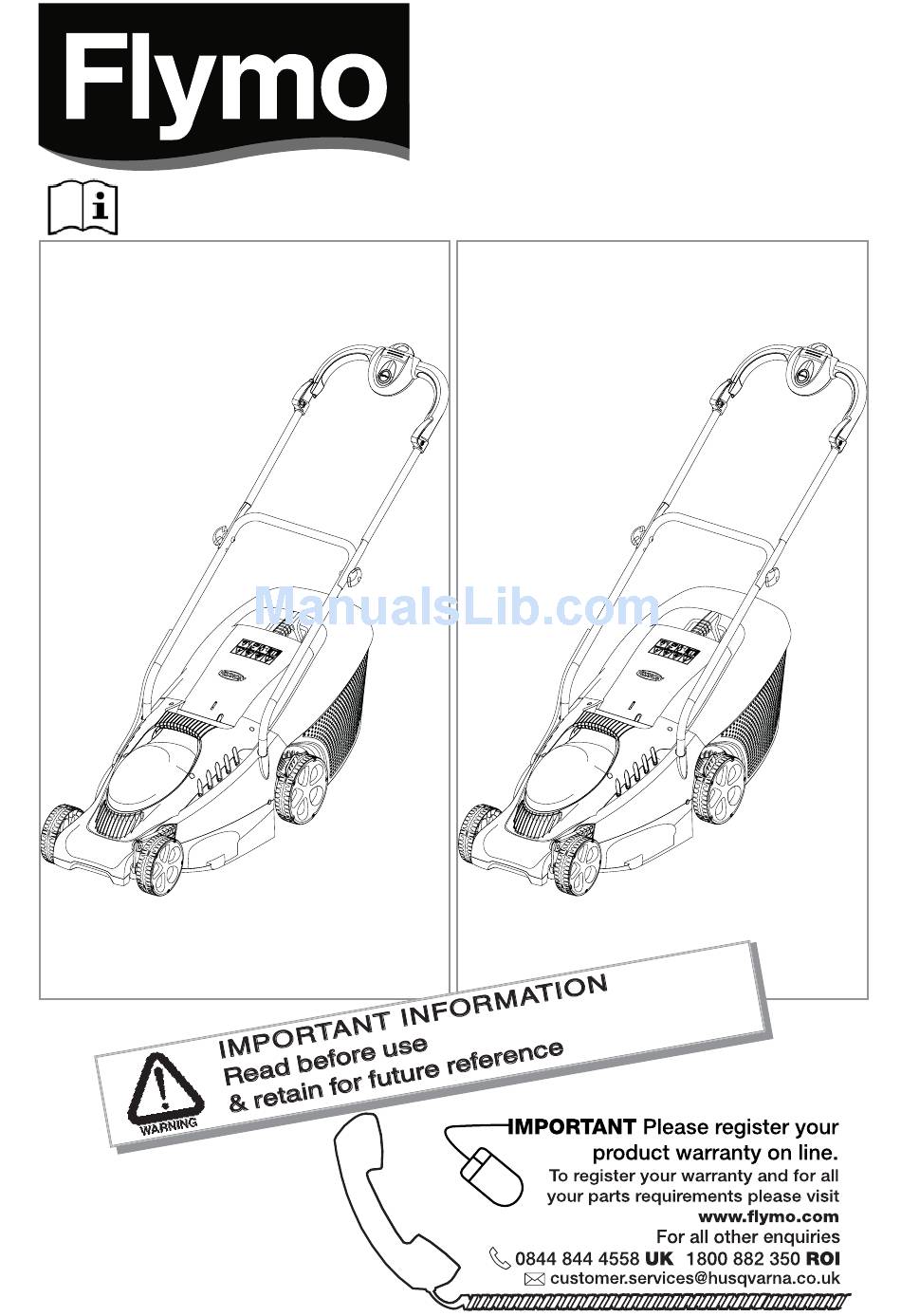

- Page 1 Chevron 34C ® Chevron 34VC Chevron 37C Chevron 37VC Original Instructions...
-
Page 2: Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT:- Husqvarna UK Ltd. Customer Service Department direct Telephone : 0844 844 4558 UK... - Page 3 6. A 13 Amp fuse must be fitted to the Mains Plug. • Flymo connectors are suitable for use with 2 core cable 7. The normal plug fuse and household fuse only protect only. Under no circumstances should these connectors the electrical equipment and are not a safeguard be used for earthed products.
-
Page 4: Assembly Instructions
Assembly Instructions When received from the Manufacturer, the wheels are in a raised position. Do not switch on the product before removing from the raised posi- tion into position 5. Assembly of Lower Handles to Deck 1. Insert lower handles into the deck and push down (B). 2. -
Page 5: Cutting Height Adjustment
Grassbox Fitting Fully Assembled Grassbox to Lawnmower. Lift safety flap (G1) Make sure the discharge chute is clean and free from debris (G2) Locate fully assembled grassbox onto 2 location points (G3) at the rear of the deck as illustrated in pic. -
Page 6: Starting And Stopping
Starting and Stopping To Start your Lawnmower 1. Form loop in mains cable and push the loop through the slot. (L) 2. To secure, position loop over the hook and pull the cable back through the slot (M). 3. Connect plug to mains and switch on. 4. -
Page 7: Removing And Fitting The Blade
Removing and Fitting the Blade Switch off, wait until the blade has stopped rotating and blade bolt disconnect from the mains electricity supply BEFORE at- blade tempting to remove or refit the blade. washer Always handle the blade with care - sharp edges could cause injury. -
Page 8: Service Recommendations
Fault Finding Hints Fails to Operate Excessive Vibration 1. Is the correct Starting procedure being followed? See ‘To 1. Disconnect from the mains electricity supply. Start your Lawnmower’ 2. Check that the blade is fitted correctly? 2. Is the Power Turned On? 3. -
Page 9: Ec Declaration Of Conformity
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Copyright © 2013 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or un- registered trademarks of Flymo S.A...
