Starting And Stopping; Assembly Instructions - Flymo Vision Compact 330 Original Instructions Manual

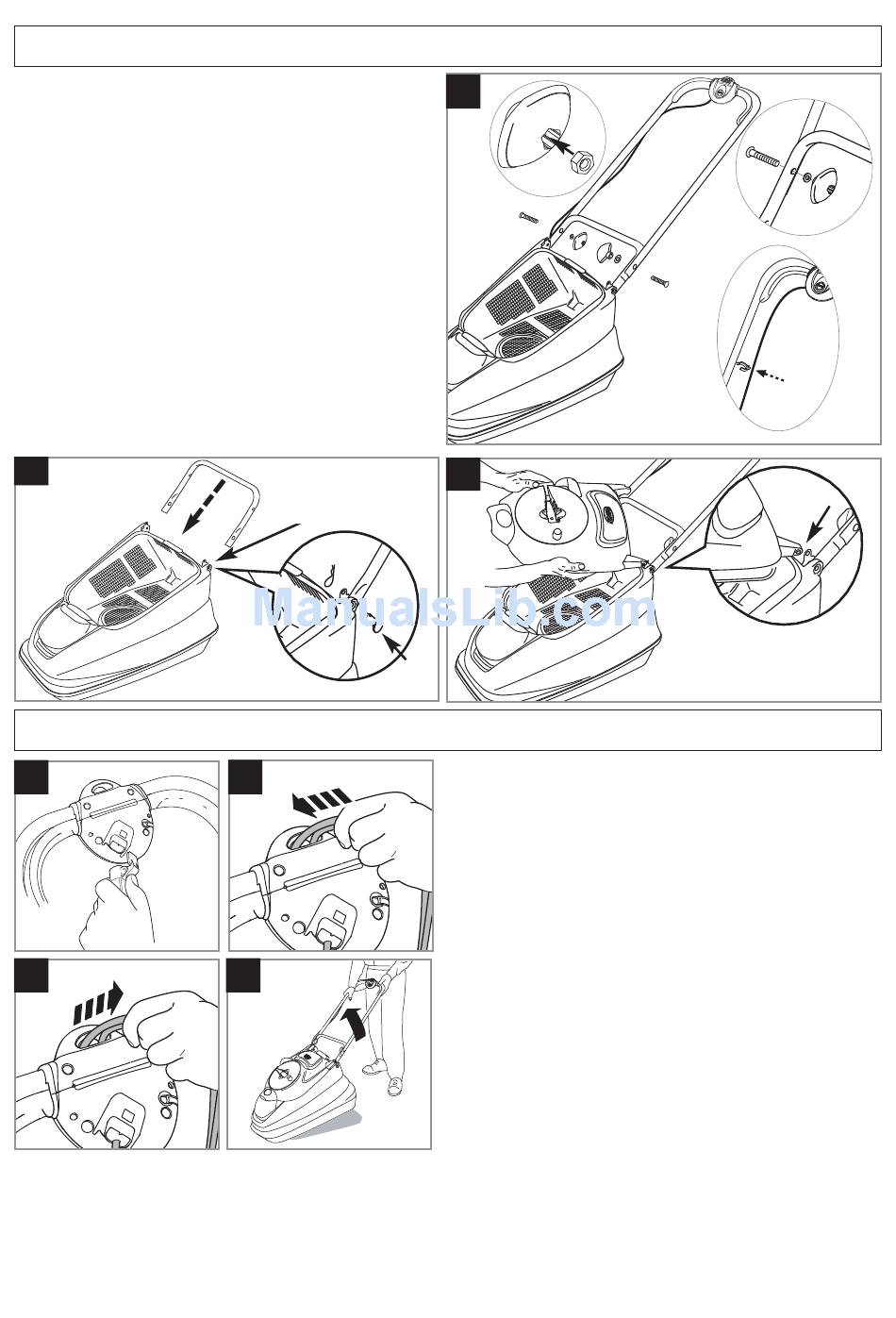

Lower handle assembly (A)
1. Insert the lower handle into the handle slots, en-
suring that the holes are aligned.
2. Insert the pins and secure with the retaining clips.
Upper handle assembly (B)
1. Insert the nut into the handle knob. (B1)
2. Align the holes in the upper and lower handles and
secure with the bolt, washer and wing knob.(B2)
3. Fit the cable to the handle with the clip provided.
(B3) Make sure the cable is not trapped between
the upper and lower handles.
Grassbox lid assembly (C)
1. Fit one side of the grassbox lid as illustrated in Fig.
C. Repeat for the other side.
A
D
F

Assembly Instructions

Handle slot

Starting and Stopping

E
G
B
1
C
To Start your Lawnmower
The Flymo Vision Compact uses an advanced belt drive
system, between the motor and the blade which im-
proves cutting power and flotation in all conditions. Due
to the high turning force (Torque) which this motor devel-
ops a light squeak may be heard when the machine is
started, this is quite normal and will not affect the per-
formance of the product
1. Connect female extension cable connector to the
back of the switchbox. (D)
2. Form loop in mains cable and push the loop
through the slot as illustrated in picture (E)
3. To secure, position loop over the hook and pull the
cable back through the slot as illustrated in picture
(F).
4. Connect plug to mains and switch on.
5. To prevent a ring being cut in your lawn and to clear
any residual grass in the collection chute, tilt your
lawnmower slightly (G).
