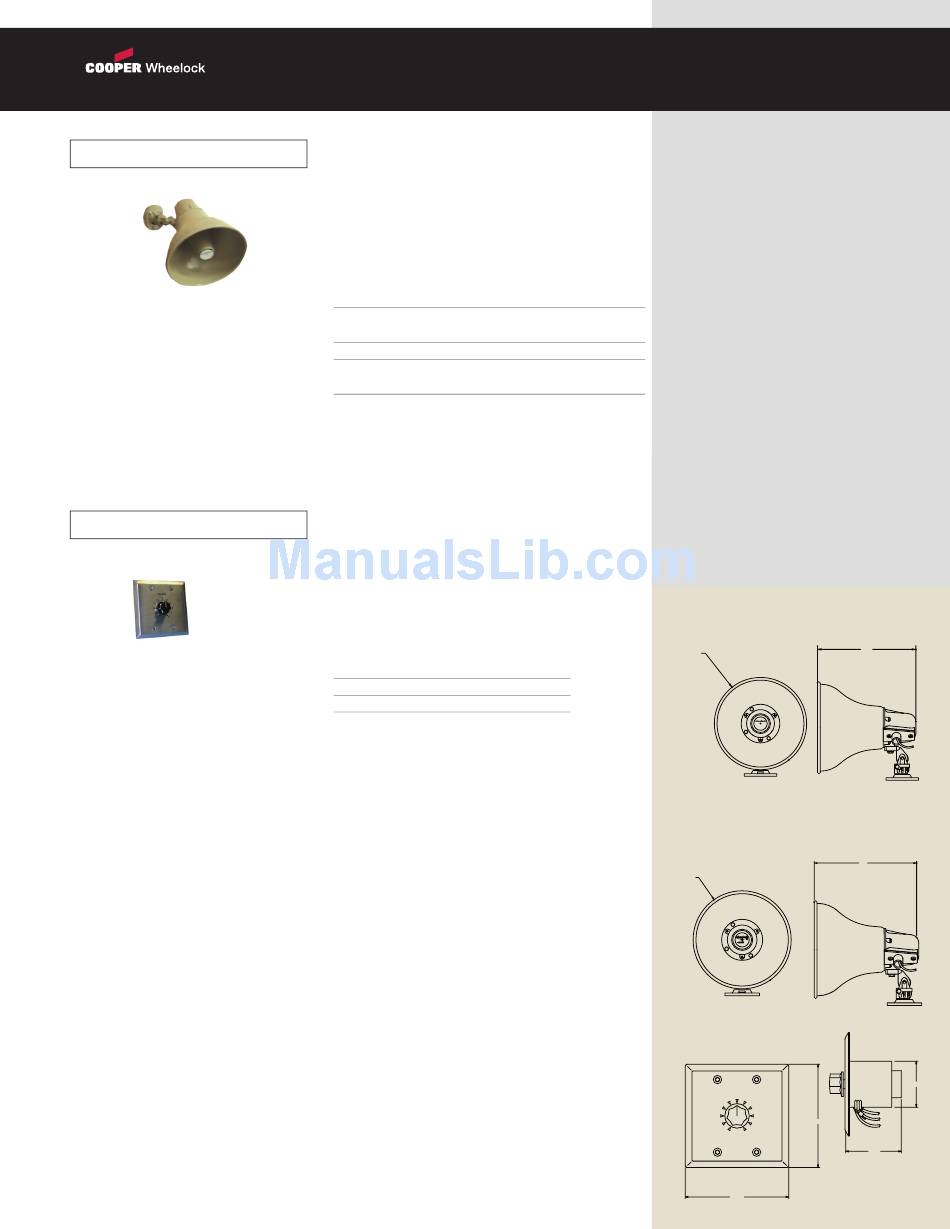

Cooper Wheelock Series SA-H5B Specification

Self Amplifi ed Paging Horns
8", 5 Watt Order Code
SA-H5B Beige
8", 15 Watt
SA-H15B Beige
Volume Control
Single Gang Order Code
10 watts
VC-10
Double Gang
35 watts
VC-35
(800) 631-2148 • www.cooperwheelock.com
Series SA Self Amplifi ed Paging Horns and VC Volume Controls
dBA @ Frequency
5145
1 meter Response
5 Watt 118 275 Hz, 10 KHz
5146
15 Watt 122 275 Hz, 10 KHz
SA Series speakers have barrier, clamp type screw
terminals, impedance: 600 Ohms/operating voltage:
18-28 VDC Sound output (dBA @ 1 meter) measured
at rated power output at 100 Hz.
Frequency Response
Better than 17 kHz
5159
5160
Power Output @ 1000
Hz/Nominal Current
5 watts/325 mA
15 watts/1.4 Amps
7.5 watts/900mA
Insertion Loss
Less than .5dB
Available features and options:
Paging Horn
Universal, fully adjustable mounting
base with banding slots for beams
and pillars. Conduit interface
adapter with clear plastic shield
Weatherproof
Volume Control
25 V or 70V
Auto-transformer design
Stainless steel wall plate
Rotary switch that attenuates in 3dB
stops to a completely off position
Series SA-H5B
���
����
���� ������� ��
Series SA-H15B
���
����
���� ������� ��
Series VC-35
V L O U E M
5
4 6
3 7
2 8
118
1 9
0 10
118
���
���
53
63
6-9 06/06
