Cooper Wheelock ZNH Installation Instructions

273 Branchport Ave.
Long Branch, N.J. 07740
(800) 631-2148
www.cooperwheelock.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
GENERAL:

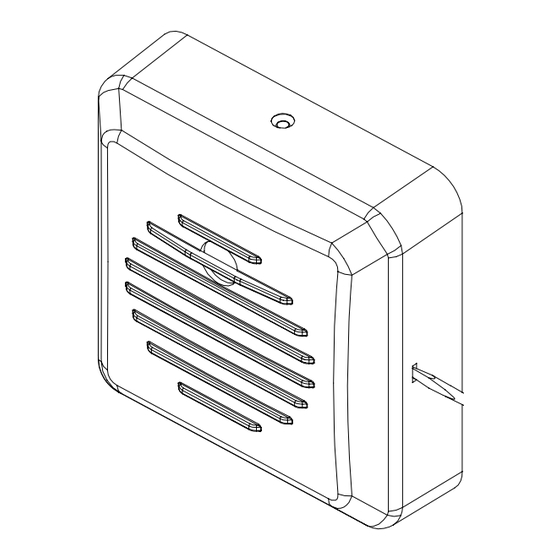

The Cooper Wheelock Series Z horn, strobe, and horn/strobe appliances are designed for easy installation. The ZNS horn/strobes and ZRS strobes are for 24V
operation and the ZNH horn is for 12V or 24V operation. The appliance comes in two main parts. The universal mounting back plate allows the appliance to be
mounted to a single-gang, double-gang, four square backbox, 4" octagon backbox, or a 3 ½" octagon backbox. Two wire appliance wiring is then connected to the
mounting back plate. This allows a continuity check of the entire NAC circuit before any appliances are attached. It also allows the appliances to be installed after all
finish work has been completed. The installer can snap or install the appliances when all other work is complete.
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. FAILURE TO COMPLY WITH ANY
OF THE FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, CANDELA SETTING,
INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY
DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
SPECIFICATIONS:
Model
ZRS-MCW
ZRS-MCWH
ZRS-MCC
ZRS-MCCH
ZNS-MCW
ZNS-MCWH
ZNS-MCC
ZNS-MCCH
ZNH
Strobe and Horn Strobe Appliances
Cooper Wheelock's Series Horn Appliances provide a selectable Continuous or Code 3 Horn tone when connected directly to the Fire Alarm Control Panel (FACP).
They can also provide a synchronized Code 3 Horn tone when used in conjunction with an FACP that incorporates the Wheelock sync protocol, a Wheelock Sync
Module, or the Wheelock Power Supply. The Horn Appliances can be field set for High (HI) or Low (LO) dBA sound output. The Horn Appliances are UL Listed
under Standard 464 for Audible Signal Appliances. They are listed for indoor use only. These models are designed for use with either filtered DC (VDC) or
unfiltered Full-Wave-Rectified (VRMS) input voltage. All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by a
FACP. The ZNS Horn/Strobe is for 24V operation only. The ZNH Horn is for 12V or 24V operation.
NOTE: The ZRS, ZNS, and ZNH are electrically identical to the corresponding RSS, NS, and NH models. Therefore, they carry the
existing UL compatibility listings.
NOTE: The Code 3 temporal pattern (1/2 second on, 1/2 second off, 1/2 second on, 1/2 second off, 1/2 second on, 1-1/2 off and repeat) is specified by ANSI and
NFPA 72 for standard emergency evacuation signaling. The Code 3 Horn should be used only for fire evacuation signaling and not for any other purpose.
Continuous
Code 3 Horn
Copyright 2007 Cooper Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES Z 2-WIRE FIELD SELECTABLE HORN,
STROBE, AND HORN/STROBE APPLIANCES
(WALL AND CEILING MOUNT )
Table 1: Models and Settings
Voltage Range
Regulated
Limit per UL
Voltage
1971
(VDC/VRMS)
(VDC/VRMS)
24 16-33
24 16-33
24 16-33
24 16-33
24 16-33
24 16-33
24 16-33
24 16-33
12 8-17.5
24 16-33
Table 2: ZNH and ZNS Horn Reverberant dBA per UL464
8.0V
High 78
Horn
Low 72
High 75
Low 67
Strobe
Horn
(cd)
15/30/75/110 -
135/185 -
15/30/75/95 -
115/177 -
15/30/75/110 X
135/185 X
15/30/75/95 X
115/177 X
- X
ZNH at 12V
12V 17.5V 16.0V
83 86 83
76 80 77
79 82 79
72 74 72
Current Draw
Mounting
See Table
3 Wall
3 Wall
3 Ceiling
3 Ceiling
4 Wall
4 Wall
4 Ceiling
4 Ceiling
Wall or
5
Ceiling
ZNS and ZNH at 24V
24V 33.0V
87 90
81 83
82 86
76 79
P84860 E
Sheet 1 of 4
