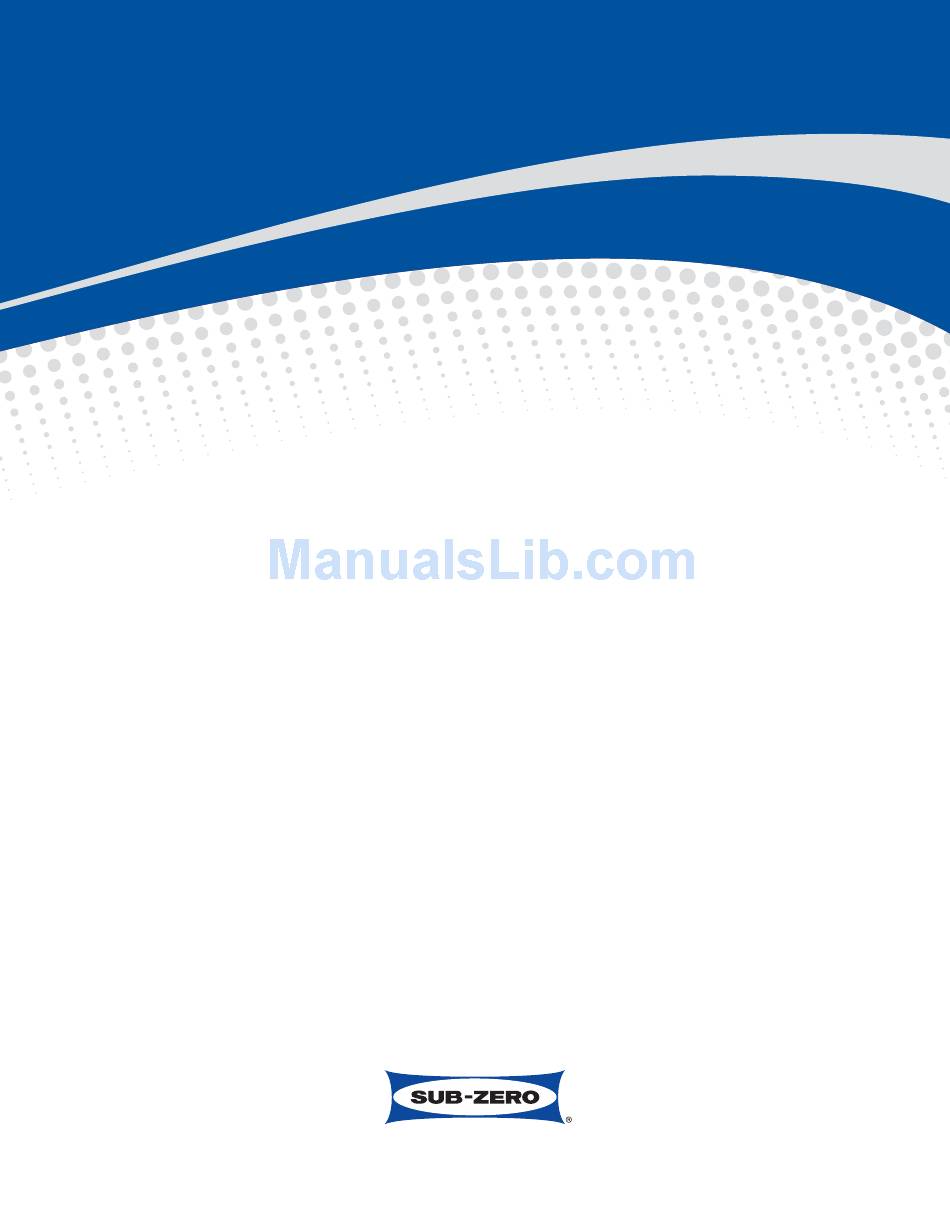

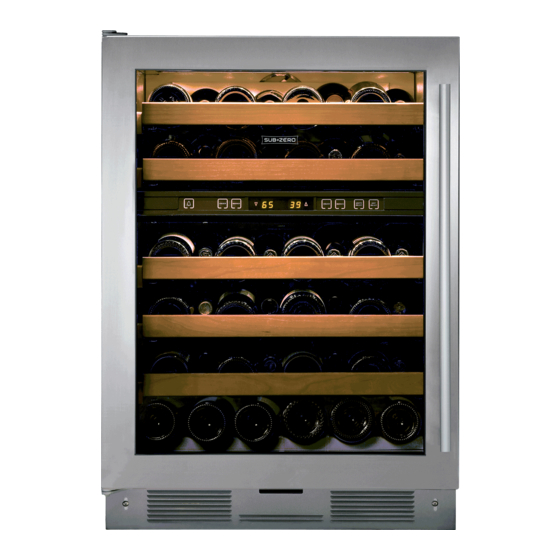

  • Page 1 Wine Storage Installation Guide...

  • Page 2: Table Of Contents

    Wine Storage To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types Model 424G / 424FSG Site Preparation of highlighted information throughout this guide: Model 424G / 424FSG Installation highlights information that is especially...

  • Page 3: Wine Storage

    Material to protect home, flooring and cabinetry during service with the model and serial number. For the name installation. of the nearest Sub-Zero factory certified service or for questions regarding the installation, visit the contact & sup- port section of our website, subzero.com or call Sub-Zero customer care at 800-222-7820.

  • Page 4: Model 424G / 424Fsg Site Preparation

    DEPTH Dual installation kits are available through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com. For ques- tions regarding the installation, call Sub-Zero customer care at 800-222-7820.
  • Page 5 MODEL 424G / 424FSG SITE PREPARATION Electrical Preparation Installation must comply with all applicable electrical codes. To operate properly, the door must open a minimum of 90°. Use a minimum 3" filler in corner installations to assure (76) The electrical supply should be located within the shaded a 90°...
  • Page 6 MODEL 424G / 424FSG SITE PREPARATION Anti-Tip Bracket WARNING MODEL 424FSG To prevent the unit from tipping forward, the anti-tip The back of the anti-tip bracket must be installed 24 " bracket must be installed. from the front and centered behind the unit. Refer to (625) the illustration below.

  • Page 7: Model 424G / 424Fsg Installation

    Panel size is critical for a proper fit. To verify panel are hidden behind the door gasket. Use as many screws as requirements and dimensions, refer to the Sub-Zero design necessary to secure the custom panel. Refer to the illustra- guide at subzero.com/specs.
  • Page 8 MODEL 424G / 424FSG INSTALLATION Placement Alignment CAUTION LEVELING Before moving the unit into position, secure the door Level the unit before sliding it into position. Turn each of the closed and protect any finished flooring. four leveling legs clockwise to raise the unit and counter- clockwise to lower.
  • Page 9 MODEL 424G / 424FSG INSTALLATION Completion Plug the power cord into the grounded outlet, then slide ANCHORING the unit into position. Verify the anti-tip bracket is properly To anchor, use the countertop bracket provided to secure engaged. the unit to the underside of the countertop. Refer to the It may be necessary to install the unit "...
  • Page 10 MODEL 424G / 424FSG INSTALLATION Door Clearance FULL-SCALE TEMPLATE To allow for a 145° door opening, the unit should extend a minimum of " (6) beyond the front surface of adja- cent cabinetry. The unit can be installed flush, however, there is potential for interference with the panel if the door is opened past 90°.

  • Page 11: Model 427G / 427Rg Site Preparation

    DEPTH Dual installation kits are available through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com. For ques- tions regarding the installation, call Sub-Zero customer care at 800-222-7820.
  • Page 12 Control cable (model 427RG). Do not use an extension cord, two-prong adapter or remove the power cord ground prong. LEFT SIDE OF OPENING " (64) 13" (330) " ( 114 ) FLOOR " FRONT VIEW Electrical supply location. Sub-Zero Customer Care 800.222.7820...
  • Page 13 MODEL 427G / 427RG SITE PREPARATION Anti-Tip Bracket WARNING WOOD FLOOR To prevent the unit from tipping forward, the anti-tip After properly locating the anti-tip bracket in the opening, bracket must be installed. drill pilot holes " diameter maximum in the wall studs or wall plate.

  • Page 14: Model 427G / 427Rg Installation

    D-style handles are recommended. Stainless steel tubular and pro handles are avail able through an authorized Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com. The door handle must be located near the edge of the panel opposite the hinge and should be centered top to bottom.
  • Page 15 The door frame has mounting holes to accommodate brackets to panel using the #8 x " screws provided. Refer Sub-Zero accessory handles. If handle mounting holes are to the illustration below. not utilized, the handle should be attached to the custom To help with placement of drawer panels, examine the lower panel prior to mounting.
  • Page 16 Verify the anti-tip bracket is properly WARNING engaged. To reduce the possibility of the unit tipping forward, the front leveling legs must be in contact with the floor. Front adjustment. Rear adjustment. Sub-Zero Customer Care 800.222.7820...
  • Page 17 MODEL 427G / 427RG INSTALLATION Completion TRIM INSTALLATION KICKPLATE INSTALLATION Install decorative trim strips to the top and sides of the unit. Install the kickplate using the screws provided. The Attach the top trim using the double-sided velcro, then snap mounting bracket may be adjusted slightly for a flush fit.

  • Page 18: Model Ws-30 Site Preparation

    STANDARD INSTALLATION TOP VIEW 24" (610) OPENING DEPTH 24" " " (610) (746) OPENING DEPTH (2127) OPENING WIDTH OPENING HEIGHT SIDE VIEW FRONT VIEW If two units are installed side by side, refer to page 20. Sub-Zero Customer Care 800.222.7820...
  • Page 19 MODEL WS-30 SITE PREPARATION Opening Dimensions FLUSH INSET INSTALLATION TOP VIEW " 24" (610) (665) DEPTH " 24" (610) TOP VIEW FLUSH TO CLEAT OUTLINE OF (665) OPENING INSET " UNIT WITH FLUSH DEPTH DEPTH (32) " CLEAT CLEAT (19) INSET TO CLEAT PANEL...
  • Page 20 OPENING DEPTH OPENING WIDTH OPENING HEIGHT SIDE VIEW FRONT VIEW A dual installation kit will be required for this installation. OPENING WIDTH WS-30 and 30" Built-In Model " (1518) WS-30 and 36" Built-In Model " (1670) Sub-Zero Customer Care 800.222.7820...
  • Page 21 MODEL WS-30 SITE PREPARATION Opening Dimensions DUAL FLUSH INSET INSTALLATION TOP VIEW " 24" (610) (665) DEPTH " 24" (610) TOP VIEW TO CLEAT FLUSH (665) OPENING INSET " FLUSH DEPTH CLEAT DEPTH (32) TWO UNITS WITH INSET TO CLEAT CLEAT "...
  • Page 22 ELECTRICAL REQUIREMENTS Dual installation kits are available through an authorized Power Supply 115 V AC, 60 Hz Sub-Zero dealer. For local dealer information, visit the find a showroom section of our website, subzero.com. For ques- Circuit Breaker 15 amp tions regarding the installation, call Sub-Zero customer care...
  • Page 23 MODEL WS-30 SITE PREPARATION Preparation Uncrate the unit and inspect for damage. Remove the wood base and discard shipping bolts and brackets. Remove and recycle packing materials. Do not discard the kickplate, anti- tip brackets and hardware. Completely retract the front leveling legs to allow the unit to be moved into position.
  • Page 24 Nylon Zip-it wall anchors 4" 4" (102) (102) FINISHED FINISHED FINISHED FLOORING FLOORING FLOORING WALL PLATE WALL PLATE WALL PLATE SUBFLOORING SUBFLOORING SUBFLOORING " " (38) (38) WOOD FLOOR CONCRETE CONCRETE FLOOR FLOOR Wood floor. Concrete floor. Sub-Zero Customer Care 800.222.7820...

  • Page 25: Model Ws-30 Installation

    (10) proper fit. To verify panel requirements and dimensions, minimum embedment. Clean the hole or drill additional refer to the Sub-Zero design guide at subzero.com/specs. depth to accommodate drill fines. IMPORTANT NOTE: Flush inset applications require a...
  • Page 26 CUSTOM SPACER SPACER PANEL PANEL PANEL CUSTOM PANEL BACKER PANEL BACKER PANEL TRIM " (8) min " (19) .10" " " (3) (OVERLAY) typical Door side trim. Panel assembly cross section Panel assembly rear view. (overlay). Sub-Zero Customer Care 800.222.7820...
  • Page 27 When installing a custom side panel, an accessory kit is two corner screws from each side of the grille assembly. required and is available through an authorized Sub-Zero Refer to the illustration below. dealer. For local dealer information, visit the find a show- room section of our website, subzero.com.
  • Page 28 If used, side panels will need to be IMPORTANT NOTE: front leveling legs must be in contact with the floor. installed before the unit is placed in its final position. Refer to page 27. FRONT LEVELING LEG REAR ADJUSTMENT Leveling. Sub-Zero Customer Care 800.222.7820...
  • Page 29 MODEL WS-30 INSTALLATION Alignment Completion DOOR ADJUSTMENT GRILLE INSTALLATION The door can be adjusted in and out, side to side tilt and up Install the grille assembly and check for proper fit. The grille and down. is designed to rest on the upper door hinge to minimize the reveal between the top of the door and bottom of the grille.
  • Page 30 CAUTION away from conductive or moving components. If the screws provided are not suitable for the installa- tion, use adequate screws. ANCHORING SCREWS HOME SECURITY LEADS ANCHORING SCREW Home security connection. Top anchoring. Bottom anchoring. Sub-Zero Customer Care 800.222.7820...
  • Page 31 Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trade- marks and service marks of Sub-Zero, Inc. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
  • Page 32 SUB-ZERO, INC. P.O. BOX 44848 MADISON, WI 53744 SUBZERO.COM 800.222.7820 12 / 2012...
