TIMING
CAM

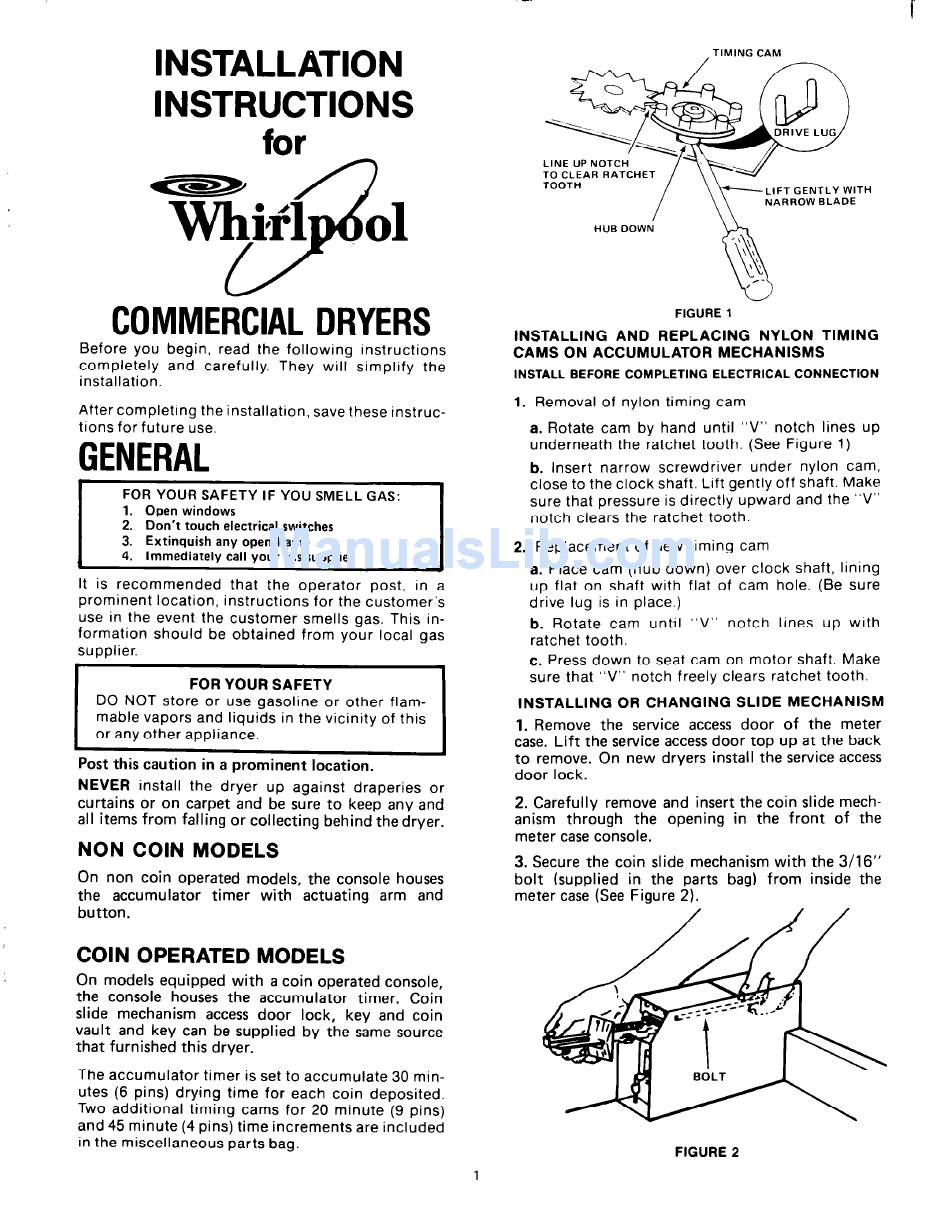

INSTALLATION
INSTRUCTIONS
for
COMMERCIAL DRYERS
Before you begin,
read the following
instructions
completely
and carefully.
They will
simplify
the
installation.
After completing
the installation,
save these instruc-
tions for future use.
GENERAL
FOR YOUR
SAFETY
IF YOU
SMELL
GAS:
Immediately
call your gas supplier
It is recommended
that the operator
post,
in a
prominent
location,
instructions
for the customer's
use in the event the customer
smells gas. This in-
formation
should
be obtained
from your local gas
supplier.
DO NOT store or use gasoline
or other flam-
1 or any other ~~~~~:.,'FETy'
1
mable vapors and lrqurds In the vrcrnrty of thus
Post this caution
in a prominent
location.
NEVER install
the dryer
up against
draperies
or
curtains
or on carpet and be sure to keep any and
all items from falling or collecting
behind the dryer.
NON COIN MODELS
On non coin operated
models, the console houses
the
accumulator
timer
with
actuating
arm and
button.
COIN OPERATED MODELS
On models equipped
with
a coin operated console,
the console
houses the accumulator
timer.
Coin
slide mechanism
access door
lock,
key and coin
vault
and key can be supplied
by the same source
that furnished
this dryer.
The accumulator
timer is set to accumulate
30 min-
utes (6 pins) drying
time for each coin deposited.
Two additional
timing
cams for 20 minute
(9 pins)
and 45 minute (4 pins) time increments
are included
in the miscellaneous
parts bag.
LINE
UP NOTC
TO CLEAR
RATCHET
HUB
DOWN
FIGURE 1
INSTALLING
AND REPLACING
NYLON
TIMING
CAMS ON ACCUMULATOR
MECHANISMS
INSTALL
BEFORE COMPLETING
ELECTRICAL
CONNECTION
1. Removal of nylon timing
cam
a. Rotate cam by hand until "V" notch
lines up
underneath
the ratchet tooth. (See Figure 1)
b. Insert
narrow
screwdriver
under
nylon cam,
close to the clock shaft. Lift gently off shaft. Make
sure that pressure is directly
upward and the "V"
notch clears the ratchet tooth.
2. Replacement
of new timing
cam
a. Place cam (hub down) over clock shaft, lining
up flat on shaft with flat of cam hole. (Be sure
drive lug is in place.)
b. Rotate
cam until
"V"
notch
lines
up with
ratchet tooth.
c. Press down to seat cam on motor shaft. Make
sure that "V" notch freely clears ratchet tooth.
INSTALLING
OR CHANGING
SLIDE MECHANISM
1. Remove
the service access door
of the meter
case. Lift the service access door top up at the back
to remove. On new dryers install the service access
door lock.
2. Carefully
remove and insert the coin slide mech-
anism
through
the opening
in the front
of the
meter case console.
3. Secure the coin slide mechanism
with the 3/16"
bolt
(supplied
in the parts bag) from
inside the
meter case (See Figure 2).
FIGURE 2
