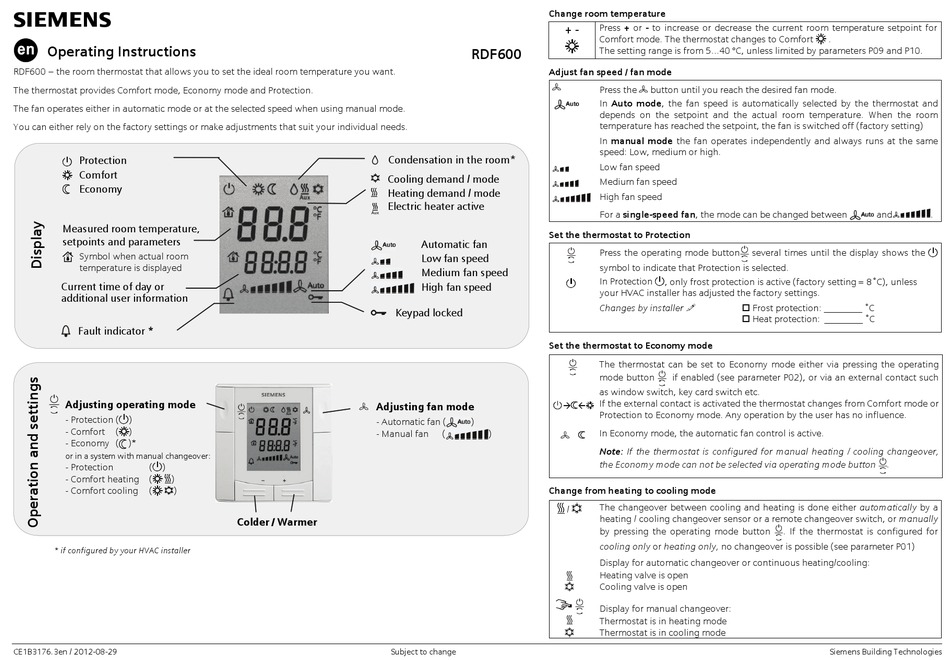

Siemens RDF600 Operating Instructions

s

Operating Instructions

RDF600 – the room thermostat that allows you to set the ideal room temperature you want.
The thermostat provides Comfort mode, Economy mode and Protection.
The fan operates either in automatic mode or at the selected speed when using manual mode.
You can either rely on the factory settings or make adjustments that suit your individual needs.
Protection
Comfort
Economy
Measured room temperature,
setpoints and parameters
Symbol when actual room
temperature is displayed
Current time of day or
additional user information
Fault indicator *
Adjusting operating mode
- Protection ( )
- Comfort ( )
- Economy ( )*
or in a system with manual changeover:
- Protection ( )
- Comfort heating ( )
- Comfort cooling ( )
* if configured by your HVAC installer
CE1B3176.3en / 2012-08-29
Condensation in the room*
Cooling demand / mode
Heating demand / mode
Electric heater active
Keypad locked
Adjusting fan mode
- Automatic fan (
- Manual fan
Colder / Warmer
Subject to change
Change room temperature
+ - Press + or - to increase or decrease the current room temperature setpoint for
Comfort mode. The thermostat changes to Comfort
The setting range is from 5...40 °C, unless limited by parameters P09 and P10.
RDF600
Adjust fan speed / fan mode
Press the
In Auto mode, the fan speed is automatically selected by the thermostat and
depends on the setpoint and the actual room temperature. When the room
temperature has reached the setpoint, the fan is switched off (factory setting)
In manual mode the fan operates independently and always runs at the same
speed: Low, medium or high.
Low fan speed
Medium fan speed
High fan speed
For a single-speed fan, the mode can be changed between
Set the thermostat to Protection
Automatic fan
Press the operating mode button
Low fan speed
symbol to indicate that Protection is selected.
Medium fan speed
In Protection
High fan speed
your HVAC installer has adjusted the factory settings.
Changes by installer 
Set the thermostat to Economy mode
The thermostat can be set to Economy mode either via pressing the operating
mode button
as window switch, key card switch etc.
If the external contact is activated the thermostat changes from Comfort mode or
 
Protection to Economy mode. Any operation by the user has no influence.
)
( ) In Economy mode, the automatic fan control is active.
Note: If the thermostat is configured for manual heating / cooling changeover,
the Economy mode can not be selected via operating mode button
Change from heating to cooling mode
The changeover between cooling and heating is done either automatically by a
/
heating / cooling changeover sensor or a remote changeover switch, or manually
by pressing the operating mode button
cooling only or heating only, no changeover is possible (see parameter P01)
Display for automatic changeover or continuous heating/cooling:
Heating valve is open
Cooling valve is open
Display for manual changeover:
Thermostat is in heating mode
Thermostat is in cooling mode
.
button until you reach the desired fan mode.
several times until the display shows the
, only frost protection is active (factory setting = 8˚C), unless
 Frost protection: ________ ˚C
 Heat protection: ________ ˚C
if enabled (see parameter P02), or via an external contact such
. If the thermostat is configured for
