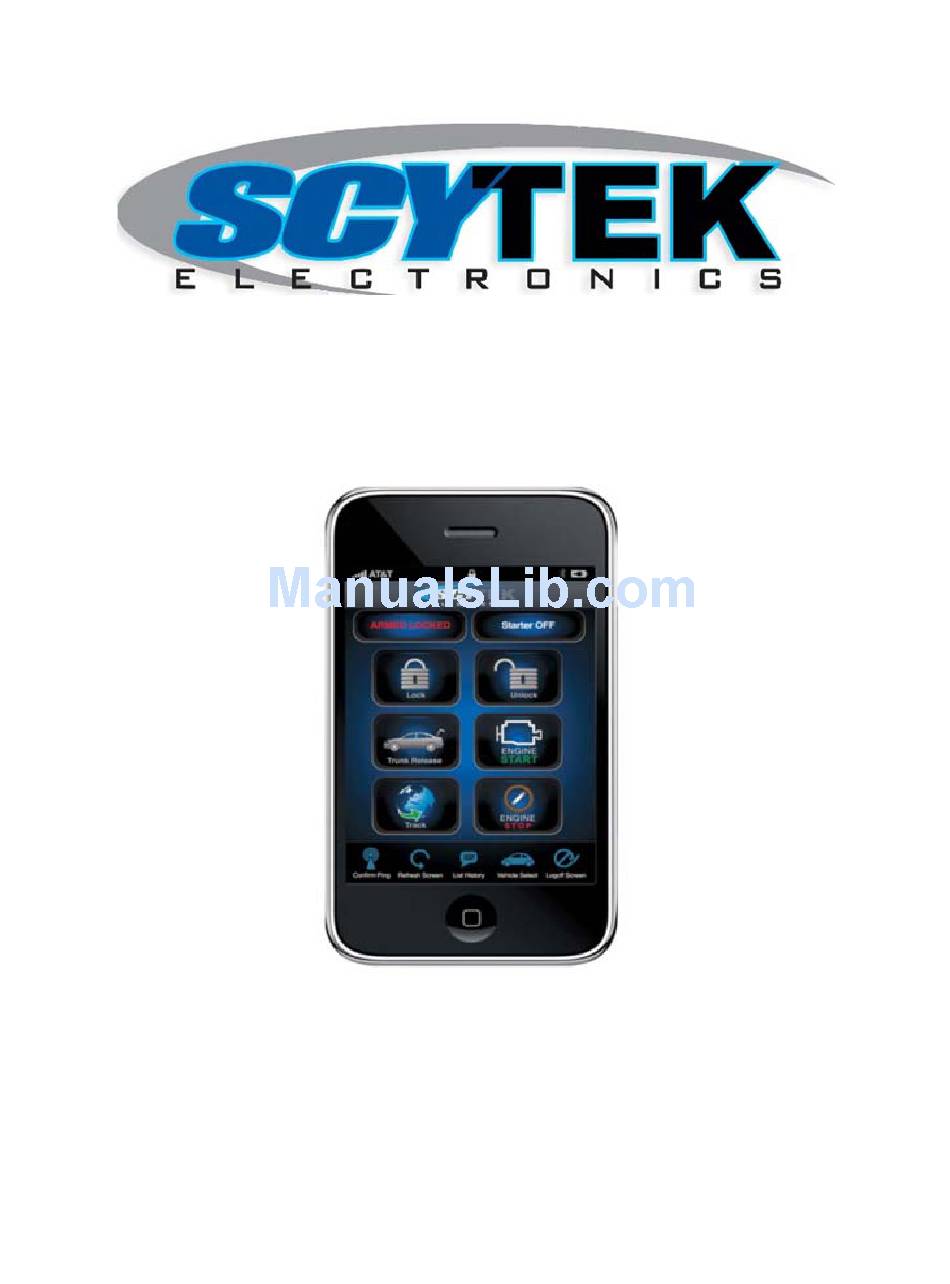

- Page 1 ASTRA 777 Mobile VEHICLE SECURITY SYSTEM PRODUCT MANUAL...
- Page 2 L L i i m m i i t t e e d d L L i i f f e e t t i i m m e e W W a a r r r r a a n n t t y y This vehicle security system is warranted to the original purchaser, to be free from defects in material and workmanship.
- Page 3 T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s...
- Page 4 Congratulations on your purchase of this state-of-the-art vehicle security system from ScyTek Electronics. With proper installation this system will provide superior protection and performance for many years to come. The Astra 777 Mobile is a Vehicle Tracking System System Features: • Unlimited Real-time GPS tracking with user-friendly internet software •...
- Page 5 Q Q u u c c k k S S t t a a r r t t G G u u i i d d e e f f o o r r A A s s t t r r a a M M o o b b i i l l e e System Registration: To Register your Astra 777 Mobile: www.scytrak.net Login on to Click on the “Click to register”...
- Page 6 New Master Account Registration screen. In the “User ID” area type in your login ID, then complete the rest of the information. After completing Master Account registration page, click on “O.K” at the bottom far right side. Page 3 - Astra 777 Mobile...
- Page 7 N N e e w w V V e e h h i i c c l l e e R R e e g g i i s s t t r r a a t t i i o o n n P P a a g g e e New Vehicle Registration screen In the “Vehicle’s ID ” area type in the Vehicle name such as Johny’s Car or Vehicl’s model, then com- plete the rest of the information. Page 4 - Astra 777 Mobile...
- Page 8 B B i i l l l l i i n n g g I I n n f f o o r r m m a a t t i i o o n n P P a a g g e e Billing information screen. In the Service Term Area, select the yearly plan that you like. then complete the rest of the informa- tion. Page 5 - Astra 777 Mobile...
- Page 9 Click on Subuser Management to edit the page. Register the sub user and assign the vehicles and checkmark the desired privilege of the user. More then one sub user can be assigned to that vehicle group. Page 6 - Astra 777 Mobile...
- Page 10 A A s s t t r r a a M M o o b b i i l l e e P P a a g g e e login page www.scytrak.net Astra 777 Mobile GPS Login Page: Login: input your Login ID and your Password. “you may changeyour password at any time for your personal security”...
- Page 11 H H o o m m e e P P a a g g e e Your Astra 777 Mobile GPS Home Page will have your vehicle(s) listed and look very similar to this. Click on the Vehicle name to select that particular vehicle, the screen will refresh displaying the map with the breadcrumb trail showing the last locations of the vehicle.
- Page 12 40 of 80, recorded events will be displyed showing the state of the vehicle and tthe dirction of the motion. Contract expiration date Current state of the subscrption. Current alert state alrerts that are enabled are hilighted. Edit the alert selection by clicking on any of Alert buttons. Page 9 - Astra 777 Mobile...
- Page 13 There are four alert inputs that can be selected. Inputs 1 2, and 3 are negative (ground). Input 4 is Positive (12V), this input when the Skytrak system is connected to ScyTek Astra 777 Mobile Se- curity System is automatically reports an Alarm Alert. In stand-alone mode an alert will be set only if the input is valid for over 5 seconds.
- Page 14 Track button of the specific vehicle. When sucess result appears the map will refresh automatically and diplay the latest vahicle location. Select the auto refresh mode to refresh the display once a minute automatically, this feature provides a live display of all the selected vehi- cles. Page 11 - Astra 777 Mobile...
- Page 15 Output window will open to reveal the system outputs. Click on send button to activate ouputs 1 or 2, or on or off for outputs 3 and 4. state of the outputs 3 and 4 is also displayed. Page 12 - Astra 777 Mobile...
- Page 16 From the vehicle history table click on the set button in Landmark column, the landmark window will open up. Select the appropriate icon and name the landmark. The icon will appear on the map for easy vehicle location identification. Page 13 - Astra 777 Mobile...
- Page 17 Alert notification via SMS and Email Control multiple cars Login using your smart phone to: www.skytrakmobile.com Login Page Login using user ID and password. Select the vehicle, and go to vehicle control page Vehicle Control Page Page 14 - Astra 777 Mobile...
- Page 18 6 Locate Vehicle on the map 7 Request vehicle GPS location and system status 8 Refresh screen 9 List event history 10 Select Vehicle 11 Log Off 12 Security system status 13 Remote start status Page 15 - Astra 777 Mobile...
- Page 19 Vehicle event history page Vehicle GPS Location The main unit can be mounted under the dashboard. The GSM/GPRS antenna affixes to the windshield with the double sided tape. The GSM can be hidden under the dashboard. Page 16 - Astra 777 Mobile...
- Page 20 Valet Mode. Button 5 then Button 2: Silently Disarms and Unlocks* the system, also unlocks the doors when the system is in Valet Mode. * If the Optional Keyless Entry Feature is installed. Page 17 - Astra 777 Mobile...
- Page 21 2. Press Button 2 until the desired hour is displayed. 3. Press Button 3 until the desired minute is displayed. The button may be held down to scroll faster. 4. When the desired time is displayed, press Button 5 to store. Page 18 - Astra 777 Mobile...
- Page 22 SND Sound function allows disabling of the transmitter’s confirmation tones.To turn the transmitter confirmation tones on or off: Press and hold Button 5 until the display shows SND. · The transmitter will beep four times. Page 19 - Astra 777 Mobile...
- Page 23 Alarm Clock Valet Mode Panic Indicates the progr- Indicates the sys- Indicates the panic mmable timer has tem has been mode has been been set placed in Valet Page 20 - Astra 777 Mobile...
- Page 24 Button 3 Button 4 Remote Transmitter Description The Astra 777 Mobile is supplied with one 5-button Remote Transmitter used to control system operations. Button 1 Arms and Locks* the system and when held for 5 seconds, activates the system’s Panic feature.
- Page 25 6. Turn off the ignition key. Two Car Operation If two vehicles are equipped with Astra 777 Mobile systems, for convenience both can be operated using the same remote transmitter. If all four transmitters are to be used with both cars, program transmitters A and B into the first vehicle in the manner described above.
- Page 26 3 times, the parking lights will flash 3 times, and the LED will flash to indicate triggered zone. See Tamper Alert for zone listing. ** If the optional Dome Light Activation Feature is installed. Page 23 - Astra 777 Mobile...
- Page 27 3. After 30 seconds, The siren will chirp. The parking lights will flash. The doors will lock.* The status LED will begin flashing. 4. The system is now armed. * If the Passive Locking feature is selected. Page 24 - Astra 777 Mobile...
- Page 28 The siren will chirp each time the valet switch is pressed. 4. Within 5 seconds, press Button 3 on the transmitter. The siren will chirp 3 times 5. Press the valet switch the number of time equal to the desired code (from 1-15). Page 25 - Astra 777 Mobile...
- Page 29 DRIVER CALLING/PAGE FEATURE The Astra 777 Mobile is equipped with a Driver Calling or Paging feature that allows the system to send a page to the LCD transmitter in the event the transmitter has been misplaced or lost (within...
- Page 30 E E x x t t e e n n d d e e d d F F e e a a t t u u r r e e s s Auxiliary Function Outputs The Astra 777 Mobile system is equipped with 2 Auxiliary Outputs allowing the convenience features of the system to be further expanded. These outputs can be used to add a number of optional features such as: power trunk release, remote engine start, power window activation, power sunroof control, and more.
- Page 31 3. Verify with the owner, the mounting locations for all visible components, including the LED and Override switch. 4. Verify with the owner, the optional features of the Astra 777 Mobile and the functions that must be programmed during installation.
- Page 32 During proper operation, the shock sensor will detect impacts to the vehicle only and will not usually be triggered by slow rocking movements of the vehicle like those caused by wind. Page 29 - Astra 777 Mobile...
- Page 33 +12V when the door is open. This type of door circuit is usually found on Ford vehicles. Pin 14 GREEN WIRE: Negative door trigger Input (-). Connect to the door switch circuit wire that shows ground when the door is open. Page 30 - Astra 777 Mobile...
- Page 34 Parking Light Output. Selects the polarity (+/-) for the output of the on-board Parking Light relay. Left Pin + Center Pin = positive Right Pin + Center Pin = negative default setting shown Page 31 - Astra 777 Mobile...
- Page 35 The Ignition Door Locking feature may be programmed to unlock all doors or the driver’s door only. If driver’s door only is selected, the optional Passenger Unlock fea- Page 32 - Astra 777 Mobile...
- Page 36 18. Ignition Armed Mode. When enabled, the security system may also be manually armed and disarmed using the transmitter, while the ignition is on. 19. Extended Parking Lights. When selected, the parking lights will remain ON for 30 seconds Page 33 - Astra 777 Mobile...
- Page 37 20. Warn-Away Pager Report. When Enabled, Warn-Away report will be sent to the pager. If Dis- abled no Warn-Away report will be sent to the pager. 21. Smart Siren Mode. When Enabled works with Optional ScyTek MP3 Player Siren Unit. 22. Cellular Network Reset. Re-esatblish Network Communication . Page 34 - Astra 777 Mobile...
- Page 38 Follow the diagrams below for connecting basic door lock systems. For Two Stage door lock systems (separately unlocks driver and passenger doors) see following pages. Negative Trigger Positive Trigger Reverse Polarity Vacuum Adding Actuators Page 35 - Astra 777 Mobile...
- Page 39 T T w w o o S S t t a a g g e e D D o o o o r r L L o o c c k k D D i i a a g g r r a a m m s s The Astra 777 Mobile is equipped with a dedicated Passenger Unlock output allowing Two Stage Door Lock operation.
- Page 40 Two Stage Reverse Polarity Two Stage Adding Actuators Page 37 - Astra 777 Mobile...
- Page 41 Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation Call/Emergengy Override/Valet Switch LED Light Page 38 - Astra 777 Mobile...
- Page 42 Page 39 - Astra 777 Mobile...
- Page 43 Yellow Ignition Input +12V Black Ground Input Violet Door Trigger input (+) Green Door Trigger input (-) Valet Switch Receiver Cellular � Antenna Antenna ScyTek Electronics 11627 Cantara Street North Hollywood, CA 91605 www.scytek.net Page 40 - Astra 777 Mobile...
