LG 42WS50MS Owner's Manual

Monitor signage
Hide thumbs Also See for 42WS50MS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

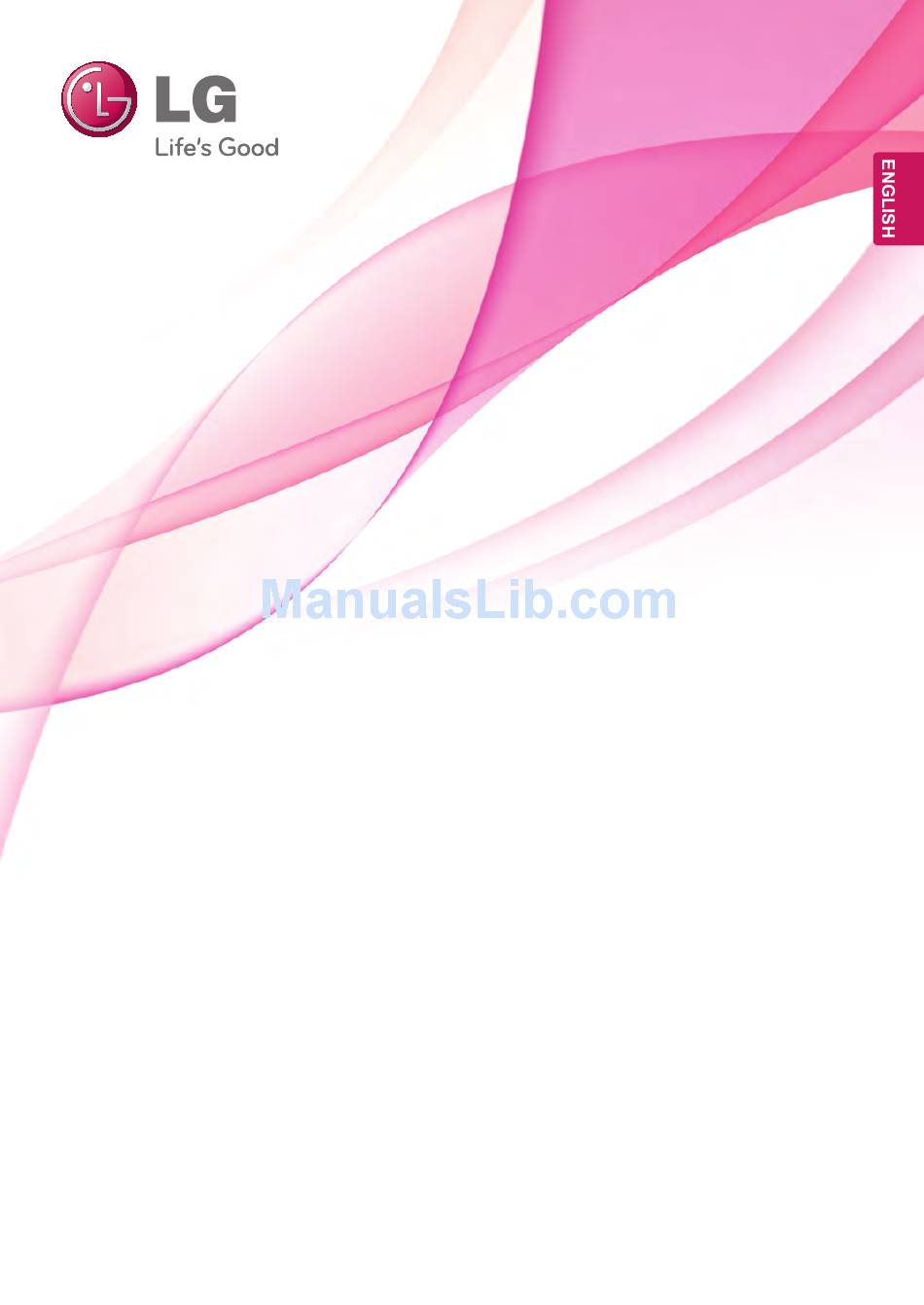

OWNER'S MANUAL
MONITOR SIGNAGE
Please read this manual carefully before operating the your set and
retain it for future reference.
MONITOR SIGNAGE MODELS
42WS50MS
47WS50MS
42WS50BS
47WS50BS
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG 42WS50MS

Summary of Contents for LG 42WS50MS

  • Page 1 OWNER’S MANUAL MONITOR SIGNAGE Please read this manual carefully before operating the your set and retain it for future reference. MONITOR SIGNAGE MODELS 42WS50MS 42WS50BS 47WS50MS 47WS50BS www.lg.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CONTENTS LICENSES ENTERTAINMENT - Connecting to a wired network - Network Status ASSEMBLING AND - Connecting USB storage devices PREPARING - Browsing files Accessories - Viewing movies Optional Accessories - Viewing photos Parts and buttons - Listening to music Using the Mounting Cable Tie - Viewing the Contents List Connecting the Speakers...

  • Page 3: Contents

    TABLE OF CONTENTS TROUBLESHOOTING SPECIFICATIONS IR CODES CONTROLLING THE MULTIPLE PRODUCT Connecting the cable RS-232C Configurations Communication Parameter Command reference list Transmission / Receiving protocol...

  • Page 4: Licenses

    LICENSES LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation.

  • Page 5: Assembling And Preparing

    ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Accessories Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

  • Page 6: Optional Accessories

    ASSEMBLING AND PREPARING Optional Accessories Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories. ST-200T SP-2000 Cable holder/...

  • Page 7: Parts And Buttons

    ASSEMBLING AND PREPARING Parts and buttons Screen Buttons/ Screen Marks Connection panel Screen Marks Description INPUT Changes the input source. MENU Accesses the main menus, or saves your input and exits the menus. Adjust the up and down. Adjusts the volume level. AUTO/SET Displays the current signal and mode.

  • Page 8: Using The Mounting Cable Tie

    ASSEMBLING AND PREPARING Using the Mounting Cable Connecting the Speakers - Only on some models. First, connect the input signal cable to be used. Connect an input signal cable to use before Insert the cable tie into the bottom hole on the installing the speakers.

  • Page 9: Connecting The Stand

    ASSEMBLING AND PREPARING Connecting the stand Using the IR Receiver - Only on some models. This allows a remote control sensor to be placed Place a soft cloth on the table and put the in a custom location. Then that display can control product with the screen facing downward.

  • Page 10: Using The Kensington Security System

    ASSEMBLING AND PREPARING Using the Kensington Portrait Layout security system - Only on some models. The Kensington security system connector is To install in portrait mode, rotate the set located at the back of the Monitor. For more counterclockwise 90 degrees when looking at from information of installation and using, refer to the the front.

  • Page 11: Connecting The Media Player

    ASSEMBLING AND PREPARING Connecting the Media Player Attach the Media Player on the product using - Only on some models. the four screws provided. Place a soft cloth on the table and put the product with the screen facing downward. Push the Media Player into the compartment to mount it.

  • Page 12: Mounting On A Wall

    For more information, refer to the instructions supplied with the wall mount. If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it. VESA compatible. Please use VESA standard as below.

  • Page 13: Remote Control

    REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the Monitor correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching ends to the label inside the compartment, and close the battery cover.
  • Page 14 REMOTE CONTROL MENU (See p.41) Accesses the main menus or saves your input and exit menus. AUTO Automatically adjusts picture position and minimizes image instability.(RGB input only) Navigation buttons Scrolls through menus or options. S.MENU (SuperSign Menu Key) Selects menus or options and Selects the SuperSign OSD confirms your input.

  • Page 15: Using The Monitor

    USING THE MONITOR SET USING THE MONITOR Connecting to a PC CAUTION Your Monitor supports the Plug & Play* feature. Connect the signal input cable * Plug & Play: This is the function that allows a PC and tighten it by to use the monitor without installing a driver.

  • Page 16: Rgb Connection

    USING THE MONITOR SET RGB connection DVI-D connection Transmits the analog video signal from your PC to Transmits the digital video signal from your PC to the Monitor. Connect the PC and the Monitor the Monitor. Connect the PC and the Monitor set with the 15 pin signal cable as shown the set with the DVI cable as shown the following following illustrations.

  • Page 17: Hdmi Connection

    USING THE MONITOR SET HDMI connection Display Port connection Transmits the digital video and audio signals from Transmits the digital video and audio signals from your PC to the Monitor. Connect the PC and the your PC to the Monitor. Connect the PC and the Monitor with the HDMI cable as shown in the Monitor with the Display Port cable as shown in following illustrations.

  • Page 18: Ir Receiver Connection

    USING THE MONITOR SET IR Receiver connection Allows the use of a wired remote or IR receiver extension. NOTE Make sure the power cable is disconnected.

  • Page 19: Adjusting The Screen

    USING THE MONITOR SET Adjusting the screen Customizing image options Customize basic and advanced options of each Selecting an image mode image mode for the best screen performance. Display images in its optimized settings by Press MENU to access the main menus. selecting one of the preset image modes.

  • Page 20: Customizing Pc Display Options

    USING THE MONITOR SET Adjusting the sound Customizing PC display options Customize options of each image mode for the Selecting an sound mode best image quality. This Monitor has 5 preset sound modes to This function works in the following mode: compliment different types of video content.

  • Page 21: Customizing Sound Options

    If the aspect ratio is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen. Option Description Infinite LG's Infinity Sound option provides 5.1 Sound channel stereo quality sound from two speakers. Treble Increases the intensity of the high NOTE frequency part of audio.
  • Page 22 USING THE MONITOR SET 16:9 : This selection will allow you to adjust the : This selection will allow you to view a picture horizontally, in linear proportion, to fill the picture with an original 4:3 aspect ratio, black entire screen(useful for viewing 4:3 formatted bars will appear on both the left and right of the DVDs).

  • Page 23: Using The Input List

    USING THE MONITOR SET Using the input list Selecting an input source Press INPUT to access the input source list. - The connected device displays on each input source. Press the Navigation buttons to scroll to one of the input sources and press OK. Input source Description AV(CVBS)

  • Page 24: Connecting To A Wired Network

    ENTERTAINMENT ENTERTAINMENT Connecting to a wired network To set up the network seetings: (Even if your dis- play has already connected automatically, running setup again will not harm anything), (Depending on model) Press MENU to access the main menus. Connect the display to a local area network (LAN) Press the Navigation buttons to scroll to NET- via the LAN port as shown on the following illustra-...

  • Page 25: Network Status

    For details, contact your ISP. Press MENU to access the main menus. LG is not responsible for any malfunction of the NET- Press the Navigation buttons to scroll to...

  • Page 26: Connecting Usb Storage Devices

    ENTERTAINMENT Connecting USB storage devices Tips for using USB storage devices Only a USB storage device is recognizable. You can connect USB storage devices such as If the USB storage device is connected a USB flash memory, external hard drive to the through a USB hub, the device is not recog- display and use multimedia features .

  • Page 27: Browsing Files

    ENTERTAINMENT If the USB HDD does not have an external Browsing files power source, the USB device may not be detected. So be sure to connect the external Access the photo, music, or movie lists and browse files. power source. - Please use a power adaptor for an external Connect a USB storage device.

  • Page 28: Viewing Movies

    ENTERTAINMENT File Item Profile Supported File Formats Extensions Photo JPEG supported y SOF0: file format baseline Type Supported file format y SOF1: Movie DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,TS,T Extend RP,TP,ASF,WMV,FLV) Sequential y SOF2: Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/*. Progressive mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/*.flv/*. Photo size y Min: 64 x 64 avi(motion-jpeg)/*. y Max Type: mp4(motion-jpeg)/*.mkv(motion-jpeg))supporting 1366 x 768...
  • Page 29 ENTERTAINMENT Control playback by using the following buttons. Page 1/1 Movie List Drive1 Page 1/1 USB1 USB Drive Move Play Page Change Mark 01:02:30 / 02:30:25 Option Hide Exit Change Numbers Mark Mode Exit To Photo list Page 1/1 Movie List Mark Mode Drive1 Page 1/1...
  • Page 30 ENTERTAINMENT Tips for using playing video files When you are watching the movie by Movie List function, you can adjust an image by Some user-created subtitles may not work Energy Saving key on the remote control. properly. User setup for each image mode does not Some special characters are not supported operate.
  • Page 31 ENTERTAINMENT When you select the Set Video Play,, Code Page Support Language Latin1 English, Spanish, French, Press the Navigation buttons to scroll to show German, Italian, Swedish, Finnish, the Picture Size, Audio Language, Subtitle Dutch, Portuguese, Danish, Roma- Language or Repeat. nian, Norwegian, Albanian, Gaelic, Welsh, Irish, Catalan,Valencian Press the Navigation buttons to scroll to make...

  • Page 32: Viewing Photos

    ENTERTAINMENT When you select the Set Video,, Page 1/1 Photo List USB1 USB Drive Drive1 Page 1/1 Press the Navigation buttons to scroll to make appropriate adjustments. When you select the Set Audio,, Move View Page Change Mark Change Numbers Exit To Music List Mark Mode...
  • Page 33 ENTERTAINMENT Using photo options Press the ENERGY SAVING button ENER- repeatedly to change the brightness of GY SAVING your screen. Use the following options while viewing photos. Slide Speed: Selects a slideshow Option speed (Fast, Medium, Slow). TransitionEffect: Set the view mode of the slideshow.
  • Page 34 ENTERTAINMENT When you select the Set Photo View, Press the Navigation buttons to scroll to select Slide Speed,Transition Effect or BGM. Press the Navigation buttons to scroll to make appropriate adjustments. Transition Effect Option Option Description Sliding Pushes the current slide out of view as it plays to the next slide. Stairs Pushes the current slide in a staircase shape as it plays to the next slide.

  • Page 35: Listening To Music

    ENTERTAINMENT Listening to music When you select the Video, Press the Navigation buttons to scroll to make appropriate adjustments. Press the Navigation buttons to scroll to My Me- and press OK. Press the Navigation buttons to scroll to Music When you select the Set Audio, List and press OK.
  • Page 36 ENTERTAINMENT Tips for playing music files Control playback by using the following buttons. This unit doesn't support the ID3 Tag embedded MP3 files. Page 1/1 Music List 3 file(s) Marked Drive1 Page 1/1 NOTE 004. - B04.mp3 005. - B05.mp3 006.

  • Page 37: Viewing The Contents List

    ENTERTAINMENT Viewing the Contents List Music options Plays back the stored files using the Export option in SuperSign Manager. Press MENU to access the Pop-Up menus. Press the Navigation buttons to scroll to Set Au- Press the Navigation buttons to scroll to Media and press OK.

  • Page 38: Divx® Vod Guide

    ENTERTAINMENT DivX® VOD Guide DivX® VOD Registration NOTE In order to play purchased or rented DivX® VOD contents, you should register your device with 10 While you are checking the registration code, digit DivX registration code from your device at www.divx.com/vod.

  • Page 39: Using Pip/Pbp

    ENTERTAINMENT Using PIP/PBP DivX® VOD Deregistration You should deregister your device with 8 digit DivX Videos or pictures stored on the USB device can deregistration code from your device at www.divx. be displayed on a single monitor by dividing them com/vod.
  • Page 40 ENTERTAINMENT Select a file you want and then press OK. For sound select either Main or Sub. You must to select the output sound before running the PIP or PBP function. Page 1/1 Movie List Drive1 Page 1/1 USB1 USB Drive 051.

  • Page 41: Customizing Settings

    CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS Accessing Main Menus Press MENU to access the main menus. Press the Navigation buttons to scroll to one of the following menus and press OK. Press the Navigation buttons to scroll to the setting or option you want and press OK.

  • Page 42: Picture Settings

    CUSTOMIZING SETTINGS PICTURE settings PICTURE Move Aspect Ratio : 16:9 Press MENU to access the main menus. Energy Saving : Off Press the Navigation buttons to scroll to PICTURE Smart Energy Saving : Off Picture Mode : Standard press OK. Backlight Press the Navigation buttons to scroll to the setting or Contrast...
  • Page 43 CUSTOMIZING SETTINGS Setting Description SCREEN Customizes the PC display options in RGB mode. (In RGB Option Mode Only) Resolution Selects a proper resolution. See “Customizing PC display options”. Auto Config. Adjusts the screen position, clock, and phase automatically. The displayed image may be unstable for a few seconds while the configuration is in progress.
  • Page 44 CUSTOMIZING SETTINGS Advanced Control Setting Description Dynamic Contrast Adjusts the contrast to keep it at the best level according to the brightness of the screen. (Off/High/Medium/Low) The picture is improved by making bright parts brighter and dark parts darker. (Function works in the following mode - AV(CVBS), Component, HDMI-DTV, Display Port-DTV ) Dynamic Color Adjusts screen Colors so that they look livelier, richer and clearer.

  • Page 45: Audio Settings

    Setting Description Infinite Sound LG's Infinity Sound option provides 5.1 channel stereo sound from two speakers. Treble Controls the dominant sounds in the output. When you turn up the treble, it will increase the output to the higher frequency range.

  • Page 46: Time Settings

    CUSTOMIZING SETTINGS TIME settings TIME Move Clock Press MENU to access the main menus. Off Time : Off Press the Navigation buttons to scroll to TIME and press On Time : Off Sleep Timer : Off Power On Delay : Off Press the Navigation buttons to scroll to the setting or option Auto Off : 15 min.

  • Page 47: Option Settings

    CUSTOMIZING SETTINGS OPTION settings OPTION Move Language Press MENU to access the main menus. ISM Method : Normal Press the Navigation buttons to scroll to OPTION and press DPM Select : On Fail Over : Off Factory Reset Press the Navigation buttons to scroll to the setting or option Set ID you want and press OK.
  • Page 48 CUSTOMIZING SETTINGS Setting Description Tile Mode Tile Mode To use this function - Must be displayed with various other products. - Must be in a function that can be connected to RGB Cable by distributor and RS-232C. Tile mode and choose Tile alignment and set the ID of the current product to set location.
  • Page 49 CUSTOMIZING SETTINGS Setting Description Key Lock Key input does not work. This prevents invalid key input. Interface Select Sets communication with Media Player and the connected PC. Option RS232C Communicates with the connected PC in serial mode. SuperSign Communicates with Media Player. PC Power Control Controls the power of the monitor with Media Player turned on.
  • Page 50 CUSTOMIZING SETTINGS Tile Mode Tile Mode - Natural mode This monitor can be tiled with additional monitors When active, the part of the image that would to create a large tiled display. normally be displayed in the gap between the monitors is omitted.
  • Page 51 CUSTOMIZING SETTINGS PIP/PBP NOTE Displays videos or photos stored in the USB device on a single monitor by dividing it into the main and The subscreen is only supported when using the USB device. sub screens. (See p.39) Mode *PIP(Picture In Picture): Displays the Sub screen Component in the main screen.

  • Page 52: Picture Id

    CUSTOMIZING SETTINGS Picture ID Picture ID is used to change the settings of a If you press the left/right buttons or press the AUDIO specific display using a single IR receiver for multi- ON button repeatedly, the Picture ID cycles (RGB/DVI) C OU T C OU T...

  • Page 53: Network Settings

    CUSTOMIZING SETTINGS NETWORK settings NETWORK Move Player Name Setting Press MENU to access the main menus. Network Setting : None Press the Navigation buttons to scroll to NETWORK Network Status : Not connected press OK. Server IP Setting Server IP Status : Not connected Press the Navigation buttons to scroll to the setting or option you want and press OK.

  • Page 54: Making Connections

    MAKING CONNECTIONS MAKING CONNECTIONS Connect various external devices to the ports on the Monitor’s back panel. Find an external device you want to connect to your Monitor shown on the following illustration. Check the connection type of the external device. Go to the appropriate illustration and check the connection details.

  • Page 55: Component Connection

    MAKING CONNECTIONS Connecting to a HD receiver, Component connection DVD, Camcorder, Camera, Transmits the analog video and audio signals Gaming Device or VCR player from an external device to the Monitor. Connect the external device and the Monitor with the 15 Connect a HD receiver, DVD, or VCR player to the pin signal to RCA cable as shown on the following Monitor and select an appropriate input mode.

  • Page 56: Connecting To A Usb

    MAKING CONNECTIONS Connecting to a USB AV(CVBS) connection Transmits the analog video and audio signals Connect a USB storage device such as s USB from an external device to the Monitor. Connect flash memory, external hard drive, MP3 player or the external device and the Monitor with the 15 a USB memory card reader to the Monitor and pin signal to RCA cable as shown on the following...

  • Page 57: Connecting To The Lan

    MAKING CONNECTIONS Connecting to the LAN LAN connection Connect PC to Monitor directly. Monitor Using a router(Switch) Switch Network Monitor Using the Internet. Network Network Monitor NOTE Using LAN establishes communication between your PC and the monitor and enables to use the OSD menus on the PC as well as on the monitor.

  • Page 58: Daisy Chain Monitors

    MAKING CONNECTIONS Daisy Chain Monitors Use this function to share the RGB video signal with other monitors without having to use a separate signal splitter box. To use different products connected to each other Connect one end of the signal input cable (15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector of other products Monitor 4...

  • Page 59: Troubleshooting

    Did you install the driver? y Install the product driver, which is provided with the product, or download it from the web site. (http://www.lg.com) y See if the plug&play function is supported by referring to the video card user manual.
  • Page 60 TROUBLESHOOTING 'Key Lock On' message appears. Problem Resolution The 'Key Lock On' message The Lock function prevents the OSD settings from being changed appears when pressing the inadvertently. To release the lock, go to Menu and Option and disable Menu button. the Key Lock option.
  • Page 61 TROUBLESHOOTING The audio function does not work. Problem Resolution No sound? y See if the audio cable is connected properly. y Adjust the volume. y See if the sound is set properly. Sound is too dull. y Adjust the Clear Voice ll, Treble and Bass appropriately. Sound is too low.

  • Page 62: Specifications

    SPECIFICATIONS SPECIFICATIONS 42WS50MS 42WS50BS LCD Panel Screen Type 42" class (42.0" diagonal) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 1067.31 mm Pixel Pitch 0.4845 mm (H) x 0.4845 mm (V) Video Signal Max. Resolution...
  • Page 63 SPECIFICATIONS Dimensions (Width x Height x Depth) / Weight 961.6 mm x 554.5 mm x 31.9 mm / 13.7 kg 961.6 mm x 628.9 mm x 298.3 mm / 15.1 kg 961.6 mm x 554.5 mm x 81.5 mm / 14.5 kg 961.6 mm x 628.9 mm x 298.3 mm / 15.9 kg * Applicable only for models that support the speakers Audio...
  • Page 64 SPECIFICATIONS 47WS50MS 47WS50BS LCD Panel Screen Type 47" class (46.9" diagonal) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel. Visible diagonal size : 1192.87 mm Pixel Pitch 0.5415 mm (H) x 0.5415 mm (V) Video Signal Max. Resolution RGB : 1920 X 1080 @60 Hz HDMI,DVI-D, Display Port : 1920 X 1080 @60 Hz - It may not be supported depending on the OS or video card type.
  • Page 65 SPECIFICATIONS Dimensions (Width x Height x Depth) / Weight 1071.8 mm x 616 mm x 31 mm / 15.7 kg 1071.8 mm x 690.4 mm x 298.3 mm / 17 kg 1071.8 mm x 616 mm x 80.6 mm / 16.6 kg 1071.8 mm x 690.4 mm x 298.3 mm / 17.9 kg * Applicable only for models that support the speakers Audio...
  • Page 66 SPECIFICATIONS Dimensions The illustrations in this manual may differ from the actual product and accessories. Please see the "Mounting on a wall" section for sizes of screws. ( See p.12 ) (Unit : mm) 42WS50MS 47WS50MS 42WS50BS 47WS50BS 961.6 1071.8 11.5...
  • Page 67 SPECIFICATIONS DTV Mode RGB (PC) supported mode HDMI,Display Horizontal Vertical Resolution Component Resolution Port (DTV) Frequency(kHz) Frequency(Hz) 480i 31.469 70.8 640 x 350 576i 31.468 70.8 720 x 400 480p 31.469 59.94 640 x 480 576p 37.5 640 x 480 720p 37.879 60.317...

  • Page 68: Ir Codes

    IR CODES IR CODES Code (Hexa) Function Note R/C BUTTON R/C BUTTON ON/OFF R/C BUTTON R/C BUTTON (Discrete IR Code) R/C BUTTON (Discrete IR Code) R/C BUTTON R/C BUTTON Down R/C BUTTON Left R/C BUTTON Right R/C BUTTON R/C BUTTON R/C BUTTON R/C BUTTON R/C BUTTON...

  • Page 69: Controlling The Multiple

    CONTROLLING THE MULTIPLE PRODUCT CONTROLLING THE MULTIPLE PRODUCT Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. In the Option menu, Set ID must be between 1 and 255 without being duplicated. Connecting the cable Connect the RS-232C cable as shown in the picture.

  • Page 70: Command Reference List

    CONTROLLING THE MULTIPLE PRODUCT Command reference list COMMAND DATA Power 00H to 01H Aspect Ratio 01H to 1FH Screen Mute 00H to 01H Volume Mute 00H to 01H Volume Control 00H to 64H Contrast 00H to 64H Brightness 00H to 64H Color 00H to 64H Tint...
  • Page 71 CONTROLLING THE MULTIPLE PRODUCT COMMAND DATA 43 Auto Sleep 00H to 01H 44 Power On Delay 00H to 64H 45 Language 00H to 12H 46 DPM Select 00H to 01H 47 Reset 00H to 03H 48 Serial no. 49 S / W Version 50 Time 1(Years/ Months/ Days) Refer to ‘Time 1’...

  • Page 72: Transmission / Receiving Protocol

    CONTROLLING THE MULTIPLE PRODUCT Transmission / Receiving protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] * [Command 1]: First command. (k, j, m, d, f, x) * [Command 2]: Second command.(a to u) * [Set ID]: Set up the Set ID number of product. range : 01H to 63H.
  • Page 73 CONTROLLING THE MULTIPLE PRODUCT * Real data mapping 03. Screen Mute (Command: k d) To select screen mute on / off. Hexadecimal Num. Decimal Num. Transmission (Setting Value) (Real Value) [k][d][ ][Set ID][ ][Data][Cr] Data 00: Screen mute off (Picture on) 01 : Screen mute on (Picture off) Acknowledgement [d][ ][Set ID][ ][OK][Data][x]...
  • Page 74 CONTROLLING THE MULTIPLE PRODUCT 06. Contrast (Command: k g) 09. Tint (Command: k j) (Video input only) To adjust screen contrast. To adjust the screen tint. You can also adjust the contrast in the Picture menu. You can also adjust the tint in the Picture menu. Transmission Transmission [k][g][ ][Set ID][ ][Data][Cr]...
  • Page 75 CONTROLLING THE MULTIPLE PRODUCT 12. Remote Lock /Key Lock (Command: k m) 15. Balance (Command: k t) To control Remote Lock on/off to the set. To adjust the sound balance. This function, when controlling RS-232C, locks the Transmission remote control and the local keys. [k][t][ ][Set ID][ ][Data][Cr] Transmission Data...
  • Page 76 CONTROLLING THE MULTIPLE PRODUCT 17. White Balance Red Gain (Command: j m) 20. ISM mode (Command: j p) To adjust white balance red gain. Used to select the afterimage preventing function. Transmission Transmission [j][m][ ][Set ID][ ][Data][Cr] [j][p][ ][Set ID][ ][Data][Cr] Data Data 00~FE: Red gain 0~254...
  • Page 77 CONTROLLING THE MULTIPLE PRODUCT 23. Key (Command: m c) 26. Automatic Standby (Command: m n) To send IR remote key code. To set the Automatic Standby function. Transmission Transmission [m][c][ ][Set ID][ ][Data][Cr] [m][n][ ][Set ID][ ][Data][Cr] Data Data Key code : Refer to ‘IR CODES’. 00: Off(Not using the Automatic Standby function) 01: 4 Hours(The monitor will be off in 4 hours.) Acknowledgement...
  • Page 78 CONTROLLING THE MULTIPLE PRODUCT 28. Tile Mode (Command: d d) 31. Tile H Size (Command: d g) Change a Tile Mode. To set the Horizontal size. Transmission Transmission [d][d][ ][Set ID][ ][Data][Cr] [d][g][ ][Set ID][ ][Data][Cr] Data Data Min : 00H to Max : 64H : 0 to 100 00~FE: First bit - Column * Refer to 'Real data mapping ’.
  • Page 79 CONTROLLING THE MULTIPLE PRODUCT 34. Natural Mode (Command: d j) 37. Fan Fault check (Command: d w) To assign the Tile Natural mode for Tiling function. To check the Fan fault of the Set. Transmission Transmission [d][j][ ][Set ID][ ][Data][Cr] [d][w][ ][Set ID][ ][Data][Cr] Data * The data is always FF (in Hex).
  • Page 80 CONTROLLING THE MULTIPLE PRODUCT 40. Lamp fault Check (Command: d p) 43. Auto Sleep (Command: f g) To check lamp fault. Set Auto Sleep. Transmission Transmission [d][p][ ][Set ID][ ][Data][Cr] [f][g][ ][Set ID][ ][Data][Cr] * The data is always FF(in Hex). Data 00 : Off(Not using the Auto off function) Acknowledgement...
  • Page 81 CONTROLLING THE MULTIPLE PRODUCT 45. Language (Command: f i) 47. Reset (Command: f k) Set the OSD language. Execute the Picture, Screen and Factory Reset functions. Transmission Transmission [f][i][ ][Set ID][ ][Data][Cr] [f][k][ ][Set ID][ ][Data][Cr] Data 00 : Czech Data 01 : Danish 00 : Picture Reset...
  • Page 82 CONTROLLING THE MULTIPLE PRODUCT 50. Time 1(Year/ Month/ Day) (Command: f a) 52. Off Time(Repeat Mode/ Time) (Command: f e) To set the Time 1(Year/ Month/ Day) values. 1) To set the Off Time(Repeat mode/ Time) function. Transmission Transmission [f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr] [f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr] Data 1 Data1...
  • Page 83 CONTROLLING THE MULTIPLE PRODUCT 53. On Time(Repeat Mode/ Time) (Command: f d) 54. On Time Input (Command: f u) 1) To set the On Time(Repeat mode/ Time) function. 1) To set the On Time Input function. Transmission Transmission [f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr] [f][u][ ][Set ID][ ][Data][Cr] Data1 Data...
  • Page 84 CONTROLLING THE MULTIPLE PRODUCT 56. V Position (Command: f r) 59. Color Temperature (Command: x u) To set the Vertical position. To adjust the screen color temperature. * Only available for Tile Off mode. Transmission Transmission [x][u][ ][Set ID][ ][Data][Cr] [f][r][ ][Set ID][ ][Data][Cr] Data Data...
  • Page 86 Important WARRANTY VOID Make sure to read the Safety Precautions IF REMOVED 3850TAZ209Y before using the product. Warranty void if removed. Keep the Owner's Manual(CD) in an accessible place for future reference. WARNING -This is a class A product. In a domestic The model and serial number of the SET is environment this product may cause radio interference in which case the user may be required...
