Innovaphone IP6000 Datasheet

Housing
Size: 210 x 184 x 32 mm
1 HE for 19" systems
Weight: 1050 g
Interfaces
2 x ISDN PRI: TE mode for trunk interface
2 x ISDN PRI: NT mode to insert in trunk
lines, „Power-off-loop" interconnect two
PRI interface in power off status
1 x ISDN interface in TE and NT mode, for
routing, admin, synchronizing, backup or
other
2 x Ethernet: RJ 45 interface 10/100-BASE-TX
(auto negotiation), Power over Ethernet
(802.3af, Class 3)
Slot for Compact Flash Cards Type I
Hardware
Power supply:
internal mains adapter, 100-240 V, 15 W
or
Power over Ethernet (802.3af, Class 3)
Digital Signal Processor (DSP)
for codecs up to 60 voice channels
128 MB SDRAM, 16 MB Flash
Operation temperature: 0 °C to +45 °C,
Humidity: 10% to 90%
(not condensed)
Storage temperature: -10 °C to +70 °C
Order number: 01-06000-024
Errors and omissions excepted. All information, technical specifications and delivery times may be subject to change.
ds_IP6000_en.doc, issue: 05/2011, Copyright © 2000-2011 innovaphone® AG

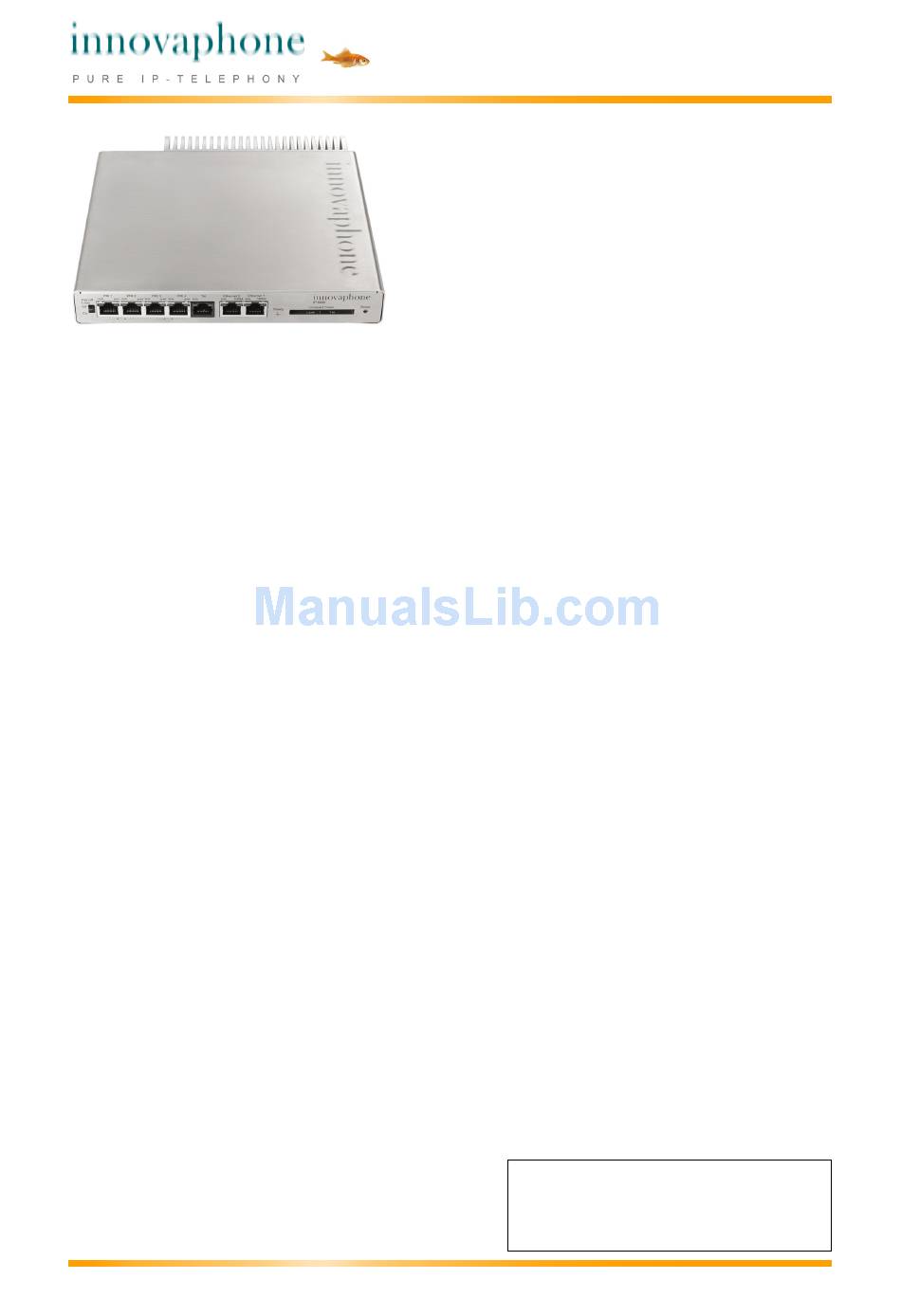

innovaphone IP6000
V o I P g a t e w a y f o r t w o I S D N P R I i n t e r f a c e s
a n d p l a t f o r m f o r i n n o v a p h o n e P B X

VoIP protocols

H.323 version 5
SIP version 2, conform RFC 3261
SIP over UDP, TCP, TLS, SIPS
RTP, SRTP, RTCP
T.38 (Fax)
Voice Codecs:
G.711 A-law / µ-law,
G.729AB,
VAD, CNG,
Dynamic Jitter Buffering
Echo Compensation: G.168
Network
• PPPoE, manual or automatic connection
after boot
• PPTP Tunneling up to 32 tunnels
simultaneously, encoding via MPPE
• NAT, H.323-NAT
• RSTP, IEEE 802.1x
• VLAN-ID
• NTP support
ISDN
• Routing VOIP-ISDN, ISDN-ISDN, VOIP-VOIP
• Automatic dial tone European and US
Standard
• ENUM for H.323 and SIP protocols
• Protokolle EDSS1, QSIG, T1-CAS, E1-CAS
• Plays recorded messages deposed on CF
card or on a web server
Administration
Password protected administration via web-
browser, Kerberos server
Log and trace files, Display of interface and
connection status, Ping – connection test for
Internet Protocol, Sending SNMP Traps
Save and reload config files, Boot code and
firmware update via HTML upload, Automatic
update via update server
Böblinger Straße 76, D-71065 Sindelfingen
Tel +49 7031 7 30 09-0 Fax +49 70 31 7 30 09-99
E-mail: info@innovaphone.com
Data sheet
®
innovaphone AG
www.innovaphone.com
