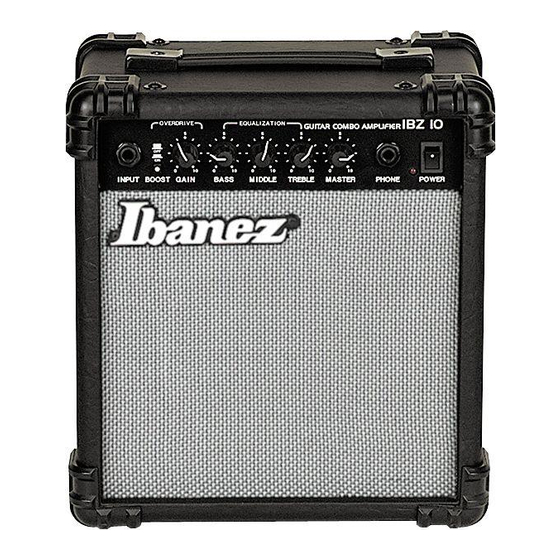

Ibanez IBZ10 Parts List

ITEM NUMBER
32S00001 B5
32S00002 B5
32S00003 B5
32S00004 B5
32S00005 B5
32S00006 B5
32S00007 B5
32S00008 B5
32S00009 B5
32S00010 B5
32S00011 B5
32S00012 B5
32S00013 B5
32S00014 B5
32S00015 B5
32S00016 B5
32S00017 B5
32S00018 B5
32S00019 B5
32S00020 B5
32S00021 B5
32S00022 B5
32S00023 B5
32S00024 B5
32S00025 B5
32S00026 B5
32S00027 B5
32S00028 B5
32S00029 B5
32S00030 B5
32S00031 B5
32S00032 B5
32S00033 B5
32S00034 B5
32S00035 B5
32S00036 B5
32S00037 B5
32S00038 B5
32S00039 B5
32S00040 B5
32S00041 B5
32S00042 B5
32S00043 B5
32S00044 B5
32S00045 B5
32S00046 B5
32S00047 B5
32S00048 B5
32S00049 B5
32S00050 B5
32S00051 B5
32S00052 B5
32S00053 B5
32S00054 B5
32S00055 B5
32S00056 B5
32S00057 B5
32S00058 B5
32S00059 B5
DESCRIPTION
01

PCB IBZ10

01

CF RESISTOR 10

01

CF RESISTOR 33

01

CF RESISTOR 100

01 CF RESISTOR 220
01 CF RESISTOR 1K
01 CF RESISTOR 2.2K RCF022203JUH
01 CF RESISTOR 2.7K RCF027203JUH
01 CF RESISTOR 3.3K RCF033203JUH
01 CF RESISTOR 3.9K RCF039203JUH
01 CF RESISTOR 4.7K RCF047203JUH
01 CF RESISTOR 7.5K RCF075203JUH
01 CF RESISTOR 10K
01 CF RESISTOR 22K
01 CF RESISTOR 27K
01 CF RESISTOR 33K
01 CF RESISTOR 47K
01 CF RESISTOR 56K
01 CF RESISTOR 68K
01 CF RESISTOR 100K RCF010403JUH
01 CF RESISTOR 470K RCF047403JUH
01 CF RESISTOR 1M
01 MOF RESISTOR 0.5 RMO0R5010JFH
01 MOF RESISTOR 470 RMO047110JFH
01 JUMPPER 7.5MM
01 JUMPPER 10MM
01 JUMPPER 15MM
01

VOLUME POT A5K

01 VOLUME POT A50K
01 VOLUME POT A250K VRRE1ECPAB5A
01 VOLUME POT B50K
01

EL CAP 1UF

01 EL CAP 10UF
01 EL CAP 22UF
01 EL CAP 47UF
01 EL CAP 100UF
01 EL CAP 2200UF
01 POLY CAP 0.0022U CPF222D10KGR
01 POLY CAP 0.047UF CPF473D10KGR
01 POLY CAP 0.018UF CPF183D10KGR
01 POLY CAP 0.1UF
01 CERAMIC CAP 100P CCR101D05KSC
01 CERAMIC CAP 220P CCR221D05KEC
01

DIODE 1N4148

01 DIODE 1N4004
01 Z. DIODE 1N4744A DZN15010H100
01 TRANSISTOR
01 TRANSISTOR
01 TRANSISTOR
01 FET
01 TRANSISTOR
01 TRANSISTOR
01 IC NJM4558DD
01 LED DIA3
01 LED DIA5
01 DIA6.3 JACK MONO JKP6R3MOLA4N
01 DIA6.3 JACK STRO JKP6R3STDA6O
01 3.96CONNECTOR
01 PUSH SWITCH LOCK SWP2PS01NL03
IBZ10 PARTS LIST
PCBIBZ10XXXN
RCF010003JUH
RCF033003JUH
RCF010103JUH
RCF022103JUH
RCF010203JUH
RCF010303JUH
RCF022303JUH
RCF027303JUH
RCF033303JUH
RCF047303JUH
RCF056303JUH
RCF068303JUH
RCF010503JUH
JPW060XXX075
JPW060XXX100
JPW060XXX150
VRRE1ECPA05A
VRRE1ECPA50A
VRRE1ECPB50A
CAE105FMLRBC
CAE106DMLRBC
CAE226DMLRBC
CAE476DMLRBC
CAE227CMLRCC
CAE228DMLRGK
CPF104D10KGR
DID1N4148DHB
DID1N4004RHB
TST2SA1015GS
TST2SC1815GS
TST2SC1384RS
FET2SK30AXGS
TST2SB857XCM
TST2SD1133CM
IGCN4558DDAO
LEDC030HDANA
LEDC050HDANA
JK1,INPUT JACK
JK2 PHONE JACK
WAF4Y03SHH01
REMARK Q'TY
1
1
2
2
2
4
4
1
6
1
6
1
4
2
1
1
1
2
2
1
2
1
2
1
1
10
1
1
1
1
2
2
6
3
1
3
2
1
1
2
4
3
1
3
4
1
2
5
1
1
1
1
2
2
1
1
1
1
1
