Page 1: Table Of Contents
Unpacking and Setup Loading the Label Stock Dispensing the Label Using the Control Panel Label Path Diagram Troubleshooting and Maintenance 13 Specifications © 2009 All rights reserved... - Page 2 ON THE PRINTER AND AC ADAPTER. WARNING! DO NOT WEAR LOOSE FITTING CLOTHING SUCH AS NECK TIES OR LOOSE LONG SLEEVES WHEN OPERATING THE DX850. THE MOTOR IS VERY POWERFUL AND THE LINER DRIVE ROLLER COULD CATCH THE CLOTHING WHILE THE LABELS ARE BEING...
-
Page 3: Unpacking And Setup

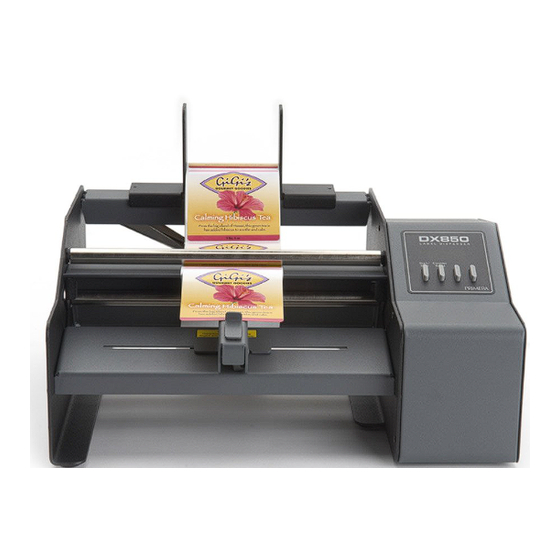

Section 1: Unpacking and Setup Thank you for purchasing the DX850 Label Dispenser (hereafter referred to as "Label Dispenser"). The Label Dispenser includes a Power Cord, 12 volt Power Adapter and the parts shown in Figure 1-1. The Roll Bar, Roll Guides and Roll Drag Arm are located in the supply box along with the Power Cord. -
Page 4: Loading The Label Stock
Tip! For smaller diameter label roll cores you may need to reverse the Roll Guides so that the bottom of the guides are facing out to allow the uprights to be placed next to the roll. 4 DX850 Label Dispenser... - Page 5 5. Place the removed Roll Guide back on the Roll Bar and slide it close to, but not touching the label stock roll. (Figure 2-4.) Figure 2-4. Tip! Roll Guide Uprights must not pinch the label stock roll. (The label stock roll must have free- play between guides.) DX850 Label Dispenser 5...
- Page 6 Roller should be in the unclamped position. (See Figure 2-10 for a detailed diagram of the Liner Idler Roller positions.) Figure 2-6. Note: This procedure assumes that the first 6 inches of labels will not be dispensed using the Label Dispenser. Of course, you may still peel these labels by hand. 6 DX850 Label Dispenser...
- Page 7 Note: The liner may be fed out the front or back of the Label Dispenser. 10. Push the Liner Idler Roller into the clamped position by pressing your thumbs on the Liner Idler Roller Tabs on both sides. (Figure 2-8.) Figure 2-8. DX850 Label Dispenser 7...
- Page 8 11. Move the Label Sensor Bracket where desired within the width of the label. (Figure 2-9.) Figure 2-9. 12. You are now ready to dispense labels. 8 DX850 Label Dispenser...
-
Page 9: Dispensing The Label
2. To Start dispensing press the Start/Stop button on the Control Panel. (Figure 3-2.) Figure 3-2. Start/ Counter Stop Reset DX850 Label Dispenser 9... - Page 10 5. When you are ready to stop dispensing labels or if you want to stop for another reason such as adjusting the label sensor position, simply press the Start/Stop Button. 6. To remove the label stock, disengage the Liner Idler Roller by pulling back on the tabs. 10 DX850 Label Dispenser...
-
Page 11: Using The Control Panel
“LED”. Then press the + or – buttons to adjust the LED intensity. 2. Half-Speed Mode: To start system in Half-Speed Mode for wide label stock: Press and hold the – Button during power-up. DX850 Label Dispenser 11... -
Page 12: Label Path Diagram
Section 5: Label Path Diagram Label Path Diagram Label Path Liner Drive Roller Liner Idler Roller Peel Edge Front or Rear Liner Output 12 DX850 Label Dispenser... -
Page 13: Troubleshooting And Maintenance
Liner Drive Roller. Lubricate bearings. Primera recommends oiling the four bearings associated with the Liner Drive Roller and Liner Idler Roller. Oil these four bearings for every 50,000 labels dispensed. They should only be oiled after the first 50,000 labels as they are lubricated with a special grease at the factory. -
Page 14: Specifications
2 in/sec. in Half-speed Mode for 6-8" wide labels See Section 4. Agency certifications: UL, UL-C, CE, FCC Class B Weight: 11.5 lbs (5.2 kg) Dimensions: 13.44" W x 8.75" H x 11.25" D (341mm W x 222mm H x 2876mm D) 14 DX850 Label Dispenser... - Page 16 P/N 511260 - 052609...
