Primera LX-REWINDER Manual

Mainzer Straße 131
D 65187 Wiesbaden/Germany

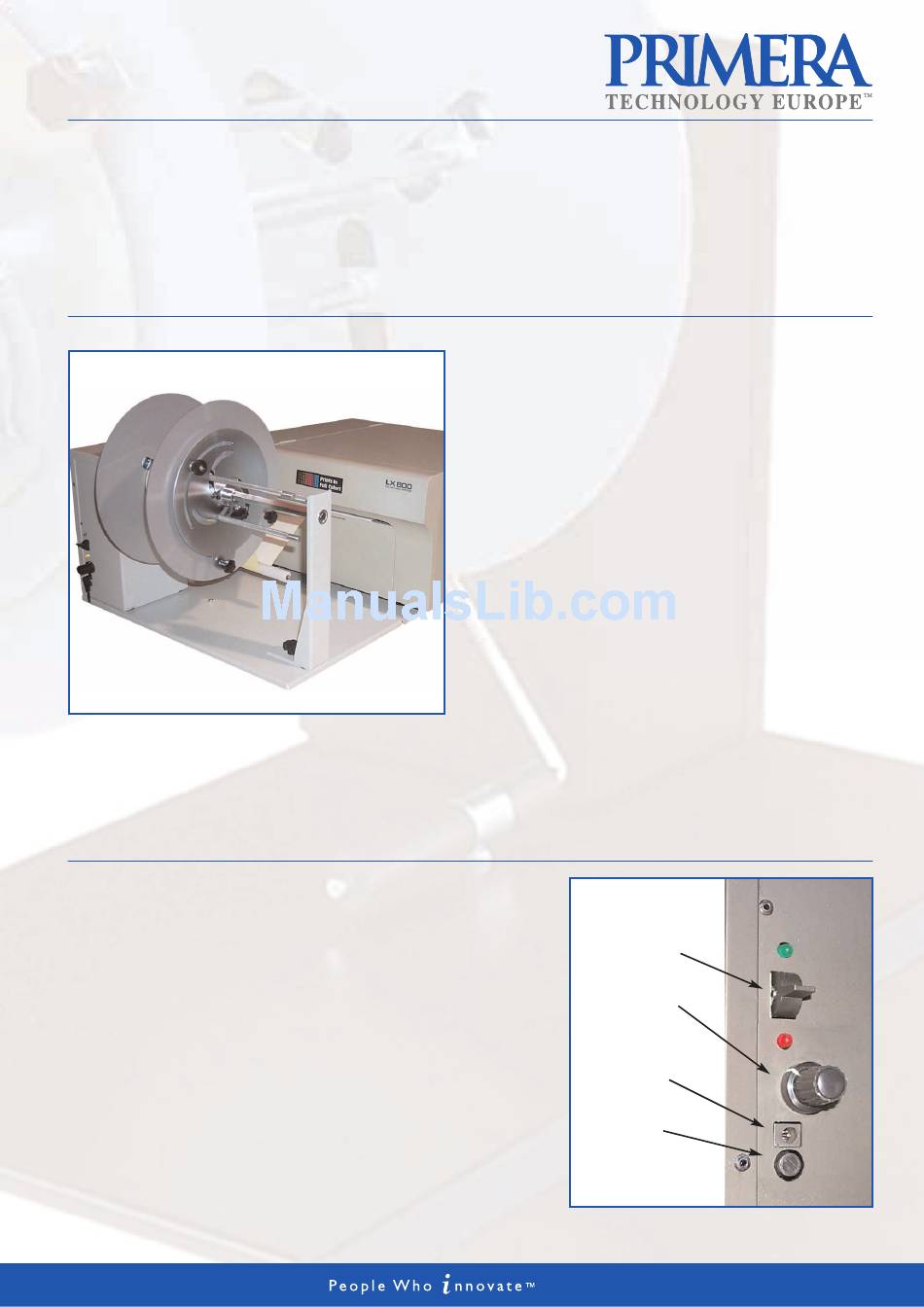

LX-REWINDER for LX800/810 printer series
All-in-One rewind and unwind the label rolls
How Does the LX-Rewinder Work?
an acoustic signal sounds an alarm informing the user that rewinding has stopped.
Testing the Functionality of the LX-Rewinder
1. Connect the supply cable to the printer.
2. Switch the unit on and you will hear a beeping sound
signaling that the unit is "out of labels".
3. Lift the arm manually and you will notice that the
Rewinder starts to move faster as the arm is lifted higher.
The movement slows down as you lower the arm.
4. While testing the arm functionality you can also regulate
the speed with the speed knob.
w w w . p r i m e r a . c o m
Fon: +49(0)611 92777-0
Fax: +49(0)611 92777-50
email:sales@primera-europe.eu
•
The LX-Rewinder is used in conjunction with Primera's
LX Series Label Printers to rewind printed labels back
onto a roll. The "rewind" and "unwind" functions allow
for a flawless operation with no additional cables
required.
A roller guide arm detects the tension of label materials
and starts a linear movement onto a rewinding roll.
Should the tension be too tight, the guide will
automatically rise allowing the rewinding roll to unwind
so that the ideal tension can again be established. The
LX-Rewinder also has an adjustable speed control which
regulates the rewinding speed.
This will ensure that the print quality is not
compromised by too much tension or incorrect speed.
In addition, the LX-Rewinder supports the "out of label"
error. In this case, the guide arm falls to the bottom and
ON-OFF switch
speed control
power plug
18 VAC
2A fuse
w w w . p r i m e r a - e u r o p e . e u
•
