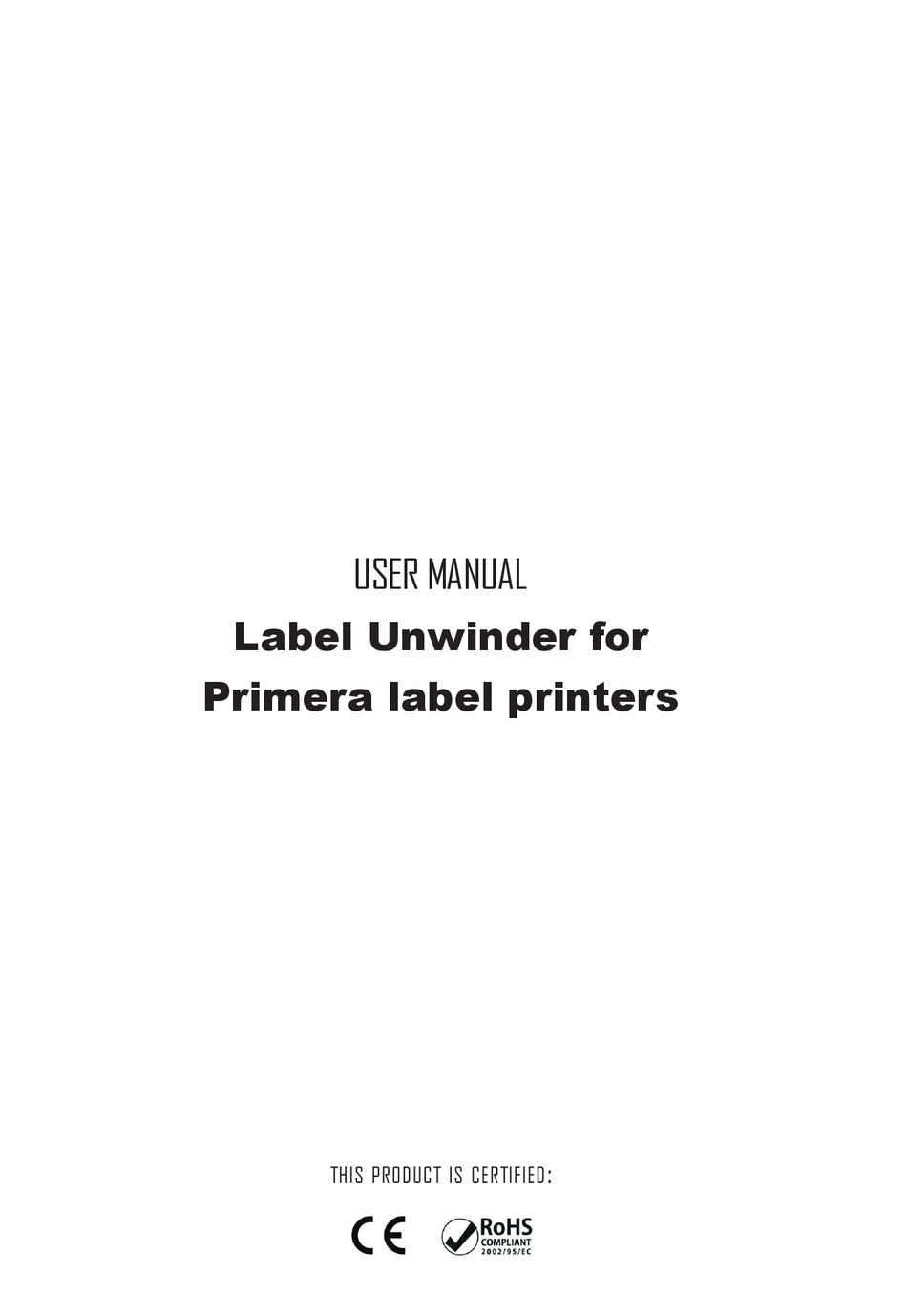

- Page 1 USER MANUAL Label Unwinder for Primera label printers this product is certified...
- Page 2 APPLICATION The rewinder is used to unwind the labels on roll having fixed 3” internal diameter. The maximum external roll diameter allowed is up to 250 mm (10”) while the maximum label width is up to 220 mm (8.66”). POWER SUPPLY An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the speed and sense of rotation auto adjustment.
- Page 3 INSTALLATION STEP 1 STEP 2 Unsrew the two knobs from the Set the included printer plate beside the unwinder’s base. unwinder’s base. STEP 3 STEP 4 Use the two knobs to fasten the printer Load the roll onto the core holder. plate to the unwinder’s base.
