Primera Label Stock Quick Reference Manual

Switch on the
1
unwinder, printer
and rewinder.
2X
The loose stock should fall on
3
the right side of the roll. Turn
the tension knob clockwise to
secure the roll to the chuck.
Turn the knob as as tight as
you can! Feed the stock under
the dancer arm and through
the cutter.
Tension Knob
5 Place an empty label
core on the rewinder
chuck. Push the core all
the way back until it
touches the back label
guide disc.

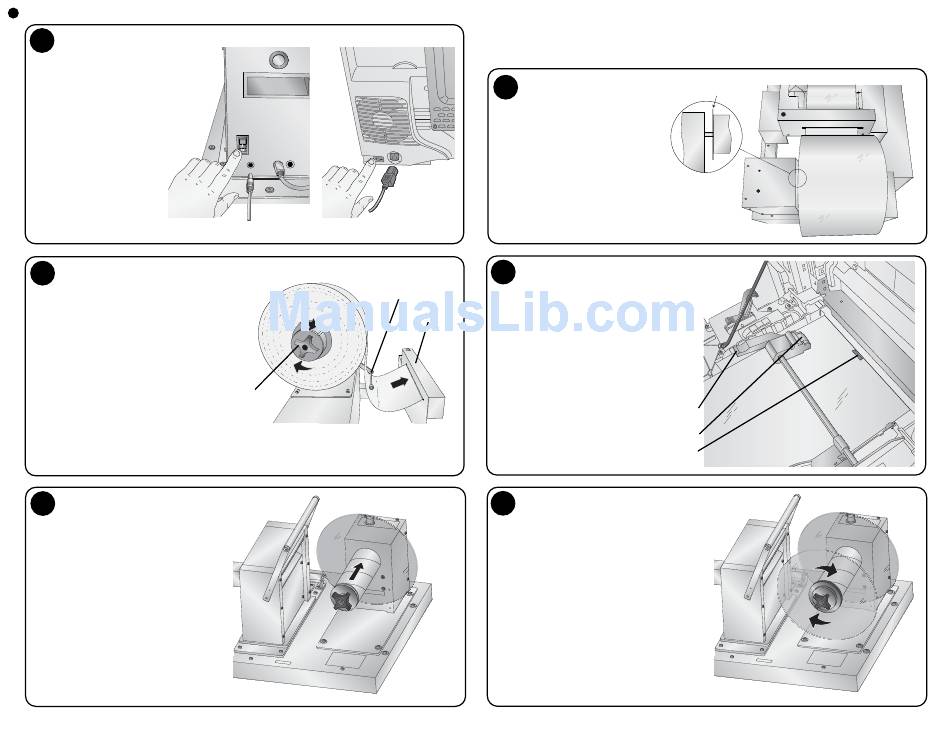

Loading Label Stock Quick Reference Guide
Place the label stock
2
roll (max 12" OD) on
the unwinder chuck.
Push the stock all the
way back until it
touches the stop disc.
Continue feeding the stock
4
into the printer feeder tray.
Dancer Arm
Feed the stock under the green
Cutter guides and under the paper
feed roller. Stop feeding when
the leading edge of the stock
has covered the red stop block
printed just outside the feeder
door entrance.
Place the outer label guide
6
disc on to the rewinder chuck.
Push the guide until it touches
the rewinder core. Turn the
tension knob clockwise to
secure the core and the label
guide to the chuck.
Note: Some cores may be shorter
than the the stock width. If so,
make sure the distance between
the label guide discs is slightly
larger than the stock width.
Stop Disc
Green Guides
Feed Roller
Red Stop Block
