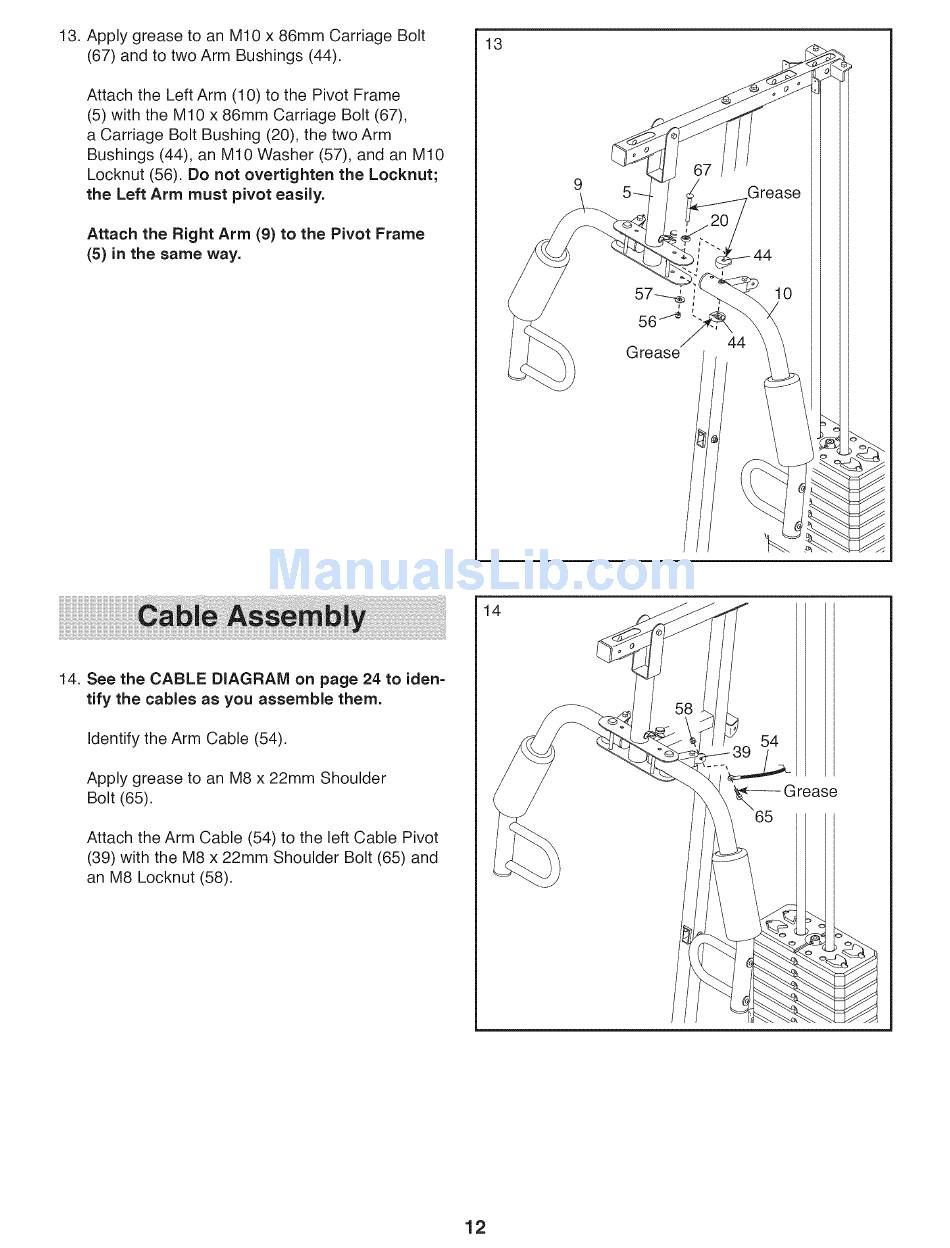

13. Apply grease to an M10 x 86mm Carriage Bolt
(67) and to two Arm Bushings (44).
Attach the Left Arm (10) to the Pivot Frame
(5) with the M10 x 86mm Carriage Bolt (67),
a Carriage Bolt Bushing (20), the two Arm
Bushings (44), an M10 Washer (57), and an M10
Locknut (56). Do not overtighten the Locknut;
the Left Arm must pivot easily.
Attach the Right Arm (9) to the Pivot Frame
(5) in the same way.
13
Grease
14. See the CABLE DIAGRAM on page 24 to iden-
tify the cables as you assemble them.
Identify the Arm Cable (54).
Apply grease to an M8 x 22mm Shoulder
Bolt (65).
Attach the Arm Cable (54) to the left Cable Pivot
(39) with the M8 x 22mm Shoulder Bolt (65) and
an M8 Locknut (58).
14
12
