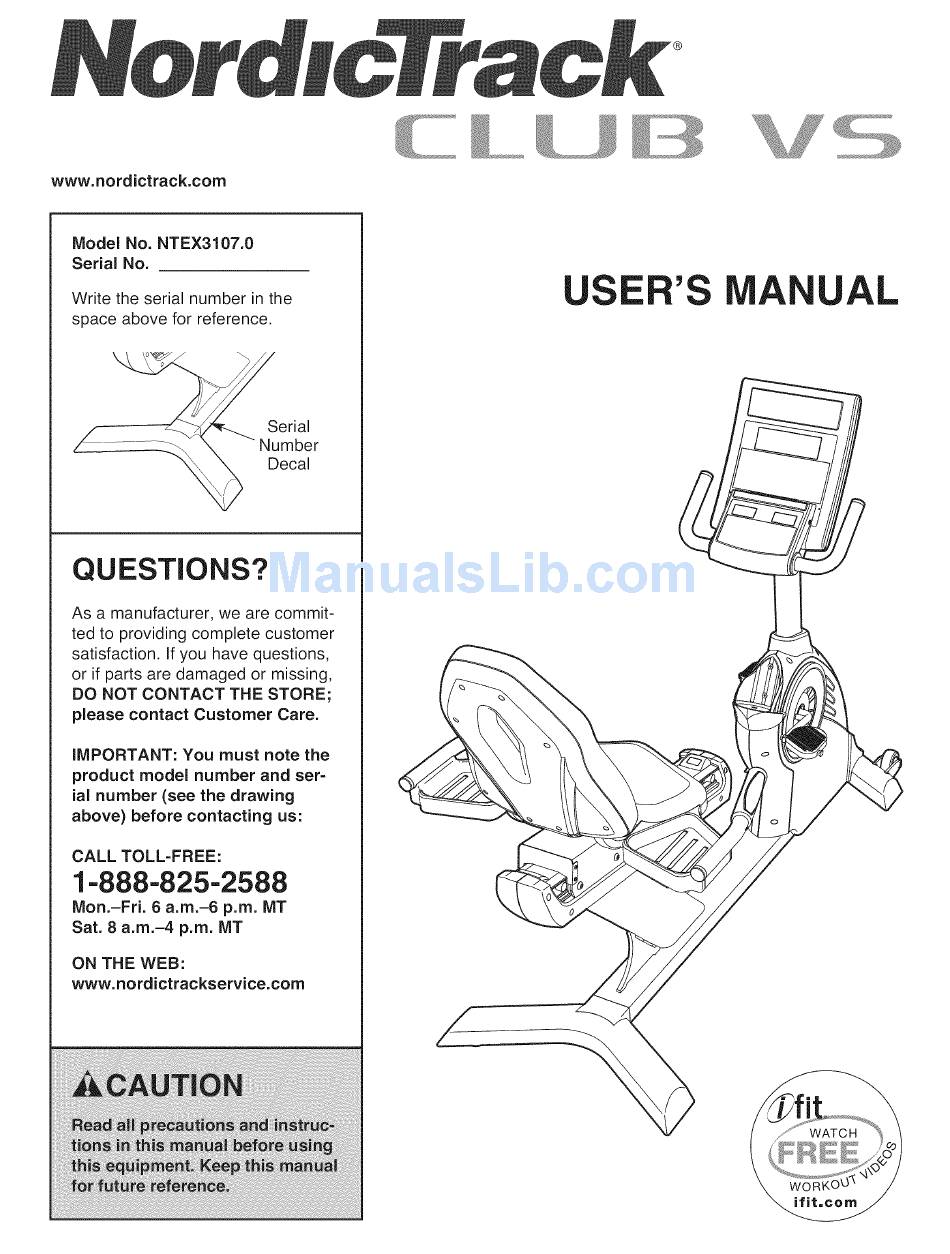

Model No. NTEX3107.0
Serial No.
Write the serial number in the
space above for reference.
S
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
DO NOT CONTACT THE STORE;
please contact Customer
Care.
iMPORTANT: You must note the
product
model number and ser-
ial number (see the drawing
above) before contacting
us:
CALL TOLL-FREE:
1-888-825-2588
Mon.-Fri.
6 a.m.-6
p.m. MT
Sat. 8 a.m.-4
p.m. MT
ON THE WEB:
www.nordictrackservice.com
US
'S
A UAL
