Sample Rates

There are eight possible preset sample rate options ranging between 44.1kHz and 192kHz. The
different rates are selected with switches 4 to 6 as follows:
Sample Rate
44.1kHz
48kHz
88.2kHz
96kHz
176.4kHz
192kHz
176.4kHz mono
192kHz mono
Page 12

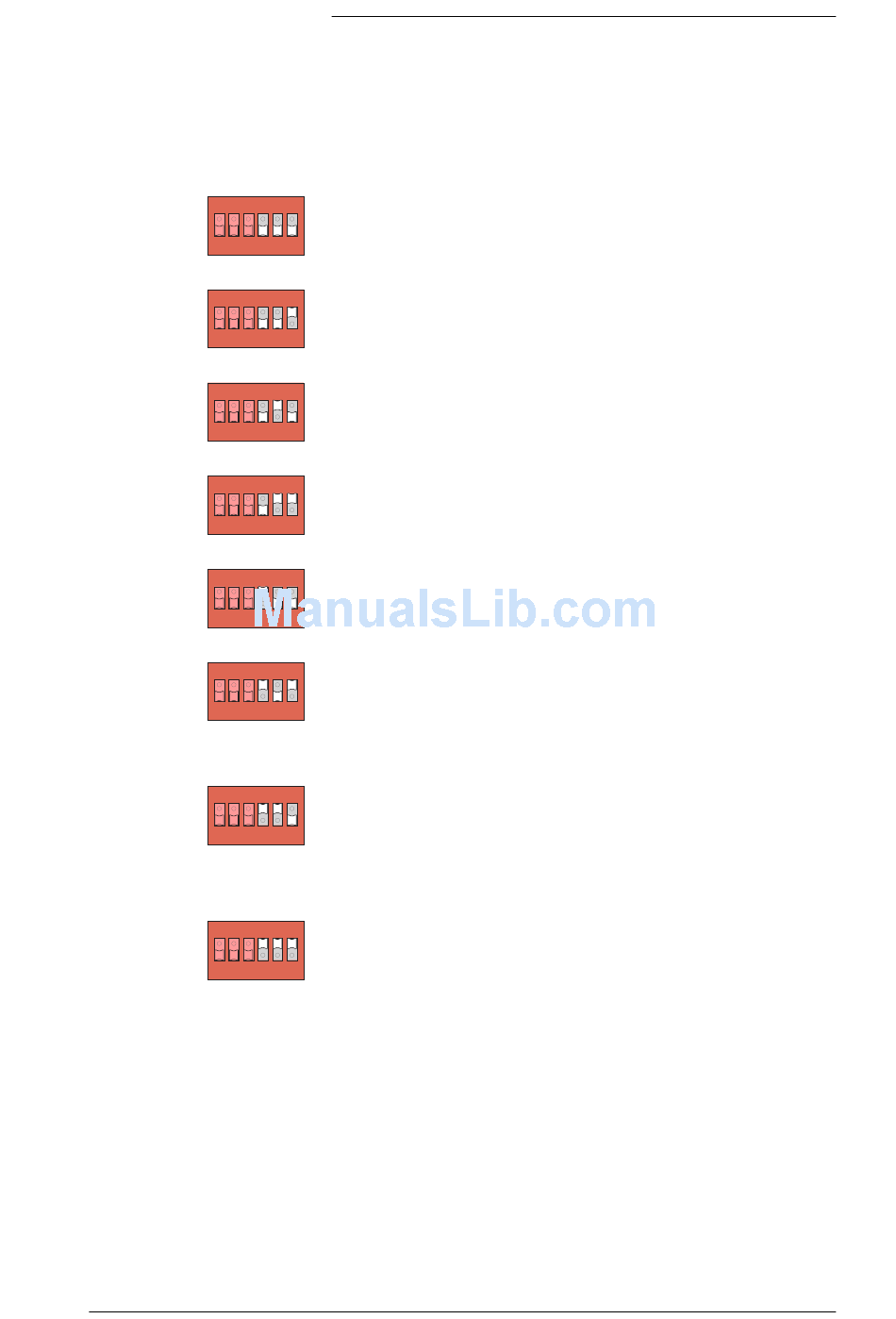

Switch(es) Detail
With all three switches 'off' (down), this sets the ADC to run at
ON
44.1kHz stereo. For external sync at this rate, the applied AES or
Word Clock sync should be 44.1kHz whilst 'Super Clock' should
1 2 3 4 5 6
be 11.2896MHz.
This sets the ADC to run at 48kHz stereo. For external sync at
ON
this rate, the applied AES or Word Clock sync should be 48kHz
whilst 'Super Clock' should be 12.2880MHz.
1 2 3 4 5 6
This sets the ADC to run at 88.2kHz stereo. For external sync at
ON
this rate, the applied AES or Word Clock sync should be
88.2kHz whilst 'Super Clock' should be 22.5792MHz.
1 2 3 4 5 6
This sets the ADC to run at 96kHz stereo. For external sync at
ON
this rate, the applied AES or Word Clock sync should be 96kHz
whilst 'Super Clock' should be 24.5760MHz.
1 2 3 4 5 6
This sets the ADC to run at 176.4kHz stereo. For external sync at
ON
this rate, the applied AES or Word Clock sync should be
176.4kHz – 'Super Clock' is not supported.
1 2 3 4 5 6
This sets the ADC to run at 192kHz stereo. For external sync at
ON
this rate, the applied AES or Word Clock sync should be 192kHz
– 'Super Clock' is not supported.
1 2 3 4 5 6
This sets the ADC to run at 176.4kHz in mono or 'two wire'
ON
mode. In this mode only a single channel of data is available and
so the second analogue input is not available. For external sync
1 2 3 4 5 6
at this rate, the applied AES sync should be 88.2kHz or Word
Clock at 176.4kHz – 'Super Clock' is not supported.
With all three switches 'on' (up), this sets the ADC to run at
ON
192kHz in mono or 'two wire' mode. In this mode only a single
channel of data is available and so the second analogue input is
1 2 3 4 5 6
not available. For external sync at this rate, the applied AES sync
should be 96kHz or Word Clock at 192kHz – 'Super Clock' is not
supported.
