Summary of Contents for Solid State Logic XLogic SDI-MADI
- Page 1 XLogic SDI-MADI Installation and User Guide XLogic SDI-MADI This is SSL.
-
Page 2: Safety And Installation Instructions 2
Important Safety and Installation Instructions This section contains definitions, warnings, and practical information to ensure a safe working environment. Please take time to read this section before installing or using this unit. Please do not dispose of these instructions. Please take time to read this section before installing or using this unit. Please do not dispose of these instructions. Please take time to read this section before installing or using this unit. -
Page 3: Table Of Contents
Contents Item Item Page Page Item Item Page Page Safety and Installation Instructions 2 & 3 Conformity & Warranty Introduction Un Pack Key Features Block Diagram Specifications Front Panel Description Rear Panel Description Installation 10 - 12 Setting Up and Operation Synchronisation Frequently asked Questions Important Safety Precautions... -
Page 4: Conformity & Warranty
For all warranty inquiries or claims please address your claim to the dealer that you purchased the product from – or to Solid State Logic if the purchase was directly from Solid State Logic – within a period of two months from the date on which you detected its lack of conformity with the terms of the warranty. -
Page 5: Introduction
IMPORTANT IMPORTANT Please register your XLogic SDI-MADI unit on our website. This will ensure that you receive notification of future updates and other important information, and that your guarantee is registered. Registration will also make you eligible for technical support. -
Page 6: Key Features
Key Features • 4 x SDI inputs on 75 BNC connection. 16 audio channels per input • Auto-detection of SD/HD/3G input format • Active loop-through of each input to 75 BNC output connection • Full Dolby® E/Dolby® Digital transparency for loop through •... -
Page 7: Specifications
Specifications VIDEO INPUTS SYNCHRONISATION SRC available on all inputs, Connector/input impedance 4 x BNC sockets, 75 Sample Rate Conversion switchable in banks of 16 SDI, SD/HD/3G, compliant (External): SDI1 to 4, with SMPTE 259M, 296M, Compatible formats Sources AES3, Video black-and- 274M, 292M, 424M or burst, Wordclock 425M... -

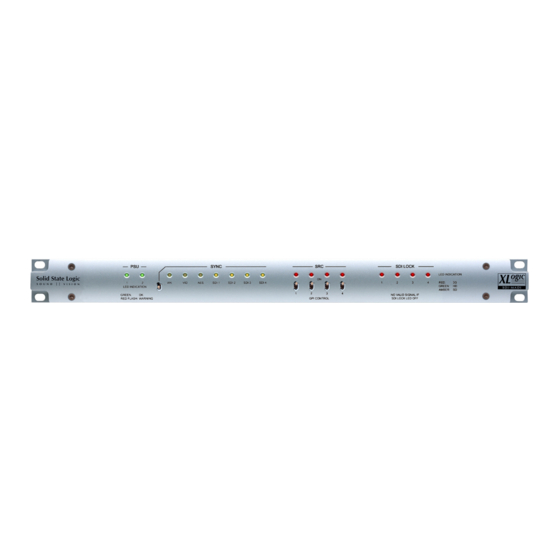

Page 8: Front Panel Description
Front Panel Description PSU Status PSU Status SDI Lock LEDs SDI Lock LEDs PSU Status PSU Status SDI Lock LEDs SDI Lock LEDs Colour SDI Format Two bi-colour LEDs confirming the current Four tri-colour LEDs, for SDI inputs 1 status of each PSU. The LEDs are green in to 4. -
Page 9: Rear Panel Description
Rear Panel Description SDI video inputs 1 to 4 (4 x BNCs) – internally illuminated green SDI video inputs 1 to 4 (4 x BNCs) AES3 sync out (BNC) AES3 sync out (BNC) SDI video inputs 1 to 4 (4 x BNCs) SDI video inputs 1 to 4 (4 x BNCs) AES3 sync out (BNC) AES3 sync out (BNC) -
Page 10: Installation
Hardware Considerations The XLogic SDI-MADI is built in a 1U 19” enclosure. It is intended to be permanently installed in a standard 19” equipment rack. The unit has no internal fans and is cooled by natural convection. There are ventilation grilles in the top, bottom and both sides of the enclosure, and care must be taken to ensure that these are not blocked by cables or other equipment when the unit is installed. - Page 11 AES3 Outputs AES3 Outputs AES3 Outputs AES3 Outputs The 64 audio channels de-embedded from the four SDI inputs are available as 32 AES-3 digital audio outputs on the rear panel 37-way female Dsub connector. The outputs are 75 unbalanced as per AES3-4-2009, Annex D. The table below gives the pinout: Note: Note: Note:...
- Page 12 * Pins 7-9 are identical connected to pin 5. ETHERNET Port ETHERNET Port ETHERNET Port ETHERNET Port The XLogic SDI-MADI includes a standard Ethernet port (an RJ45 socket). This connector has no function at this time. 12 12 12 12...
-
Page 13: Setting Up And Operation
Setting Up and Operation Sample Rate Converters Sample Rate Converters Sample Rate Converters Sample Rate Converters The sampling frequency of the audio data embedded in SDI video signals is 48 kHz. This is invariant, and is enshrined in the defining standards for all SDI formats. -
Page 14: Synchronisation
Synchronisation Sync To Wordclock Sync To Wordclock Sync To Wordclock Sync To Wordclock SRC sync to an external wordclock is indicated by illumination of the ‘WK’ front panel LED. The clock source should be connected to the SYNC IN connector (a BNC socket) on the rear panel. Nominal frequency is 48 kHz 50ppm, and clock pulses should be of 5 V amplitude, positive-going. Sync To Video Black Sync To Video Black- - - - And Sync To Video Black... -
Page 15: Frequently Asked Questions
Q: How do you select between SDI formats? content within the independent SDI sources prior to them being A: The XLogic SDI-MADI automatically determines what the incoming combined and transmitted as a MADI stream. Unless SDI format is and configures itself accordingly. Status of each synchronising to an SDI source that incorporates Dolby ®... - Page 16 SSL Part No. 82B4HM01A 82B4HM01A 82B4HM01A 82B4HM01A XLogic SDI-MADI This is SSL.
