XLogic Channel ADC Owner's Manual
5. Check that the rear plate of the ADC card is flush to the rear panel of the XLogic unit and tighten
the six screws; these screws need only be lightly tightened – the ADC card isn't going to be
escaping out of the box by itself...

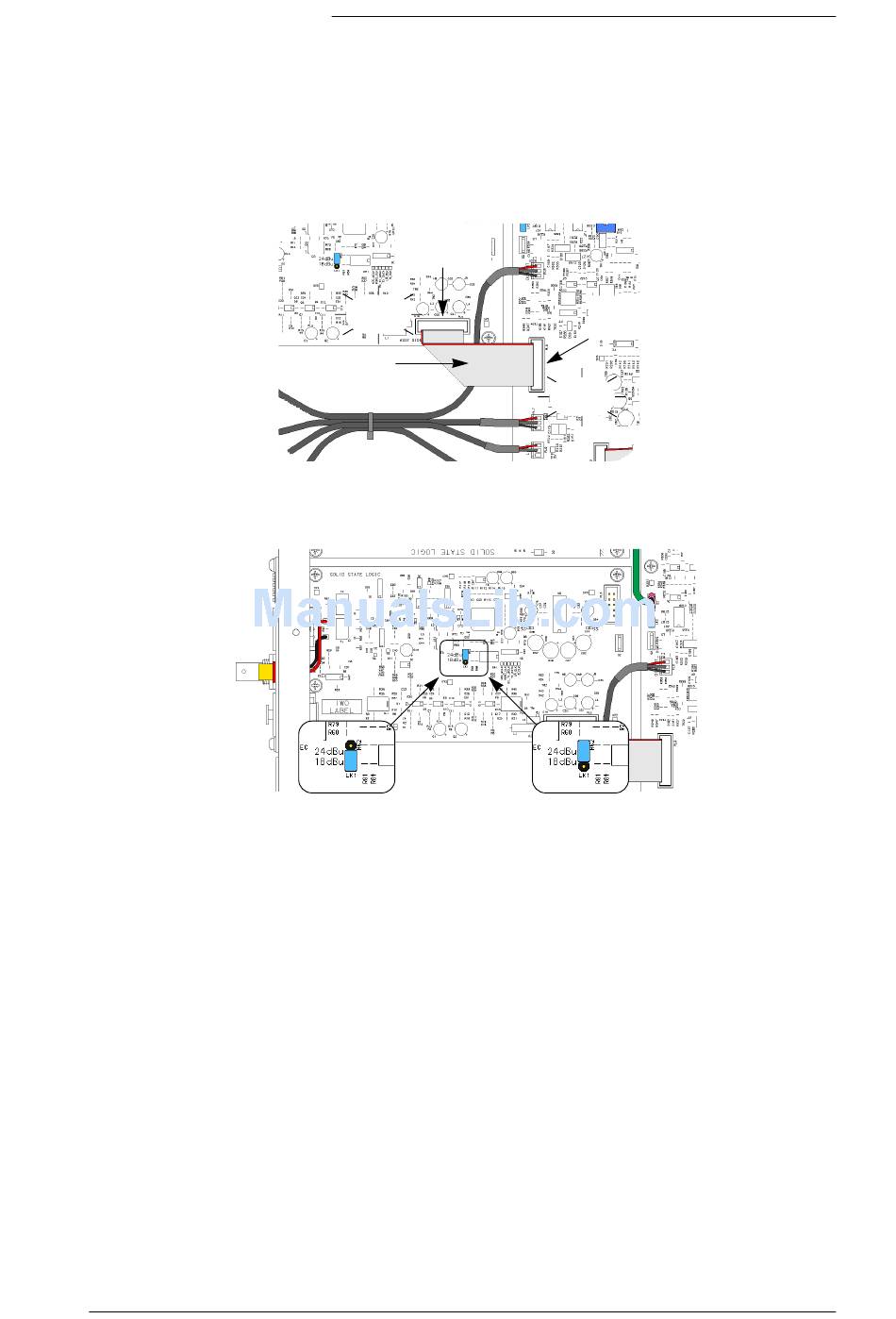

6. Connect the short ribbon cable removed in step 3. above between PL5 on the ADC card and PL5
on the main PCB. Be sure to push these connectors fully home; they have about 5mm of travel and
there should be a light 'click' as they are seated.
7. Check that link LK1 on the ADC card is set to the correct position – if in doubt, leave it at the
factory (+24dBu) setting.
8. Refit the top cover to the XLogic unit and replace the 15 M3 x 6mm Csk screws – we have supplied
a few replacements if any were damaged (or missing). Like the ADC card, these screws should not
be over-tightened - they should be little more than finger tight. When the top cover is fitted, the
test and warning labels should all be visible - if they are not, you have put it on upside down!
9. Before refitting the XLogic unit to any racking or studio furniture it would be prudent to check it
for correct operation – Section 4. of this document details the operational features of the ADC card.
Page 10
PL5 on the
ADC card
Click!
Ribbon Cable
+18dBu ≈ 0dB FS
PL5 on the
main PCB
Click!
+24dBu ≈ 0dB FS
(Factory Default)
