La Crosse Technology WT-1025 Manual

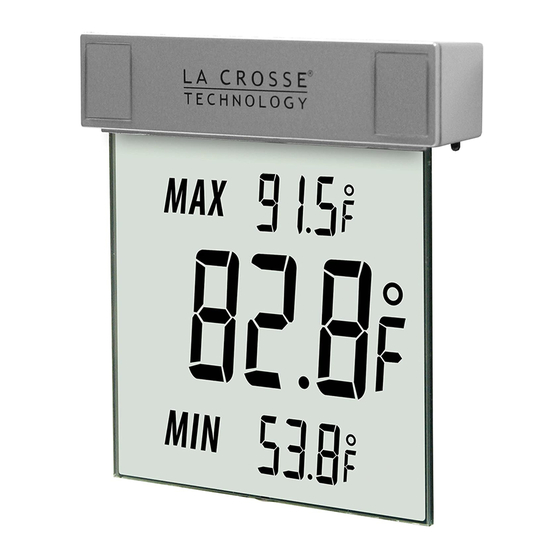

WS-1025 Digital Window Thermometer
Features
•
Clear functional design
•
Easy to read outdoor temperature from indoors
•
Maximum and minimum values with auto reset
•
Easy to mount
•
Detachable for simple window cleaning
•
Weather resistant
•
UV Shield Protection

Specifications

Measuring range:
Accuracy:
Resolution:
Battery:
Installation
1. Select your location for mounting in an area that is easy to view.
2. Clean the glass surface completely before mounting.
NOTE: Be sure to completely clean the surface of dust and dirt and let the area dry completely prior to mounting the thermometer. Failure to do so may
result in bad adhesion between the window and holder.
3. Remove the holder that has the adhesive tape attached (this is held on by a pressure fitting and can simply be pulled off).
4. Using a screwdriver open the battery compartment.
5. Remove the plastic tab from between the battery and the positive terminal.
6. At this point the display will be active.
7. Replace the battery compartment door.
8. Replace the thermometer into the holder.
9. Remove the protective film from the display of the thermometer.
NOTE: Before continuing please be sure to set the time – See the next section on Setting the Time
10. Remove the plastic from the adhesive strip.
11. Press the adhesive strip against the glass to adhere the thermometer.
Please note: In order to obtain the most accurate temperature reading, be sure to mount the thermometer out of direct sunlight. Mounting the unit
in direct sunlight will cause artificially high temperature readings.
NOTE: To improve UV and rain protection and the clearness of the display, especially when it is dark, use the enclosed plastic plate. The plate
attaches easily to the slots on the back of the thermometer. Please note: The display is delicate! Do not pull or bend when removing the plate or
removing the thermometer from a window.

Setting the Time

1. Press the MODE button to enter the setting mode.
2. The hours digits will flash in the center of the display.
3. Press and release the + button to advance the hour.
NOTE: From midnight to noon, "A.M." will be displayed on the left of the display. From noon to midnight "P.M." will be displayed on the left side of the
display.
4. Press and release the MODE button to confirm the hour and advance to the minute setting.
5. The minutes digits will flash at the bottom of the display.
6. Press and release the + button to advance the minute.
7. Holding down the + button will advance the minutes faster.
8. Press and release the MODE button to confirm the minutes and exit the time setting mode.
NOTE: The thermometer does not have an automatic time out feature and will stay in the time set mode until manually completed.
Using MIN/MAX Temperatures
•
The upper display shows the maximum temperature.
•
The middle display shows the current temperature.
•
The lower display shows the minimum temperature.
•
The minimum temperature automatically resets at 8:00 P.M.
•
The maximum temperature automatically resets at 8:00 A.M.
•
If the time is not set the minimum and maximum temperatures will not be reset at the correct local time.
Maintenance
•
Replace the battery when the display becomes weak.
•
Do not expose the instrument to extreme temperatures, vibration or shock
•
Clean the thermometer with a soft damp cloth only. Do not use solvents or scouring agents.
-13 ºF to +158 ºF
32 ºF to 122 ºF ± 1.8 ºF, otherwise ± 2.7 ºF
0.1 ºF (0.1ºC)
1 "AAA" alkaline battery
