Summary of Contents for La Crosse Technology WS-9160Uv3-BK-IT

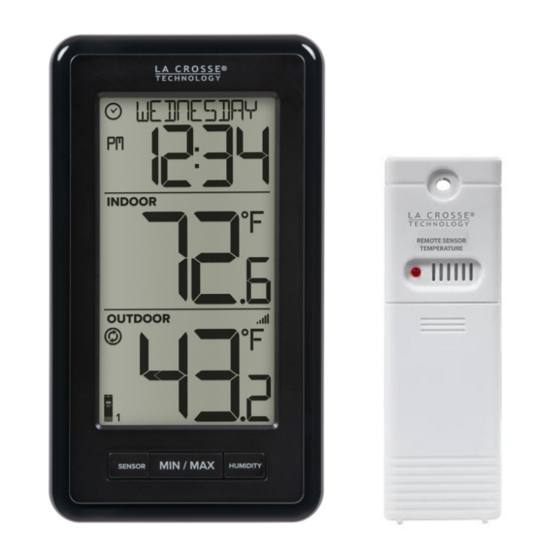

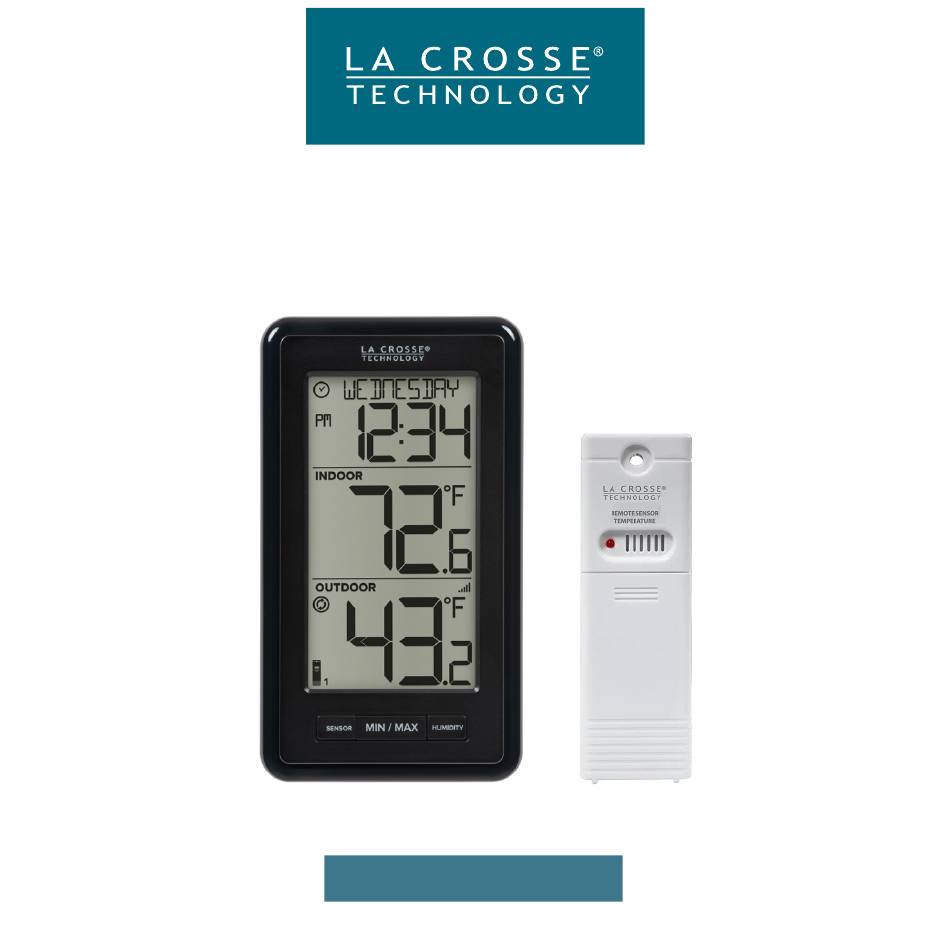

- Page 1 Wireless Thermometer SET UP GUIDE MODEL: WS-9160Uv3-BK-IT...
-
Page 2: Table Of Contents
Table of Contents BASICS TEMPERATURE/HUMIDITY SENSORS Power Up Temp./Humidity Readings Sensor Mounting Temp./Humidty Records Custom Calendar Display Search for Sensors Settings Menu Reset Records Factory Restart Sensor Weather Shield ADD-ON SENSORS APPENDIX Add Sensors Stay in Touch View Add-on Sensors Specifications Purchase Add-on Sensors Care &... -
Page 3: Power Up
See page for more details. Watch our sensor mounting videos: bit.ly/th_sensor_mounting TH Sensor Weather Station TX141-B WS-9160Uv3-BK-IT (all versions) Custom Calendar Display • Press and release the DATE button to change the display of the Calendar, or have it not show. -
Page 4: Settings Menu
Settings Menu Hold the button until the display changes, to enter the Settings Menu. Press and release the buttons to adjust values. Hold to adjust quickly. Press and release the button to confirm values and move to the next setting or exit. Settings Menu Order: •... -
Page 5: Temp./Humidity Readings
Temperature/Humidity Readings INDOOR INDOOR OUTDOOR OUTDOOR 1. INDOOR TEMPERATURE 4. OUTDOOR TEMPERATURE 7. AUTO-SCROLL ICON Current Outdoor Current Indoor Readings will automatically Temperature. Temperature. scroll through each channel when multiple sensors are connected.. 2. INDOOR HUMIDITY 5. LOW BATTERY ICON 8. -
Page 6: Temp./Humidty Records
Temperature Records (MIN/MAX) Viewing Records Press and release the MIN/MAX button to toggle MIN/MAX readings with time/date stamp. Time and date of the record will show. Viewing Order: • Indoor Minimum Temperature Record • Indoor Maximum Temperature Record • Outdoor Minimum Temperature Record Channel 1 •... -
Page 7: Reset Records
Reset Temperature Records Press and release the MIN/MAX button to view the individual temperature values you’d like to reset. Hold the MINUS (-) button until dashes appear. The reading will then reset to the current value. Sensor Mounting For Accurate Temperature Measurements •... -
Page 8: Search For Sensors
Search for Sensors If you are seeing “NO” or dashes for any sensor readings, please try the following steps: Hold the SENSOR button to search for all sensors. The Reception Indicator will begin to animate. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next to the display and remove power from the sensor and station. -
Page 9: Add Sensors
Purchase Extra Sensors SCAN HERE Visit: bit.ly/ws-9160uv3-bk-it_parts to find and purchase For Parts compatible add-on sensors. Stay in Touch! Ask questions, watch setup videos, and provide feedback on our social media outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram. -
Page 10: Specifications
Specifications Weather Station (WS-9160Uv3-BK-IT) 2.13” Temperature Range: 3.35” 5.41cm 8.50cm 32ºF to 122ºF (0ºC to 50ºC) Humidity Range: 10% - 99% RH Power: 2-AA, IEC, LR6 batteries (not included) 3.96” 5.91” 10.05cm Battery Life: 15.01cm Over 24 months TH Sensor (TX141-B (all versions) Temperature Range: -40°F to 140°F (-40°C to 60°C) -
Page 11: Care & Maintenance
Care & Maintenance When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury. -
Page 12: We're Here To Help
Our knowledgable customer support team is available: Mon-Fri 8am-6pm CST Warranty & Patents La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601 For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty...
