La Crosse Technology InfraScan IR 101 Instruction Manual
The weather channel infrared thermometer
Hide thumbs
Also See for InfraScan IR 101:
- Instruction manual (10 pages) ,
- Instruction manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for La Crosse Technology InfraScan IR 101
Summary of Contents for La Crosse Technology InfraScan IR 101

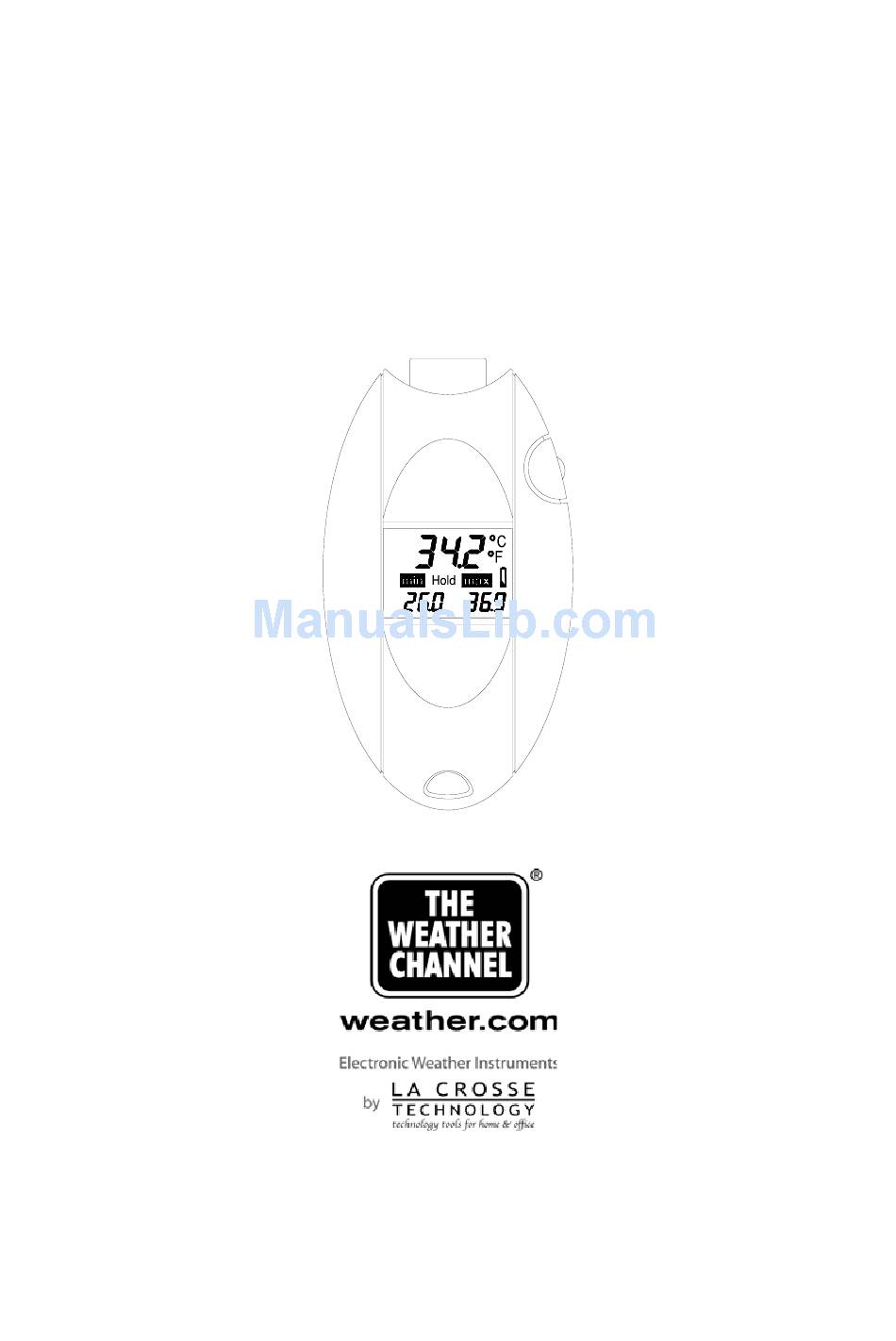

- Page 1 IR 101 InfraScan™ Infrared Thermometer Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page General Quick instructions Equipment Supplied Description of Measuring Principle Operation Display and Operator Controls Making a Measurement Minimum and Maximum Temperature Indication Changing the Temperature Units Back Light Measurement Inaccuracies Trouble Shooting Maintenance Changing the Batteries Cleaning Fastening the Infrared Thermometer Technical Information... -
Page 3: Quick Instructions
General 1. Quick Instructions Press and hold the operating button for more than 1.5 seconds. The temperature of the surface the lens is aimed at will read on the top of the display. The minimum and maximum temperatures of the current measurement are shown on the bottom of the display. -
Page 4: Operation
Operation 1. Display and operator controls All of the functions of the measuring unit are controlled and monitored using the operating button (7) and the back lit display. Temperature display - currently measured value b. Hold indicator Temperature display - minimum value d. -
Page 5: Changing The Temperature Units
the lower right hand part. These values each apply to the current measuring cycle and are cleared as soon as the button is pressed again. 4. Changing the temperature units ( °F/°C ) The units for the temperature display can be switched between degrees Celsius (°C) and degrees Fahrenheit (°F) by pressing the button briefly twice (double click). -
Page 6: Troubleshooting
Solution: The measured value is outside the permitted range. Problem: Battery symbol illuminates Solution: The batteries are dead. NOTE: For problems not solved, please contact La Crosse Technology. Maintenance 1. Changing the batteries If the battery symbol appears in the display, the batteries must be changed. The four button cells are accessible after opening the battery compartment at the rear of the unit. -
Page 7: Cleaning
2. Cleaning Clean the unit using only a dry cloth. If the unit is very dirty, the cloth may be slightly dampened. Do not use cleaners containing solvents. Make sure that no moisture enters the interior of the unit. When cleaning the lens, loose particles must be removed using compressed air. - Page 8 Distance to measuring spot size D:S Ambient temperature range 32°F to 104°F Emission factor 0.95 Power supply 4 x LR44 button cell batteries Battery life (approx.) 2000 measurements (depending on the usage) Dimensions (L”xW”xH”) 2.25” x 1” x 4” 3. Emissions factor: The physical quantity known as the emission factor describes to what extent the infrared heat radiation that is emitted from an object is determined by its own temperature.
-
Page 9: Warranty Information
Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 10 For warranty work, technical support, or information contact: La Crosse Technology, Ltd 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com Questions ? Instructions? Please visit: www.lacrossetechnology.com...
