Seagate Medalist 17240 Product Manual

Seagate Medalist 17240 Product Manual

Ultra ata interface drives
Hide thumbs Also See for Medalist 17240:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Enlarged version
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 17240, Medalist 13030
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 10231, Medalist 8420
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medalist 4310
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ultra ATA Interface Drives
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Manual
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Advertisement

Table of Contents
loading

Related Manuals for Seagate Medalist 17240

Summary of Contents for Seagate Medalist 17240

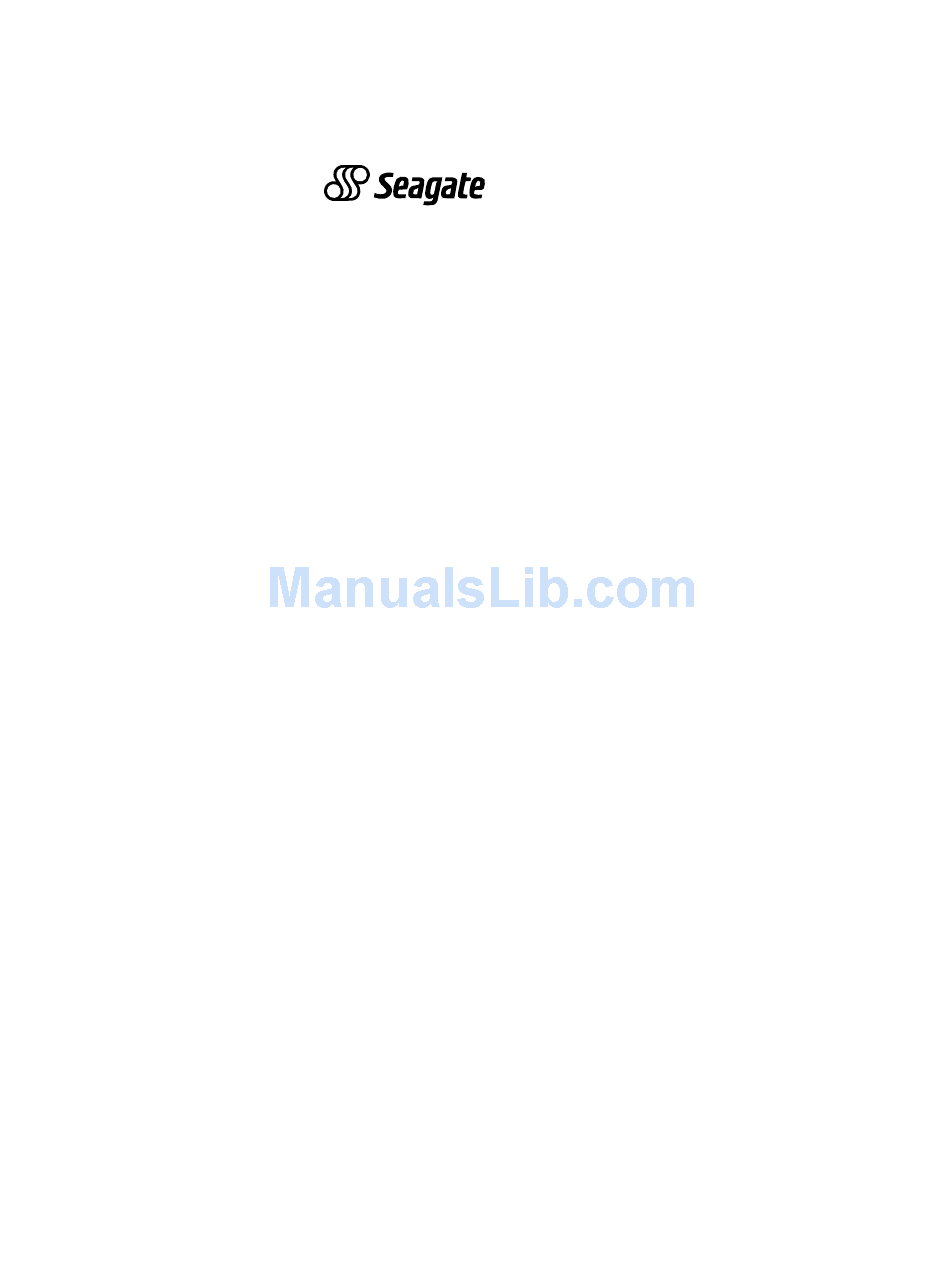

  • Page 1 ........Medalist 17240, Medalist 13030 .
  • Page 3 ......... . Medalist 17240, Medalist 13030 .
  • Page 4 Other product names are registered trademarks or trademarks of their owners. Seagate reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission from Seagate Technology, Inc.

  • Page 5: Table Of Contents

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Contents Introduction ..........1 Specification summary table .
  • Page 6 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.12.2 Electromagnetic Compatibility ....14 1.12.3 FCC verification ......15 2.0 Drive mounting and configuration .
  • Page 7 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Figures Figure 1. Typical startup and operation current profile ... . 9 Figure 2. Alternate capacity jumper and master/slave jumper ..18 Figure 3.
  • Page 8 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B...

  • Page 9: Introduction

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Introduction This manual describes the functional, mechanical and interface specifi- cations for the Medalist 17240 (ST317240A), Medalist 13030 (ST313030A), Medalist 10231 (ST310231A), Medalist 8420 (ST38420A) and the Medalist 4310 (ST34310A). These drives are referred to throughout this manual by their model numbers.

  • Page 10: Specification Summary Table

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Specification summary table The specifications listed in this table are for quick reference. For details on specification measurement or definition, see the appropriate section of this manual. Drive Specification ST317240A ST313030A ST310231A ST38420A...
  • Page 11 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Drive Specification ST317240A ST313030A ST310231A ST38420A ST34310A Length (mm max) 147.00 Weight (grams typical) Track-to-track seek time (msec typical) Average seek time (msec typical) Full-stroke seek time (msec typical) 16.5 Average latency...
  • Page 12 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Drive Specification ST317240A ST313030A ST310231A ST38420A ST34310A Relative humidity gradient 10% per hour max Wet bulb temperature (max) 29.4°C (op.), 29.4°C (nonop.) Altitude –122 to 3,048 (op.) (meters below mean –122 to 12,192 (nonop.)

  • Page 13: Drive Specifications

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.0 Drive specifications Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the ST317240A, ST313030A, ST310231A, ST38420A and the ST34310A.

  • Page 14: Supported Chs Translation Geometries

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.1.2 Supported CHS translation geometries These drives support any translation geometry that satisfies all of the following conditions: • Sectors per track • Cylinders 16,383 (for drives over 8.4 Gbytes) •...

  • Page 15: Physical Characteristics

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Track density (tracks/inch) 13,405 Areal density (Mbits/inch 3,146 Spindle speed (RPM) 0.2%) 5,400 Internal data-transfer rate (Mbits per second max) I/O data-transfer rate 16.6 (PIO mode 4 with IORDY) (Mbytes per second max) 16.6 (multiword DMA mode 2)

  • Page 16: Start/Stop Times

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Seek type (msec, typical) Track-to-track Average Full-stroke 16.5 Average latency: 5.6 msec Note. These drives are designed to consistently meet the seek times represented in this manual. Physical seeks, regardless of mode (such as track-to-track and average) are expected to meet or exceed the noted values.

  • Page 17: Figure 1.Typical Startup And Operation Current Profile

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Operating power and current are measured using 40 percent random seeks, 40 percent read/write mode (1 write for each 10 reads), and 20 percent drive inactive. Idle mode power is measured with the drive up to speed, with servo electronics active, and with the heads in a random track location.

  • Page 18: Conducted Noise

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.7.2 Conducted noise Input noise ripple is measured at the host system power supply across an equivalent 80-ohm resistive load on the +12 volt line or an equivalent 15-ohm resistive load on the +5 volt line.

  • Page 19: Environmental Tolerances

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Sleep mode. The drive enters Sleep mode after receiving a Sleep command from the host. The heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard Reset or Soft Reset from the host.

  • Page 20: Altitude

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.8.4 Altitude Operating –122 m to 3,048 m (–400 ft to 10,000+ ft) Nonoperating –122 m to 12,192 m (–400 ft to 40,000+ ft) 1.8.5 Shock During shock tests, the drive was mounted securely with the input shock applied at the drive mounting screws.

  • Page 21: Drive Acoustics

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.8.6.2 Nonoperating vibration The following table lists the maximum nonoperating vibration that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation. 5–22 Hz 0.20-inch displacement (peak to peak)

  • Page 22: Reliability

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 1.11 Reliability Nonrecoverable read errors 1 per 10 bits read, max Mean time between failures 400,000 power-on hours (nominal power, 25°C ambient tem- perature) Contact start-stop cycles 40,000 cycles (at nominal voltage and temperature,...

  • Page 23: Fcc Verification

    Communications Commission verification or certification of the device is required. Seagate Technology, Inc. has tested this device in enclosures as de- scribed above to ensure that the total assembly (enclosure, disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules.
  • Page 24 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B...

  • Page 25: Drive Mounting And Configuration

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 2.0 Drive mounting and configuration 2.1 Handling and static-discharge precautions After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe standard static-discharge precautions. A grounded wrist-strap is preferred.

  • Page 26: Drive Mounting

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B ATA interface connector 2 4 6 4-pin power connector 1 3 5 Alternate capacity and master/slave jumper settings Slave The drive is shipped with a jumper on pins 7 Master or single drive and 8.

  • Page 27: Figure 3. Mounting Dimensions-Top, Side And End View

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Note. Dimensions are shown in mm (inches) 94.3 ± 0.8 [3.71 ± 0.03] 71.8 ± 0.8 [2.83 ± 0.03] 56.5 ± 0.8 [2.23 ± 0.03] 26.10 MAX [1.028] 5.83 ± 0.38 PIN ONE J2 4.66 ±...
  • Page 28 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B...

  • Page 29: Ata Interface

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 3.0 ATA interface These drives use the industry-standard ATA task file interface that supports 16-bit data transfers. It supports ATA programmed input/output (PIO) modes 0, 1, 2, 3 and 4; multiword DMA modes 0, 1 and 2; and Ultra DMA modes 0, 1 and 2.

  • Page 30: Figure 4. I/O Pins And Supported Ata Signals

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Drive pin # Host pin # and signal description Signal name Reset – Hardware Reset Ground Ground Host Data Bus Bit 7 Host Data Bus Bit 8 Host Data Bus Bit 6...

  • Page 31: Ata Interface Commands

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 3.2 ATA Interface commands 3.2.1 Supported ATA commands The following table lists ATA-standard commands that the drive sup- ports. For a detailed description of the ATA commands, refer to the Draft ATA-4 Standard.
  • Page 32 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Command Supported by Command name code ST317240A, ST313030A, ST310231A, ST38420A, ST34310A Write DMA Write Multiple Write Sectors ATA-standard power-management commands Check Power Mode or E5 Idle or E3 Idle Immediate or E1...

  • Page 33: Identify Drive Command

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B The following commands contain drive-specific features that may not be described in the Draft ATA-4 Standard . 3.2.2 Identify Drive command The Identify Drive command (command code EC ) transfers information about the drive to the host following power up.
  • Page 34 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Word Description Value Retired 0000 Retired 0100 Obsolete 0000 23–26 Firmware revision (8 ASCII character x.xx string, padded with blanks to end of string) ST317240A ST313030A 27–46 Drive model number: (40 ASCII...
  • Page 35 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Word Description Value 60–61 Total number of user-addressable F780 0201 (ST317240A) LBA sectors available: 1874 0184 (ST313030A) 33,683,328 (ST317240A) 4312 0131 25,434,228 (ST313030A) (ST310231A) 20,005,650 (ST310231A) FBC0 0100 16,841,664 (ST38420A) (ST38420A)
  • Page 36 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Word Description Value Command sets enabled 0001 Command sets enable extension 4000 0 x 07 Ultra DMA support and current mode Security erase time 0000 0000 Enhanced security erase time 91–127...

  • Page 37: Set Features Command

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B 3.2.3 Set Features command This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt.

  • Page 38: Commands

    Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor.
  • Page 39 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B...
  • Page 40 Medalist 17240, 13030, 10231, 8420 and 4310, Rev. B Seagate Technology, Inc. 920 Disc Drive, Scotts Valley, California 95066, USA Publication Number: 20400134-001, Rev. B, Printed in USA...

This manual is also suitable for:

Medalist 13030Medalist 8420Medalist 10231Medalist 4310
