Seagate SAVVIO 10K.2 SAS ST973402SS Product Manual

Seagate SAVVIO 10K.2 SAS ST973402SS Product Manual

Sas (serial attached scsi) disc drives
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Savvio 10K.2 SAS
ST9146802SS
ST973402SS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVVIO 10K.2 SAS ST973402SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seagate SAVVIO 10K.2 SAS ST973402SS

Summary of Contents for Seagate SAVVIO 10K.2 SAS ST973402SS

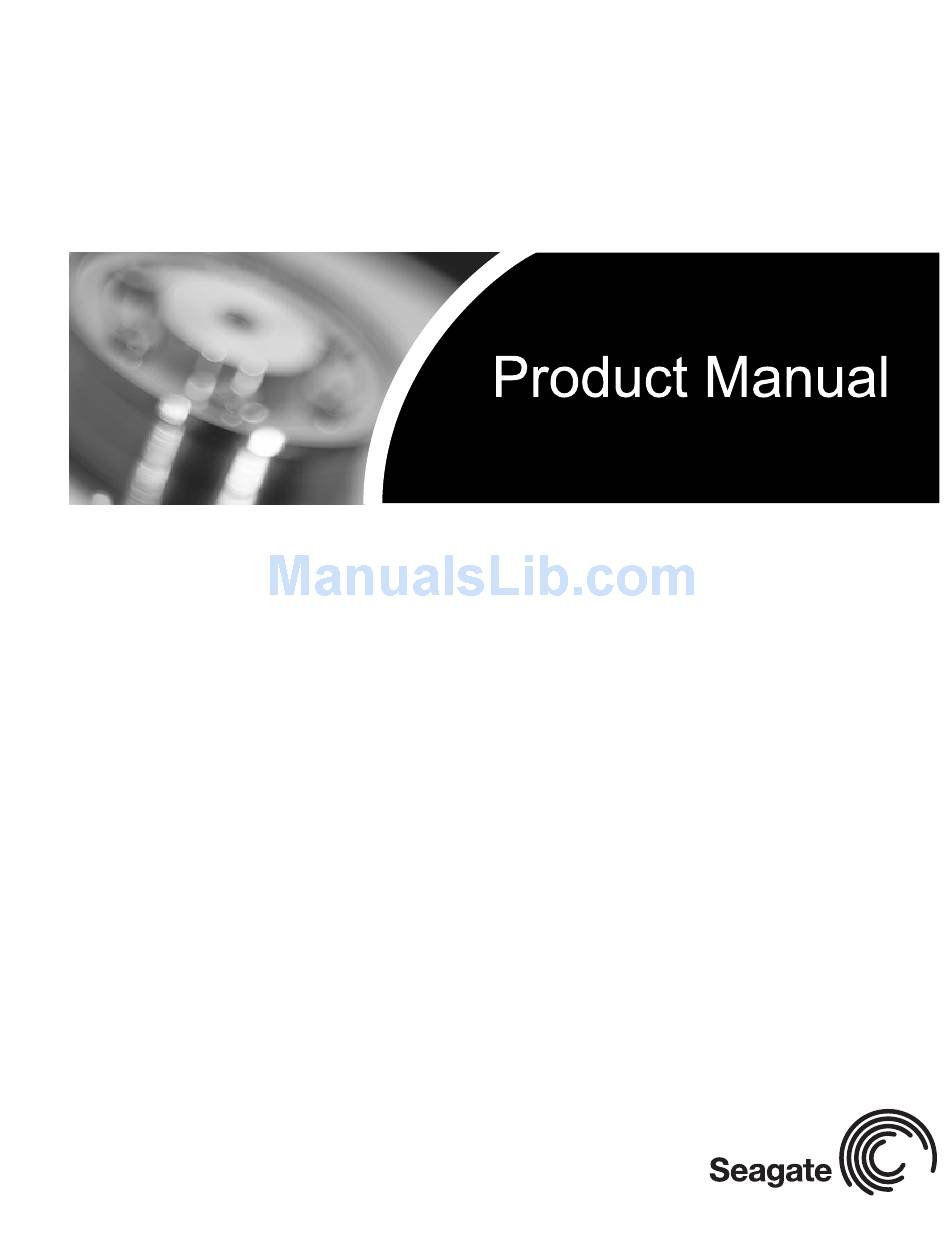

  • Page 1 Savvio 10K.2 SAS ST9146802SS ST973402SS...
  • Page 3 Savvio 10K.2 SAS ST9146802SS ST973402SS...
  • Page 4 Seagate Technology and the Wave logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries . Savvio is a registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.

  • Page 5: Revision Status Summary Sheet

    Revision Date Rev. A 06/23/06 Rev. B 10/23/06 Revision status summary sheet Notes Initial release. None.

  • Page 7: Table Of Contents

    Scope ............... . 1 Applicable standards and reference documentation .
  • Page 8 Seagate Technology support services ........
  • Page 9 Figure 1. Savvio 10K.2 SAS disc drive ..........1 Figure 2.

  • Page 11: Scope

    This manual describes Seagate Technology Savvio drives support the SAS Protocol specifications to the extent described in this manual. The SAS Inter- face Manual (part number 100293071) describes the general SAS characteristics of this and other Seagate SAS drives. Savvio Figure 1.
  • Page 12 Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 13: Applicable Standards And Reference Documentation

    Section 8.3. Standards The Savvio family complies with Seagate standards as noted in the appropriate sections of this manual and the Seagate SAS Interface Manual, part number 100293071. The Savvio disc drive is a UL recognized component per UL1950, CSA certified to CAN/CSA C22.2 No. 950- 95, and VDE certified to VDE 0805 and EN60950.

  • Page 14: Electromagnetic Compliance

    • External modem • Mouse Although the test system with this Seagate model complies with the directives/standards, we cannot guarantee that all systems will comply. The computer manufacturer or system integrator shall confirm EMC compliance and provide the appropriate marking for their product.

  • Page 15: European Union Restriction Of Hazardous Substances (Rohs)

    Lead (Pb), in electronic products effective July 2006. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the rep- resentations of our suppliers regarding the presence of RoHS substances in these parts and materials. Our...
  • Page 16 Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 17: General Description

    General description Savvio drives combine giant magnetoresistive (GMR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo technology, and a Serial Attached SCSI (SAS) interface to provide high performance, high capacity data storage for a variety of systems including engineering workstations, net- work servers, mainframes, and supercomputers.

  • Page 18: Standard Features

    Standard features Savvio drives have the following standard features: • Perpendicular recording technology • 1.5 / 3 Gbit Serial Attached SCSI (SAS) interface • Integrated dual port SAS controller supporting the SCSI protocol • Support for SAS expanders and fanout adapters •...

  • Page 19: Reliability

    275154368 272662936 2. Seagate drives also may be used at the maximum available capacity at a given block size, but the excess capacity above the guaranteed level will vary between other drive families and from generation to genera- tion, depending on how each block size actually formats out for zone frequencies and splits over servo bursts.

  • Page 20: Factory-Installed Options

    Factory-installed options You may order the following items which are incorporated at the manufacturing facility during production or packaged before shipping. Some of the options available are (not an exhaustive list of possible options): • Other capacities can be ordered depending on sparing scheme and sector size requested. •...

  • Page 21: Performance Characteristics

    Performance characteristics This section provides detailed information concerning performance-related characteristics and features of Sav- vio drives. Internal drive characteristics ST9146802SS ST973402SS Drive capacity 146.8 Read/write data heads Bytes per track 489,984 Bytes per surface 36,704 Tracks per surface (total) 75,373 Tracks per inch 150,000 Peak bits per inch...

  • Page 22: Format Command Execution Time For 512-Byte Sectors (Minutes)

    4.2.2 Format command execution time for 512-byte sectors (minutes) ST9146802SS Maximum (with verify) Maximum (without verify) 4.2.3 General performance characteristics Minimum sector interleave Data buffer to/from disc media (one 512-byte logical block)* Sustained transfer rate SAS Interface maximum instantaneous transfer rate Logical block sizes Variable 512 to 528 bytes per sector in evenly divisible by 4 number of bytes per sector (512, 516, 520, 524, or 528).

  • Page 23: Start/Stop Time

    Start/stop time The drive accepts the commands listed in the SAS Interface Manual less than 3 seconds after DC power has been applied. If the drive receives a NOTIFY (ENABLE SPINUP) primitive through either port and has not received a START STOP UNIT command with the START bit equal to 0, the drive becomes ready for normal operations within 20 seconds (excluding the error recovery procedure).

  • Page 24: Caching Write Data

    Case B—A Read command requests data, and at least one requested logical block is not in any segment of the cache: 1. The drive fetches the requested logical blocks from the disc and transfers them into a segment, and then from there to the host in accordance with the Mode Select Disconnect/Reconnect parameters, page 02h.
  • Page 25 When prefetch (read look-ahead) is enabled (enabled by DRA = 0), the drive enables prefetch of contiguous blocks from the disc when it senses that a prefetch hit will likely occur. The drive disables prefetch when it decides that a prefetch hit is not likely to occur. Savvio 10K.2 SAS Product Manual, Rev.
  • Page 26 Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 27: Reliability Specifications

    Reliability specifications The following reliability specifications assume correct host and drive operational interface, including all inter- face timings, power supply voltages, environmental requirements and drive mounting constraints. Seek error rate: Read Error Rates Recovered Data Unrecovered Data Miscorrected Data Interface error rate: Mean Time Between Failure (MTBF): Annualized Failure Rate (AFR): Preventive maintenance:...

  • Page 28: Seek Errors

    5.1.3 Seek errors A seek error is defined as a failure of the drive to position the heads to the addressed track. After detecting an initial seek error, the drive automatically performs an error recovery process. If the error recovery process fails, a seek positioning error (Error code = 15h or 02h) will be reported with a Hardware error (04h) in the Sense Key.

  • Page 29: S.m.a.r.t

    5.2.4 S.M.A.R.T. S.M.A.R.T. is an acronym for Self-Monitoring Analysis and Reporting Technology. This technology is intended to recognize conditions that indicate imminent drive failure and is designed to provide sufficient warning of a failure to allow you to back up the data before an actual failure occurs. Note.

  • Page 30: Thermal Monitor

    Reporting control Reporting is controlled by the MRIE bits in the Informational Exceptions Control mode page (1Ch). Subject to the reporting method, the firmware will issue to the host an 01-5Dxx sense code. The error code is preserved through bus resets and power cycles. Determining rate S.M.A.R.T.

  • Page 31: Drive Self Test (Dst)

    If DST encounters an error during either of these tests, it reports a fault condition. If the drive fails the test, remove it from service and return it to Seagate for service. 5.2.6.1 DST failure definition The drive will present a “diagnostic failed”...
  • Page 32 DST. It is the responsibility of the host application to determine the “not ready” cause. While not technically part of DST, a Not Ready condition also qualifies the drive to be returned to Seagate as a failed drive.

  • Page 33: Product Warranty

    Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure.
  • Page 34 Product repair and return information Seagate customer service centers are the only facilities authorized to service Seagate drives. Seagate does not sanction any third-party repair facilities. Any unauthorized repair or tampering with the factory seal voids the warranty. Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 35: Physical/Electrical Specifications

    Physical/electrical specifications This section provides information relating to the physical and electrical characteristics of the drive. AC power requirements None. DC power requirements The voltage and current requirements for a single drive are shown below. Values indicated apply at the drive connector.
  • Page 36 Table 13: DC power requirements ST973402SS Voltage Regulation Avg idle current DCX Maximum starting current (peak DC) DC (peak AC) AC Delayed motor start (max) DC Operating current: Typical DCX Maximum DC Maximum (peak) DC Gen 3.5 LPSS measured data (latest available) plus 12V max start current margins of .15A for DC and .20A for AC. All others have 10% margin added. Measured with average reading DC ammeter.

  • Page 37: Conducted Noise Immunity

    6.2.1 Conducted noise immunity Noise is specified as a periodic and random distribution of frequencies covering a band from DC to 10 MHz. Maximum allowed noise values given below are peak-to-peak measurements and apply at the drive power connector. 0 to 100 kHz 150mV 100 kHz to 10 MHz 100mV...

  • Page 38: Figure 3. St973402Ss Current Profile

    Figure 3. ST973402SS current profile Note: All times and currents are typical. See Tables 12 and 13 for maximum current requirements. Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 39: Power Dissipation

    Power dissipation ST9146802SS in 3 Gbit operation Typical power dissipation under idle conditions in 3Gb operation is 5.18 watts (17.68 BTUs per hour). To obtain operating power for typical random read operations, refer to the following I/O rate curve (see Figure 4).

  • Page 40: Environmental Limits

    Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. HDA Temp.

  • Page 41: Relative Humidity

    6.4.2 Relative humidity The values below assume that no condensation on the drive occurs. a. Operating 5% to 95% non-condensing relative humidity with a maximum gradient of 20% per hour. b. Non-operating 5% to 95% non-condensing relative humidity. 6.4.3 Effective altitude (sea level) a.

  • Page 42: Figure 7. Recommended Mounting

    >600 cu in (>9,800 cu cm) Drives packaged in single or multipacks with a gross weight of 20 pounds (8.95 kg) or less by Seagate for general freight shipment shall withstand a drop test from 48 inches (1,070 mm) against a concrete floor or equivalent.

  • Page 43: Air Cleanliness

    The sil- ver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%.

  • Page 44: Acoustics

    There will not be any discrete tones more than 10 dB above the masking noise on typical drives when mea- sured according to Seagate specification 30553-001. There will not be any tones more than 24 dB above the masking noise on any drive.

  • Page 45: Mechanical Specifications

    Mechanical specifications The following nominal dimensions are exclusive of the decorative front panel accessory. However, dimensions of the front panel are shown in figure below. Refer to Figure 8 for detailed mounting configuration dimensions. See Section 8.3, “Drive mounting.” Height: 0.583 in 14.8 mm Width:...
  • Page 46 Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 47: Defect And Error Management

    Defect and error management Seagate continues to use innovative technologies to manage defects and errors. These technologies are designed to increase data integrity, perform drive self-maintenance, and validate proper drive operation. SCSI defect and error management involves drive internal defect/error management and SAS system error considerations (errors in communications between the initiator and the drive).
  • Page 48 The drive firmware error recovery algorithms consists of 11 levels for read recoveries and five levels for write. Each level may consist of multiple steps, where a step is defined as a recovery function involving a single re- read or re-write attempt. The maximum level used by the drive in LBA recovery is determined by the read and write retry counts.

  • Page 49: Sas System Errors

    When the RC bit is one, reallocations are disabled even if the ARRE or AWRE bits are one. The drive will still perform data recovery actions within the limits defined by the Read Retry Count, Write Retry Count, and Recovery Time Limit parameters. However, the drive does not report any unrecovered errors. Table 14: Read and write retry count maximum recovery times Maximum recovery time per...

  • Page 50: Media Pre-Scan

    DAR is most effective when AWRE and ARRE are enabled—this is the default setting from the Seagate factory. With AWRE and ARRE disabled DAR is unable to reallocate the failing location and will report an error sense code indicating that a write command is being attempted to a previously failing location.

  • Page 51: Installation

    Installation Savvio disc drive installation is a plug-and-play process. There are no jumpers, switches, or terminators on the drive. SAS drives are designed to be used in a host system that provides a SAS-compatible backplane with bays designed to accomodate the drive. In such systems, the host system typically provides a carrier or tray into which you need to mount the drive.

  • Page 52: Cooling

    Cooling Cabinet cooling must be designed by the customer so that the ambient temperature immediately surrounding the drive will not exceed temperature conditions specified in Section 6.4.1, "Temperature." The rack, cabinet, or drawer environment for the drive must provide heat removal from the electronics and head and disc assembly (HDA).

  • Page 53: Drive Mounting

    Drive mounting Mount the drive using the bottom or side mounting holes. If you mount the drive using the bottom holes, ensure that you do not physically distort the drive by attempting to mount it on a stiff, non-flat surface. The allowable mounting surface stiffness is 80 lb/in (14.0 N/mm).
  • Page 54 Savvio 10K.2 SAS Product Manual, Rev. B...

  • Page 55: Interface Requirements

    Interface requirements This section partially describes the interface requirements as implemented on Savvio drives. Additional infor- mation is provided in the SAS Interface Manual (part number 100293071). SAS features This section lists the SAS-specific features supported by Savvio drives. 9.1.1 task management functions Table 15 lists the SAS task management functions supported.

  • Page 56: Dual Port Support

    Dual port support Savvio SAS drives have two independent ports. These ports may be connected in the same or different SCSI domains. Each drive port has a unique SAS address. The two ports run at the same link rate. The first port to successfully complete speed negotiation sets the link rate support by both ports.

  • Page 57: Scsi Commands Supported

    SCSI commands supported Table 17 lists the SCSI commands supported by Savvio drives. Table 17: Commands supported by Savvio SAS family drive Command name Change Definition Compare Copy Copy and Verify Format Unit [1] DPRY bit supported DCRT bit supported STPF bit supported IP bit supported DSP bit supported...
  • Page 58 Table 17: Commands supported by Savvio SAS family drive (continued) Command name Last n Deferred Errors or Asynchronous Events page (0Bh) Last n Error Events page (07h) Non-medium Error page (06h) Pages Supported list (00h) Read Error Counter page (03h) Read Reverse Error Counter page (04h) Self-test Results page (10h) Start-stop Cycle Counter page (0Eh)
  • Page 59 Table 17: Commands supported by Savvio SAS family drive (continued) Command name Read Capacity (10) Read Capacity (16) Read Defect Data (10) Read Defect Data (12) Read Long Read Long (16) Reassign Blocks Receive Diagnostic Results Supported Diagnostics pages (00h) Translate page (40h) Release Release (10)
  • Page 60 Table 17: Commands supported by Savvio SAS family drive (continued) Command name Verify (12) Verify (16) Verify (32) Write (6) Write (10) DPO bit FUA bit Write (12) Write (16) Write (32) Write and Verify (10) DPO bit Write and Verify (12) Write and Verify (16) Write and Verify (32) Write Buffer (modes 0, 2, supported)

  • Page 61: Inquiry Data

    9.3.1 Inquiry data Table 18 lists the Inquiry command data that the drive should return to the initiator per the format given in the SAS Interface Manual. Table 18: Savvio inquiry data Bytes Data (hex) 0-15 xx** 16-31 32-47 48-63 64-79 80-95 96-111...
  • Page 62 On drives requiring unique saved values, the required unique saved values are stored into the saved val- ues storage location on the media prior to shipping the drive. Some drives may have unique firmware with unique default values also. On standard OEM drives, the saved values are taken from the default values list and stored into the saved values storage location on the media prior to shipping.
  • Page 63 Table 19: Mode Sense data changeable and default values for ST9146802SS drives MODE DATA HEADER: 03 fa 00 10 00 00 00 08 BLOCK DESCRIPTOR: 11 17 73 30 00 00 02 00 MODE PAGES: 81 0a c0 0b ff 00 00 00 05 00 ff ff 81 0a ff ff 00 00 00 00 ff 00 ff ff 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00...
  • Page 64 Table 20: Mode Sense data changeable and default values for ST973402SS drives MODE DATA HEADER: 03 fa 00 10 00 00 00 08 BLOCK DESCRIPTOR: 08 8b b9 98 00 00 02 00 MODE PAGES: 81 0a c0 0b ff 00 00 00 05 00 ff ff 81 0a ff ff 00 00 00 00 ff 00 ff ff 82 0e 00 00 00 00 00 00 00 00 01 3a 00 00 00 00 82 0e 00 00 00 00 00 00 00 00 ff ff 00 00 00 00...

  • Page 65: Miscellaneous Operating Features And Conditions

    Miscellaneous operating features and conditions Table 21 lists various features and conditions. A “Y” in the support column indicates the feature or condition is supported. An “N” in the support column indicates the feature or condition is not supported. Table 21: Miscellaneous features Supported Feature or condition...

  • Page 66: Sas Physical Interface

    Figure 11 shows the location of the SAS device connector J1. Figures 12 and 13 provide the dimensions of the SAS connector. Details of the physical, electrical, and logical characteristics are provided within this section. The operational aspects of Seagate’s SAS drives are provided in the SAS Interface Manual.. Figure 11. Physical interface...

  • Page 67: Figure 12. Sas Device Plug Dimensions

    5.92 2.00 (3X) 0.30 0.05 (2X) 4.00 0.08 0.15 D 0.30 0.05 (4X) 0.35MIN Figure 12. SAS device plug dimensions Savvio 10K.2 SAS Product Manual, Rev. B 0.80 (6X) 7.62 5.08 42.73 REF. 41.13 0.15 0.20 B 33.43 0.05 15.875 15.875 1.27 (14X) 1.27 (6X)

  • Page 68: Figure 13. Sas Device Plug Dimensions (Detail)

    2.25 0.05 4.85 0.05 0.10 B SEE Detail 2 3.90 0.15 SECTION A - A 0.08 0.05 1.23 0.05 Detail 2 0.08 0.05 Figure 13. SAS device plug dimensions (detail) Detail A 6.10 0.30 0.05 x 45 (5X) 0.40 0.05 X 45 (3X) CORING ALLOWED IN THIS AREA.

  • Page 69: Physical Characteristics

    9.4.2 Physical characteristics This section defines physical interface connector. 9.4.3 Connector requirements Contact your preferred connector manufacturer for mating part information. Part numbers for SAS connectors will be provided in a future revision of this publication when production parts are available from major connec- tor manufacturers.

  • Page 70: Sas Transmitters And Receivers

    NC - No connection in the drive. 9.4.6 SAS transmitters and receivers A typical SAS differential copper transmitter and receiver pair is shown in Figure 14. The receiver is AC cou- pling to eliminate ground shift noise. Differential Transmitter Transfer Medium Figure 14.

  • Page 71: Differential Signals

    Table 24: Ready LED Out conditions Normal command activity Format in progress, each cylinder change The Ready LED Out signal is designed to pull down the cathode of an LED. The anode is attached to the proper +3.3 volt supply through an appropriate current limiting resistor. The LED and the current limiting resis- tor are external to the drive.

  • Page 72: Figure 15. Receive Eye Mask

    9.5.2.1.2 Receive eye mask Figure 15 describes the receive eye mask. This eye mask applies to jitter after the application of a single pole high-pass frequency-weighting function that progressively attenuates jitter at 20 dB/decade below a frequency of ((bit rate) / 1.667). Absolute amplitude (in V)

  • Page 73: Figure 17. Sinusoidal Jitter Mask

    The leading and trailing edge slopes of figure 15 shall be preserved. As a result the amplitude value of Z1 is less than that given in table 28 and Z1 tion: ---------------------------------------------------------------------------------------------------------------------------------- - where: is the value for Z1 to be used for the tolerance masks; and , X1 , and X2 are the values in table 28 for Z1, X1, and X2.
  • Page 74 9.5.2.2 Transmitter signal characteristics Table 27 specifies the signal requirements at the transmitter end of a TxRx connection as measured into the zero-length test load. All specifications are based on differential measurements. The OOB sequence is performed at signal voltage levels corresponding to the lowest supported transfer rate. Table 27 specifies the signal characteristics.
  • Page 75 9.5.2.3 Receiver signal characteristics Table 28 defines the compliance point requirements of the signal at the receiver end of a TxRx connection as measured into the test loads specified in figure 18 and figure 19. Table 28: Receiver signal characteristics Signal characteristic Jitter (see figure 15) 2 x Z2...
  • Page 76 9.5.2.3.2 Receiver jitter tolerance Table 30 defines the amount of jitter the receiver shall tolerate . Table 30: Receiver jitter tolerance 1.5 Gbps Sinusoidal Deterministic e,f,h jitter jitter 0.10 0.35 a Units are in UI. b The jitter values given are normative for a combination of deterministic jitter, random jitter, and sinusoidal jitter that receivers shall be able to tolerate without exceeding a BER of 10 progressively greater amplitude at lower frequencies, according to the mask in figure 17 with the same deterministic jitter and random jitter levels as were used in the high frequency sweep.
  • Page 77 Table 31: Impedance requirements (Sheet 2 of 2) Requirement Common mode impedance Transmitter source termination Differential impedance Differential impedance imbalance Common mode impedance a All times indicated for time domain reflectometer measurements are recorded times. Recorded times are twice the transit time of the time domain reflectometer signal.
  • Page 78 A combination of a zero-length test load and the transmitter compliance transfer function (TCTF) test load methodology is used for the specification of transmitter characteristics. This methodology specifies the trans- mitter signal at the test points on the required test loads. The transmitter uses the same settings (e.g., pre- emphasis, voltage swing) with both the zero-length test load and the TCTF test load.

  • Page 79: Figure 18. Compliance Interconnect Test Load

    Figure 18 shows the compliance interconnect test load. 10 nF TCTF 10 nF SAS internal connector Figure 18. Compliance interconnect test load Figure 19 shows the zero-length test load. 50 ohm 10 nF Probe points 10 nF 50 ohm SAS internal connector Figure 19.

  • Page 80: Figure 21. Isi Loss Example At 1.5 Gbps

    Figure 21 shows an ISI loss example at 1.5 Gbps. (dB) Compliance interconnect magnitude response and ISI ISI loss > 2.0 dB -5.4 dB 0.15 0.75 Figure 21. ISI loss example at 1.5 Gbps 9.5.2.5 Receiver characteristics The drive receiver is A.C. coupled. The receive network terminates the TxRx connection by a 100 ohm equiva- lent impedance as specified in table 31.

  • Page 81: Seagate Technology Support Services

    Seagate Service Centers Presales Support Our Presales Support staff can help you determine which Seagate products are best suited for your specific application or computer system, as well as product availability and compatibility. Technical Support Seagate technical support is available to assist you online at support.seagate.com or through one of our call...

  • Page 82: Usa/Canada/Latin America Support Services

    Data Recovery Services Seagate offers data recovery services for all formats and all brands of storage media. Our Data Recovery Ser- vices labs are currently located in North America. To speak with a case management representative, call 1-800-475-0143. Additional information, including an online request form and data loss prevention resources, is available at www.datarecovery.seagate.com.
  • Page 83 Seagate Service Centers Toll-free support numbers Call center Presales and Technical Support Austria — Belgium 00 800-47324283 (00 800-4SEAGATE) Denmark 00 800-47324283 France 00 800-47324283 Germany 00 800-47324283 Ireland 00 800-47324283 Italy 00 800-47324283 Netherlands 00 800-47324283 Norway 00 800-47324283...
  • Page 84 Seagate Service Centers Call center Toll-free Australia 1800-14-7201 1, 4 China (Mandarin) 800-810-9668 Hong Kong 800-90-0474 1, 4 Hong Kong (Cantonese) 001-800-0830-1730 2, 4 India 1-800-180-1104 Indonesia 001-803-1-003-2165 3, 4 Japan 0034 800 400 554 3, 4 Korea 007 98 8521 7635...
  • Page 85 Index Numerics 12 volt pins 60 5 volt pins 60 abort task set function 45 AC coupling 60 AC power requirements 25 ACA active status 55 ACA active, faulted initiator status 55 acoustics 34 active LED Out signal 60 actuator 9 assembly design 7 adaptive caching 55 air cleanliness 33...
  • Page 86 environment 42 environmental limits 30 requirements 17 environmental control 33 error management 37 rates 17 errors 37 European Union Restriction of Hazardous Substanc- es 5 FCC rules and regulations 3 features 8 interface 45 firmware 8 corruption 50 flawed sector reallocation 8 Format command execution time 12 front panel 35 function...
  • Page 87 Task set full 55 miscorrected media data 17 Mode sense data, table 51 mounting 43 holes 43 orientations 41 mounting configuration 35 mounting configuration dimensions 35 MTBF 17 noise audible 3 noise immunity 27 non-operating 31 temperature 30 non-operating vibration 33 office environment 33 operating 31 option selection 59...
  • Page 88 signal characteristics 60 single-unit shipping pack kit 10 SMART 9 SMP = 1 in Mode Select command 55 spindle brake 8 standards 3 start/stop time 13 support services 71 surface stiffness allowable for non-flat surface 43 switches 41 synchronized spindle operation 55 system chassis 43 task management functions 45...
  • Page 90 Seagate Technology LLC 920 Disc Drive, Scotts Valley, California 95066-4544, USA Publication Number: 100384760, Rev. B, Printed in USA...
