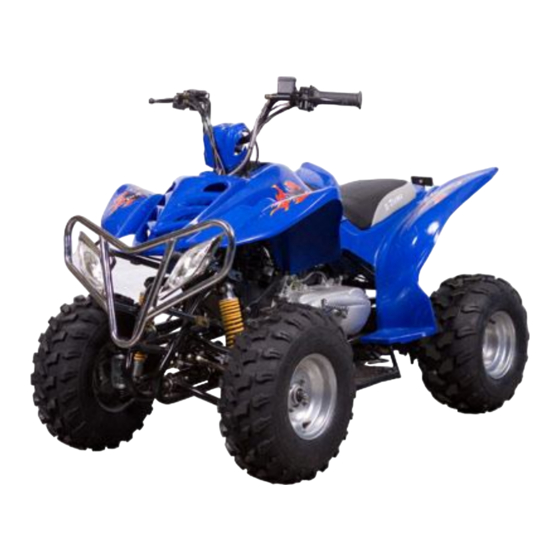

- Page 1 X-Treme Electric Scooters Model XA-150 Gas 150CC ATV Product Manual Revised 12/31/08 Recommended age – 16 years or older PLEASE BE SAFE WHEN RIDING ALWAYS WEAR A HELMET AND OBEY ALL LAWS! Page1...
-
Page 2: Important/Safety Information
IMPORTANT THIS IS A 4-CYCLE ENGINE 1. High-Octane Fuel Recommended. (90 octane or higher) 2. Your XA-150 comes pre-filled with oil, SAE15W/40 SE. It is recommended that you use this same oil when refilling or changing. Failure to follow these INSTRUCTIONS will... - Page 3 This XA-150 is a Type I ATV and is intended for use by a single operator age 16 or older and no passenger.
-
Page 4: Quick Reference
This manual should be considered a permanent part of the ATV and should remain with the ATV throughout its lifespan. This publication contains the latest production information available before printing. X-Treme Scooters reserves the right to make changes at any time without notice and without incurring any obligation. -
Page 5: Warning Label Location & Identification
Warning Label Location and Identification This ATV is rated as a Type I – Category G ATV. An ATV intended for recreational and/or utility use by an operator age 16 or older. Below are the required warning labels and their location. Should a label become removed or lost from the ATV, contact your dealer www.x-tremescooters.com/support/ for a replacement label. -
Page 6: Tire Pressure Warning Label
Tire Pressure Warning Label This label is located on the rear left fender. Figure 2 3. Overloading Warning Label This label is located on the rear left fender. Figure 3 Page6... -
Page 7: General Warning Label
4. Type I General Warning Label This label is located on the front left fender. Figure 4 5. Type I Passenger Warning Label This label is located on the rear left fender. Figure 5 Page7... -
Page 8: Table Of Contents
WARNING LABEL LOCATION & IDENTIFICATION……………………..……5-7 AGE RATING WARNING LABEL…………………………………………..…5 TIRE PRESSURE WARNING LABEL………………………………………..6 OVERLOADING WARNING LABEL……………………………………….…6 GENERAL WARNING LABEL…………………………………………………7 PASSENGER WARNING LABEL……………………………………………..7 TABLE OF CONTENTS……………………………….…………….………………8 GETTING TO KNOW YOUR X-TREME XA-150………………….….…………..9 PACKAGE CONTENTS…………………………………………………………….9 GETTING STARTED/ASSEMBLY..……………………………..………….10-11 HANDLEBARS………………………………………………………………...10 FRONT/REAR GRILL/GUARD………………………………………………10 BATTERY………………………………………………………………………10 WHEELS………………………………………………………………………..11 ITEM DESCRIPTIONS/OPERATION………………………………………..12-17... -
Page 9: Getting To Know Your X-Treme Xa-150
GETTING TO KNOW YOUR X-TREME XA-150 PACKAGE CONTENTS Your X-Treme XA-150 comes with the following items in the box. Please locate all of the following: The X-Treme XA-150 ATV 12V Battery Charger Tool Kit Product Handbook 4 Wheels Ignition Key... -
Page 10: Getting Started/Assembly
GETTING STARTED Please read and understand these instructions and the OPERATING PROCEDURES section, prior to starting or riding your XA-150 Assembly 1. Carefully remove the XA-150 from the box. 2. Your XA-150 comes with the handlebars folded for shipping. Simply rotate the... -
Page 11: Wheels
Be sure to check the oil level after assembly as well as before each time the ATV is used. Installation of the rear wheels. Start by attaching the wheel onto the axle using 4 flanged bolts M10*25. Once in place tighten the nuts and bolts. -
Page 12: Item Descriptions/Operation
Item Descriptions Front Handlebar Descriptions Page12... -
Page 13: Left View
Left View Descriptions Right View Descriptions Page13... -
Page 14: Ignition/Seat/Fuel
Ignition Switch The ignition is located on the front right side. X Indicates the off (left) position. Engine and lights will not operate and the key can be removed. Indicates the on (right) position. Engine and lights can be operated and ... -
Page 15: Left Handlebar
Left Handlebar Controls Emergency Kill Switch During normal use, the switch is set in the middle position. To stop the engine simply push the RED emergency kill switch to either the right or left position. Once the engine has stopped you must reset the switch by pressing it in (towards the front of the ATV) to be able to start the engine again. -
Page 16: Max Speed Adjustment
Recommended oil is SAE15W/4o-SE or Class SE,SF,SC. The XA-150 has been pre-filled with the recommended oil as listed above at the time of manufacturing but ALWAYS check the oil level prior to each use and add when necessary. Optimal temperature for the ATV is 104F to 14F. -
Page 17: Tires & Tire Pressure
Tire Tread – For optimum performance and most importantly, safety the tire tread should not fall under 2.0mm for either the front or rear tire. When the tire tread falls below this measurement do not ride the ATV and contact your X-Treme dealer for replacement tires or go directly to X-Treme at ww.x-tremescooters.com. -
Page 18: Operation Guide
OPERATION GUIDE Pre-Ride Inspection WARNING – THE PRE-RIDE INSPECTION MUST BE COMPLETED BY ALL RIDERS PRIOR TO USING THE XA-150. FAILURE TO PERFORM THIS INSPECTION CAN LEAD TO SERIOUS INJURY. Inspection Check List Check engine oil and add if required. Check the engine for leaks. - Page 19 Starting using the Kick Start 1. Follow steps 1-2 above under Starting using the Electric Start. 2. With the kick start pedal out, kick down on the kick start in a rapid and continuous way until the engine starts 3. Once started turn the kick start pedal inward. NOTE: Take care to not allow the kick starter to strike against the engine casing.
-
Page 20: Maintenance/Storage
MAINTENANCE MAINTENANCE SCHEDULE Proper care of your X-Treme XA-150 will insure optimal performance and longer life span. The following are a few maintenance suggestions that will keep your X-Treme XA-150 running in top condition: Engine Oil Check the oil level before each use. The level must be maintained between the upper and lower level marks on the dipstick. -
Page 21: Air Cleaner/Filter
Rear Hydraulic Disc Brake The XA-150 is equipped with a set of single-cylinder disc brakes. Be careful to check the brake fluid levels in the main cylinder located on the left handlebar. -
Page 22: Battery
Periodically check the main cylinder, fluid levels and hoses for proper levels and ensure there are no leaks. Also check for cracks in the main cylinder. As the brake pads wear with use, the fluid levels will drop. Be sure to replace brake pads are replaced when needed. -
Page 23: Maintenance Schedule
Maintenance Maintenance Schedule Item//Interval 7 days 30 days Yearly Fuel system Throttle Air Cleaner Spark Plug Carburetor Brake Shoe Wear Brake System/Pads Nuts/Bolts Tires/Rims/Tread Steering System Suspension System Drive Chain X – Inspect and clean. Adjust, lubricate or replace if necessary. C –... -
Page 24: Wiring Schematic
For additional questions, service instructions, further information and important phone numbers, please go to the X-Treme website at www.x-tremescooters.com Thank you for purchasing an X-Treme XA-150 and please tell your friends how much fun you’re having on the X-Treme ATV! - Page 25 For General Information or Parts Visit www.x-tremescooters.com For Technical Support or Assistance Visit www.x-tremescooters.com/support/ Page25...
