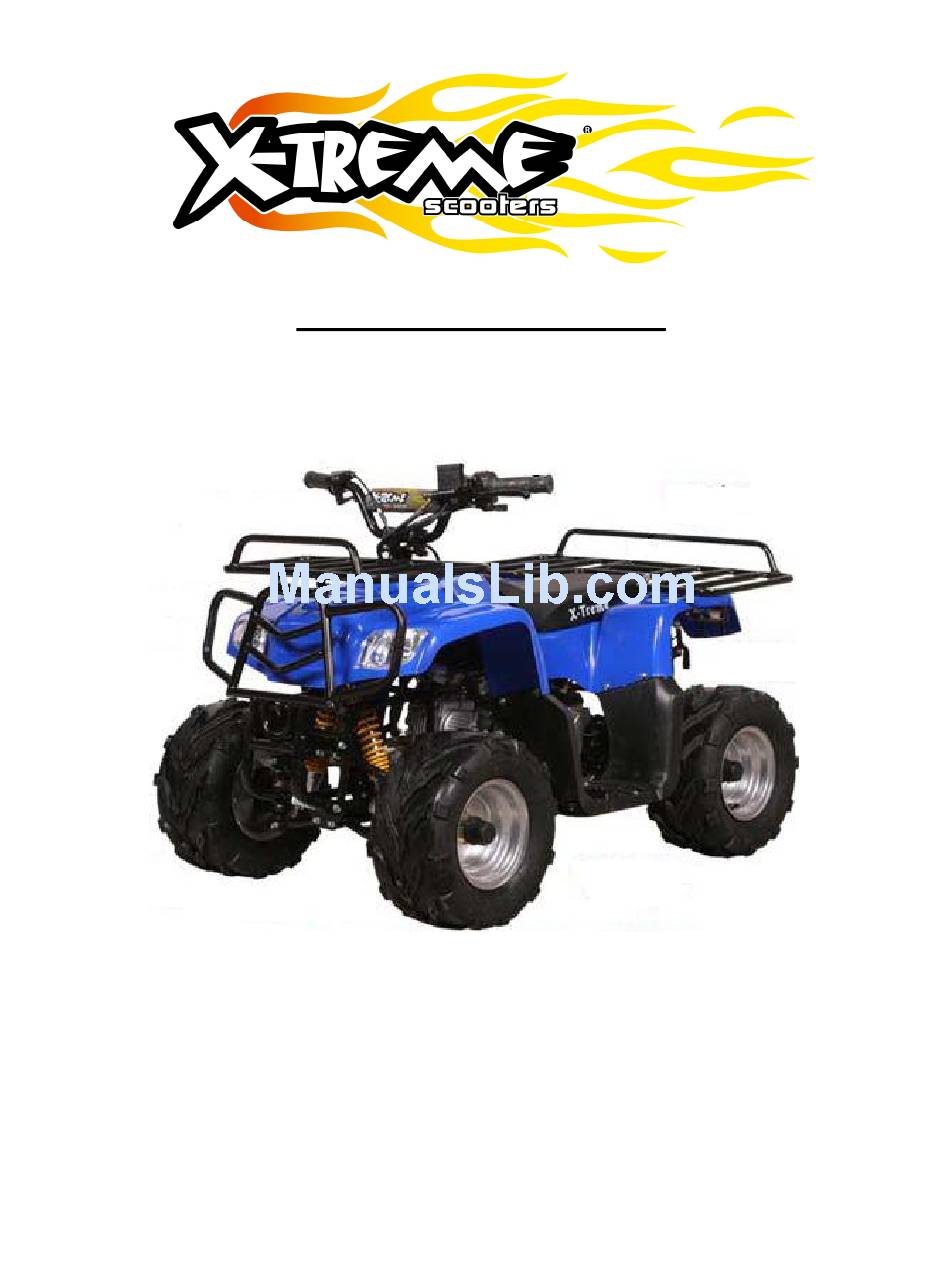

- Page 1 X-Treme Electric Scooters Model XA-112 Gas 110CC ATV Product Manual Revised 01/20/09 Recommended age – 12 years or older Page1...
-
Page 2: Table Of Contents
WARNING LABEL LOCATION & IDENTIFICATION……………………..……5-7 AGE RATING WARNING LABEL…………………………………………..…5 TIRE PRESSURE WARNING LABEL………………………………………..6 OVERLOADING WARNING LABEL……………………………………….…6 GENERAL WARNING LABEL…………………………………………………7 PASSENGER WARNING LABEL……………………………………………..7 GETTING TO KNOW YOUR X-TREME XA-112………………….….…………..8 PACKAGE CONTENTS…………………………………………………………….8 GETTING STARTED/ASSEMBLY..……………………………..……………9-10 HANDLEBARS………………………………………………………………... 9 FRONT/REAR GRILL/GUARD……………………………………………… 9 BATTERY…………………………………………………………………… 9-10 WHEELS……………………………………………………………………….10 ITEM DESCRIPTIONS/OPERATION………………………………………..11-16... -
Page 3: Important/Safety Information
IMPORTANT THIS IS A 4-CYCLE ENGINE 1. High-Octane Fuel Recommended. (90 octane or higher) 2. Your XA-112 comes pre-filled with oil, SAE15W/40 SE. It is recommended that you use this same oil when refilling or changing. Failure to follow these INSTRUCTIONS will... - Page 4 This XA-112 is a Type I ATV and is intended for use by a single operator age 16 or older and no passenger.
-
Page 5: Quick Reference
This manual should be considered a permanent part of the ATV and should remain with the ATV throughout its lifespan. This publication contains the latest production information available before printing. X-Treme Scooters reserves the right to make changes at any time without notice and without incurring any obligation. -
Page 6: Warning Label Location & Identification
Warning Label Location and Identification This ATV is rated as a Type I – Category G ATV. An ATV intended for recreational and/or utility use by an operator age 12 or older. Below are the required warning labels and their location. Should a label become removed or lost from the ATV, contact your dealer www.x-tremescooters.com/support/ for a replacement label. -
Page 7: Tire Pressure Warning Label
Tire Pressure Warning Label This label is located on the rear left fender. Figure 2 3. Overloading Warning Label This label is located on the rear left fender. Figure 3 Page7... -
Page 8: General Warning Label
4. Type I General Warning Label This label is located on the front left fender. Figure 4 5. Type I Passenger Warning Label This label is located on the rear left fender. Figure 5 Page8... -
Page 9: Getting To Know Your X-Treme Xa-112
GETTING TO KNOW YOUR X-TREME XA-112 PACKAGE CONTENTS Your X-Treme XA-112 comes with the following items in the box. Please locate all of the following: The X-Treme XA-112 ATV 12V Battery Charger Tool Kit Product Handbook 4 Wheels Ignition Key... -
Page 10: Getting Started/Assembly
GETTING STARTED Please read and understand these instructions and the OPERATING PROCEDURES section, prior to starting or riding your XA-112 Assembly 1. Carefully remove the XA-112 from the box. 2. Your XA-112 comes with handlebars folded for shipping. Simply rotate the handlebars to the desired up-right position and secure in place using the enclosed bolts as shown. - Page 11 Be sure to check the oil level after assembly as well as before each time the ATV is used. Front Wheel Assembly: Install wheel onto front spindle. Install 1. Small tube, 2. Big washer, 3. Slotted nut. Use the 4. Split pin to secure nut onto the axle.
-
Page 12: Item Descriptions/Operation
Item Descriptions Front Handlebar Descriptions Left View Descriptions Page12... -
Page 13: Right View
Right View Descriptions Ignition Switch The ignition is located on the front right side. X Indicates the off (left) position. Engine and lights will not operate and the key can be removed. Indicates the on (right) position. Engine and lights can be operated and ... -
Page 14: Seat Lock & Fuse
Seat Lock The seat lock is located behind and below the seat cushion. Pull the lock out to release the seat. To lock, simply press the seat down with slight force until it locks into place. Fuel and Fuel Tank Always use High-Octane Fuel Recommended. -
Page 15: Left Handlebar
Left Handlebar Controls Emergency Kill Switch During normal use, the switch is set in the middle position. To stop the engine, simply push the RED emergency kill switch to either the right or left position. Once the engine has stopped you must reset the switch by pressing it in (towards the front of the ATV) to be able to start the engine again. -
Page 16: Max Speed Adjustment
Recommended oil is SAE15W/4o-SE or Class SE,SF,SC. The XA-112 has been pre-filled with the recommended oil as listed above at the time of manufacturing but ALWAYS check the oil level prior to each use and add when necessary. Optimal temperature for the ATV is 104F to 14F. - Page 17 Tire Tread – For optimum performance and most importantly safety, the tire tread should not fall under 2.0mm for either the front or rear tire. When the tire tread falls below this measurement do not ride the ATV and contact your X-Treme dealer for replacement tires or go directly to X-Treme at ww.x-tremescooters.com.
-
Page 18: Operation Guide
OPERATION GUIDE Pre-Ride Inspection WARNING – THE PRE-RIDE INSPECTION MUST BE COMPLETED BY ALL RIDERS PRIOR TO USING THE XA-112. FAILURE TO PERFORM THIS INSPECTION CAN LEAD TO SERIOUS INJURY. Inspection Check List Check engine oil and add if required. Check the engine for leaks. -
Page 19: Starting
STARTING THE ENGINE Always us the following procedure below when starting your XA-112: WARNING – NEVER RUN THE ENGINE IN AN ENCLOSED AREA. EXHAUST EMISSIONS ARE DANGEROUS AND CAN LEAD TO DEATH. Starting using the Electric Start Ensure the ATV is on level ground and the parking brake is engaged 1. -
Page 20: Maintenance/Storage
MAINTENANCE MAINTENANCE SCHEDULE Proper care of your X-Treme XA-112 will insure optimal performance and longer life span. The following are a few maintenance suggestions that will keep your X-Treme XA-112 running in top condition: Engine Oil Check the oil level before each use. The level must be maintained between the upper and lower level marks on the dipstick. -
Page 21: Air Cleaner/Filter
CAUTION – Never start the engine with the air cleaner removed. Brake System Rear Hydraulic Disc Brake The XA-112 is equipped with a set of single-cylinder disc brakes. Be careful to check the brake fluid levels in the main cylinder located on the left handlebar. Always use non-petroleum brake fluid # 4604. - Page 22 Page22...
-
Page 23: Battery
Battery Periodically check the battery fluid levels to ensure they are between the upper and lower level mark. If below the required level, fill the battery with distilled water to the upper level mark. If the ATV will not be used for long periods of time, it is recommended that the battery be removed and charged fully. -
Page 24: Storage
Page24... -
Page 25: Wiring Schematic
For additional questions, service instructions, further information and important phone numbers, please go to the X-Treme website at www.x-tremescooters.com Thank you for purchasing an X-Treme XA-112 and please tell your friends how much fun you’re having on the X-Treme ATV! For General Information or Parts Visit www.x-tremescooters.com... - Page 26 Page26...
