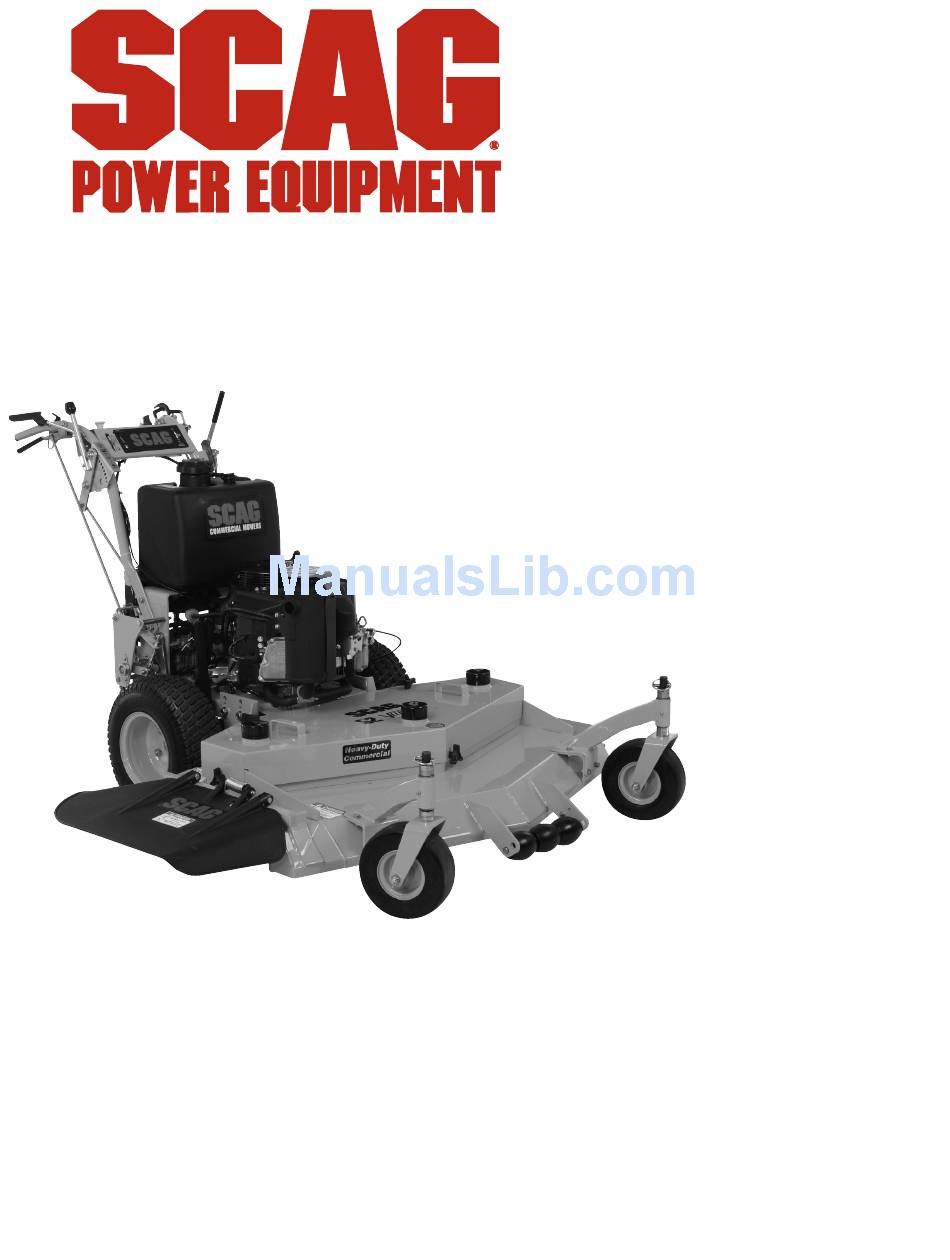

Congratulations on owning a Scag mower! This manual contains the operating
instructions and safety information for your Scag mower. Reading this manual
can provide you with assistance in maintenance and adjustment procedures to
keep your mower performing to maximum efficiency. The specific models that
this book covers are listed on the inside cover. Before operating your machine,
please read all the information enclosed.
© 2010
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL
SWZ
Walk-Behind
Model:
SWZ36A-16FS
SWZ36A-16FS-LE
SWZ48V-18FS
SWZ48V-18FS-LE
SWZ52V-20FS
SWZ-20FS
SWZ-22FSE
PART NO. 03268 Rev. 2
PRINTED 11/2010
PRINTED IN USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWZ36A-16FS and is the answer not in the manual?

Questions and answers

Related Manuals for Scag Power Equipment SWZ36A-16FS

Summary of Contents for Scag Power Equipment SWZ36A-16FS

  • Page 1 Before operating your machine, please read all the information enclosed. © 2010 PART NO. 03268 Rev. 2 Scag Power Equipment PRINTED 11/2010 Division of Metalcraft of Mayville, Inc. PRINTED IN USA...
  • Page 2 CONCERN, PRUDENCE, AND PROPER TRAINING OF THE PERSONNEL INvOLvED IN THE OPERATION, TRANSPORT, MAINTENANCE, AND STORAGE OF THE EqUIPMENT. This manual covers the operating instructions and illustrated parts list for: SWz36A-16FS with a serial number of F1700001 to F1799999 SWz36A-16FS-LE...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents SECTION 1 - GENERAL INFORMATION ...................1 1.1 INTRODUCTION ............................1 1.2 DIRECTION REFERENCE ...........................1 1.3 SERvICING THE ENGINE AND DRIvE TRAIN COMPONENTS ..............1 1.4 SYMBOLS ..............................2 SECTION 2 - SAFETY INFORMATION ..................3 2.1 INTRODUCTION ............................3 2.2 SIGNAL WORDS ............................3 2.3 BEFORE OPERATION CONSIDERATIONS ....................3 2.4 OPERATION CONSIDERATIONS ........................4...
  • Page 4 Table of Contents SECTION 6 - ADJUSTMENTS ....................18 6.1 PARkING BRAkE ADJUSTMENT ......................18 6.2 NEUTRAL ADJUSTMENT .........................18 6.3 STEERING CONTROL ROD ADJUSTMENTS ..................18 6.4 TRACkING ADJUSTMENT ........................19 6.5 THROTTLE CONTROL AND CHOkE ADJUSTMENTS ................19 6.6 CUTTER DECk BELT ADJUSTMENTS ....................19 6.7 BELT ALIGNMENT .............................20 6.8 ADJUSTING CUTTING HEIGHT ........................20 6.9 ELECTRIC CLUTCH ADJUSTMENT ......................23...

  • Page 5: General Information

    Scag service parts. All information is based upon product information available - IMPORTANT - at the time of approval for printing. Scag Power Equipment The replacement of any part on this product reserves the right to make changes at any time without by other than the manufacturer's authorized notice and without incurring any obligation.

  • Page 6: Symbols

    Section 1 SYMBOLS SYMBOL DESCRIPTION SYMBOL DESCRIPTION Choke Transmission Parking Brake Spinning Blade 48071S On/Start Spring Tension on Idler Off/Stop Falling Hazard Thrown Object Hazard Fast Slow Continuously Variable - Linear Cutting Element - Basic Symbol Pinch Point Cutting Element - Engage 481039S Hour meter/Elapsed Operating Hours Cutting Element - Disengage...

  • Page 7: Safety Information

    Section 2 SAFETY INFORMATION INTRODUCTION DANGER Your mower is only as safe as the operator. Carelessness or operator error may result in serious bodily injury The signal word “DANGER” denotes that an extremely or death. Hazard control and accident prevention are hazardous situation exists on or near the machine that dependent upon the awareness, concern, prudence, and could result in high probability of death or irreparable injury...

  • Page 8: Operation Considerations

    Section 2 DO NOT allow children to ride or play on the Fuel is flammable; handle it with care. Fill the fuel machine, it is not a toy. tank outdoors. Never fill it indoors. Use a funnel or spout to prevent spillage. Clean up any spillage Clear the area to be mowed of objects that could be before starting the engine.
  • Page 9 Section 2 If the mower discharge ever plugs, shut off the CAUTION engine, remove the ignition key, and wait for all movement to stop before removing the obstruction. Do not touch the engine or the muffler while the WARNING engine is running or immediately after stopping. These areas may be hot enough to cause a burn.

  • Page 10: Maintenance Considerations & Storage

    Section 2 MAINTENANCE CONSIDERATIONS & WARNING STORAGE Never make adjustments to the machine with the Hydraulic fl uid is under high pressure and can engine running unless specifically instructed to do penetrate skin causing injury. If hydraulic fl uid so. If the engine is running, keep hands, feet, and is injected into the skin, it must be surgically clothing away from moving parts.

  • Page 11: Safety And Instructional Decals

    Section 2 SAFETY AND INSTRUCTIONAL DECALS WARNING WARNING WARNING INSTALL BELT COVER BEFORE DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING OPERATING MACHINE KIT, OR ENTIRE GRASS CATCHER INSTALLED READ OPERATOR'S MANUAL 483405 483402 483405 WARNING WARNING SPINNING BLADES ROTATING BLADES AND BELTS KEEP CLEAR * Keep hands, feet &...

  • Page 12: Specifications

    General Type ....................Heavy Duty Industrial/Commercial Gasoline Brand ..................................Kawasaki Horsepower: (Scag Model SWZ36A-16FS, SWZ36A-16FS-LE) ...........16 HP (Engine Model # FS481V) (Scag Model SWZ48V-18FS, SWZ48V-18FS-LE) ............18 HP (Engine Model # FS541V) (Scag Model SWZ52V-20FS, SWZ-20FS) ...............20 HP (Engine Model # FS600V) (Scag Model SWZ-22FSE) ..................22 HP (Engine Model # FS651V) Cylinders ........................2 with Cast-Iron Sleeves - Kawasaki...

  • Page 13: Cutter Deck

    Section 3 CUTTER DECk Type ........................Out-Front design with anti-scalp rollers Construction ....36 / 48 = 7-Gauge Deck Top w/10-Gauge Reinforced Spindle Area, 7-gauge (3/16") Deck Skirt 52 / 61 = 10-Gauge Deck Top w/10-Gauge Reinforced Spindle Area, 7-Gauge (3/16") Deck Skirt True Cutting Width: 36 .................................35.5"...

  • Page 14: Operating Instructions

    Section 4 OPERATING INSTRUCTIONS Mower Deck Switch (Figure 4-1). Used to engage CAUTION and disengage the mower drive system. Pulling up on the switch will engage the deck drive. Pushing down on the switch will disengage the deck drive. Do not attempt to operate this mower unless you Engine Choke Control (Figure 4-1).

  • Page 15: Safety Interlock System

    Section 4 STARTING THE ENGINE Speed Control Lever (Figure 4-1). Used to select the forward speed. Neutral Latch (Figure 4-1). Used to secure the CAUTION hydraulic drive system in neutral. Apply neutral latches when parking the machine. Operator Pressence Control (Figure 4-1) DO NOT USE STARTING FLUIDS.

  • Page 16: Engaging The Deck Drive (Cutter Blades)

    Section 4 FORWARD TRAvEL - NOTE - The mower may not travel straight in reverse. To travel forward with the mower, release the parking brake, select the desired speed using the speed control lever, pull To steer left while traveling in reverse, pull upward on the steering control levers upward, release the neutral latch right steering control lever.

  • Page 17: Hillside Operation

    Section 4 Keep the entire mower clean to inhibit serious heat HILLSIDE OPERATION damage to the engine or hydraulic oil circuit. Check the drive belts for proper alignment and any WARNING signs of wear. Correct and adjust if necessary. DANGER DO NOT operate on steep slopes.

  • Page 18: Moving Mower With Engine Stopped

    Section 4 4.11 MOvING MOWER WITH ENGINE Cut grass when it is dry and not too tall. Do not cut grass too short (cut off 1/3 or less of existing grass STOPPED for best appearance). Mow frequently. Keep mower and discharge chute clean. To “free-wheel”...

  • Page 19: Troubleshooting Cutting Conditions

    Section 5 TROUBLESHOOTING CUTTING CONDITIONS CONDITION CAUSE CURE STRINGERS - OCCASIONAL Low engine RPM Run engine at full RPM BLADES OF UNCUT GRASS Ground speed too fast Slow speed to adjust for conditions Wet grass Cut grass after it has dried out Dull blades, incorrect sharpening Sharpen blades Deck plugged, grass accumulation...
  • Page 20 Section 5 TROUBLESHOOTING CUTTING CONDITIONS (CONT'D) CONDITION CAUSE CURE U N E v E N C U T O N F L AT Lift worn from blade Replace blade GROUND - WAvY HIGH-LOW APPEARANCE, SCALLOPED Blade upside down Mount with cutting edge toward ground CUT, OR ROUGH CONTOUR Deck plugged, grass accumulation Clean underside of deck...
  • Page 21 Section 5 TROUBLESHOOTING CUTTING CONDITIONS (CONT'D) CONDITION CAUSE CURE SCALPING - BLADES HITTING Low tire pressures Check and adjust pressures DIRT OR CUTTING vERY CLOSE TO THE GROUND Ground speed too fast Slow speed to adjust for conditions May need to reduce ground speed, raise Cutting too low cutting height, change direction of cut, and/or change pitch and level...

  • Page 22: Adjustments

    Section 6 ADJUSTMENTS PARkING BRAkE ADJUSTMENT Adjust the parking brake so that when the brake hand lever is against the stop on the handle bar, the brake levers on the brake shaft weldment are against the stops on the engine deck. CAUTION Figure 6-1.

  • Page 23: Tracking Adjustment

    Section 6 TRACkING ADJUSTMENT -NOTE- Before proceeding with this adjustment, be sure that the tire pressures are correct and the neutral adjustment and the steering control rod adjustment have been completed. Figure 6-3. Tracking Adjustment With the machine on a flat level surface, start the engine, release the parking brake and place the THROTTLE CONTROL AND CHOkE speed control lever into the speed that will most...

  • Page 24: Belt Alignment

    Section 6 -NOTE- Due to many cutting conditions that exist, it is difficult to suggest a cutter deck setting that will work for every lawn. Due to initial belt stretch and to prevent the belt There are two adjustments that can be made to the cutter from slipping, check this adjustment after the first deck, pitch and height.
  • Page 25 Section 6 CUSTOM-CUT BAFFLE ADJUSTMENT BLADE HEIGHT ADJUSTMENT The Custom-Cut Baffle is designed to deliver optimum Adjusting the blade height can be done by moving any number airflow and superior cutting performance in any type of of the five smaller 1/4" spacers on the blade mounting bolts grass.
  • Page 26 Section 6 Custom-Cut Baffle Adjustment Mounting Slot Selected Mounting Hardware Location Slot “A” Hole 1 Hole 2 Hole 3 Hole 4 Height (inches) 3-3/4” 4-1/4” 4-3/4” 5-1/4” Slot “B” Hole 2 Hole 3 Hole 4 Height (inches) 3-1/2” 4” 4-1/2” Figure 6-10.

  • Page 27: Electric Clutch Adjustment

    Section 6 ELECTRIC CLUTCH ADJUSTMENT ADJUSTMENT NUTS The electric clutch serves two functions in the operation of the mower. In addition to starting and stopping the power flow to the cutter blades, the clutch also acts as a brake to assist in stopping blade rotation when the PTO is switched off or the operator presence circuit is interrupted.

  • Page 28: Maintenance

    Section 7 MAINTENANCE MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS HOURS PROCEDURE COMMENTS BREAk-IN 100 200 500 (FIRST 10) Check all hardware for tightness C h e c k a l l b e l t s f o r p r o p e r See paragraph 7.6 alignment Check all hydraulic fittings and...

  • Page 29: Lubrication

    Section 7 MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS (CONT'D) HOURS PROCEDURE COMMENTS BREAk-IN (FIRST 10) Check hardware for tightness Change engine oil filter See paragraph 7.4 Replace engine fuel filter See paragraph 7.5 Grease caster wheel pivot See paragraph 7.2 shafts Drain hydraulic system and See paragraph 7.3...
  • Page 30 Section 7 GREASE FITTING LUBRICATION LUBRICANT / INTERVAL LITHIUM MP WHITE GREASE 2125 ( 40 HOURS / WEEKLY ) CHASSIS GREASE ( 100 HOURS / BI-MONTHLY ) CHASSIS GREASE ( 200 HOURS / MONTHLY ) 390S0177 Figure 7-1. Lubrication Fitting Points...

  • Page 31: Hydraulic System

    Section 7 HYDRAULIC SYSTEM A. CHECkING HYDRAULIC OIL LEvEL The hydraulic oil level should be checked after the first 8 Filter Head Hydraulic Oil hours of operation. Thereafter, check the oil after every Drain Cap 200 hours of machine operation or monthly, whichever occurs first.

  • Page 32: Engine Oil

    Section 7 ENGINE OIL FILLER NECK INSERT A. CHECkING ENGINE CRANkCASE OIL LEvEL FUEL LEVEL The engine oil level should be checked after every 8 hours of operation or daily as instructed in the Engine Operator’s Manual furnished with this mower. B.

  • Page 33: Engine Air Cleaner

    Section 7 Replace gas cap and tighten securely. For Low WARNING Emission (LE) and EPA Phase 3 (produced after 1/1/2011) models, tighten the fuel cap until it ratchets. Lead-acid batteries produce flammable and B. REPLACING IN-LINE FUEL FILTER explosive gases. To avoid personal injury when ELEMENTS checking, testing or charging batteries, DO NOT use smoking materials near batteries.

  • Page 34: Cutter Blades

    Section 7 A. CHARGING THE BATTERY CUTTER BLADES Refer to the battery charger’s manual for specific A. BLADE INSPECTION instructions. Remove the ignition key before servicing the blades. Under normal conditions the engine’s alternator will have no problem keeping a charge on the battery. If the battery WARNING has been completely discharged for a long period of time, the alternator may not be able to recharge the battery, and...

  • Page 35: Tires

    Section 7 - NOTE - B. BLADE SHARPENING Be sure that the blade is installed with the lift wing towards the top of the cutter deck. - NOTE - If possible, use a file to sharpen the blade. Using Install the cutter blade on to the cutter spindle shaft. a wheel grinder may burn the blade.

  • Page 36: Illustrated Parts List

    Section 8 ILLUSTRATED PARTS LIST SCAG APPROvED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine. Scag approved attachments and accessories: • Mulch Plate (p/n 9258, 9286, 9287, 9288) •...

  • Page 37: Caster Assembly

    Section 8 CASTER ASSEMBLY SW-SWZ2006CSTR Ref. Part No. Description 04066-01 Quick Pin 43037-01 Spacer, Spacer Yoke, 1/2" Long 48100-01 Bronze Bearing 48114-04 Greasing Fitting 46082 Support Assembly (Incl. #3 & #4) 45006 Caster Yoke 04021-07 Nut, Elastic Stop 1/2-13 43022 Sleeve, Caster Wheel Bearing 04001-37 Bolt, Hex Head 1/2-13 x 5-1/2"...

  • Page 38: 36A Cutter Deck

    Section 8 36A CUTTER DECk SW2011CD36A...
  • Page 39 Section 8 32 / 36A CUTTER DECK Ref. Ref. Part No. Description Part No. Description 483215 Idler Pulley, Belt Clutch 461847 Cutter Deck w/Decals 461848 Cutter Deck w/Decals 481024 Seal, Cutter Spindle 43297 Spindle Bushing 462353 Cutter Deck w/Decals - LE 43296 Spacer, Inside 461663...

  • Page 40: 48V & 52V Cutter Decks

    Section 8 48v & 52v CUTTER DECkS 40 39 SW-06CD48V-52V...
  • Page 41 Section 8 48V & 52V CUTTER DECKS Ref. Ref. Part No. Description Part No. Description 461091 Idler Arm Assy. (Incl. 62) 461852 Cutter Deck w/Decals 483176 Pad, Deck Wear 462354 Cutter Deck w/Decals - LE 43028 J-Rod, Idler Pulley 461855 Cutter Deck w/Decals 43077 Spacer, J-Rod...

  • Page 42: 61V Cutter Deck

    Section 8 61v CUTTER DECk 40 39 SW-06CD48V-52V...
  • Page 43 Section 8 61v CUTTER DECk Ref. Ref. Part No. Description Part No. Description 461091 Idler Arm Assy. (Incl. 62) 461860 Cutter Deck w/Decals 483176 Pad, Deck Wear 461663 Spindle Assembly 43028 J-Rod, Idler Pulley 43296 Spacer, Inside 482745 Pulley 43077 Spacer, J-Rod 04041-12 Washer, 3/8 x 1-1/2 x 16 ga.

  • Page 44: Engine Deck - Manual Start

    Section 8 ENGINE DECk - MANUAL START ENGINE DECk - MANUAL START SWZ 2011 EDMAN...
  • Page 45 Section 8 ENGINE DECk - MANUAL START Ref. Part No. Description 484212 Engine, 16HP Kawasaki (Spec FS481V-XXXX) 484213 Engine, 18HP Kawasaki (Spec FS541V-XXXX) 484214 Engine, 20HP Kawasaki (Spec FS600V-XXXX) 424620 Plate, Clutch Bracket 421370 Clutch Bracket 48030-09 Clamp 04003-04 Bolt, Carriage 5/16-18 x 1" 04021-10 Nut, 5/16-18 Elastic Stop 45418...

  • Page 46: Engine Deck - Electric Start

    Section 8 ENGINE DECk - ELECTRIC START SWZ 2011 EDELCT...
  • Page 47 Section 8 ENGINE DECk - ELECTRIC START Ref. Part No. Description 484215 Engine, 22HP Kawasaki (Spec. FS651V-XXXX) 424620 Plate, Clutch Bracket 04030-04 Lock Washer 3/8" 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4" 424730 Heatshield, 20" Large Frame 04003-12 Carriage Bolt, 5/16-18 x .75" 48126 Rubber Boot 423308...

  • Page 48: Drive And Brake Components

    Section 8 DRIvE AND BRAkE COMPONENTS DRIvE AND BRAkE COMPONENTS 3, 3A 10, 10A 37 41 SWZ05D&BC...
  • Page 49 Section 8 DRIvE AND BRAkE COMPONENTS Ref. Part No. Description 481876 Ring, Split 04001-19 Bolt, 3/8-16 x 1" Hex Head 45842 Brake Shaft Assembly Weldment, 16" Small Frame 45854 Brake Shaft Assembly Weldment, 20" Large Frame 04062-01 Hair Pin Cotter, .094 x 1.62 04003-12 Carrage Bolt, 5/16-18 x .75"...

  • Page 50: Handle Assembly - 16" Small Frame

    Section 8 HANDLE ASSEMBLY - 16" SMALL FRAME 45 11 SWZ08SFHAN...
  • Page 51 Section 8 HANDLE ASSEMBLY - 16" SMALL FRAME Ref. Ref. Part No. Description Part No. Description 04063-07 Key, Woodruff, 3/16 x .75 461976 Upper Handle Wlmt. W/Decals 04001-59 Bolt, Hex Head, 1/4-20 x 1.25" 42675 Quadrant, Speed Control 04001-19 Bolt, Hex Head, 3/8-16 x 1" 04062-02 Hairpin, .094 x 1.19 45282...

  • Page 52: Handle Assembly - 20" Large Frame

    Section 8 HANDLE ASSEMBLY - 20" LARGE FRAME 45 11 SWZ 08 LFHAN...
  • Page 53 Section 8 HANDLE ASSEMBLY - 20" LARGE FRAME Ref. Ref. Part No. Description Part No. Description 04063-07 Key, Woodruff, 3/16 x .75 461977 Upper Handle Wlmt. W/Decals 04001-59 Bolt, Hex Head, 1/4-20 x 1.25" 42675 Quadrant, Speed Control 04001-19 Bolt, Hex Head, 3/8-16 x 1" 04062-02 Hairpin, .094 x 1.19 43415...

  • Page 54: Swz Fuel System - Epa Phase 2

    Section 8 SWz FUEL SYSTEM - EPA PHASE 2 (models produced prior to 1/1/2011) FUEL SYSTEM - EPA COMPLIANT PHASE 2 (Models produced prior to 1/1/2011) To Fuel Pump 2011 SWZ Standard Fuel System...
  • Page 55 Section 8 SWz FUEL SYSTEM - EPA PHASE 2 (models produced prior to 1/1/2011) Ref. Part No. Description 462289 Fuel Tank Assembly (incl. #3, 4, 5, 6) 483792 Fuel Cap 484259 Fuel Gauge Assembly (incl. #4) 484242 Seal, Fuel Gauge 482571 Bushing, .56 Dia.

  • Page 56: Swz Fuel System - Epa Phase 3

    Section 8 SWz FUEL SYSTEM - EPA PHASE 3 FUEL SYSTEM - EPA PHASE 3 (produced after 1/1/2010) (models produced after 1/1/2011) Tank Purge To Fuel Pump To Engine Purge Port 2011 SWZ EPA Phase 3 Fuel System...
  • Page 57 Section 8 SWz FUEL SYSTEM - EPA PHASE 3 (models produced after 1/1/2011) Ref. Part No. Description 462290 Fuel Tank Assembly (incl. #3, 4, 5, 6, 16, 17) 484286 Fuel Cap w/ Tether (E.P.A.) 484259 Fuel Gauge Assembly (incl. #4) 484242 Seal, Fuel Gauge 482571...

  • Page 58: Swz Fuel System - C.a.r.b. Teir 3

    Section 8 FUEL SYSTEM - C.A.R.B. COMPLIANT TEIR 3 SWz FUEL SYSTEM - C.A.R.B. TEIR 3 (LE Models Only - produced after 1/1/2010) (LE models only - Produced after 1/1/2010) Tank Purge To Fuel Pump To Engine Purge Port 2011 SWZ CARB Fuel System...
  • Page 59 Section 8 SWz FUEL SYSTEM - C.A.R.B. TEIR 3 (LE models only - Produced after 1/1/2010) Ref. Part No. Description 462290 Fuel Tank Assembly (incl. #3, 4, 5, 6, 16, 17) 484297 Fuel Cap w/ Teether (C.A.R.B.) 484259 Fuel Gauge Assembly (incl. #4) 484242 Seal, Fuel Gauge 482571...

  • Page 60: Hydraulic Assembly

    Section 8 HYDRAULIC ASSEMBLY HYDRAULIC ASSEMBLY 2005SWZ-HA...
  • Page 61 Section 8 HYDRAULIC ASSEMBLY Ref. Part No. Description 481164 Cap, Oil Reservoir 461428 Oil Reservoir (With Fittings) 482266-01 Elbow, 9/16 O-Ring x 3/8" Hose 48811 Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) 48811 Hose, 3/8" ID - 7" Long (Order By The Inch) 48603-06 O-Ring 483097...

  • Page 62: Hydraulic Pump Assembly

    Section 8 HYDRAULIC PUMP ASSEMBLY PORT "A" SIDE PORT "B" SIDE...
  • Page 63 Section 8 HYDRAULIC PUMP ASSEMBLY Ref. Part No. Description HG 70516 Housing Kit HG 70573 End Cap Kit HG 50641 Straight Headless Pin HG 50969 Hex Flange Bolt, M8-1.25 x 60mm HG 51232 Housing O-Ring HG 2513027 Charge Pump Kit HG 50273 Gerotor Assembly HG 9004101-1340...

  • Page 64: Wire Harnesses

    Section 8 WIRE HARNESSES CLUTCH ENGINE DECK WIRE HARNESS NEUTRAL INTERLOCK PART NO. 484302 DIODE (600V 6A) GROUND BLACK W/RED STRIPE BLACK BLUE BLACK BLUE MAGNETO INSTRUMENT RECTIFIER WHITE PANEL HARNESS WHITE YELLOW HANDLE WIRE HARNESS - MANUAL START PART NO. 482686 SWZ2003WH482686...
  • Page 65 Section 8 WIRE HARNESSES NEUTRAL INTERLOCK ENGINE DECK WIRE HARNESS GROUND ELECTRIC START PART NO. 484283 BLACK W/RED STRIPE GREEN BLACK BLACK BLUE BLUE CLUTCH INSTRUMENT WHITE PANEL HARNESS WHITE YELLOW RED W/YEL STRIPE DIODE (600V 6A) STARTER SOLENOID HANDLE WIRING HARNESS kAWASAkI ELECTRIC START PART NO.

  • Page 66: Replacement Decals And Information Plates

    Section 8 REPLACEMENT DECALS AND INFORMATION PLATES WARNING DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING kIT, OR ENTIRE GRASS CATCHER INSTALLED 483405 WARNING ROTATING BLADES AND BELTS SPINNING BLADES * keep hands, feet & clothing clear * keep all guards in place kEEP CLEAR * Shut off engine &...
  • Page 67 Section 8 REPLACEMENT DECALS AND INFORMATION PLATES 481423 FAST SPEED CONTROL SLOW NEUTRAL 482297 481124 Hea vy- Duty Comm e rcial 481971...
  • Page 68 Section 8 REPLACEMENT DECALS AND INFORMATION PLATES Ref. Part No. Description 483405 Decal, Discharge Chute 48314 Decal, Scag Logo 483407 Decal, Danger-Spinning Blades 483406 Decal, Warning-Rotating Blades 483044 Decal, Patents 48404 Decal, Metalcraft - Made in USA 483441 Decal, Instrument Panel - Rear 483404 Decal, Sulky Attachment 483402...

  • Page 69: Limited Warranty - Commercial Equipment

    Cutter decks are warranted against cracking for a period of three (3) years. (parts and labor 1st and 2nd year; parts only 3rd year.) The repair or replacement of the cutter deck will be at the option of Scag Power Equipment. We reserve the right to request compo- nents for evaluation.
  • Page 70 © 2010 Scag Power Equipment Division of Metalcraft of Mayville, Inc.

This manual is also suitable for:

Swz36a-16fs-leSwz-20fsSwz-22fseSwz48v-18fsSwz48v-18fs-leSwz52v-20fs
