ER208UT+B Quick Installation Guide

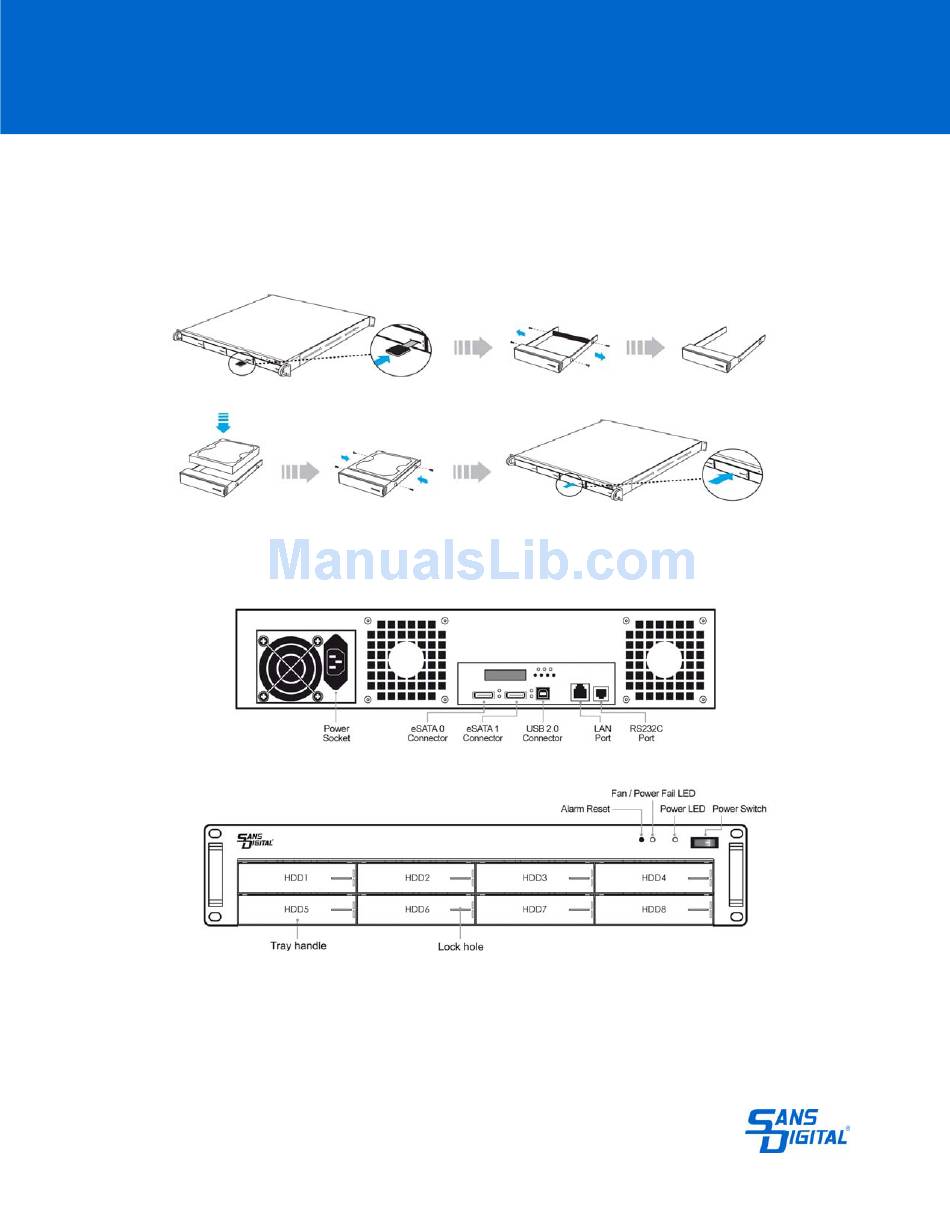

Hard Drive Installation

1. Press the key (included in the package) into the lock slot located at the front of the hard drive tray until the tray handle unlocks.

2. Pull on the tray handle to remove the tray from the enclosure.

3. Dismount the plastic tray protector rods by removing the screws on the sides of the tray.

4. Place the hard drive in the tray, and fasten it with the screws (included in the package) in corresponding locations.

5. Place the tray back into the enclosure and lock the tray by pushing in the tray handle.

Unit Backplane

Hard Drive Locations
