- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VS-421 4x1 Video Audio Switcher...
- Page 2 Figure 2: REMOTE PINOUT Tables Table 1: Front Panel Features and Functions of the VS-421 4x1 Video Audio Switcher Table 2: Rear Panel Features and Functions of the VS-421 4x1 Video Audio Switcher Table 3: VS-421 4x1 Video Audio Switcher Technical Specifications...
-
Page 3: Getting Started

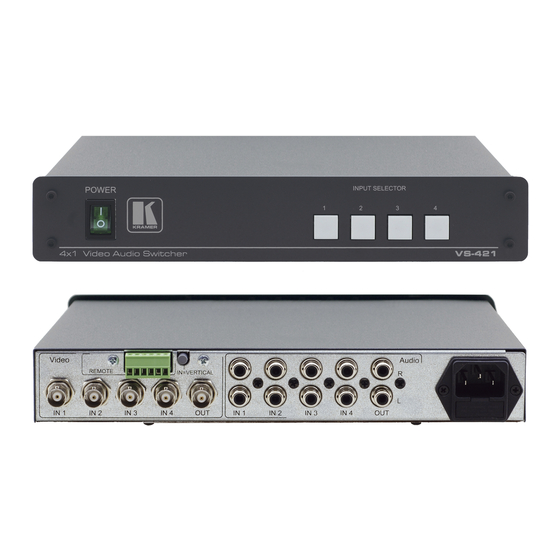

Kramer line an integral part of the finest production and presentation facilities in the world. In recent years, Kramer has redesigned and upgraded most of the line, making the best even better! The Kramer line of professional video/audio... - Page 4 Your Video Audio Matrix Switcher Figure 1 and Tables 1 and 2 define the VS-421 4x1 Video Audio Switcher: Figure 1: VS-421 4x1 Video Audio Switcher 1 Produces glitch-free transitions when sources share a common reference sync 2 Switching occurs instantly KRAMER ELECTRONICS, LTD.
- Page 5 Connecting the Video Audio Switcher Table 1: Front Panel Features and Functions of the VS-421 4x1 Video Audio Switcher Feature Function POWER Switch Illuminated switch supplying power to the unit INPUT SELECTOR Buttons Select the video-audio source (from 1 to 4)
-
Page 6: Technical Specifications
Technical Specifications Technical Specifications Table 3: VS-421 4x1 Video Audio Switcher Technical Specifications Inputs: 4 composite video / SDI, 1Vpp / 75 , on BNCs 4 audio stereo (or balanced mono), +30 dBm typ. on RCAs Outputs: 1 composite video, 1Vpp / 75 on BNCs 1 audio stereo / balanced mono +30 dBm typ. - Page 7 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 8 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. 2900- 002032 Rev: 3 P/N: Kramer Electronics, Ltd.
