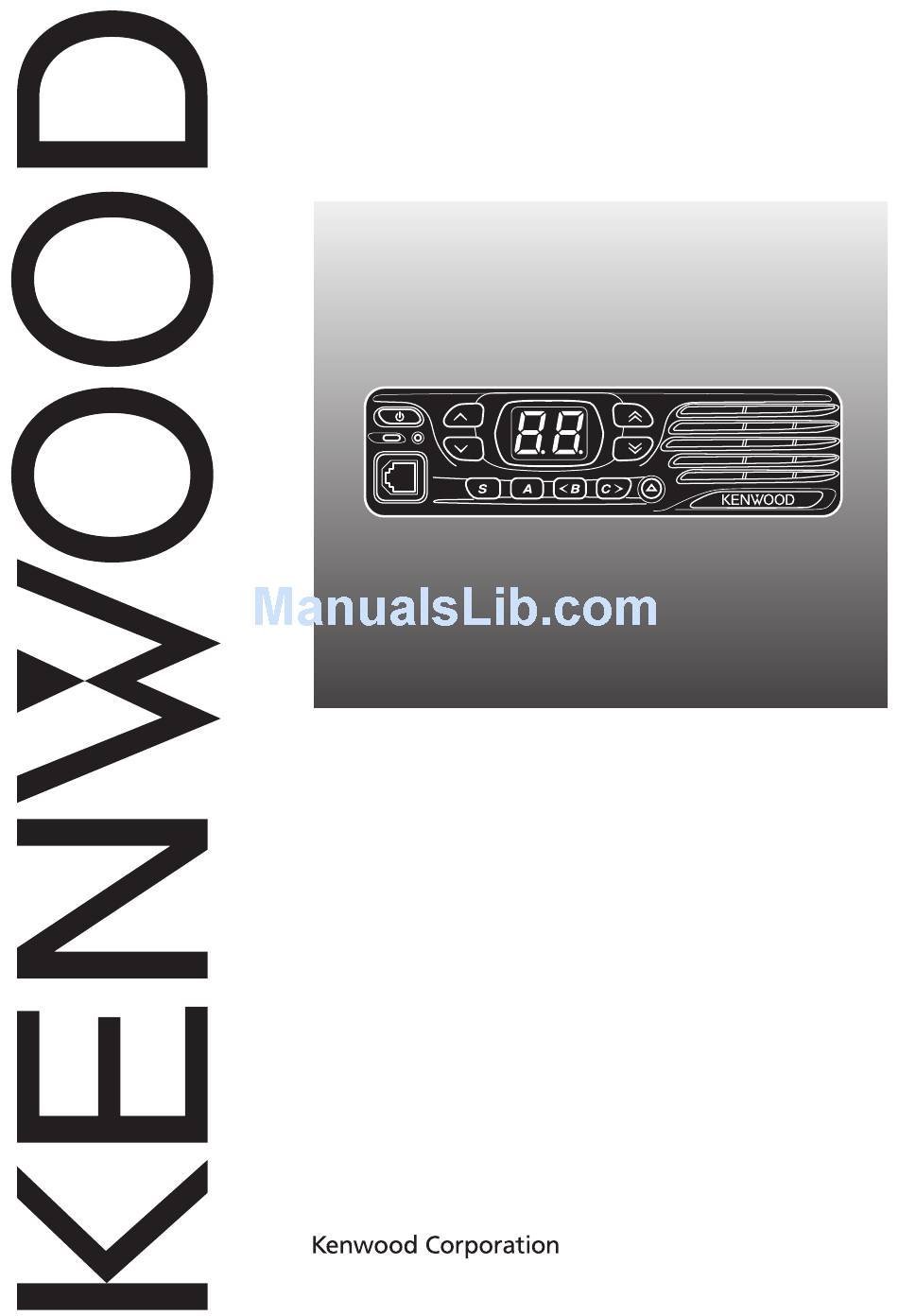

Page 1: Instruction Manual
TK-7302/ TK-8302 TK-7302H/ TK-8302H TK-7302HV/ TK-8302HU VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR FM VHF/ ÉMETTEUR-RÉCEPTEUR FM UHF MODE D’EMPLOI TRANSCEPTOR FM VHF/ TRANSCEPTOR FM UHF MANUAL DE INSTRUCCIONES © B62-2167-10 (K,K2) 09 08 07 06 05 04 03 02 01... - Page 3 VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER TK-7302/ TK-8302 TK-7302H/ TK-8302H TK-7302HV/ TK-8302HU INSTRUCTION MANUAL Firmware Copyrights The title to and ownership of copyrights for firmware embedded in Kenwood product memories are reserved for Kenwood Corporation.
- Page 4 Terminal Description ACC (D-SUB 15 Pin Connector) Pin NO. Pin Name Description Specification Notes DC Power Output 13.6 V ± 15 % Power ON: more than 8V Ignition signal Input Power OFF: less than 6V Loudspeaker Output 4 Ω Audio Output 500 mV p-p Audio Input 5 k Ω...
- Page 5 We are grateful you have chosen Kenwood for your personal moble applcatons. This instruction manual covers only the basic operations of your mobile radio. Ask your dealer for information on any customized features they may have added to your radio.
-
Page 6: Table Of Contents
◆ The transceiver operates in 12 v negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver. ◆ Use only the supplied DC power cable or a Kenwood optional DC power cable. ◆ Do not cut and/or remove the fuse holder on the DC power cable. -
Page 7: Getting Started
• KMC-35 (TK-7302/ TK-7302HV/ TK-8302/ TK-8302HU) ...... Microphone hanger (with 4 x 6 mm self-tapping screws) ....... Instruction manual . - Page 8 4 Coil the surplus cable and secure it with a retaining band. • Be sure to leave enough slack in the cables so the transceiver can be removed for servicing while keeping the power applied. n Installing the Transceiver For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set, so the transceiver will not break loose in the event of a collision.
-
Page 9: Getting Acquainted
GETTING ACQUAINTED ront anel ACC. ① (Power) switch Press to switch the transceiver ON or OFF. ② keys Press to activate their programmable functions {page 4}. ③ Display Refer to page 4. ④ keys Press to activate their programmable functions {page 4}. ⑤... -
Page 10: Programmable Functions
iSplAy The display shows the channel number and the 2 dots show various modes of operation. The left and right dots on the display can be programmed to indicate specific modes of operation, as listed below. • Scan Delete/Add • •... -
Page 11: Basic Operations
BASIC OPERATIONS on/ oFF witching ower Press to switch the transceiver ON. • A beep sounds and the display illuminates. • If the Transceiver Password function is programmed, “PS” will appear on the display when the power is turned ON. Refer to “Transceiver Password”, below. Press again to switch the transceiver OFF. -
Page 12: Scan
SCAN Scan monitors for signals on the transceiver channels. While scanning, the transceiver checks for a signal on each channel and only stops if a matching signal is present. To start/stop scanning, press the key programmed as Scan On/Off. • “Sc” appears on the display during Scan. •... -
Page 13: Dtmf Calls
eVert The Scan Revert channel is the channel selected when you press the PTT switch to transmit during scan. Your dealer can program one of the following types of Scan Revert channels: • Selected: The last channel selected before scan. •... -
Page 14: Signaling
This function is used when a transceiver is stolen or lost. When the transceiver receives a call containing a stun code, the transceiver becomes disabled. The stun code is cancelled when the transceiver receives a call with a revive code. •... -
Page 15: Fleetsync: Alphanumeric 2-Way Paging Function
FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION FleetSync is an Alphanumeric 2-way Paging Function and is a protocol owned by Kenwood Corporation. Note: If set up by your dealer, your transceiver may use the MDC-200 feature in place of FleetSync. MDC-200 and FleetSync cannot be operated simultaneously. -
Page 16: Advanced Operations
ADVANCED OPERATIONS mergency AllS If your transceiver has been programmed with the Emergency function, you can make emergency calls. 1 Press and hold the key programmed as Emergency. • Depending on the delay time programmed into your transceiver, the length of time you must hold the Emergency key will vary. -
Page 17: Squelch Level
When using an optional scrambler board, you can change the internal and external scrambler codes: 1 Press and hold the key programmed as Scrambler for 2 seconds. • “co” (code) appears on the display, followed by the current scrambler code. 2 Press <B and C>... -
Page 18: Background Operations
lert The Horn Alert function can only be used with an optional relay unit. Press the key programmed as Horn Alert to toggle the Horn Alert function ON or OFF. • “HA” appears on the display while Horn Alert is activated. BACKGROUND OPERATIONS (tot) imer...
