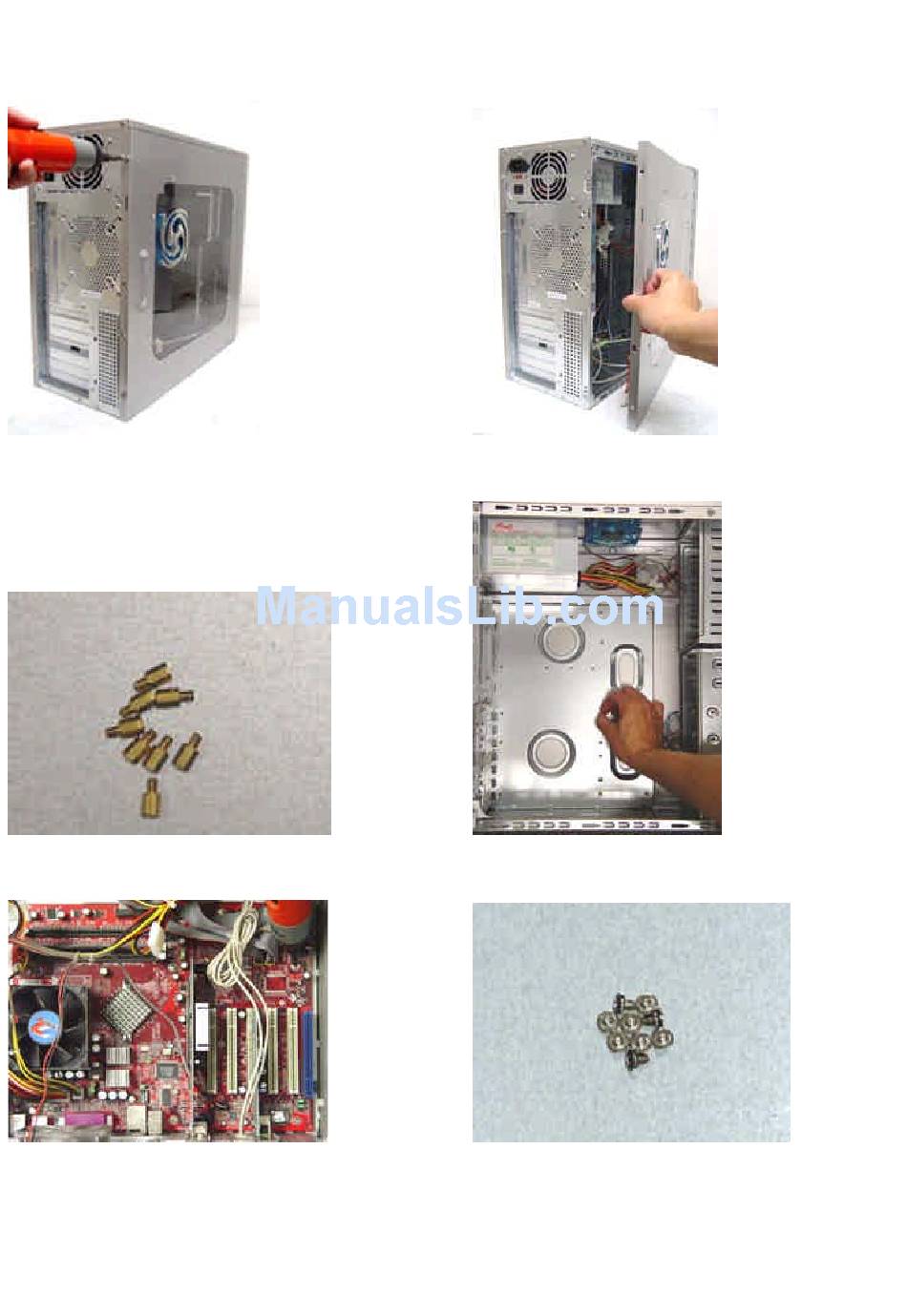

Rosewill R114A Case Installation Guide
1. Unscrew the Thrum Screws
from Side Panel.
3. Find the motherboard Stand-Offs from
enclosed Screw Box.
5. Sit the motherboard on the Motherboard Tray
2.Pull the Side Panel back then
pull out.
4. Put the motherboard Stand-Offs on
the motherboard tray.
6. Find Screws in the Screw Box
Advertisement
Table of Contents
Related Manuals for Rosewill R114A
Summary of Contents for Rosewill R114A
- Page 1 Rosewill R114A Case Installation Guide 1. Unscrew the Thrum Screws 2.Pull the Side Panel back then from Side Panel. pull out. 3. Find the motherboard Stand-Offs from 4. Put the motherboard Stand-Offs on enclosed Screw Box. the motherboard tray. 5. Sit the motherboard on the Motherboard Tray...
- Page 2 7. Screw in all the screws into the motherboard 8. Same as Step 7. Stand-Offs 9. Pull out the Front Panel from the bottom. 10. Install Case Fan in the front panel (Optional) You can put up to 2*80mm fans in the front. 11.
- Page 3 13. Secure the 5.25” drives with screws. 14. Slide in 3.5” FDD Drive and secure with screws 15. Install 3.5” hidden drives such as 16. Screw all 3.5” hidden drives with Hard Disk Drive, Zip Drive. Screws. 17. Snap in the Front Panel. 18.
- Page 4 19. Find the Audio Cables and bring them 20. Put the I/O slot back. through the I/O slot to outside of the back panel. 21. Screw the I/O slot back. 22. Connect Case Fans by linking together all 4-pin Female and Male connectors of all the case fans.
- Page 5 25. Find the 4-pin P4 connector from 26. Plug into your motherboard. Power Supply.(For Intel P4 M/B only) (For P4 Intel motherboard only) 27. Find 2*USB Cables.(USB1 & USB2) 28. Plug USB Cables to your motherboard. Please refer to your motherboard User’ s Manual. 29.
- Page 6 31. Find “ Power SW” and “ +P LED” “ -P LED” 32. Plug Audio Cables to your Sound Card Cables and plug onto your motherboard. or Motherboard. Please refer to motherboard User’ s Manual. 33. Find “ Case Speaker” from Screw Box 34.
