Summary of Contents for Rosewill FBM-06

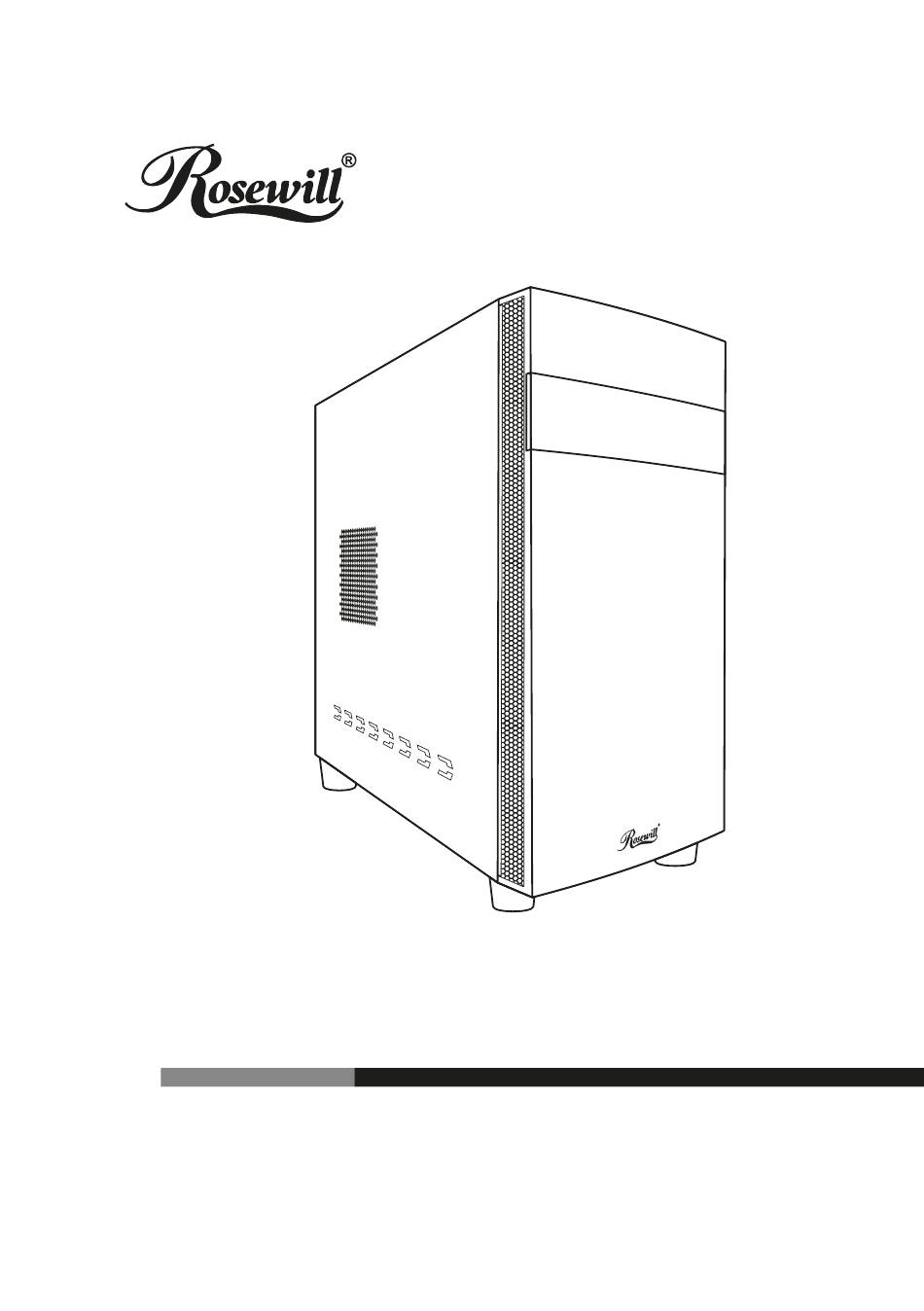

- Page 1 Computer Case FBM-06 User Manual...
-
Page 3: Table Of Contents
9. Options ............07 • Specifications Table ........... 08 Front I/O Cable Pinout ........09 Front I/O ............. 09 Thank you for purchasing a Rosewill Server Chassis. Please read the instruction manual before using and retain it for your future reference. -
Page 4: Product Overview
Computer Case FBM-06 Product Overview Disassembly Chart (Components vary by country) Cooling Fan Right Side Panel Left Side Panel Front Panel... -
Page 5: Dimensions
Computer Case FBM-06 Dimensions: 173 mm x 366 mm x 375 mm (W x H x D) Front View Right Side View 173 mm 375 mm Accessory Box Image Part Name Q'ty Function / Component Screw-A (6-32 x 6 mm) -
Page 6: Installation Guide
Computer Case FBM-06 Installation Guide 1. Open the Unit 1-1. Remove the thumb screws and take off the Panel R and L (Figure 1). 2. Install Power Supply 2-1. Put the power supply unit (PSU) at the top-rear of the case and secure with Screw-A (Figure 2). -
Page 7: Install Motherboard
Computer Case FBM-06 3. Install Motherboard 3-1. Secure the motherboard down with Screw-B (Figure 3). 4. Install Add-on Card 4-1. Bend to remove the slot covers (Figure 4a). 4-2. Install the add-on card and secure with Screw-A (Figure 4b). -
Page 8: Install 5.25" Drive
Computer Case FBM-06 5. Install 5.25” Drive 5-1. Pull from the bottom of the front panel to remove the panel. Push the slot cover out to make room for the drive bay. 5-2. Put back the front panel, and secure the 5.25” drive with Screw-B (Figure 5b). -
Page 9: Install 2.5" Drive
To prevent damage, keep all panels closed and secured. 8-1. Put the side panels back in place and secure with thumb screws. 9. Options 9-1. Additional Fan Installation The FBM-06 features ample space for adding additional cooling fans. Please refer to the Specifications Table for supported options. -
Page 10: Specifications Table
Computer Case FBM-06 Specifications Table Model Model Name FBM-06 Specs Type Mini Tower Color Black Case Material Steel/Plastic Power Supply Mounted Motherboard Compatibility Mini-ITX, Micro-ATX Expansion External 5.25” Drive Bays Internal 3.5" Drive Bays Internal 2.5" Drive Bays Expansion Slots Front Ports 1 x USB 3.0... -
Page 11: Front I/O Cable Pinout
Computer Case FBM-06 Front I/O Cable Pinout USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD AUDIO CONNECTOR Front I/O Diagram Speaker USB 2.0 Power USB 2.0 Mic. USB 3.0 Reset... - Page 12 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a quality Rosewill product. Please register your product at www.rosewill.com for complete warranty information and support for your product. FBM-06_B...
