Page 1: Operation Manual
Operation Manual Public Address Amplifier PCT-610/620... - Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Rear Panel ............................8 Connecting Speakers ........................11 FM Operation ..........................12 CD Operation ..........................13 Channel EQ SETUP ........................14 SETUP Mode ..........................15 Applications ..........................18 Block Diagrams ..........................19 Specifications ..........................20 Service Procedures............................21 Schematic .............................21 Parts List ............................21 Variations and Options .......................21 Warranty ............................21 PCT-610/620... -
Page 4: Unpacking
Unpacking Unpacking Although your PCT-610 / 620 is neither complicated nor difficult to operate, we recommend you to take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
- IR REMOCON (OPTION) The unit can be controlled by the remocon. Power on/off, volume up/down, CD, FM, etc can be controlled by the remocon. ACCESSORIES - One detachable AC power cord is provided for use with this product. - FM Antenna PCT-610/620... -
Page 6: Operation
'Window Media Technologies'. It provides same sound quality as the format of MP3 of 128Kbps with WMA of 64Kbps. In other words, it has the half file size compared with MP3 and provides same sound quality as MP3. PCT-610/620... -

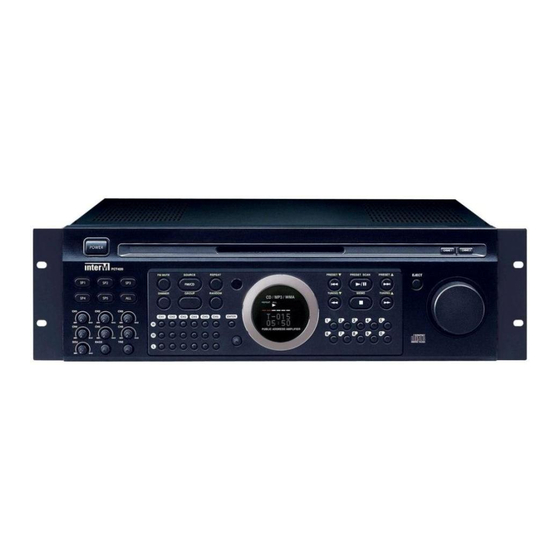

Page 7: Front Panel
2) FM / CD Select Button You can select the function CD or FM. 3) REPEAT Button Press this button to repeat a tract or all the tracks in CD function. 4) GROUP Button Press this button to select a folder in MP3 disk. PCT-610/620... - Page 8 11. CHANNEL VOLUME Controls the individual volume level of Mic Channels. 12. SOURCE VOLUME Controls the volume level of FM tuner or CD player. 13. TONE CONTROL Adjust Bass or Treble to cut(decrease) or boost(increase) the frequency of 100Hz or10kHz. PCT-610/620...
- Page 9 Please refer to the ‘CHANNEL EQ SETUP’ section (page 14) for details. 17. DISPLAY VFD (Vacuum Fluorescent Display) displays the state of the operation of the unit. 18. MASTER VOLUME Adjust the signal level of the post output and the speaker outputs. PCT-610/620...
-
Page 10: Rear Panel
Only high impedance terminals(speaker zone 1-5) can be controlled by the speaker selector on the front panel. Be sure, the total sum of output is 120W for PCT-610 and 240W for PCT-620. 4. RS-232C CONTROL The unit can be controlled by AMX or CRESTRON System with this RS-232C interface. - Page 11 UP/DOWN, Preset UP/DOWN. NOTE : Control Protocol Down Load Please download the control protocol at the inter-m site, www.inter-m.com support/download folder. 5. RE-05A TERMINAL The unit can be controlled by RM-05A. Using RM-05A, it is possible to control the speaker zone selection, to control chime and to make broadcasting at the remote place.
- Page 12 17. INPUT GAIN CONTROLS (TRIM VOLUME) These are trim volumes of each mic inputs to control the input gain. When adjusting the input gain, make sure that the levels are not set too high, or not it may cause noisy or distorted output. PCT-610/620...
-
Page 13: Connecting Speakers
HIGH IMPEDANCE SPEAKER INSTALLATION Total power sum of all zones (1~5) must not exceed the rated power. PCT-610 : 120W, PCT-620 : 240W Do not use 4Ω speaker terminal and high impedance speaker terminals (1~5) at the same time. Output 4Ω... -
Page 14: Fm Operation
- FM ANTENNA INSTALLATION Please find the position where the tuning quality is the best and fix the antenna. The tuning quality may be deteriorated in the place where metropolis, city, industrial complex, transmission tower, or power line. PCT-610/620... -
Page 15: Cd Operation
1. Group button can be used only the MP3CD has folders which were saved by a computer. 2. Press the GROUP button during playing. The VFD shows ‘GROUP’. Press the (SKIP) button then move to the next folder and then play. 3. Press the GROUP button to cancel the group function. PCT-610/620... -
Page 16: Channel Eq Setup
3. Adjust the tone volume to set it to -2dB. 4. Press the M of the CH1. 5. Adjust the tone volume to set it to 10dB. 6. Press the ENTER button to save and exit the EQ mode. Be sure the default EQ level is 0 dB. PCT-610/620... -
Page 17: Setup Mode
MIC 1, 2 Mute level, Tel-In volume, Chime volume, etc. Press the H button of the CH6, to exit the current setup function or setup mode. * DRP is option. EM TYPE, SETUP DRP is available when the DRP option is added. PCT-610/620... - Page 18 If you do not want to use the chime when you use the RM, you can disable the RM Chime in the setup mode. 7. KEY LOCK FUNCTION All the key inputs except Power button can be locked by the KEY LOCK function. Turn the volume, to choose 'KEY LOCK', Press ENTER, . Choose Lock or Unlock, Press ENTER, PCT-610/620...
- Page 19 EM terminal on the rear panel. 10. SYSTEM INFORMATION Choose SYSTEM INFO and press ‘ENTER’, . You can check the current firmware version. If you do not press any key for 10sec, then exit the setup mode. PCT-610/620...
-
Page 20: Applications
TIMER DISC INTRO TRACK INDEX INTRO 4 5 6 7 8 9 -SKIP-SEARCH STOP/CLEAR PLAY/PAUSE PP-9113 PRE AMPLIFIER POWER MIXER CHIME BASS TREBLE MIC 1 MIC 2 MIC 3 MIC 4 MIC 5 MIC 6 PHONO DECK TUNER MASTER PCT-610/620... -
Page 21: Block Diagrams
PUBLIC ADDRESS AMPLIFIER Block Diagrams Block Diagrams PCT-610/620... -
Page 22: Specifications
PUBLIC ADDRESS AMPLIFIER Specifications Specifications * 0dBV=1V PCT-610 PCT-620 AUX INPUT(AUX IN @1kHz, 4 Load Output) Ω Rated Output Power 120W 240W Input Sensitivity -10dBV/10k Ω S/N, AES-17 WTD ≤ -80dB Tone Control(BASS:100Hz, TREBLE:10kHz) ±10dB Frequency Response (1W Power Output, ±3dB) 90Hz-18kHz T.H.D. -
Page 23: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 24 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
