PROLiNK Hurricane 9000G Quick Installation Manual

Quick Installation Guide

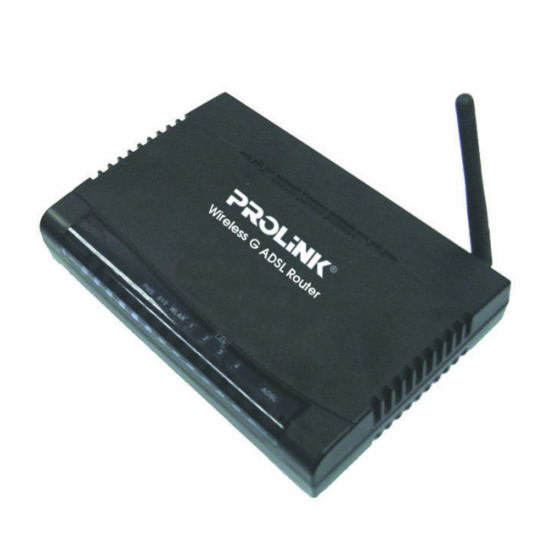

PROLiNK Hurricane 9000G
Wireless 802.11g ADSL Ethernet Modem Router
Minimum System Requirement
• Windows 98SE/ME/ 2000/XP
• MAC 9.x to 10.x
• 64 MB RAM for Win 98Se/ Me
• 128 MB RAM for Win 2K/ XP
• 64MB or 128MB RAM for Mac
• 4x speed CDROM Drive
• Ethernet Port (LAN Card)
Step 1 Hardware Connection
Telephone Wall
(optional) phone socket
Micro
Filter
H9000G
1.1 Ensure that the PC/Notebook & ADSL Modem are power off
1.2 Connect one end of the RJ45 (Ethernet) cable to the LAN port of the
computer.
1.3 Connect the other end of RJ45 cable to the ADSL Modem.
1.4 Connect one end of RJ11 (Telephone) cable to the ADSL port (marked
Line) on the ADSL Modem.
1.5 Connect the other end of RJ11 cable into the phone socket, which has
the ADSL service activated, or the ADSL port of a Micro-filter whichever
is applicable
1.6 Connect power adapter to the power socket.
1.7 PROLiNK WG1000 Wireless LAN adapter can be installed into your
notebook computer when you reach Step 3b
Step 2 Configuring the Computer / Notebook
Important! Before loading the Setup CD into the CDROM Drive, please ensure that
the PC's Network Card TCP/IP Properties and the Internet Browser proxy
are configured
It is also assumed that the computer/notebook has the Ethernet Network card
installed.
Note: In case you have static IP address and you need to use this value for other
network connections, make sure you write down the value first before changing
to Obtain an IP address automatically
2.1a Configure TCP/IP settings for Windows® 98SE / ME
• Windows Desktop > right click Network Neighborhood for Wins 98SE /
Network Places for Win ME > select Properties
• "Network" window > click the Configuration tab > scroll down to select
and double click TCP/IP > xxx where xxx refers to the model of the
Ethernet Network Card connected to the ADSL Ethernet Modem
• "TCP/IP Properties" window > select IP Address tab > select Obtain an IP
address automatically > click DNS Configuration tab > click Disable
DNS > click OK
Take note that the system prompts to Restart the Computer
2.1b Configure TCP/IP settings for Windows® 2000 / XP
• Windows Desktop > right click Network Places > select Properties
• "Network & Dial-Up Connection" window > click Local Area Connection
> scroll down to select and double click Internet Protocol TCP/IP
• "Internet Protocol (TCP/IP) Properties" > select Obtain an IP address
automatically > select Obtain DNS server address automatically > click
OK
2.2 Disable Proxy Settings
• Windows Desktop > right click Internet Explorer (IE) > click Properties
• "Internet Properties" window > click Connections tab > select Never dial a
connection > click LAN Settings...
• "Local Area Network (LAN) Settings" window > remove the tick for the
option for the Automatic configuration > remove the tick for option box for
Proxy server > click OK > click OK again to exit from "Internet Properties"
window
Revision 1.1
Package Contents
1. 1 x ADSL Ethernet Modem 802.11g
Router
2. 1 x RJ-45 straight cable
3. 1 x RJ-11 DSL cable
4. 1 x Power Adaptor
5. Setup CD
6. Quick Installation Guide
7. 2 x DSL Splitter (with Micro-filter)
Technical Support Information
Tel: (65) 6296 5455
9am--9pm (Mon--Fri)
9am--1pm (Sat)
Email: support@fida.com
Address:
Blk 105 Boon Keng Road #06-11/13
Kallang Basin Industrial Estate
Singapore 339776
Computer
Wireless LAN
adapter
Step 3
3a Through Ethernet LAN cable connection
a Switch on the H9000G
b Insert the H9000G Setup CD into the Computer's CDROM drive > click
Next...
c When the installation is finished, double-click on the PROLiNK H9000G
icon created on the desktop
d The Quick Start program launches
•
refer to your SingNet Broadband service letter and key in your
Username:
• click Save & Restart to complete the setup
e Click OK
f The internet browser will launch to SingNet's website
g if you are unable to access SingNet's webpage, please complete Step 4
3b Through Wireless LAN connection
(for PROLiNK WG1000 wireless LAN adapter users only)
Note: If you are not using PROLiNK WG1000 wireless PCMCIA LAN adapter, please
refer to your vendor for installation instructions
a Insert the wireless LAN adapter driver Setup CD into your notebook
computer > click on Install Driver & Utility > click Next > click Finish
Power
Adapter
b Insert your wireless LAN adapter into the PCMCIA (PC card) slot > click
Yes
c Switch on the H9000G
d Double-click the 802.11g WLAN Utility icon on your desktop
e Click Privacy tab > select WEP > click Select...
f Select 1 > key in the
g Click Apply
h Click Main tab > click Rescan > under SSID column: select
(where
> click OK
Configuring H9000G using Setup CD
yourusername@singnet and Password:
last 10 digits of the H9000G serial no
xxxxx is the last 5 digits of the H9000G serial no) > click Connect
********
> click OK
prolinkxxxxx
