The Model T25448/T25449 Dust Collector

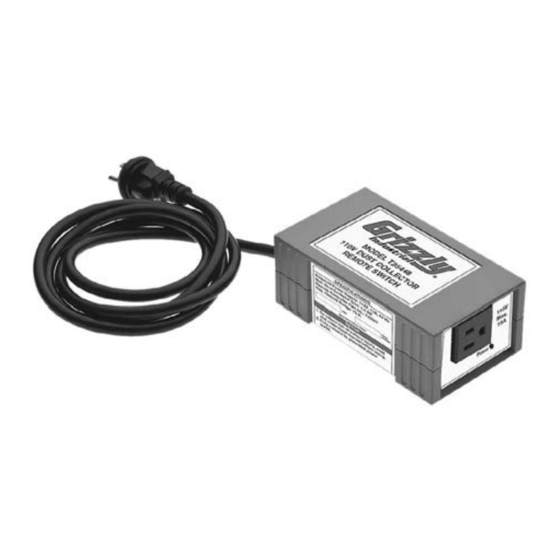

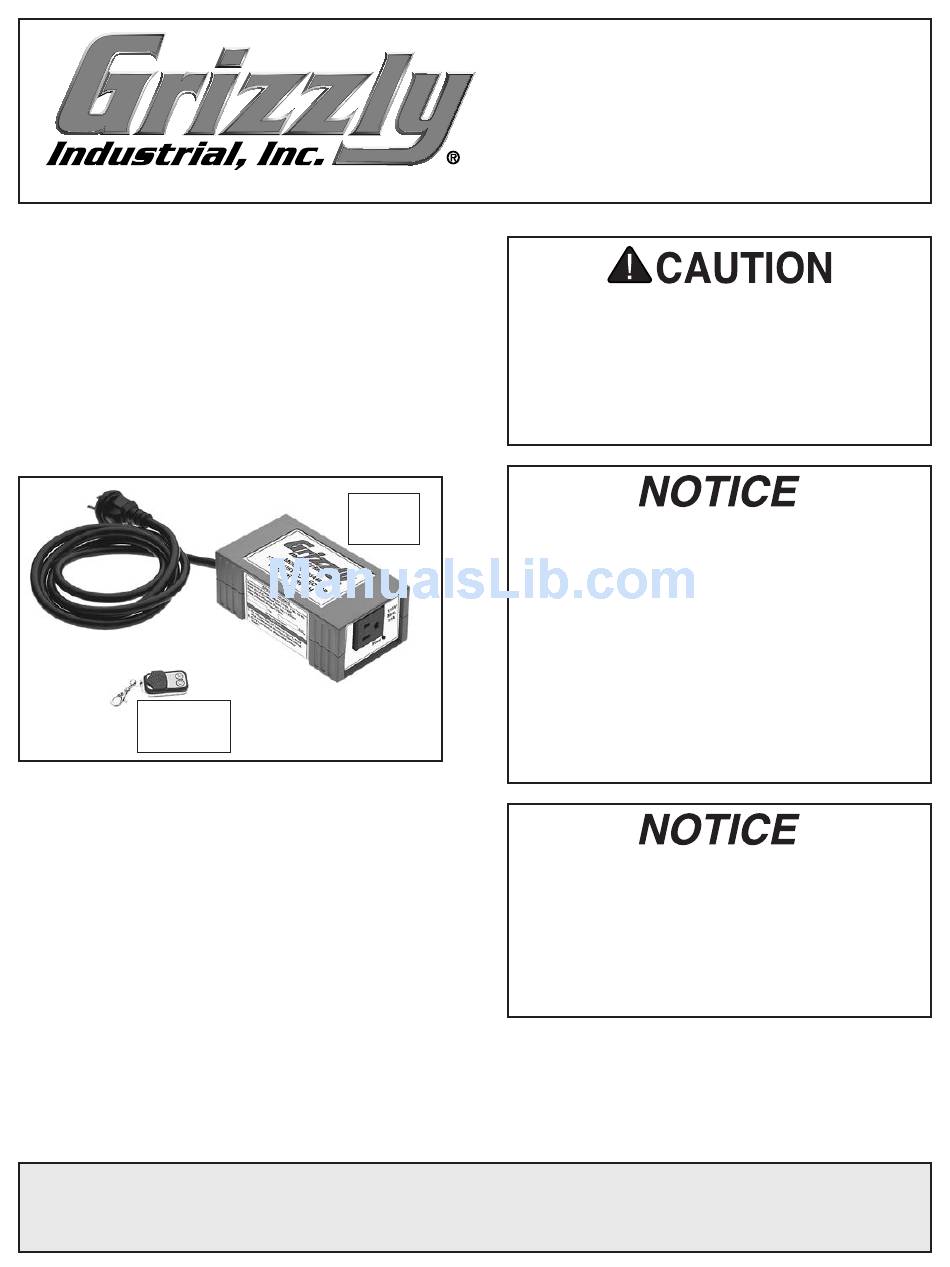

Remote Switch (Figure 1) allows you to remotely
turn a dust collector ON/OFF from a distance of
up to 75 feet.
Read and understand this entire document before
installation to make sure this switch box fits the
intended application.
Remote
Controller
Figure 1. Model T25448/T25449 remote switch
components.
Specifications
Model T25448:
Power Supply .................... 110V, 15a, 60 Hz
Outlet Type ................................. NeMa 5-15
Max. Dust Collector HP ..................... 1.5 HP
Model T25449:
Power Supply ................... 220V, 20a, 60 Hz
Outlet Type .................................NeMa 6-20
Max. Dust Collector HP ........................ 3 HP
Remote battery ..........................Type 23ae, 12V
Communication Type ........Radio Frequency (RF)
Max. Communication Distance ................... 75 ft.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
FOR MODeLS MaNuFaCTuReD SINCe 12/12 #TS15583 PRINTeD IN TaIwaN
Switch
box
COPYRIGHT © FebRuaRY, 2013 bY GRIZZLY INDuSTRIaL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
MODEL T25448/T25449
DUST COLLECTOR
REMOTE SWITCH
INSTRUCTIONS
To ensure safe operation:
• Only connect the switch box to power sup-
ply that meets the listed specifications.
• Do not connect the switch box to a dust
collector with a motor that exceeds the
listed specifications.
• This remote switch is ONLY designed to
be used on dust collectors with standard
ON/OFF toggle or push-button switches—
not with magnetic switches.
• If you are unsure about the type of dust
collector switch you have, contact the dust
collector manufacturer for more informa-
tion.
• Using this switch box for applications
other than dust collectors may cause the
unit to fail and will void the warranty.
Replacement remote controllers (Model
T25507) can be purchased by contacting
Grizzly at (800) 523-4777. Before the new
remote controller can be used, the switch
box must be programmed to work with it
(refer to Programming Switch Box on Page
2 for detailed instructions).
