Grizzly T26673 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T26673/T26674 Dust Collector Remote
Switch (Figure 1) allows you to remotely turn a
dust collector ON/OFF from a distance of up to
75 feet.
Read and understand this entire document before
installation to ensure that you understand how
to safely use it and that this switch box fits the
intended application.

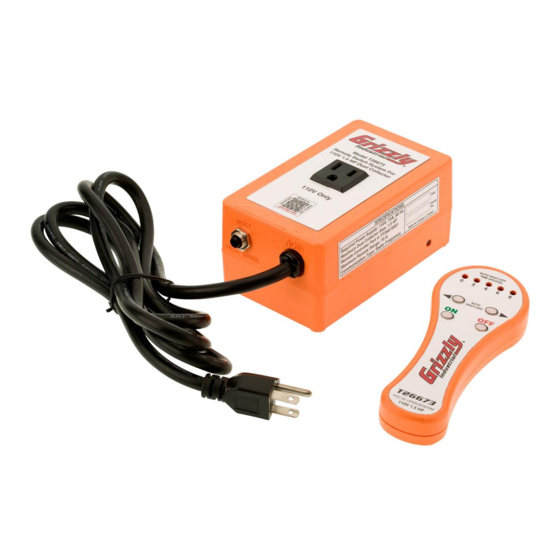

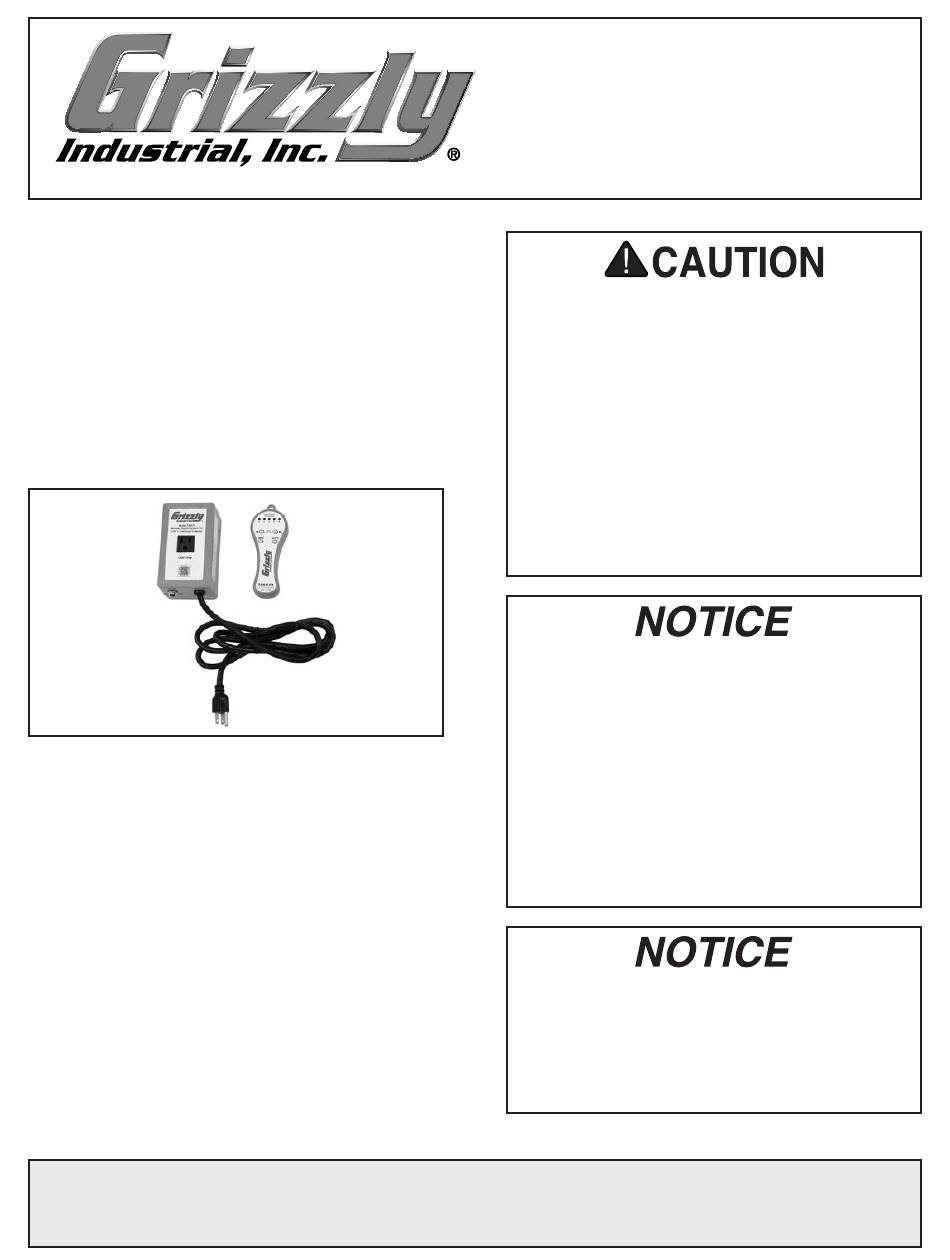

Figure 1. Model T26673/T26674 Dust Collector
Remote Switch components.
Specifications
Model T26673:
Required Power Supply .....120V, 15A, 60 Hz
Outlet Type ................................. NEMA 5-15
Max. Dust Collector HP ..................... 1.5 HP
Remote Controller Part # .........PT26673001
Model T26674:
Required Power Supply .... 240V, 20A, 60 Hz
Outlet Type .................................NEMA 6-20
Max. Dust Collector HP ........................ 3 HP
Remote Controller Part # ........ PT26674001
Remote Battery ............................................... 9V
Communication Type ........Radio Frequency (RF)
Max. Communication Distance ................... 75 ft.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
FOR MODELS MANUFACTURED SINCE 2/14 #MN16294 PRINTED IN TAIWAN
COPYRIGHT © APRIL, 2014 BY GRIZZLY INDUSTRIAL, INC.
MODEL T26673/T26674
DUST COLLECTOR
REMOTE SWITCH
INSTRUCTIONS
To ensure safe operation:
• Only connect switch box to power supply
that meets listed specifications.
• Do not connect switch box to dust collec-
tor with a motor that exceeds listed speci-
fications for horsepower or amperage.
• Never leave dust collector running while
unattended—even if timer has been set
to automatically shut it off. Wood dust is
highly flammable, and you must always be
present while the dust collector is running
to promptly respond in the event of a fire.
• This remote switch is ONLY designed
to be used on dust collectors that have
standard ON/OFF toggle or push-button
switches—not with magnetic switches.
• If you are unsure about the type of switch
your dust collector has, contact the dust
collector manufacturer for more informa-
tion.
• Do not use this switch box for applications
other than dust collectors, as it may cause
the unit to fail and will void the warranty.
• This remote switch features an automatic
shut-off that can be programmed for up
to 8 hours in 2-hour increments, allowing
the dust collector to remain in operation
while the operator is actively working in
the nearby area.
