Grizzly G8988 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
To reduce risk of serious burns, electrocu-
tion or death when installing this switch:
• Only use this switch to replace an existing
machine switch that has the same physi-
cal configuration and equivalent electrical
specifications/ratings.
• Installation must only be performed by an
electrician or qualified service personnel,
and all applicable electrical codes must
be adhered to.
• Turn off and completely disconnect all
power sources to the machine before
installing the switch.
• Do not use this switch in wet or damp
locations, or near explosive fumes or
flammable liquids. It is not sealed or rated
for these environments.
• Make sure there is a verified machine
ground on the circuit this switch is
installed.
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY bE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROvAL OF GRIzzLY INDUSTRIAL, INC.
Copyright © ApriL, 2011 By grizzLy industriAL, inC.
#ts13929 printed in ChinA
MODEL G8988
SAFETY PADDLE SWITCH
INSTRUCTIONS

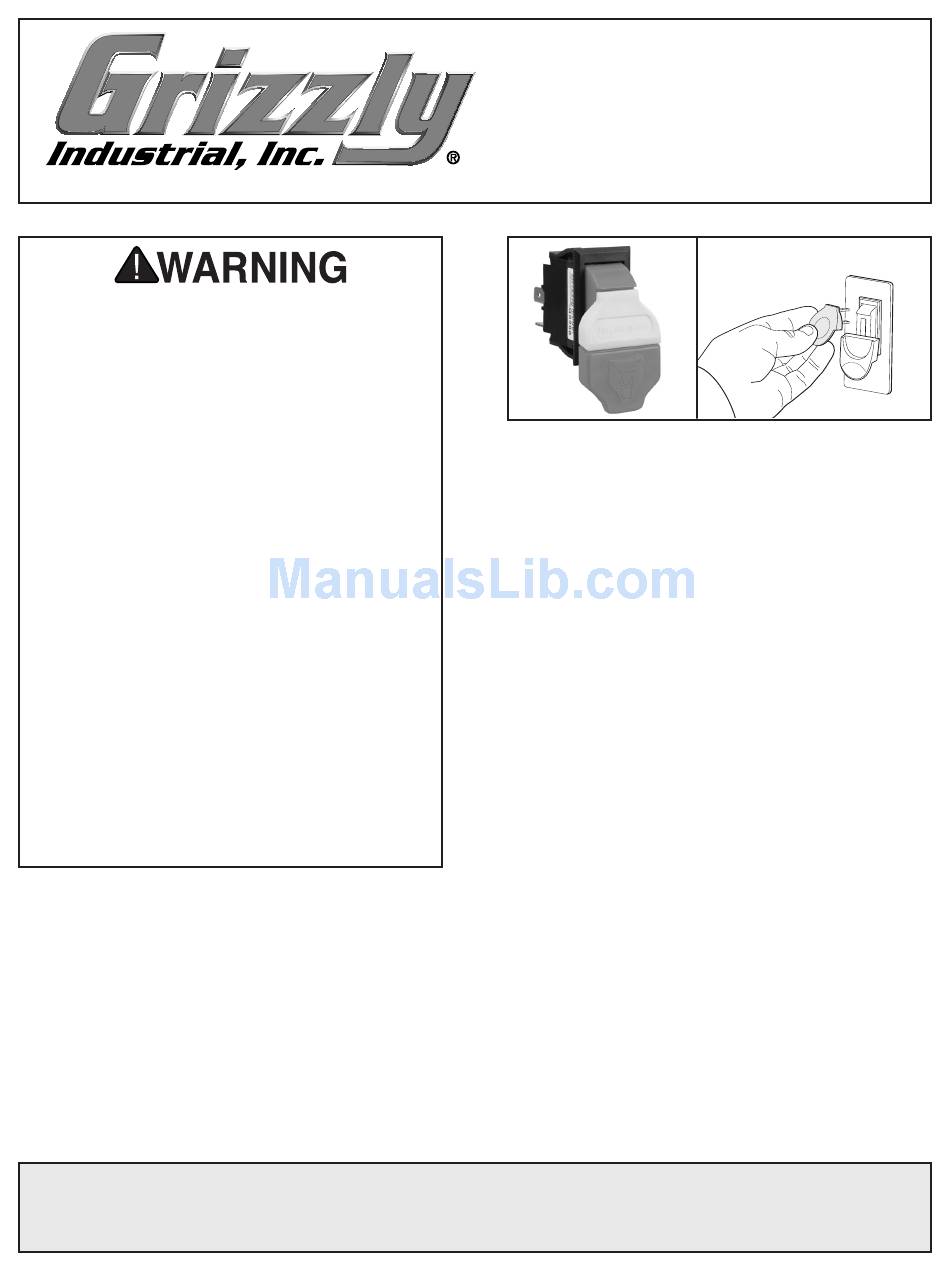

Figure 1. g8988 safety paddle switch.
Introduction
the Model g8988 features a large on/oFF pad-
dle with a removable safety key that can be used
to disable the switch. this switch is designed to fit
a ⁄ " x 1 ⁄ " rectangular hole.
7 5
8 8
Specifications
rated Voltage ..................................... 125V/250V
rated Current at 125V ................................... 16A
rated Current at 250V ................................... 10A
