For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33308/T33310 Dust Collector Remote
Switch (see Figure 1) allows you to remotely turn
a dust collector ON/OFF from a distance of up to
75 feet.
Read and understand this document before instal-
lation to ensure you understand how to safely use
the remote, and that this switch box fits the intend-
ed application.

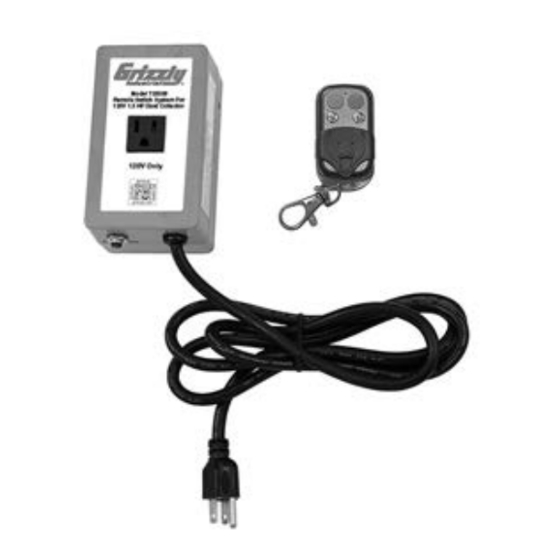

Figure 1. Model T33308/T33310 Dust Collector
Remote Switch components.
• This remote switch is ONLY designed to
be used on dust collectors with standard
ON/OFF toggle or push-button switches—
not those with magnetic switches.
• If you are unsure about the type of switch
your dust collector has, contact the dust
collector manufacturer for more information.
• Do not use this switch box for applications
other than dust collectors, as it may cause
the unit to fail and will void the warranty.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © APRIL, 2022 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 2/22) #MN22313 PRINTED IN TAIWAN
***Keep for Future Reference***
MODEL T33308/T33310
DUST COLLECTOR
REMOTE SWITCH
INSTRUCTIONS
Specifications
Model T33308:
Required Power Supply .....120V, 15A, 60 Hz
Outlet Type ................................. NEMA 5-15
Max. Dust Collector HP ..................... 1.5 HP
Replacement Remote Control .......... T33309
Model T33310:
Required Power Supply .... 240V, 20A, 60 Hz
Outlet Type .................................NEMA 6-20
Max. Dust Collector HP ........................ 3 HP
Replacement Remote Control ...........T33311
Remote Battery ......................................A27 12V
Communication Type ........Radio Frequency (RF)
Max. Communication Distance ................... 75 ft.
To ensure safe operation:
• Only connect switch box to power supply
that meets listed specifications.
• Do not connect switch box to dust collec-
tor with a motor that exceeds listed speci-
fications for horsepower or amperage.
• Never leave dust collector running while
unattended. Wood dust is highly flamma-
ble, and you must always be present while
the dust collector is running to promptly
respond in the event of a fire.
V2.03.22
V1.04.22
Advertisement
Table of Contents
Related Manuals for Grizzly T33308
Summary of Contents for Grizzly T33308
- Page 1 MODEL T33308/T33310 DUST COLLECTOR REMOTE SWITCH INSTRUCTIONS For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction Specifications Model T33308: The Model T33308/T33310 Dust Collector Remote Switch (see Figure 1) allows you to remotely turn Required Power Supply ..120V, 15A, 60 Hz...
- Page 2 Figure 3. NEMA 6-20 plug and receptacle for Model T33310. Make sure dust collector ON/OFF switch is in OFF position, then plug dust collector into switch box. Model T33308/T33310 (Mfd. Since 02/22)
- Page 3 Remote control is now programmed. control. Note: If green button is not pressed within three to five seconds, you will hear three beeps. Remote control is not programmed. Return to Step 1 and begin again. Model T33308/T33310 (Mfd. Since 02/22)
- Page 4 4. Power supply circuit breaker tripped or fuse 4. Ensure circuit is free of shorts. Reset circuit breaker blown. or replace fuse. 5. Dust collector at fault. 5. Refer to dust collector manual for troubleshooting; contact dust collector manufacturer for help. Model T33308/T33310 (Mfd. Since 02/22)
