LCD BacPac
™
User ManUal + Warranty Info

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD BacPac and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GoPro LCD BacPac

Summary of Contents for GoPro LCD BacPac

  • Page 1 LCD BacPac ™ User ManUal + Warranty Info...

  • Page 2: Firmware Update

    4). If the LCD screen powers on, you have the latest firmware and no update is needed. • If the LCD BacPac does not power on, then you will need to download and install the latest firmware for your camera at: gopro.com/firmware.

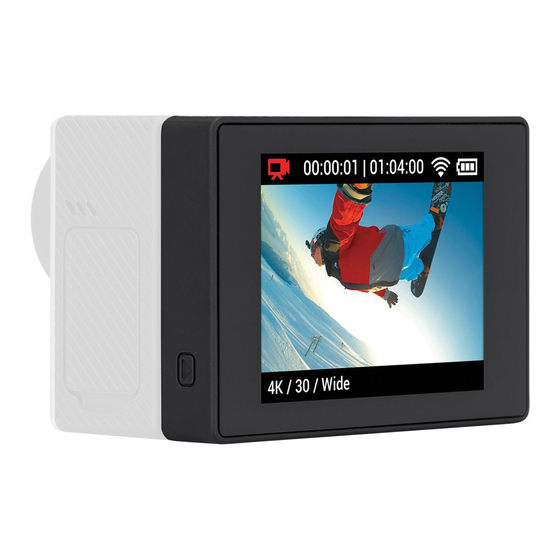

  • Page 3 lCd BaCpaC featUres 1. Seamlessly attaches to the back of HD HERO cameras. 2. LCD screen allows for easy visual control of camera and settings. 3. Fast forward + fast rewind photos and video. 4. Integrated speaker for sound.
  • Page 4 asseMBlInG yoUr lCd sCreen to Hd Hero AttAChing LCD BACPAC to hD hERo 1. Slide hooked end of the BacPac (A) into the groove on the right side of the camera body (B). 2. Push BacPac connector (C) into the HERO Bus port (D) on the back of the camera.
  • Page 5 SwAPPing houSing DooRS To secure the HD HERO & LCD BacPac assembly into the housing, you will need to replace the standard back door with one of the included extended back doors. A total of 4 doors are supplied with the LCD BacPac; 2 waterproof doors (standard + wrist housing models) and 2 non-waterproof doors (standard and wrist housing models).
  • Page 6 UsInG tHe lCd BaCpaC The camera’s default setting keeps the LCD screen powered on. Below are options to change how the LCD powers off. CAmERA SEt mEnu oPtionS — LCo AnD LCf Check Page 2, section “Firmware Update”, to ensure your camera has the necessary firmware update for your LCD screen.

  • Page 7: Playback Photos

    ADjuSt LCD SCREEn BRightnESS 1. Press and hold LCD button for 2 seconds to enter LCD menu. 2. Press power/mode button twice to highlight ‘BRIGHTNESS’ menu button. 3. Press shutter button repeatedly to adjust brightness. PLAyBACk PhotoS 1. Press and hold LCD button for 2 seconds to enter LCD menu.

  • Page 8: Playback Videos

    PLAyBACk viDEoS 1. Press and hold LCD button to enter LCD menu. 2. ‘VIDEO’ should already be highlighted. 3. Press shutter button and the first recorded video will automatically start playing. 4. During video playback, press and HOLD the power/mode button to Fast Forward the video playback.

  • Page 9: Important Safety And Handling Information

    IMportant safety and HandlInG InforMatIon WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to the LCD BacPac or other property. hAnDLing The LCD BacPac contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into the LCD BacPac.
  • Page 10 AvoiDing wAtER AnD wEt EnviRonmEntS whEn not in houSing When not protected in the waterhousing, do not use the LCD BacPac in rain, or near washbasins or other wet locations. Take care not to spill any food or liquid on the LCD BacPac. In case the LCD BacPac gets wet, turn off and unplug from camera before cleaning, and allow it to dry thoroughly before using again.

  • Page 11: Warranty

    GoPro assumes no liability for any accident, injury, death, loss, or other claim related to or re- sulting from the use of this product. In no event shall GoPro be liable for incidental or consequential damages relating to or resulting from the use of this product or any of its parts.
  • Page 12 Learn about more GoPro products gopro.com aM-Woo-lCd-0C please recycle...
