  • Page 1 Battery BacPac ™ User ManUal + Warranty Info...

  • Page 2: Firmware Update

    If no “2” symbol appears next to the battery power icon, then you will need to download and install the latest firmware for your camera at: gopro.com/firmware.

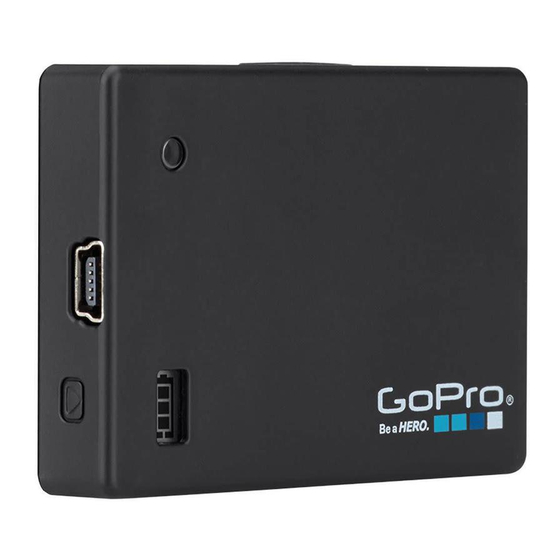

  • Page 3 1. The Battery BacPac attaches to the back of the HD HERO camera providing double* battery life. 2. Your Battery BacPac can also function as a stand- alone USB charger for GoPro Li-ion Batteries. 3. The Battery BacPac plugs into any USB charging source (computer, wall, auto charger) to charge your battery.
  • Page 4 asseMblInG bacpac to yoUr Hd Hero AttAching BAcPAc to hD hERo 1. Slide hooked end of the BacPac (A) into the groove on the right side of the camera body (B). 2. Push BacPac connector (C) into the HERO Bus port (D) on the back of the camera.
  • Page 5 insERting/REmoving Li-ion BAttERy fRom BAcPAc 1. Remove battery door from the BacPac. 2. To remove the battery, pinch the sides of the battery with your fingers and pull outwards to remove. 3. To insert the battery, align battery as illustrated and push into place.
  • Page 6 swAPPing housing DooRs To insert the HD HERO & Battery BacPac assembly into the housing, you will need to replace the standard back door with one of the included back doors. A total of 2 doors are supplied for the Battery BacPac: 1 Waterproof Door and 1 Skeleton Door (non-waterproof).
  • Page 7 UsInG tHe battery bacpac The camera’s LCD display will display “2” next to the battery level icon to indicate that the Battery BacPac is attached and recognized by the camera (see page 1 for an example). When the camera is in use with the Battery BacPac connected, the camera will automatically use power from the BacPac battery first, and then switch to the camera battery for power once the BacPac battery...
  • Page 8 chARging thE BAttERy in thE BAcPAc 1. Connect the BacPac to a computer or any USB compatible wall or car charger such as a phone charger, etc. with the included USB cable. 2. The red LED will illuminate on the BacPac to indicate charging.

  • Page 9: Important Safety And Handling Information

    IMportant safety and HandlInG InforMatIon wARning: failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to the Battery BacPac or other property. hAnDLing The Battery BacPac contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into the Battery BacPac.

  • Page 10: Warranty

    GoPro’s sole obligation in the event of such defects during this period is to repair or replace the defective part or product with a comparable part or product at GoPro’s sole discretion. Except for such replacement, the sale, or other handling of this product is without warranty, condition or other liability even though the defect or loss is caused by negligence or other fault.
  • Page 11 Learn about more GoPro products gopro.com please recycle aM-Woo-batt-0b...
